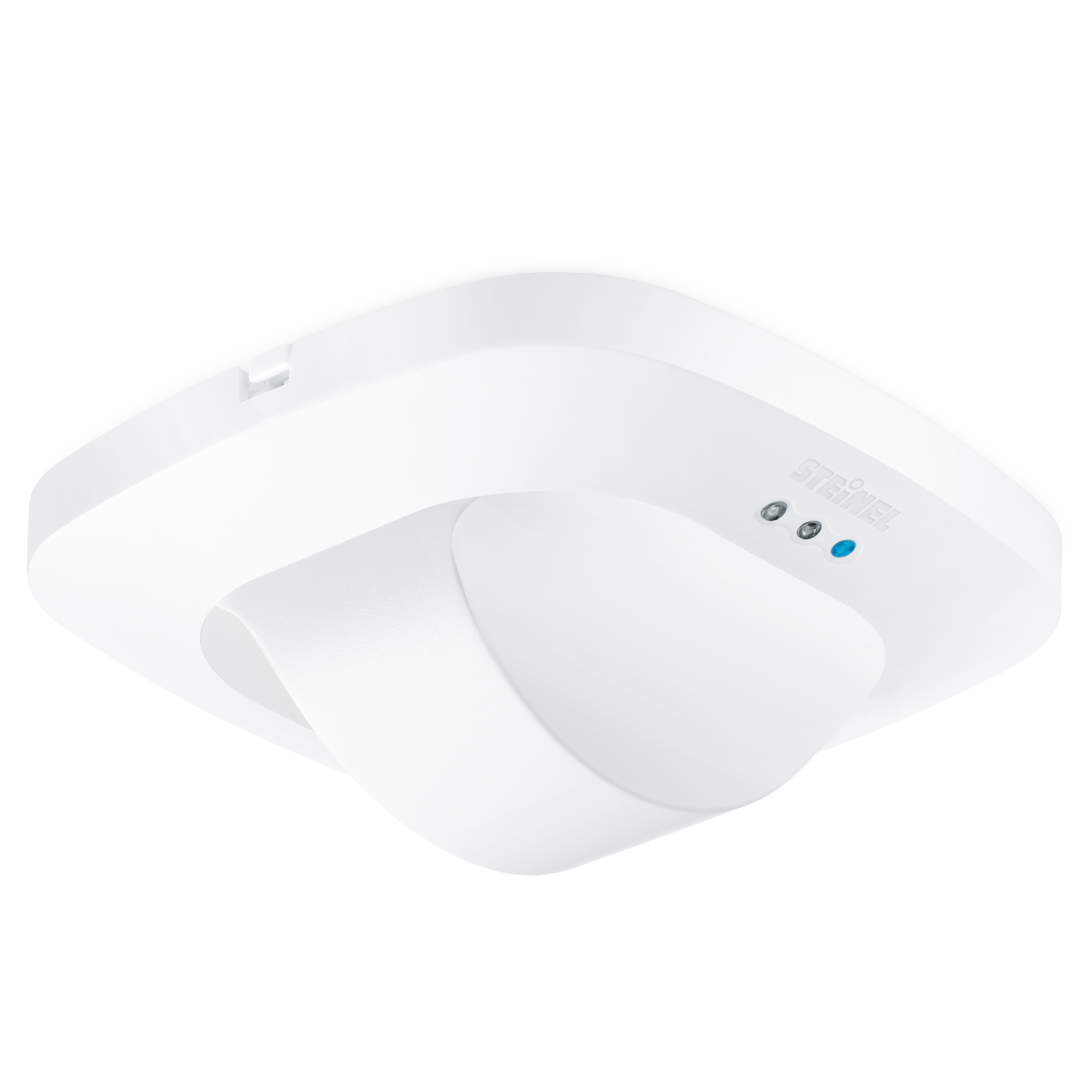

Nevalux Dual HF LiveLink

ELDAS® no. 535 930 507

EAN-No. 4007841 009700

This product is being replaced by a successor product.

Go to successor product · Dual HF DALI-2 Input Device - concealed (057459)

Twice as vigilant. High-frequency corridor sensor Presence Control PRO DUAL HF LiveLink for indoors, ideal for passageways and long corridors, installation height up to 3.5 m, with digital DALI interface for integration into the LiveLink system, DUAL-HF technology for radial detection of 20 m in two directions, detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls, switches light 'ON' almost instantly.

Optional surface-mounting adapter
Optional guard cage
HF ceiling adapter for installation in suspended ceilings
Settings via LiveLink app

Identification

Variant LiveLink

Version Presence detector

Model LiveLink

Dimensions

Dimensions L × W × H 120 x 120 x 55 mm

Electrical

Mains connection 230 V, 50 / 60 Hz

Livelink values Light level, Motion detection

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Radial range 20 x 3 m (60 m²)

Tangential range 20 x 3 m (60 m²)

Mounting height 2,50 – 3,50 m

Optimal mounting height 2,8 m

Connectivity

Number of DALI participants 8

With bus coupler Yes

Lighting technology

Constant light regulation No

Settings

Twilight setting 10 – 1000 lx

Time setting 30 sec – 60 min

Base light function No

Settings via LiveLink app

With remote control No

Twilight setting teach Yes

Housing & material

Ambient temperature -25 – 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room corridor, aisle

Data sheet User manual

Surface-mounted adapter Control Pro IP54 white

Item no. 000363

Control PRO guard cage

Item no. 003036

HF-ceiling adapter

Item no. 006600

Remote control Smart Remote

Item no. 009151
