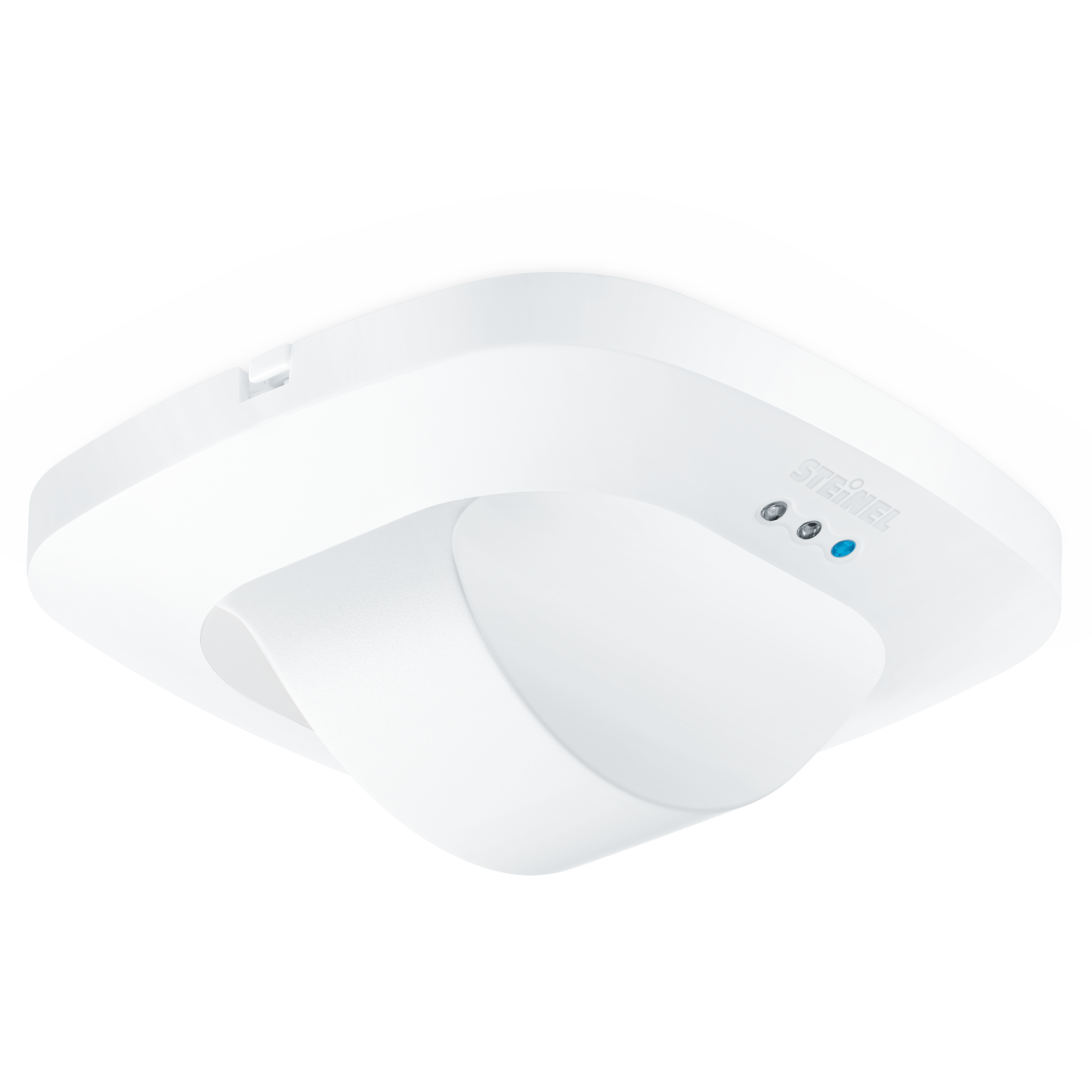

Steinel Dual HF DALI-2 Input Device - concealed

Presence detector for long corridors. Two HF sensors cover 20 m in walking direction.

ELDAS® no. 535 932 000

EAN-No. 4007841 057459

Price: Please log in to see prices

Mounting type

Concealed mounting

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX

The Dual HF corridor sensor works with high-frequency technology that's particularly advanced. The system is fitted with 2 sensors, with each covering one corridor direction. Both of them together cover a good 20 metres in walking direction - for complete and reliable detection without blind spots. Tangential reach is deliberately limited to corridor width so as to avoid detecting movements behind closed doors, for instance.

Identification

Version Presence detector

Variants

Version DALI-2 Input Device

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 74 x 120 x 120 mm

Electrical

Mains connection 12 – 22,5 V

Supply voltage detail DALI bus

Switching output 2 potential-free No

Control output DALI Addressable / slave

Sensor technology

Max. mounting height 3,50 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °, Corridor

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 20 x 3 m (60 m²)

Tangential range 20 x 3 m (60 m²)

Mounting height 2,5 – 3,5 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

Number of DALI participants 7

With bus coupler Yes

Networking via DALI 2

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature -25...+55 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, corridor / aisle

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

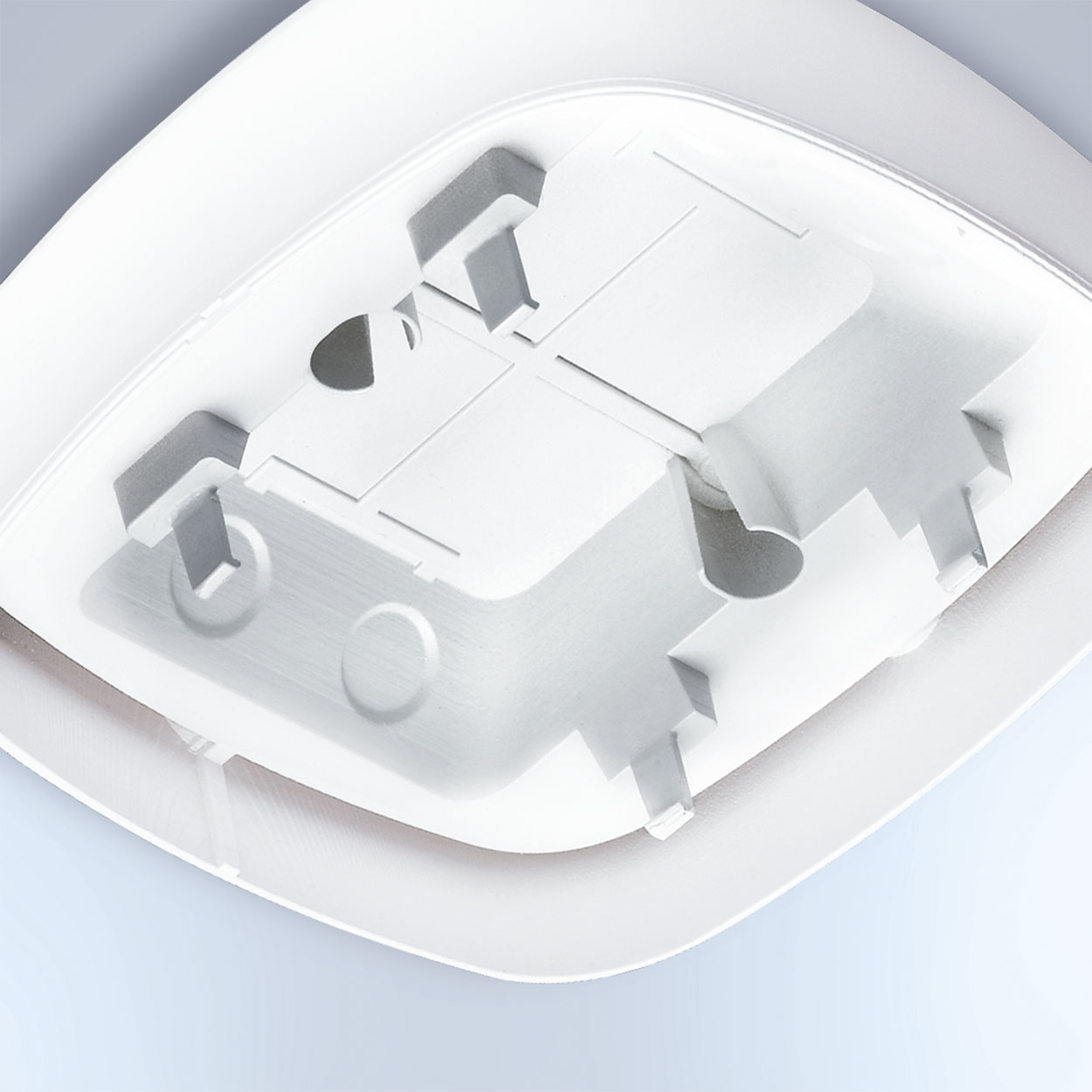

Optional surface-mounting adapter

Optional guard cage

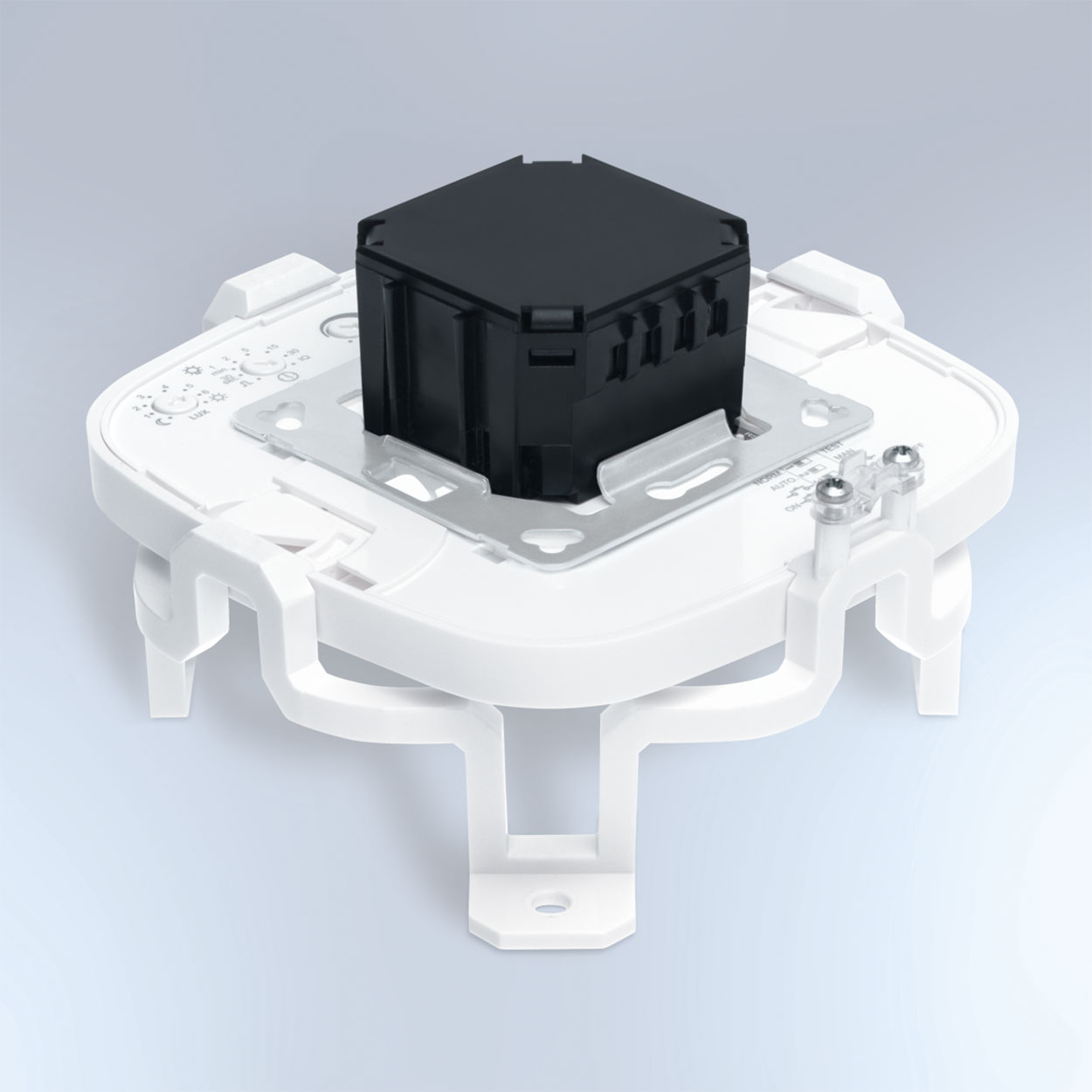

HF ceiling adapter for installation in suspended ceilings

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity
