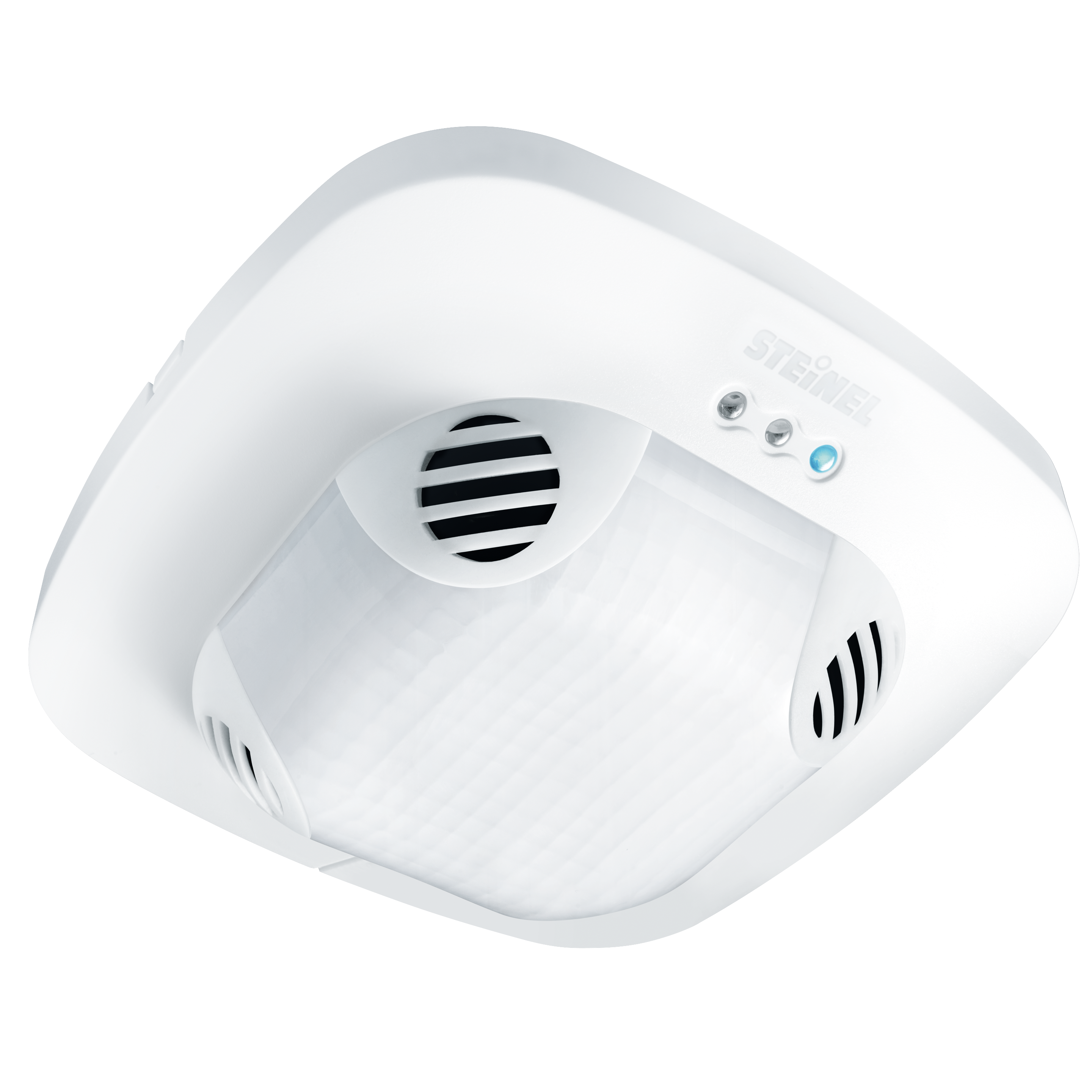

Nevalux DualTech KNX

ELDAS® no. 535 931 808

EAN-No. 4007841 029494

This product is being replaced by a successor product.

Go to successor product · DualTech KNX - Concealed wiring (059521)

The best of both worlds. Combined in one detector. Ultrasonic presence detector DualTech KNX, ideal for offices, conference rooms and class rooms. 36 sq.m. presence zone, ultrasonic technology provides reliable detection behind objects regardless of temperature, additional detection capability with PIR technology, electronic adjustment for ultrasonic reach, with digital BUS interface for controlling 4 lighting channels and HVAC.

Optional remote controls
Optional surface-mounting adapter
Optional guard cage

Identification

Variant KNX

Version Presence detector

Model KNX

Dimensions

Dimensions L × W × H 68 x 120 x 120 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Sensor technology Ultrasonic

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Radial range Ultrasonic: Ø 10 m (79 m²)

Tangential range Ultrasonic: Ø 10 m (79 m²)

Mounting height 2,50 – 3,50 m

Presence range Ultrasonic: Ø 6 m (28 m²)

Sensor technology 2 passive infrared

Radial range 2 passive infrared: Ø 4 m (13 m²)

Tangential range 2 passive infrared: Ø 8 m (50 m²)

Presence range 2 passive infrared: Ø 4 m (13 m²)

US technology 40 kHz

Optimal mounting height 2,8 m

Connectivity

KNX functions Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output

With bus coupler Yes

Settings

Twilight setting 10 – 1000 lx

Time setting 60 sec – 255 min

Settings via ETS software, Remote control, Bus

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -25 – 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room One-person office, classroom, Open-plan office

Data sheet User manual

Clamping-type ceiling adapter Control PRO UP Box

Item no. 4007841002855

Control PRO guard cage

Item no. 003036

User remote control RC7 KNX

Item no. 592912

Service remote control RC6 KNX

Item no. 4007841593018

Surface-mounted adapter Control Pro IP54 white

Item no. 000363

Remote control Smart Remote

Item no. 009151
