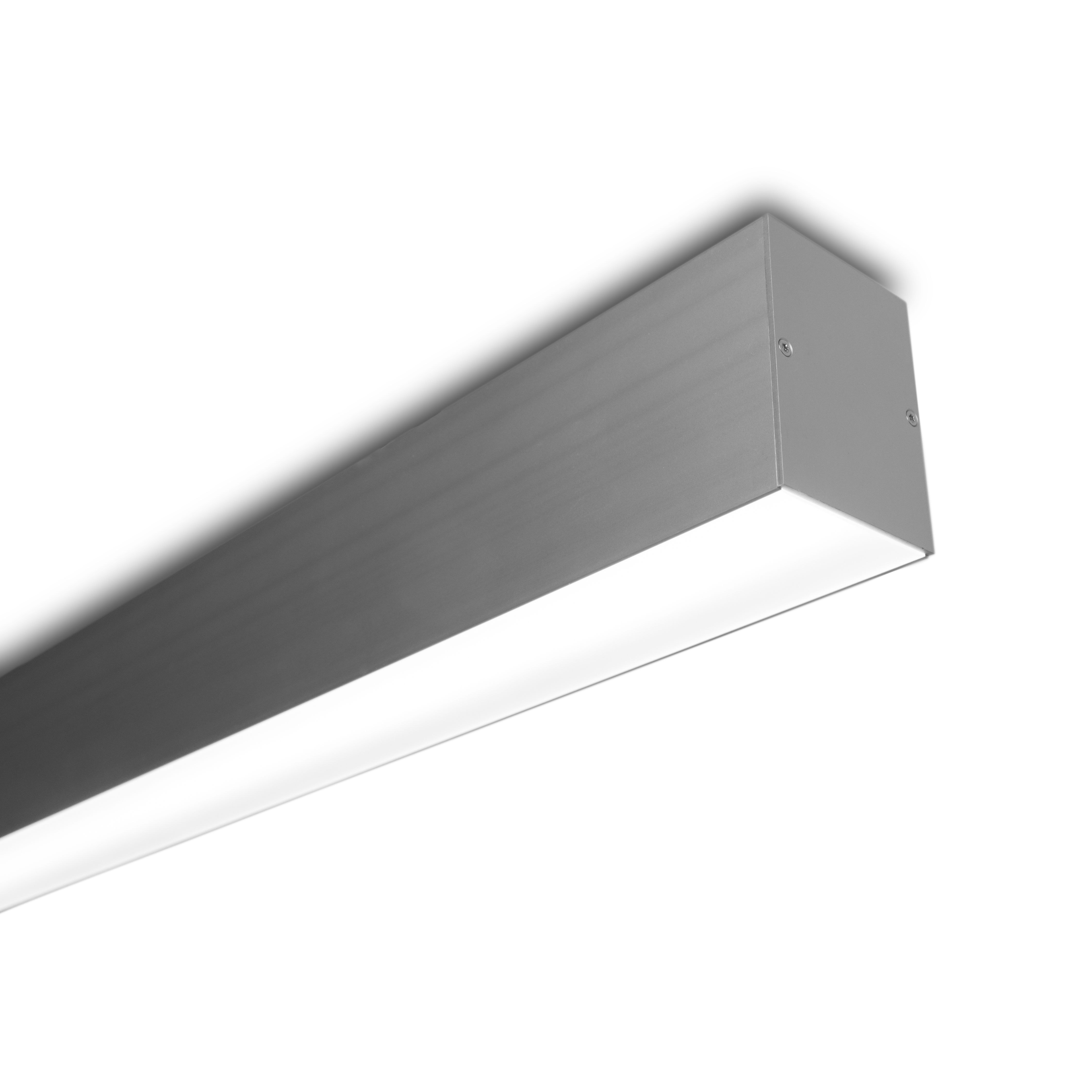

Nevalux elani C1500 3K
Product code 221131
Price: Please log in to see prices
Light colour
Version
Colour
Aluminium
white
- For universal use for lighting offices, schools, traffic zones etc.
- Dimmable DALI
- Variants with 1.5, 2.4 and 3.14 meter length available
- Housing Anodised aluminium
- Swiss Made
Variants
Luminous flux
4200 lm
Dimensions
Dimensions L × W × H
1500 x 60 x 80 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
37,5 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
Yes, LED-System
Luminous flux
4200 lm
Beam angle
105°
Luminaire luminous efficacy
112 lm/W
Glare value
UGR < 24
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
-20...45 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Mounting type
Ceiling / wall surface-mounted
Colour
Aluminium
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

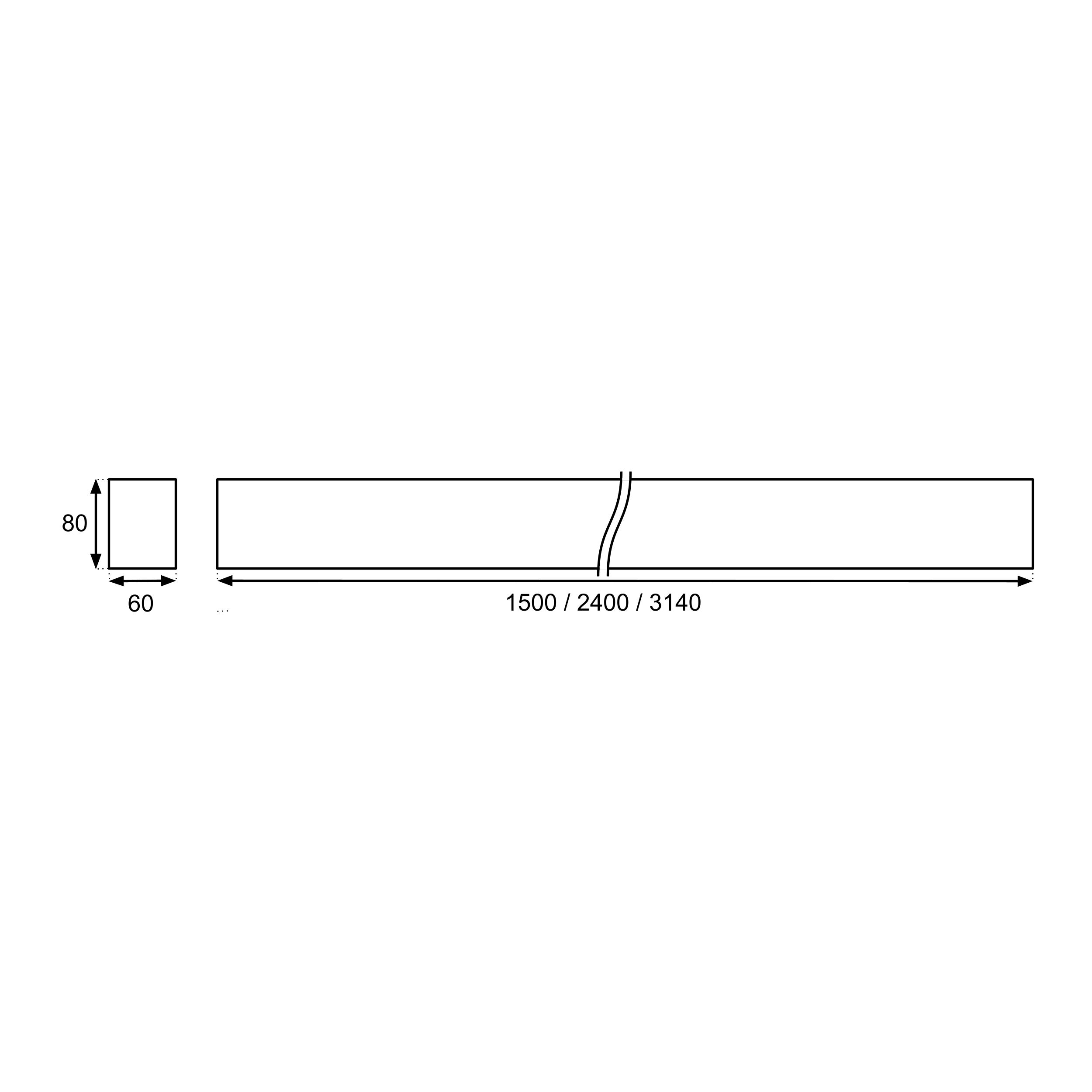

Technical drawing

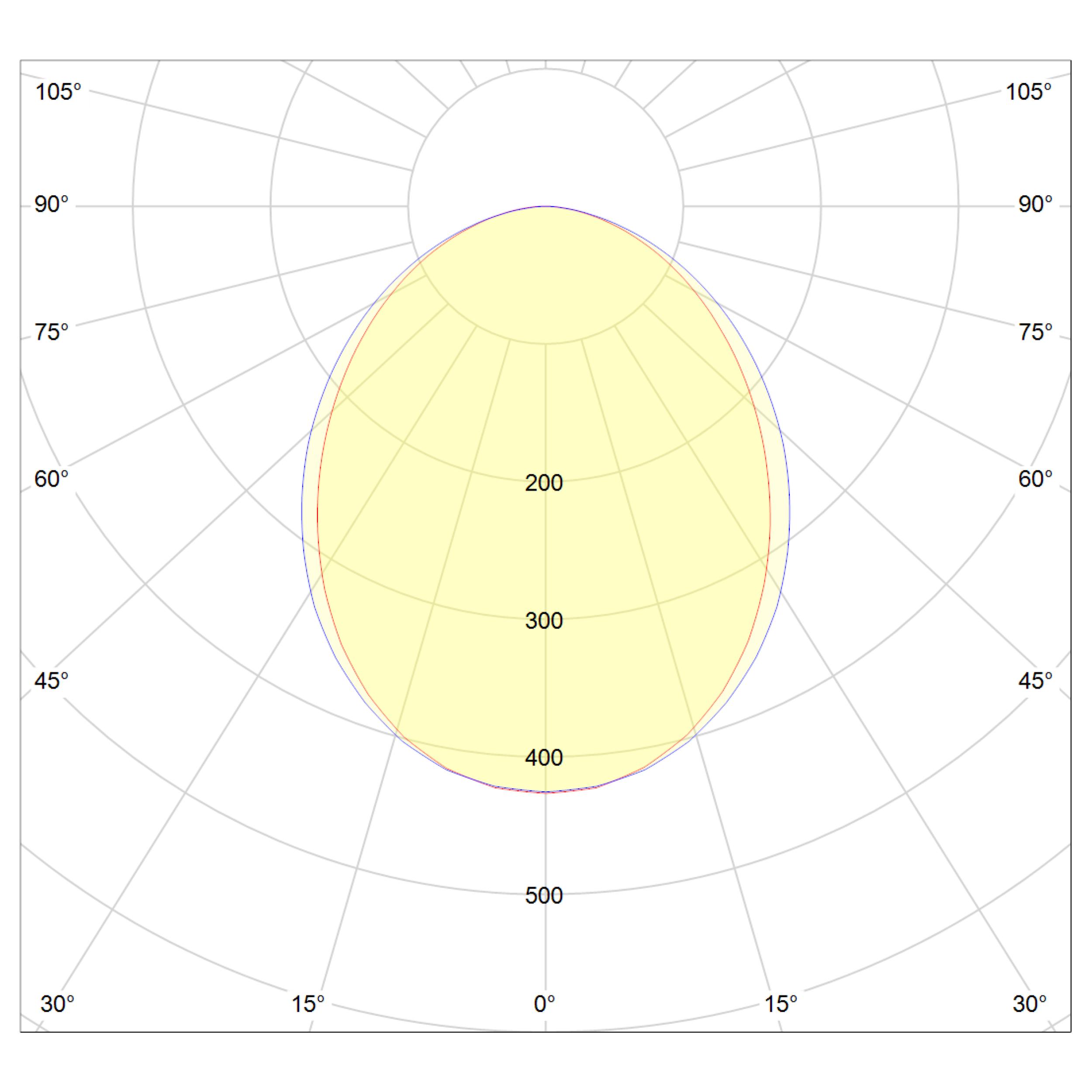

Lichtverteilungskurve

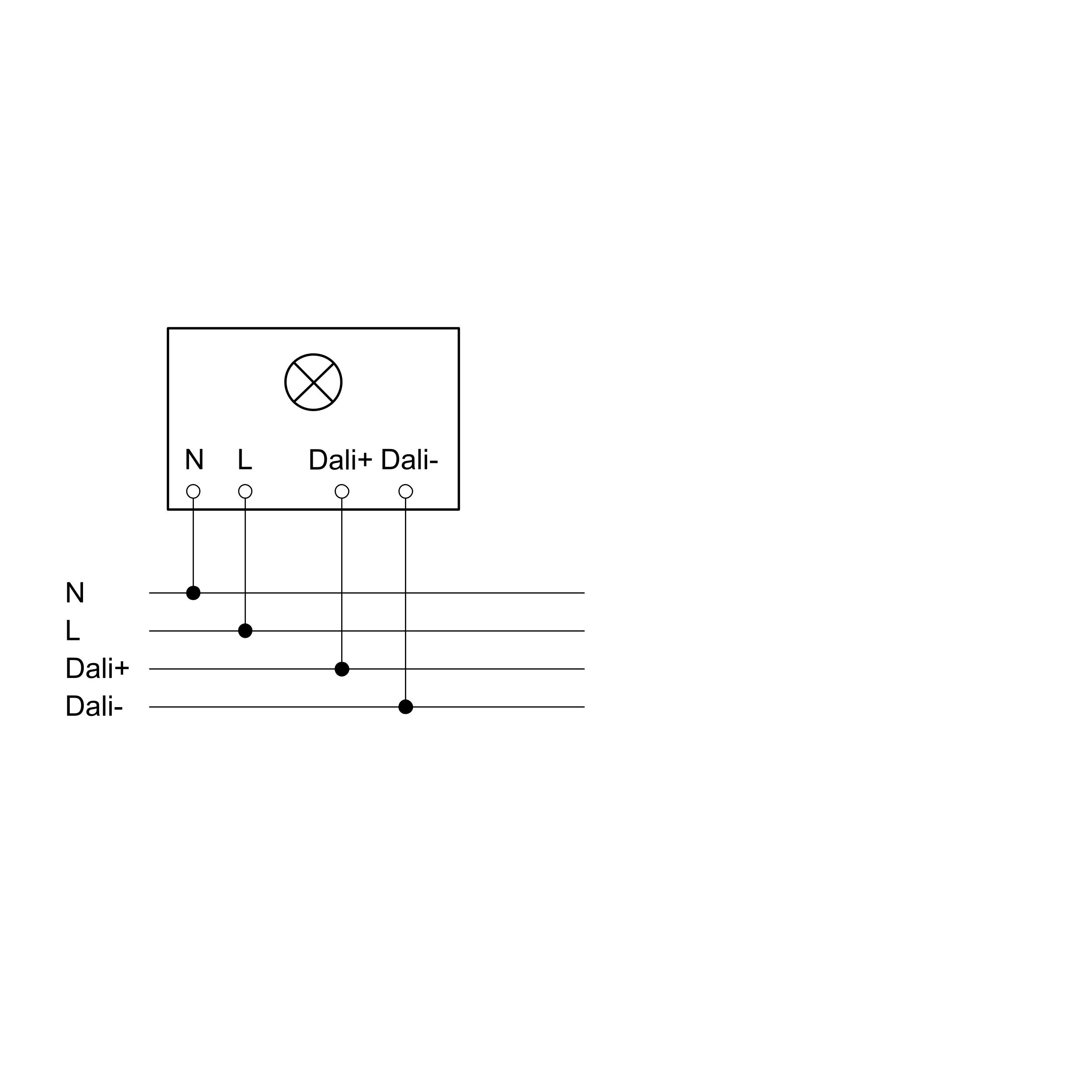

Wiring diagram 1
Wiring diagram

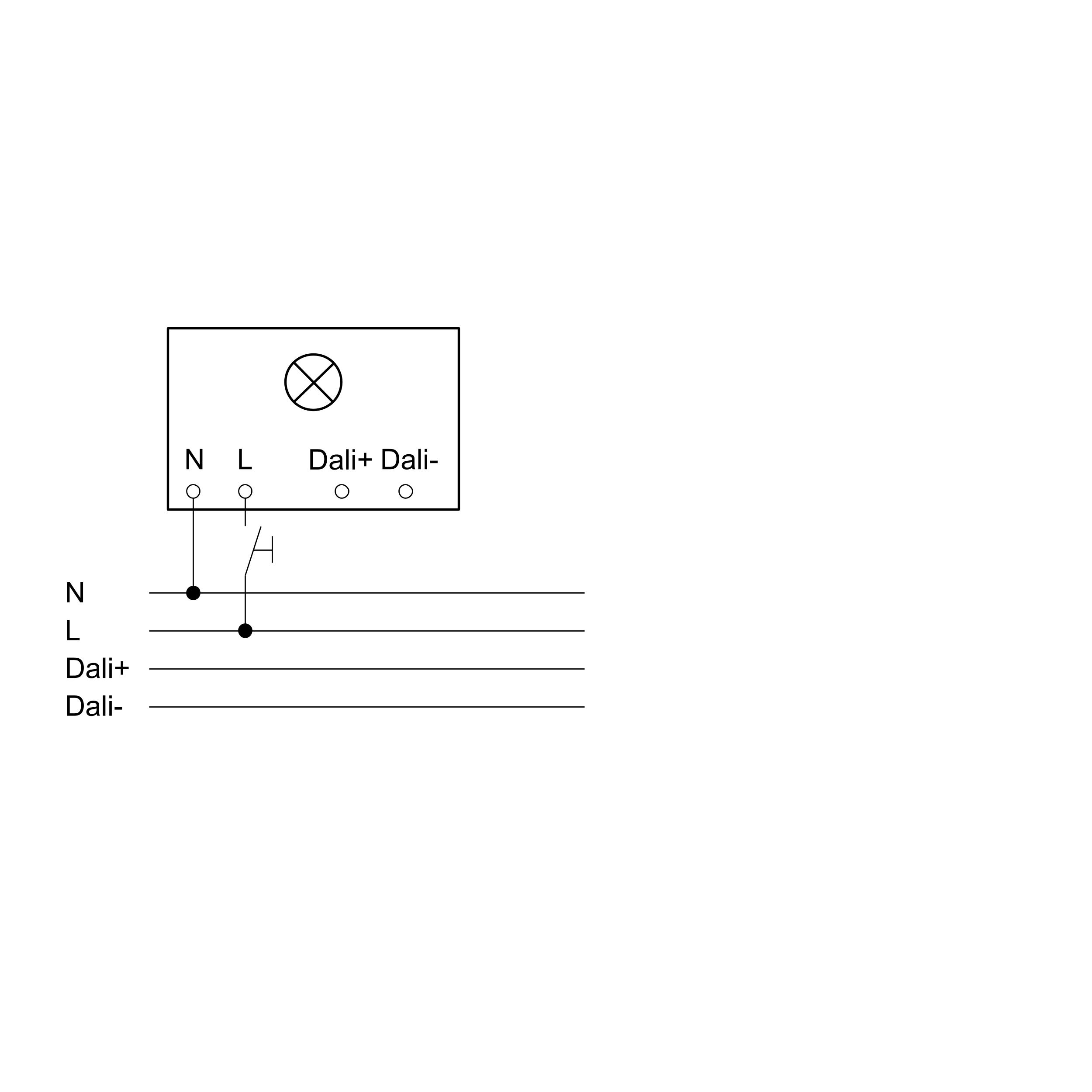

Wiring diagram 2
Wiring diagram
