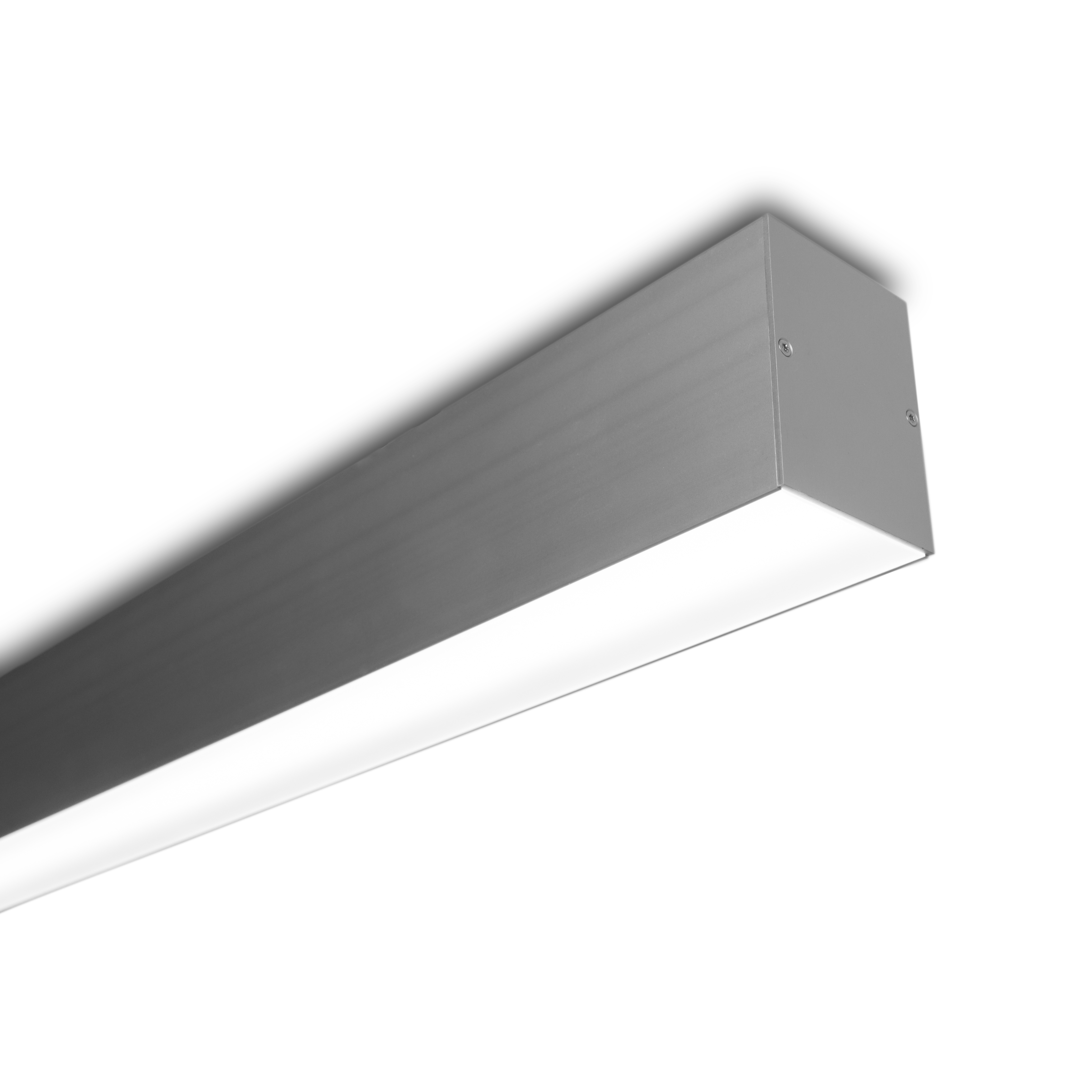

nevalux elani C1500 4K
Long ceiling light for offices, schools and corridors. Many lengths, dimmable, Swiss Made.
Product code 221130
Price: Please log in to see prices
Mounting type
Pendant mounting
Surface mounted (ceiling / wall)
Dimensions L × W × H
Control technology
Dali-Leuchte
Smartlink Connect
Colour temperature
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use for lighting offices, schools, traffic zones etc.
- Dimmable DALI
- Variants with 1.5, 2.4 and 3.14 meter length available
- Housing Anodised aluminium
- Swiss Made
Variants
Version
1500mm - 4200lm
Luminous flux
4200 lm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
37,5 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
4200 lm
Beam angle
105°
Luminaire luminous efficacy
112 lm/W
Glare value
UGR < 24
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Colour
Aluminum
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

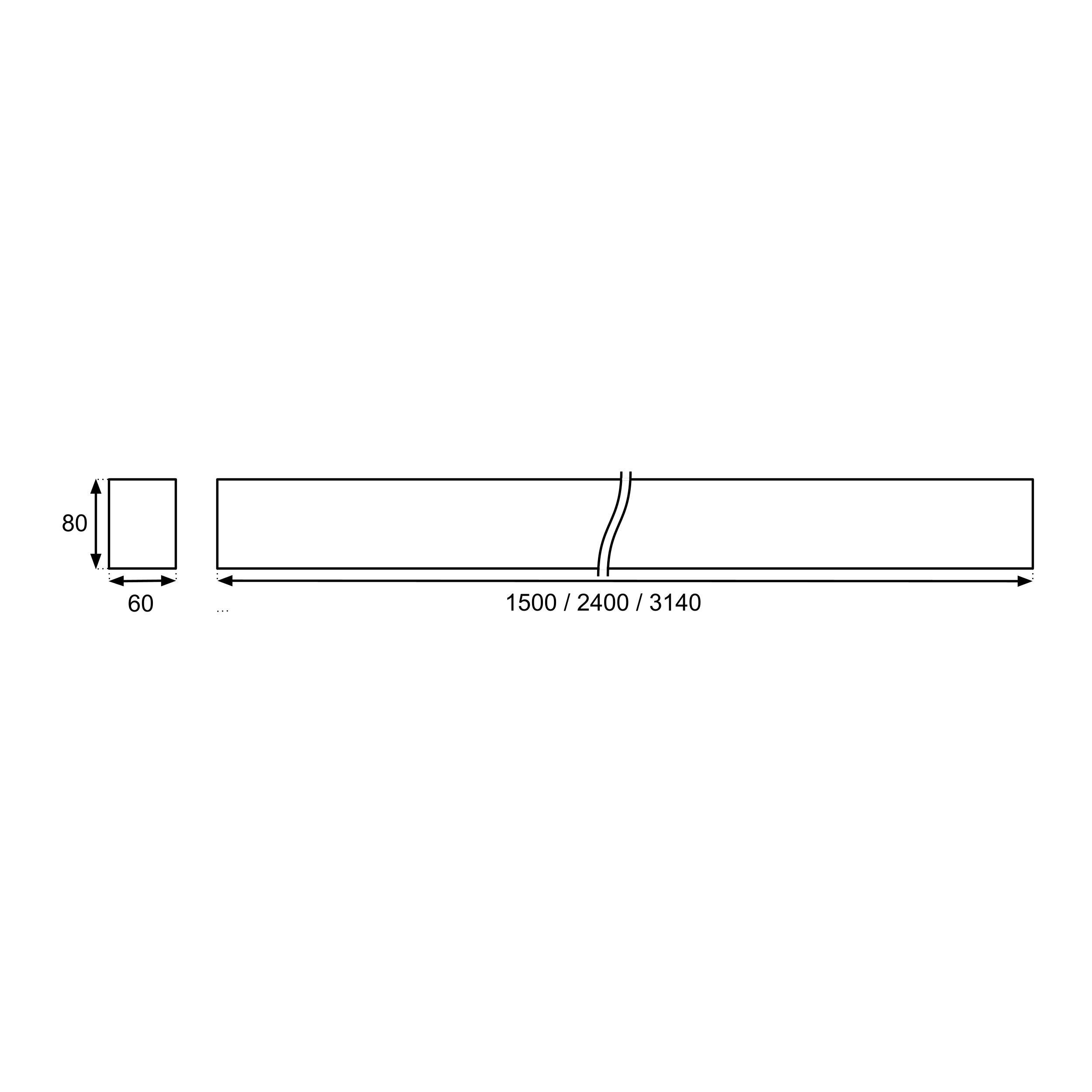

Technical drawing

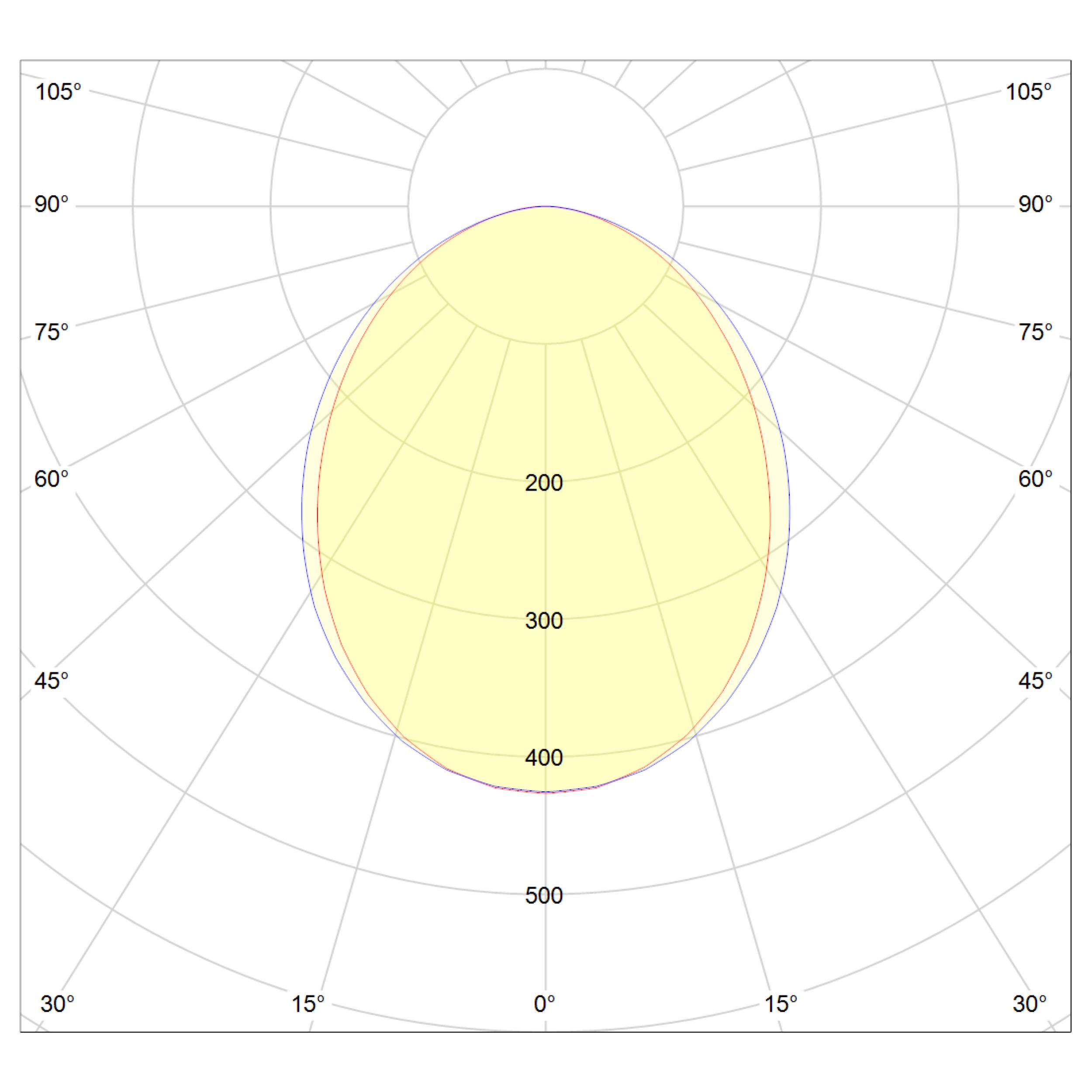

Lichtverteilungskurve

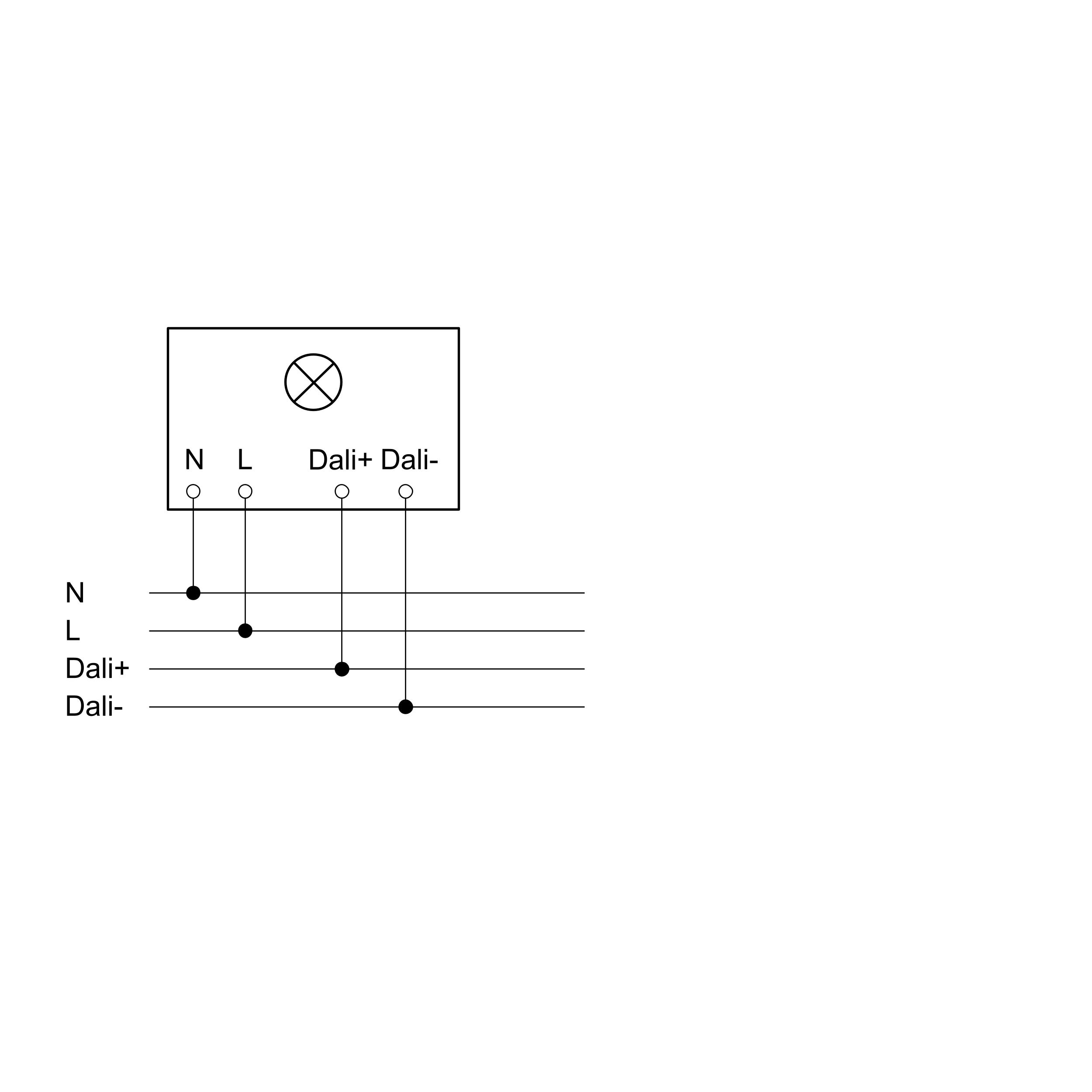

Wiring diagram 1
Wiring diagram

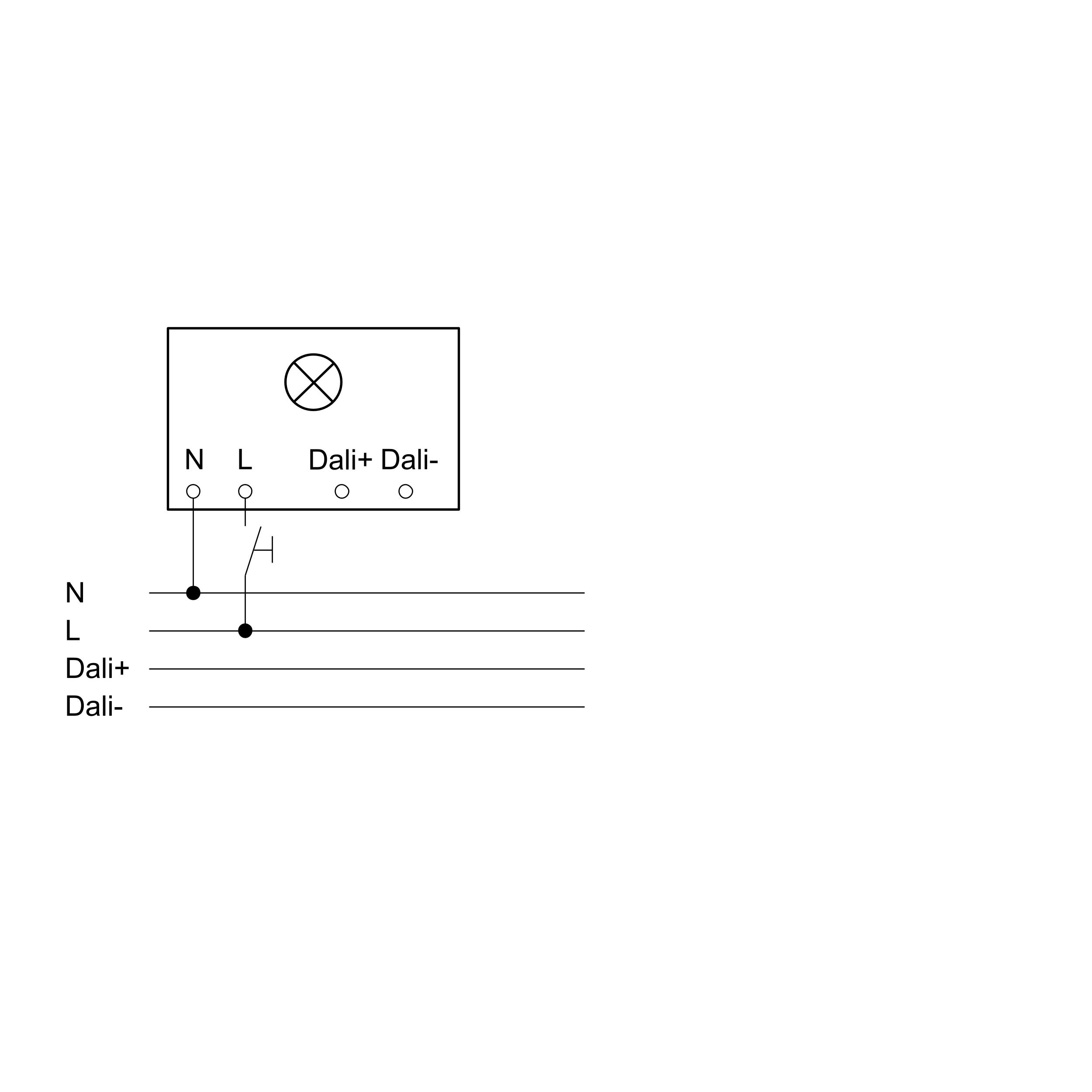

Wiring diagram 2
Wiring diagram
