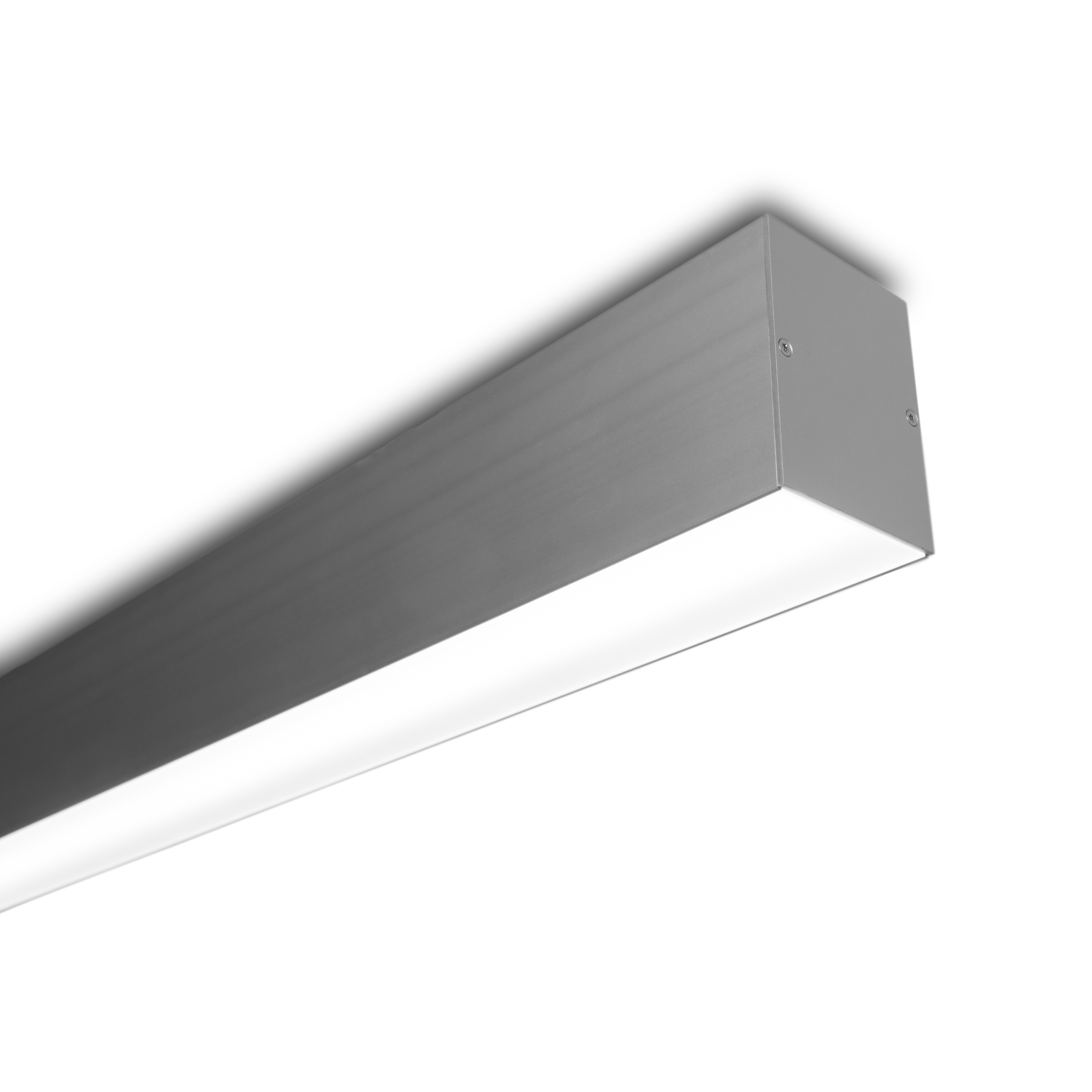

nevalux elani connect C2400 3K
Long ceiling light for offices, schools and corridors. Many lengths, dimmable, Swiss Made.
Product code 221139
Price: Please log in to see prices
Mounting type
Pendant mounting
Surface mounted (ceiling / wall)
Dimensions L × W × H
Control technology
Dali-Leuchte
Smartlink Connect
Colour temperature
Switch selection
The requested variant is not available. Please choose one of the following options.
- Built-in, networkable light management for next generation lighting projects
- up to 70% energy savings compared to a conventional solution thanks to constant light control and presence detection
- For universal use for lighting offices, schools, traffic zones etc.
- Variants with 1.5, 2.4 and 3.14 meter length available
- Housing Anodised aluminium
- Swiss Made
Variants
Version
2400mm - 6720lm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
60 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
With light sensor
Yes
Connectivity
With radio network control
Yes
Wireless networking via
BT SIG Mesh
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
6720 lm
Beam angle
105°
Luminaire luminous efficacy
112 lm/W
Glare value
UGR < 24
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
With program-controlled lighting control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Colour
Aluminum
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

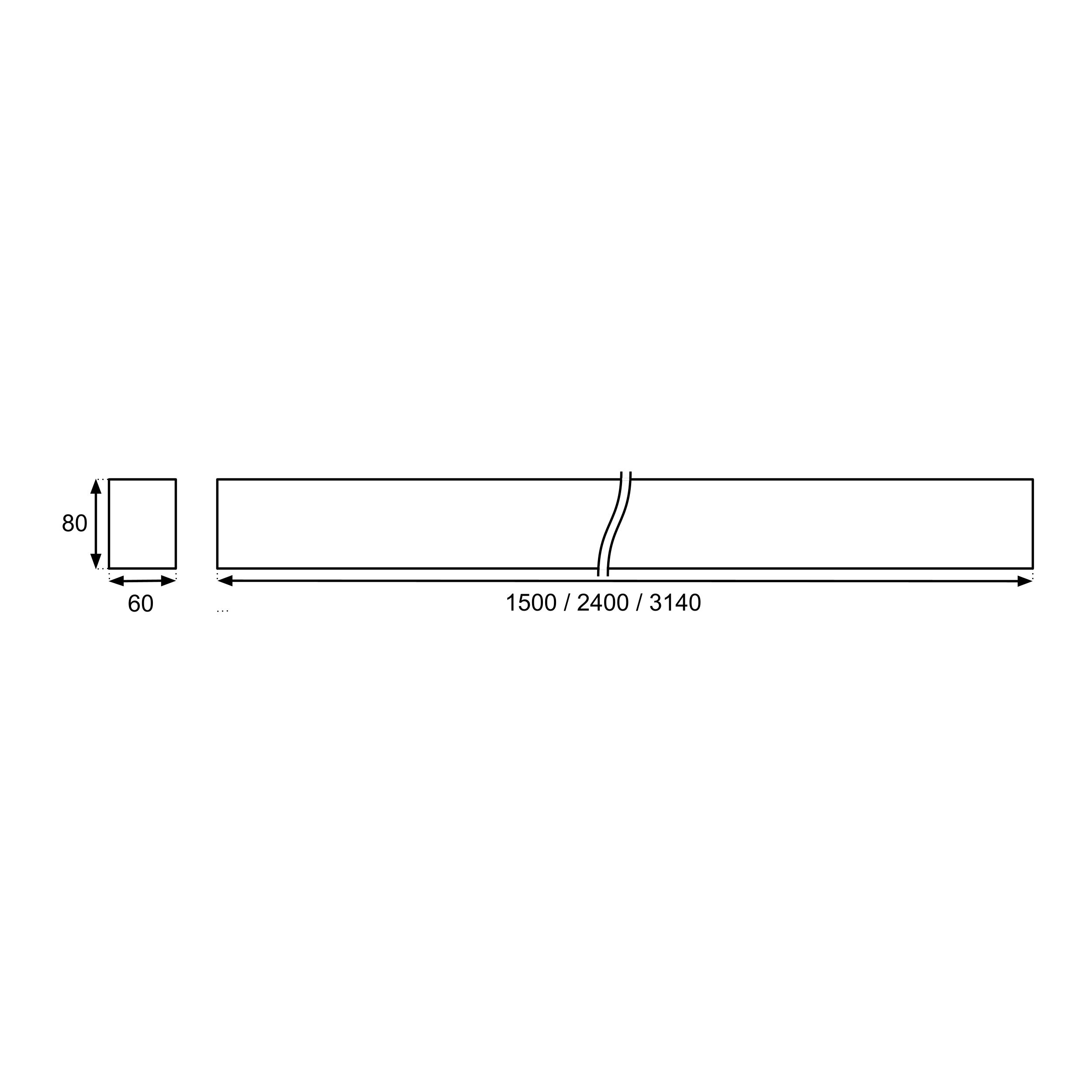

Technical drawing

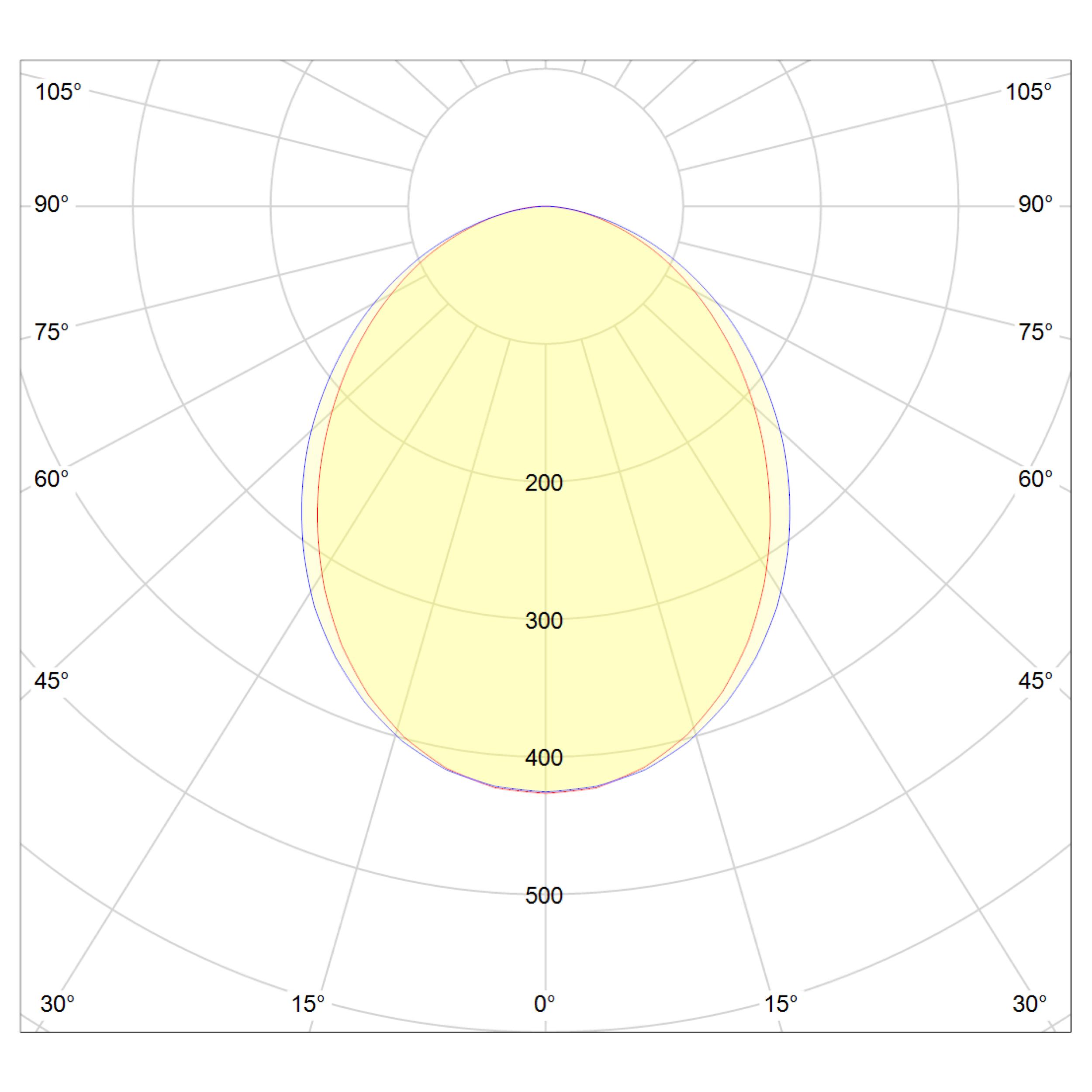

Lichtverteilungskurve

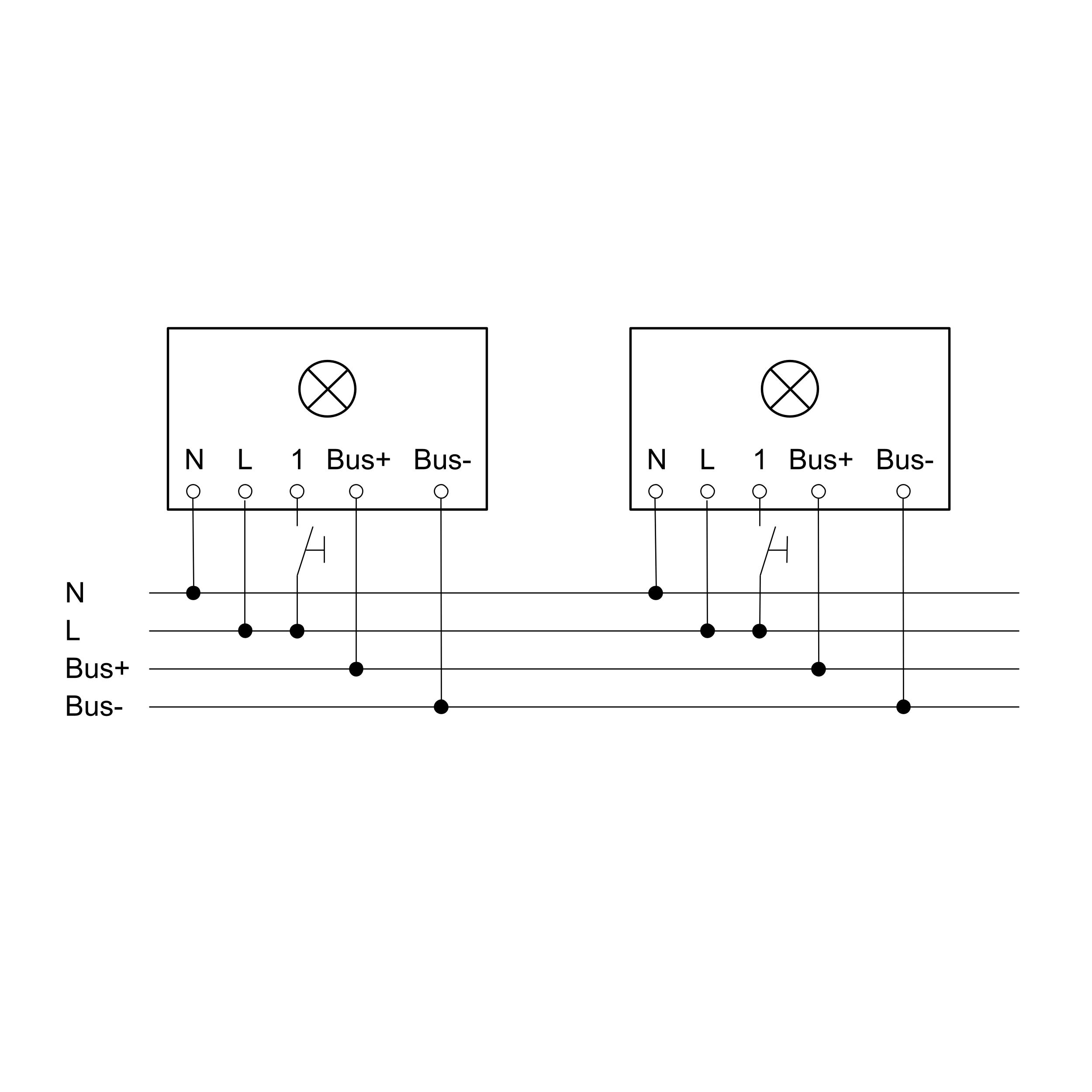

Wiring diagram 1
Wiring diagram networking wire

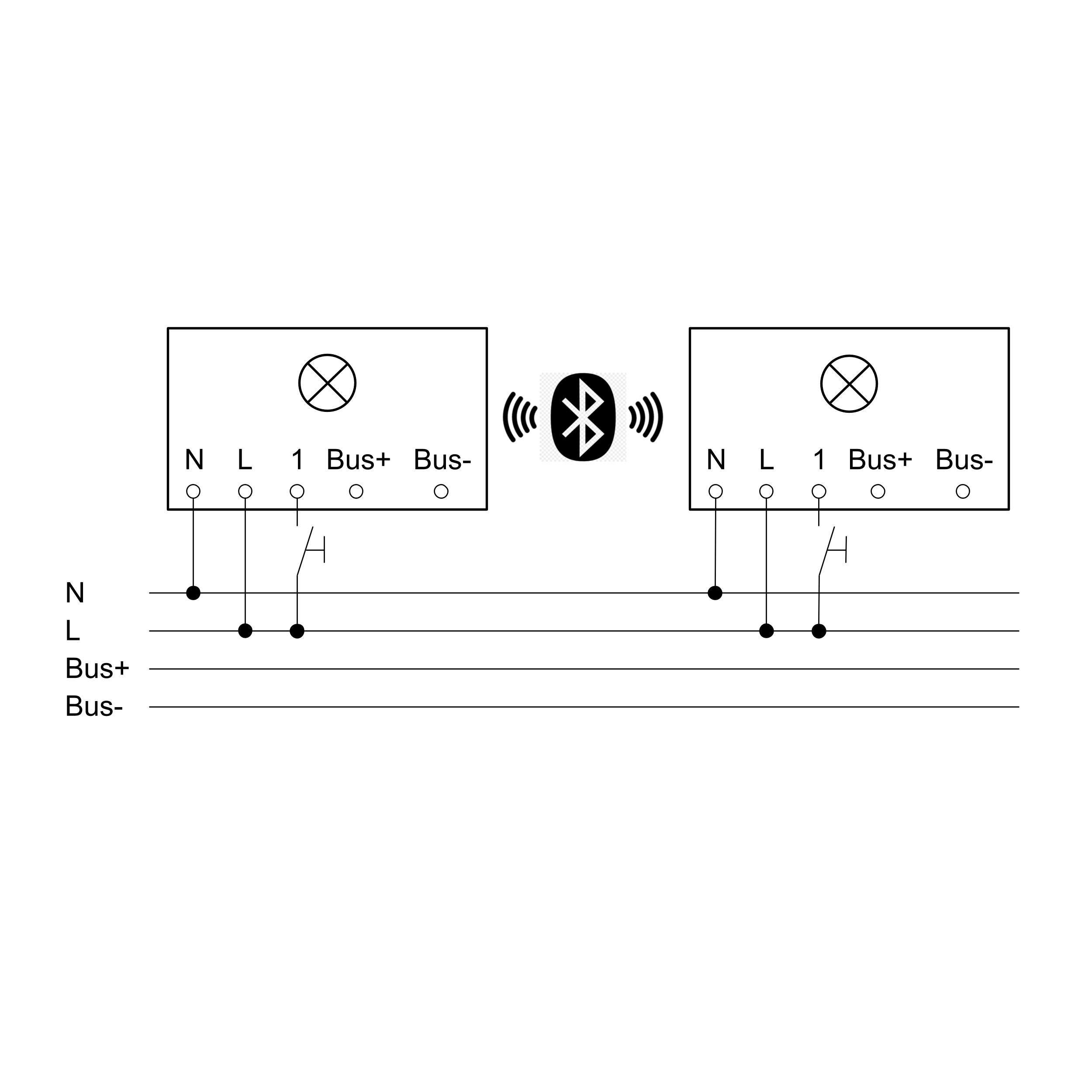

Wiring diagram 2
Wiring diagram networking radio
