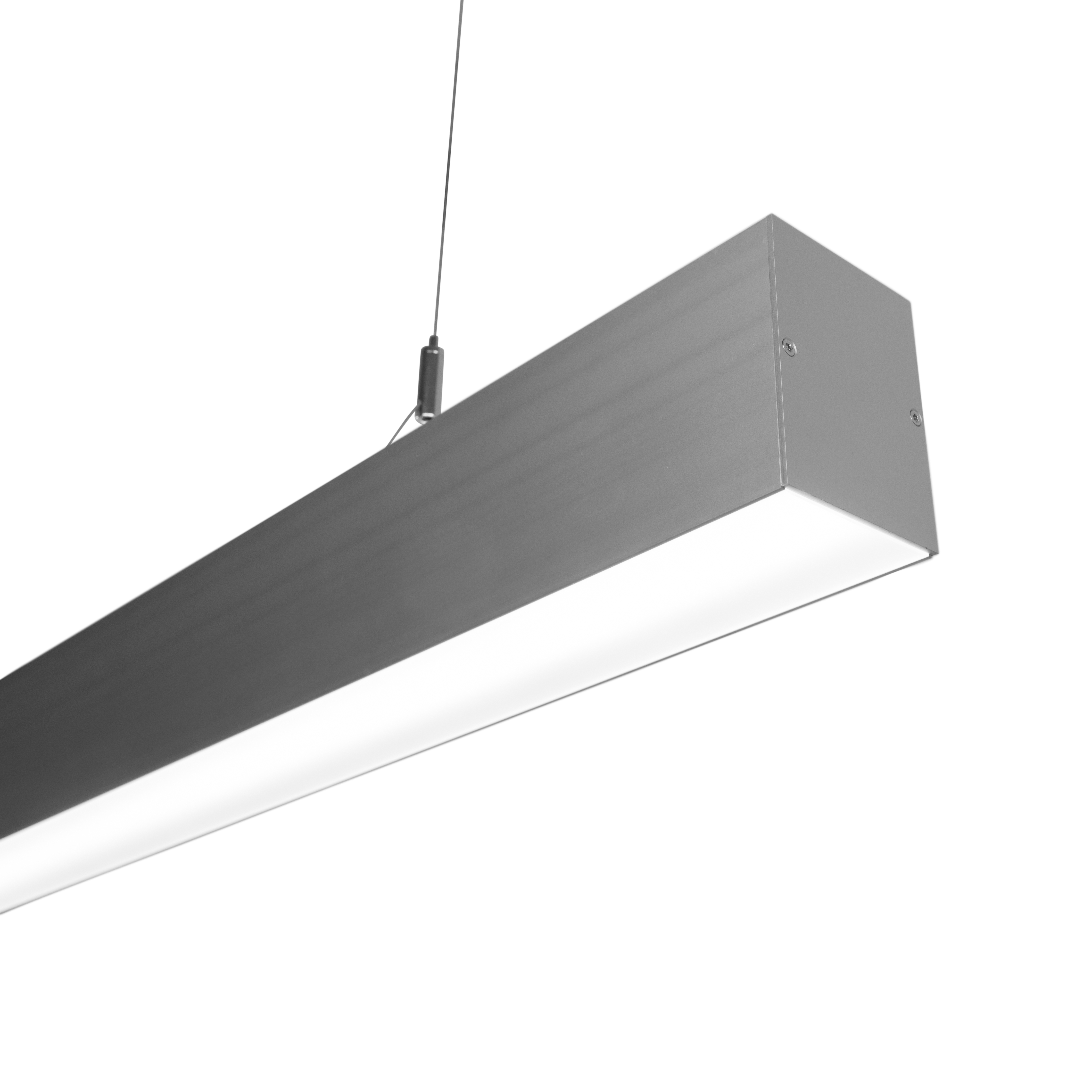

Nevalux elani connect P2400 3K
Product code 221116
Price: Please log in to see prices
Light colour
Version
Colour
Aluminium
white
- Built-in, networkable light management for next generation lighting projects
- up to 70% energy savings compared to a conventional solution thanks to constant light control and presence detection
- For universal use for lighting offices, schools, traffic zones etc.
- Direct and indirect light can be controlled separately
- Variants with 1.5, 2.4 and 3.14 meter length available
- Housing Anodised aluminium
- Swiss Made
Identification
Version
Presence detector
Dimensions
Dimensions L × W × H
50 x 80 x 80 mm
Electrical
Mains connection
21 – 30 V
Power
74 W
Sensor technology
Max. mounting height
1,20 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 4 m (25 m²)
Tangential range
r = 12 m (226 m²)
Switching zones
96 switching zones
Mounting height
1 – 1,2 m
Presence range
r = 4 m (25 m²)
Optimal mounting height
1,2 m
Connectivity
Networking
Yes
Type of networking
Master/master\nMaster/slave
Networking via
KNX bus
KNX functions
Photo-cell controller\nBasic light level function\nLight level\nHVAC output\nConstant-lighting control\nLight output 4x\nAir pressure\nHumidity output\nPresence output\nDay / night function\nDewpoint\nTemperature output\nLogic gate
With bus coupler
Yes
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Soft light start
Yes
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
60 s – 255 Min.
Base light function
Yes
Functions
Presence detector logic
Settings via
ETS software\nRemote control\nBus\nSmart Remote
With remote control
Yes
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
from 0 up to 40 °C
Housing material
Aluminium
Cover material
Acrylglas opal
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
Indoors
WC / washroom
corridor / aisle
function room / ancillary room
kitchenette
one-person office
stairwell
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
EMC\nVDE

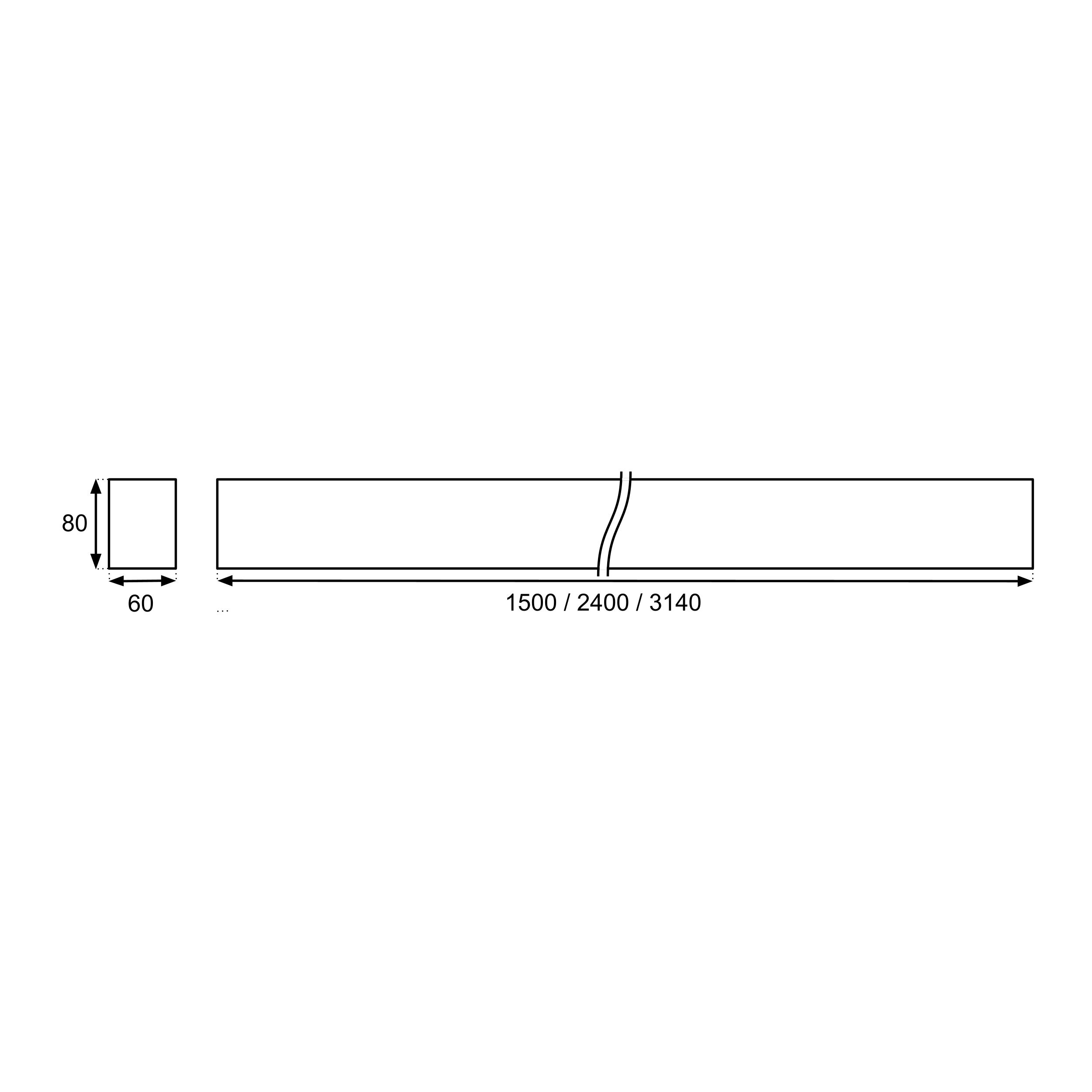

Technical drawing

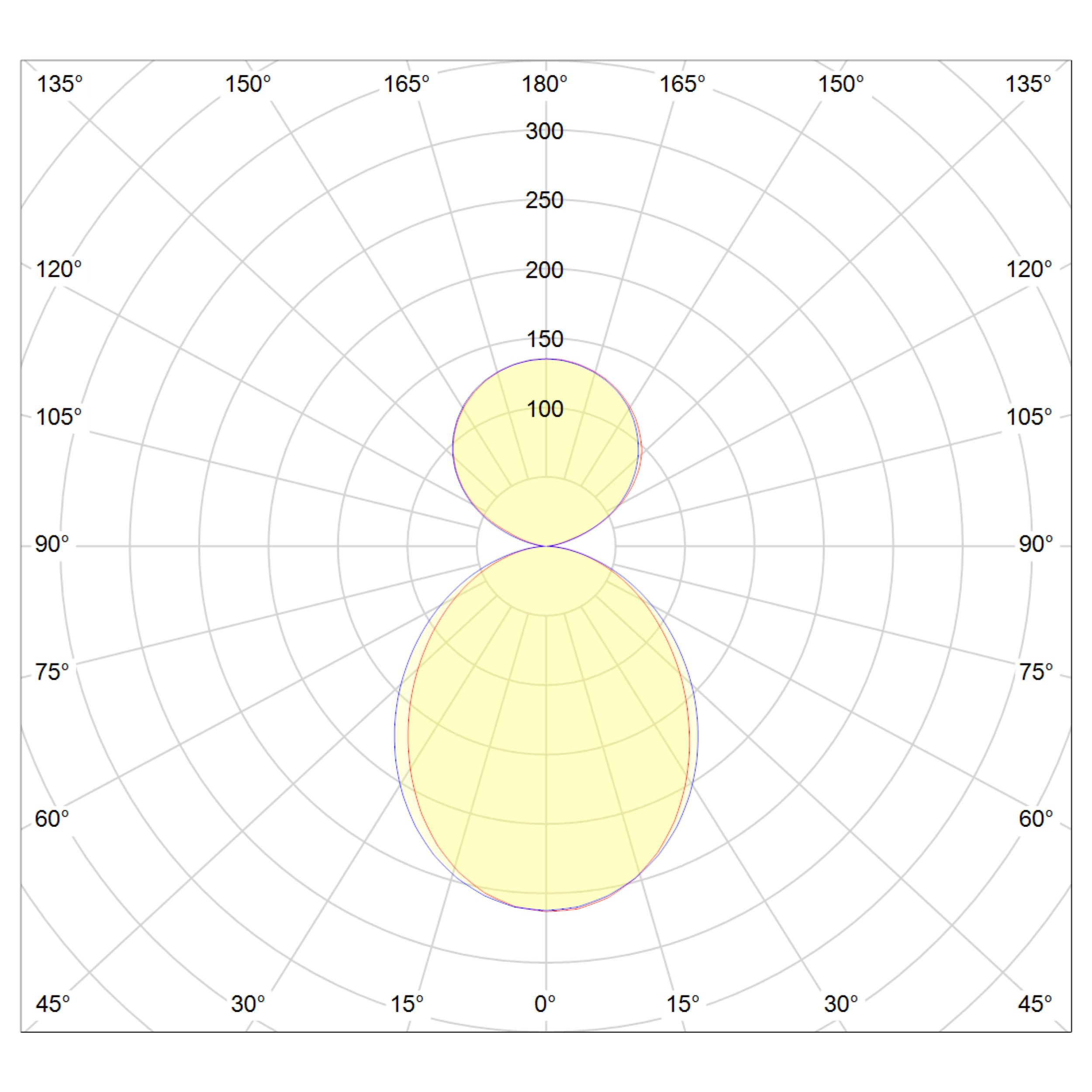

Lichtverteilungskurve

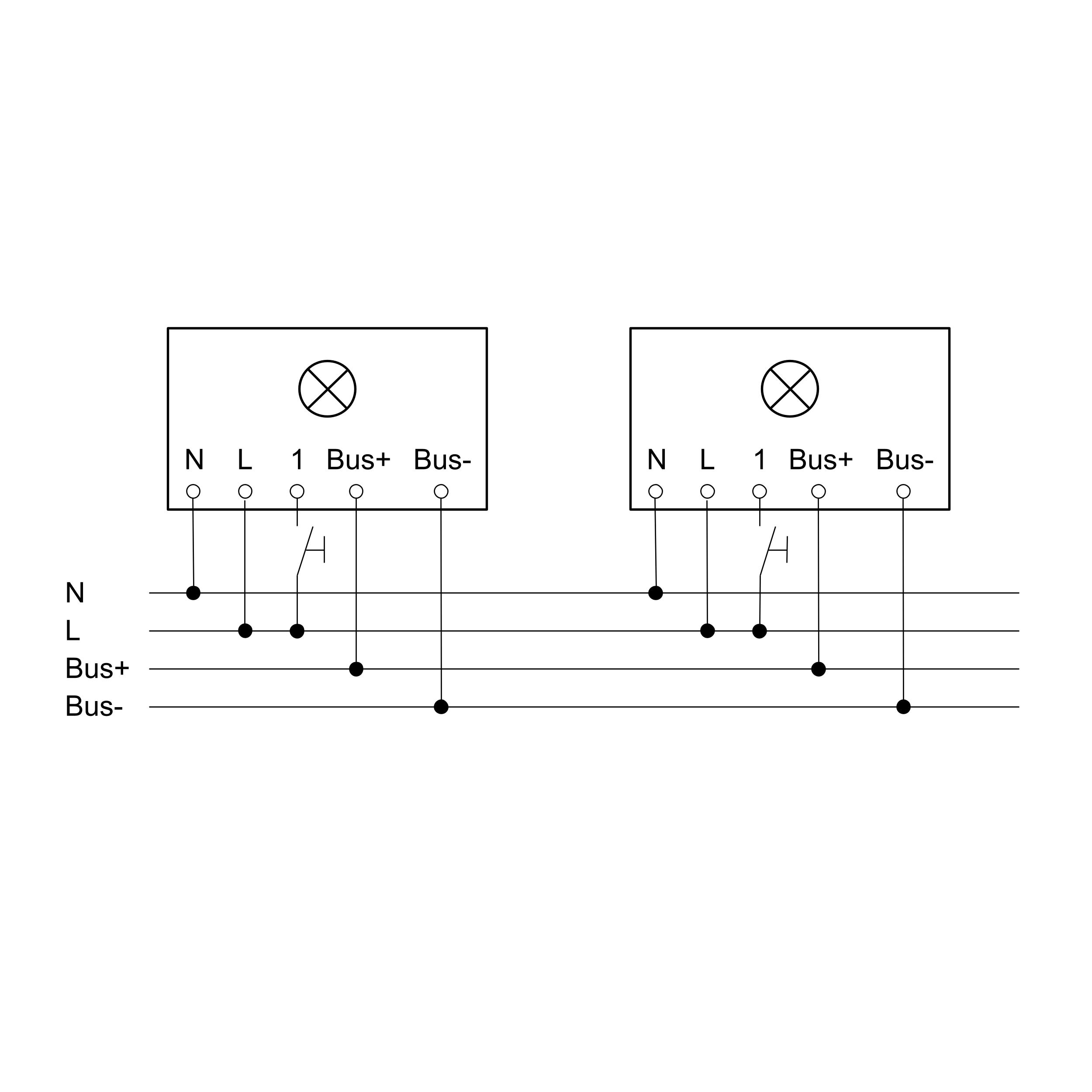

Wiring diagram 1
Wiring diagram networking wire

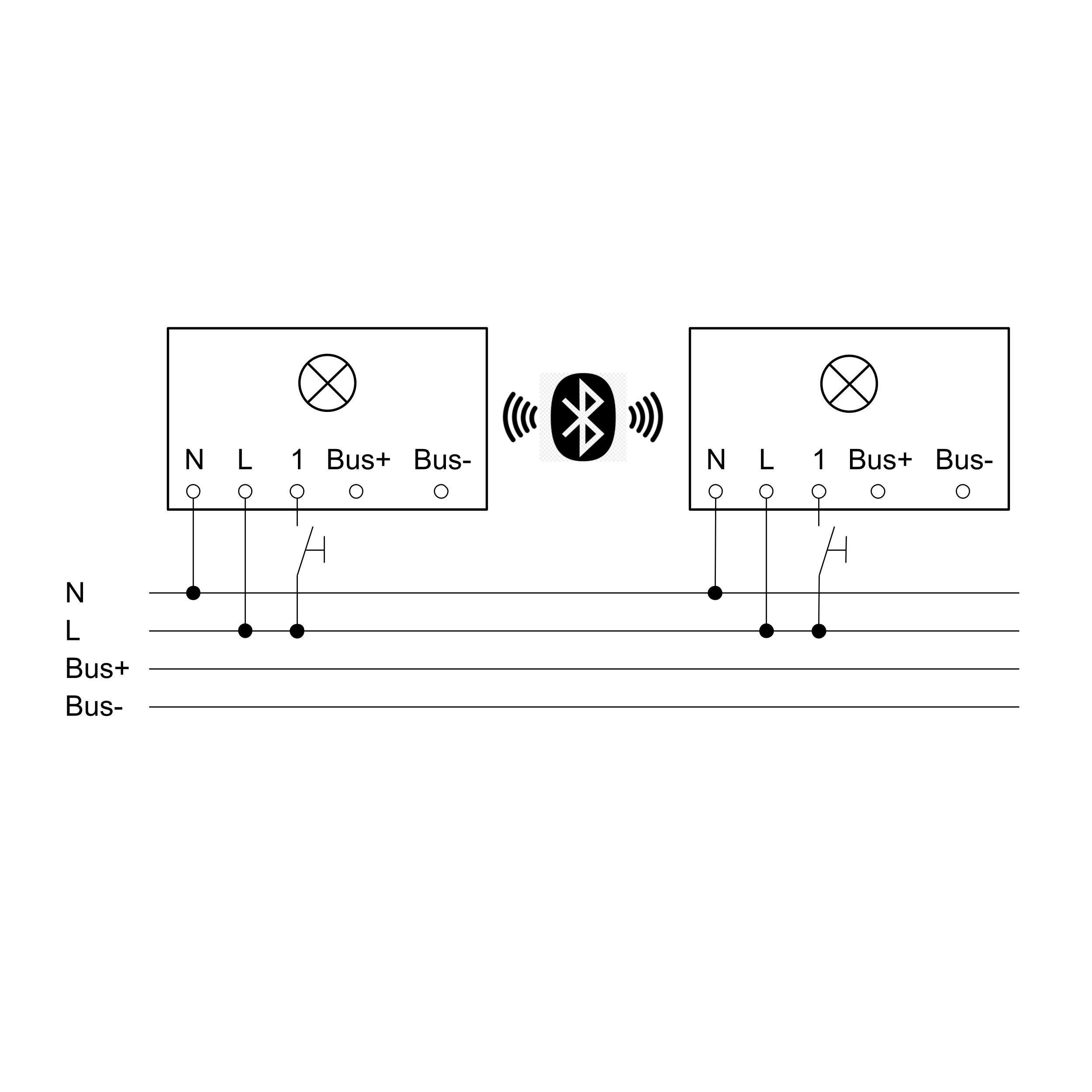

Wiring diagram 2
Wiring diagram networking radio
