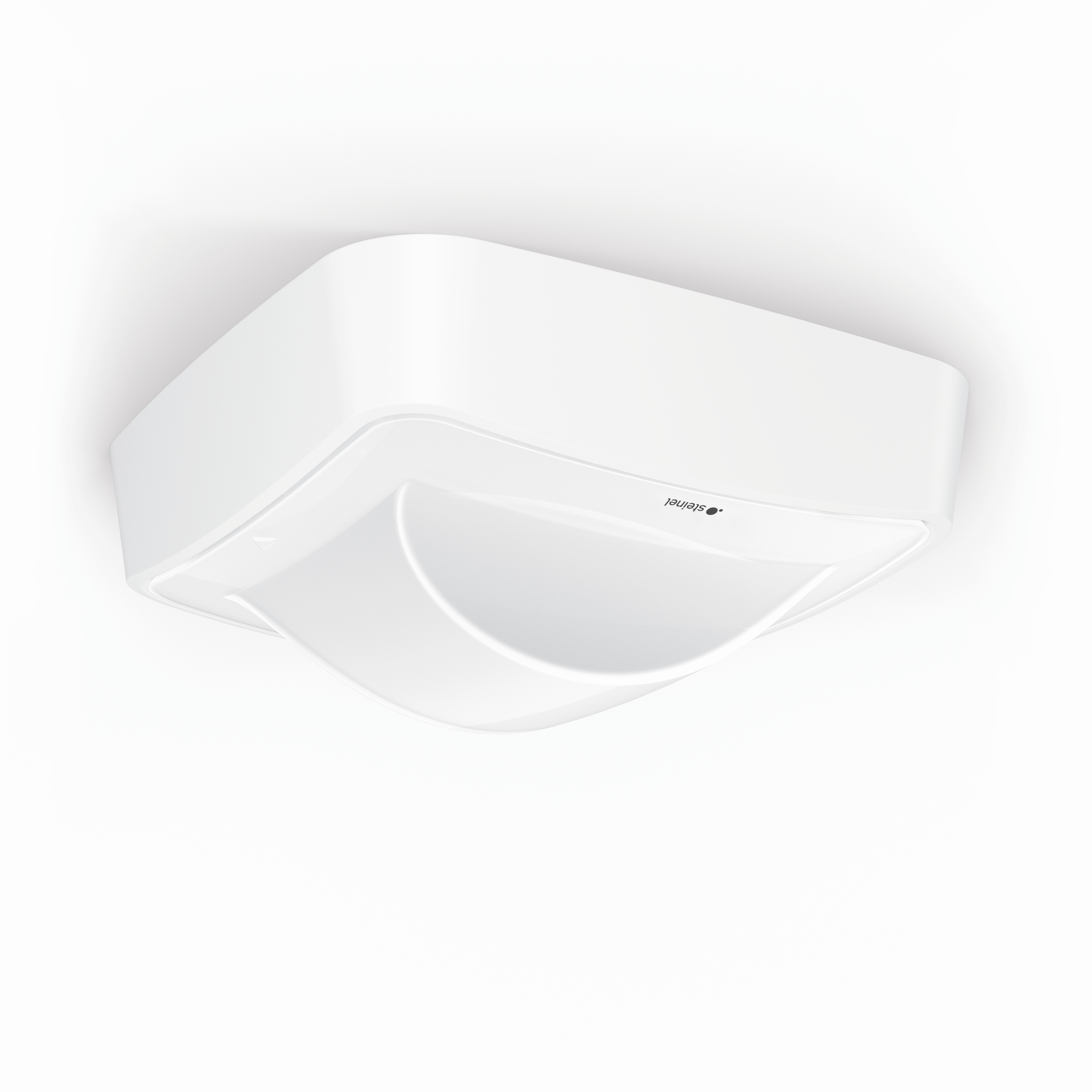

Nevalux Hallway DALI-2 Input Device - surface

ELDAS® no. 535 932 608

EAN-No. 4007841 064549

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

The cleverer hallway sensor knows more. Perfect radial detection up to 25 m – ideal for long corridors and hallways. Reach can be adjusted in both directions. Contemporary Control PRO II design. Featuring Bluetooth technology. Interfaces for COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP and BT IPD (Slave).

  • UV-resistant plastic

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 62 x 123 x 123 mm

Electrical

Mains connection 12 – 23 V
Supply voltage detail DALI bus

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 25 x 3 m (75 m²)
Tangential range 25 x 3 m (75 m²)
Mounting height 2,00 – 4,00 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/slave
Networking via Bluetooth\nDALI bus
With bus coupler Yes

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation Yes

Settings

Twilight switch Yes
Base light function No
Main light adjustable No
Settings via Bluetooth\nBus
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP20
Ambient temperature from -20 up to 50 °C
Mounting location ceiling
Application location Indoors
Mounting type Surface wiring
Material Plastic
Application room Indoors corridor / aisle
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Technical drawing

Sensor detection range

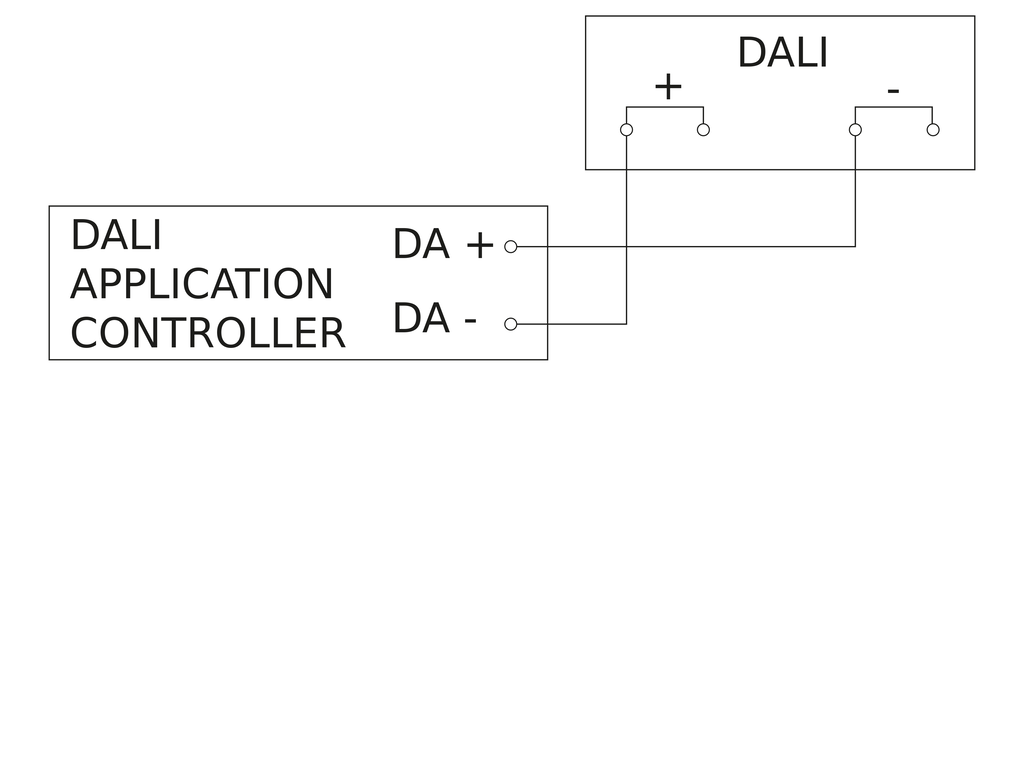

Wiring diagram 1

Circuit diagram
