Steinel Hallway DALI-2 Input Device - concealed

Steinel Hallway DALI-2 Input Device - concealed

ELDAS® no. 535 932 508 · EAN-No. 4007841 064532

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel Bluetooth Open Mesh

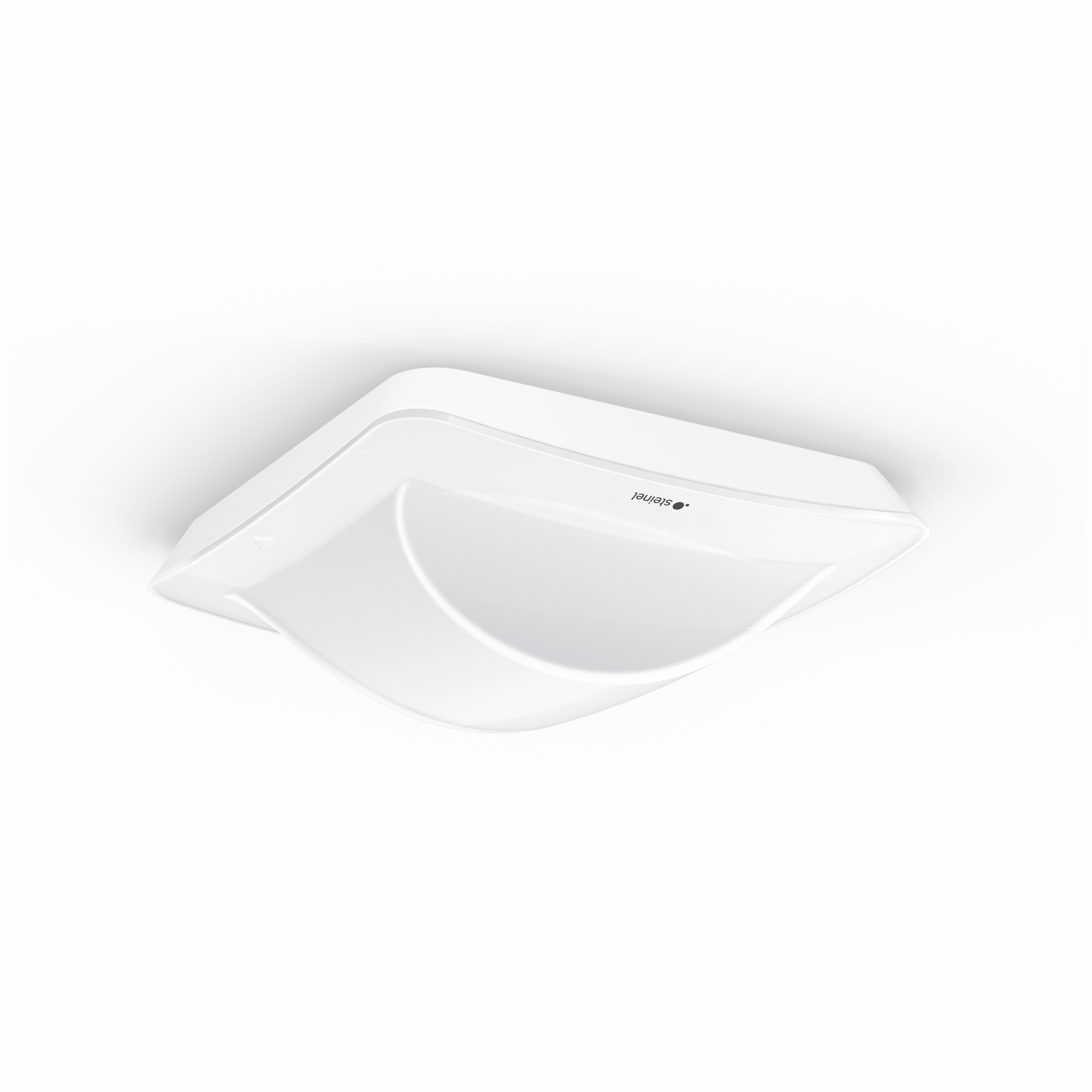

Steinel Hallway DALI-2 Input Device - concealed

Presence detector for long corridors. Covers up to 25 m, set up and networked via Bluetooth.

ELDAS® no. 535 932 508

EAN-No. 4007841 064532

Price: Please log in to see prices

Colour

White

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Application Controller DALI-2 Input Device IP (REST API, MQTT, BacNet) KNX

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.

Identification

Version Presence detector

Variants

Version DALI-2 Input Device
Colour White
Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 67 x 103 x 103 mm

Electrical

Mains connection 12 – 22,5 V
Supply voltage detail DALI bus
Control output DALI Addressable / slave

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °, Corridor
Opening angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 25 x 3 m (75 m²)
Tangential range 25 x 3 m (75 m²)
Mounting height 2,0 – 4,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/Slave
With bus coupler Yes
Control technology Steinel Connect
Wireless networking via BT Open Mesh
Networking via DALI 2

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Base light function No
Main light adjustable No
Settings via App, Smartphone, Tablet, Bus
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP20
Ambient temperature -20...+50 °C
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, corridor / aisle
Colour White
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

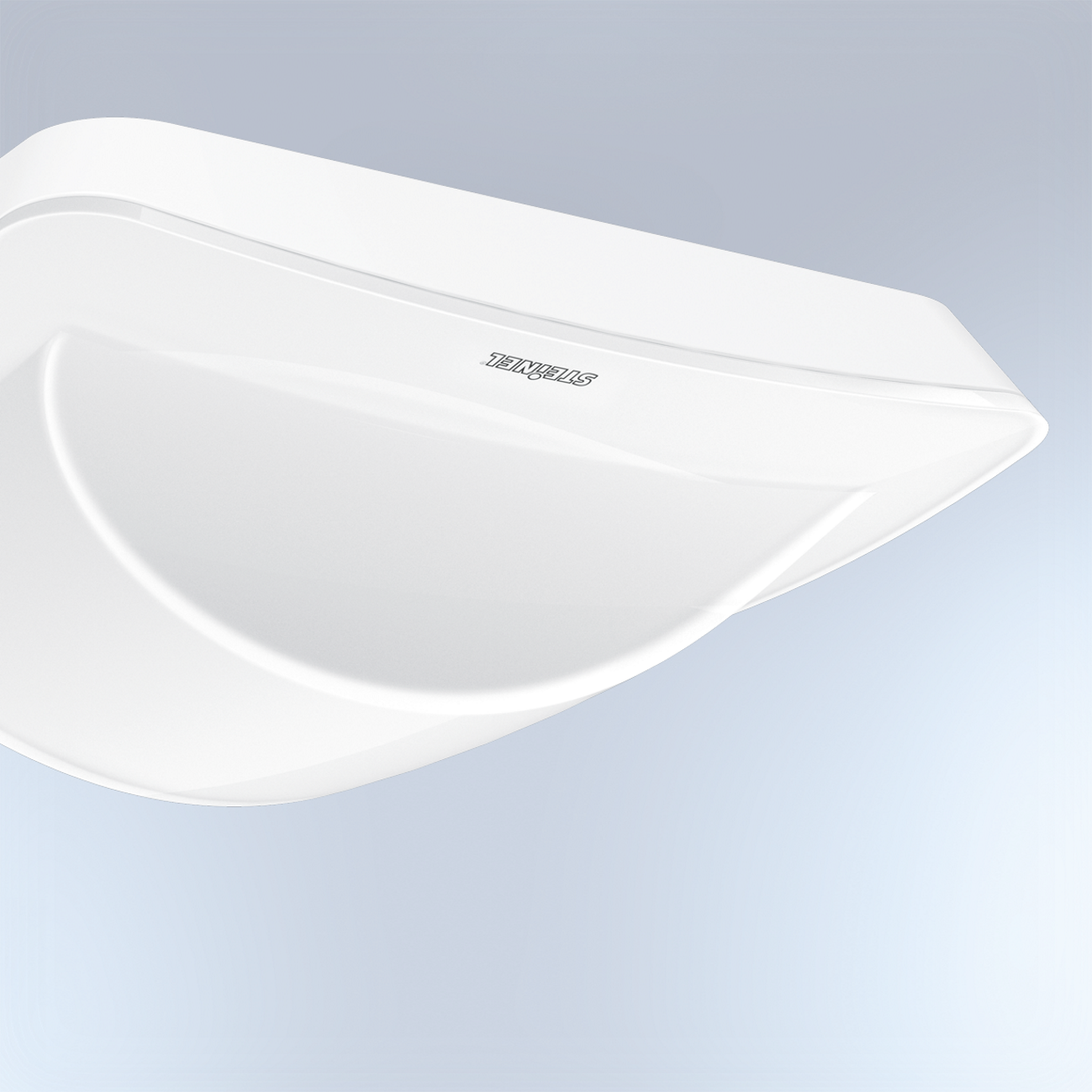

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
