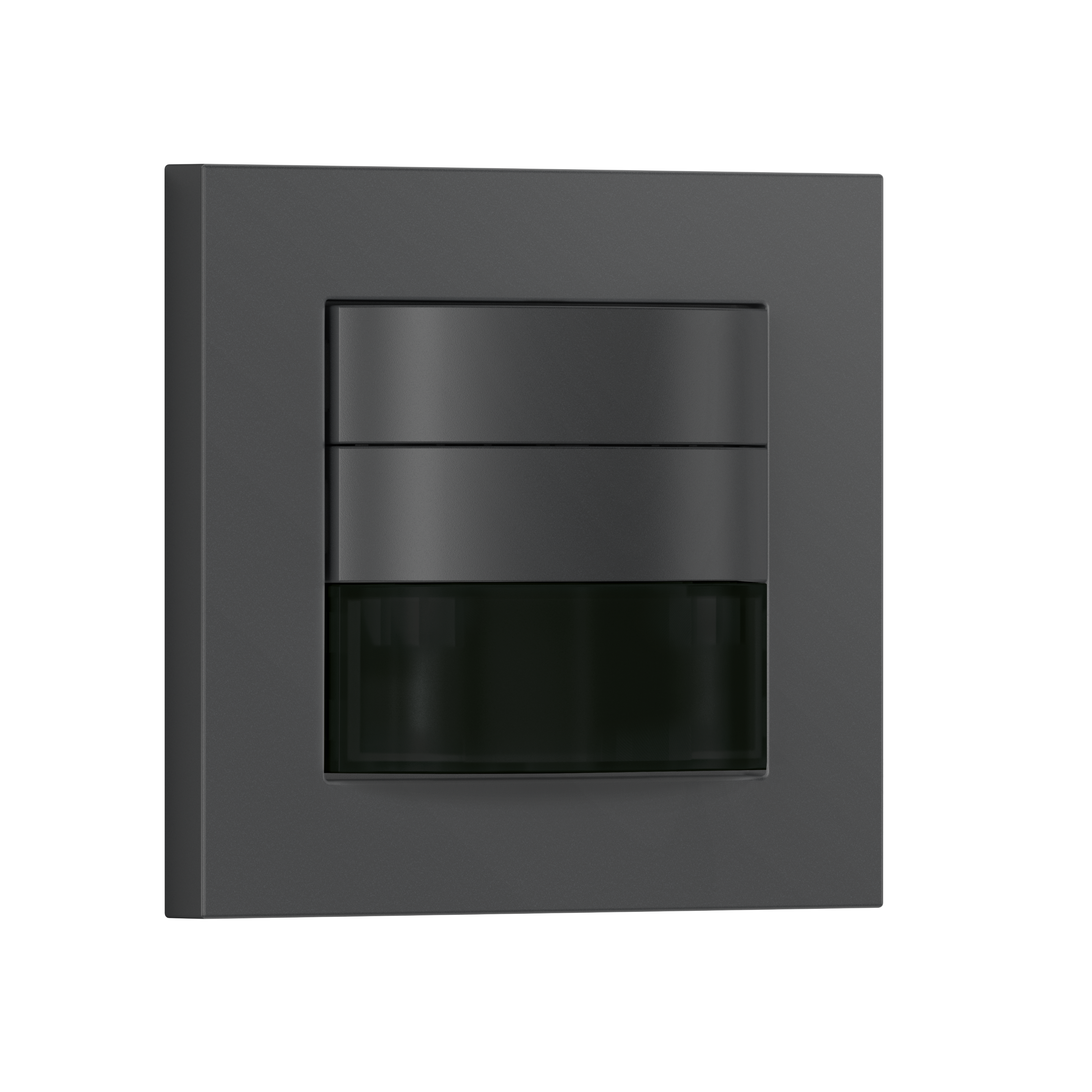

Nevalux HF 180 COM1 - anthracite
EAN-No. 4007841 055998
This product is being replaced by a successor product.
Go to successor product · HF 180 COM1 - white (032883)Reliably detects through partition walls. HF 180 presence switch. The high-frequency sensor system quickly detects any movement regardless of temperature – even through partition walls, e.g. offices, entrance rooms or toilet facilities. 180° angle of coverage, up to 8 m reach. Intelligent technology, high-calibre design, easy 3-wire installation.
- Optional adapters made of UV-resistant plastic
Identification
Variant
COM1 - anthracite
Version
Presence detector
Dimensions
Dimensions L × W × H
80 x 80 x 21 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Switching output 1 resistive
2000 W
Own consumption
0,7 W
Switching output 1 number of LED/fluorescent lamps
8 pcs.
Switching output 1 potential-free
No
Sensor technology
Sensor technology
High frequency
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
180 °
Opening angle
140 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 8 m (101 m²)
Tangential range
r = 8 m (101 m²)
Mounting height
1,10 – 2,20 m
Optimal mounting height
1,1 m
Connectivity
Networking
Yes
Lighting technology
Constant light regulation
No
Settings
Twilight setting
10 – 1000 lx
Time setting
30 sec – 30 min
Base light function
No
With remote control
Yes
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
Certificates
EMC, VDE
Other
Application, location, room
One-person office, corridor, aisle, side room, stairwell, washroom, wc, equipment room
