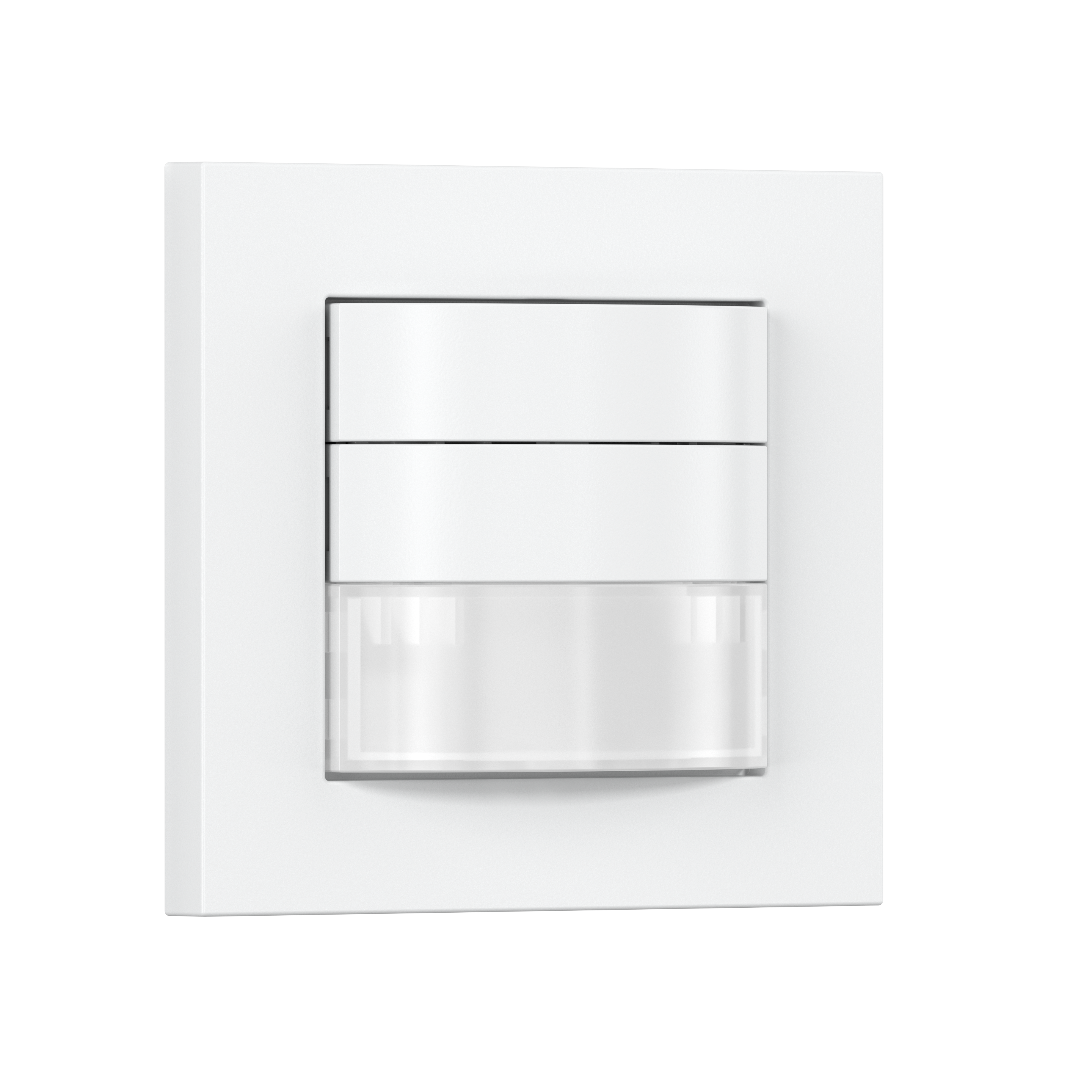

Steinel HF 180 COM1 - white

HF presence switch for offices, WCs and stairwells. Directly replaces the light switch.

ELDAS® no. 535 941 760

EAN-No. 4007841 032883

Variant

230V, 1 channel KNX

High-frequency technology meets top-calibre design! Producing an angle of coverage of 180°, the sensor switch HF 180 not only scores top marks in performance, it looks great too. The HF sensor technology detects every movement and switches instantly. The solution for offices, entrance rooms and washroom facilities where movement needs detecting through thin partition walls. Intelligent technology that not only looks good, but is also easy to install. The KNX version also indicates temperature and air humidity.

Identification

Version Presence detector

Variants

Version 230V COM1

Dimensions

Dimensions L × W × H 30 x 80 x 80 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1000 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Max. mounting height 2,20 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 180 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 8 m (101 m²)

Tangential range r = 8 m (101 m²)

Switching zones 96 switching zones

Mounting height 1,2 – 2,2 m

Optimal mounting height 1,2 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 30 s – 30 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Semi-/fully automatic, Switch active / switch inactive, Manual ON / ON-OFF

Settings via Remote control, DIP switches, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location Wall

Application location Indoors

Mounting type Concealed mounting

Material Plastic

Application room Indoors, WC / washroom, corridor / aisle, function room / ancillary room, kitchenette, one-person office, stairwell

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

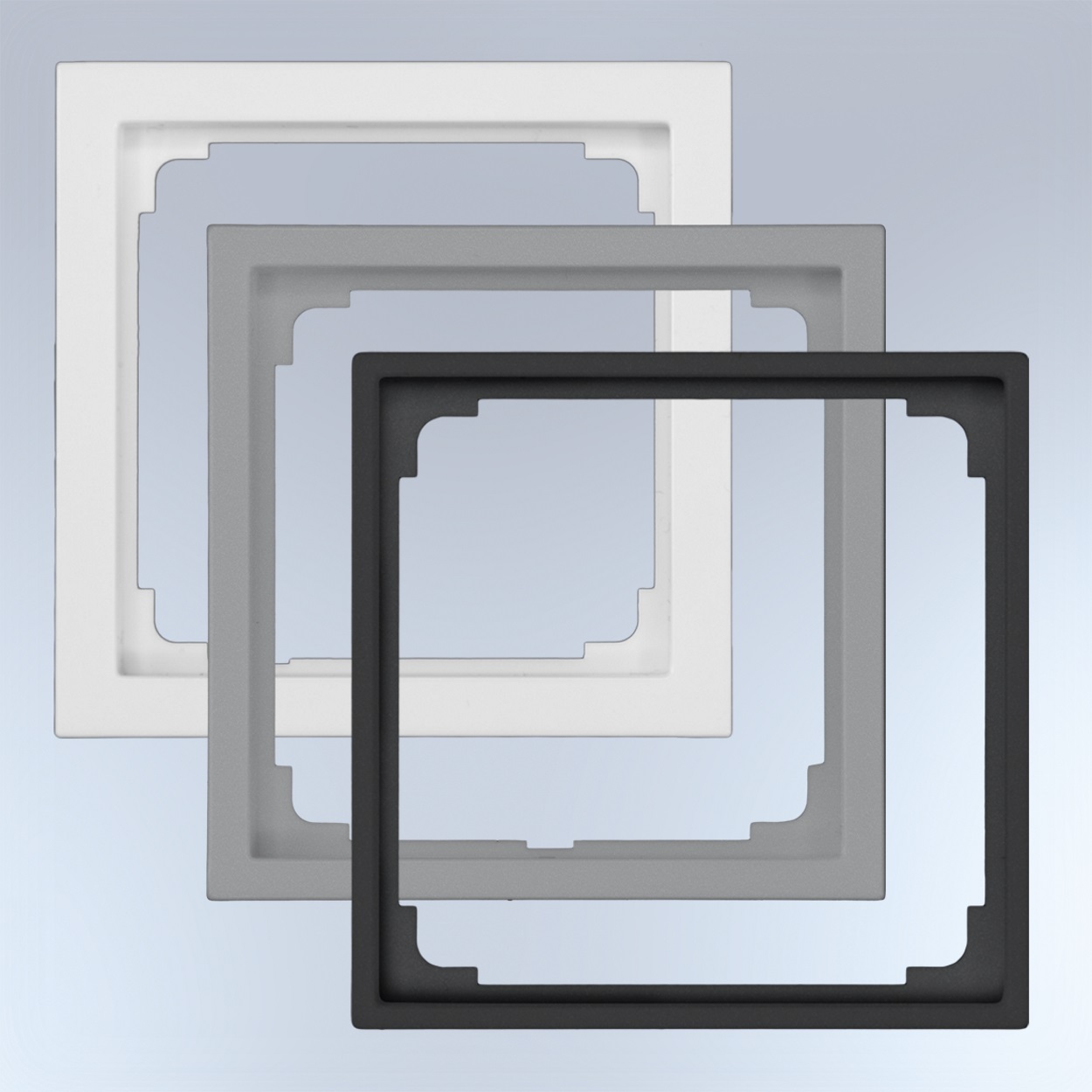

Optional adapters made of UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity
