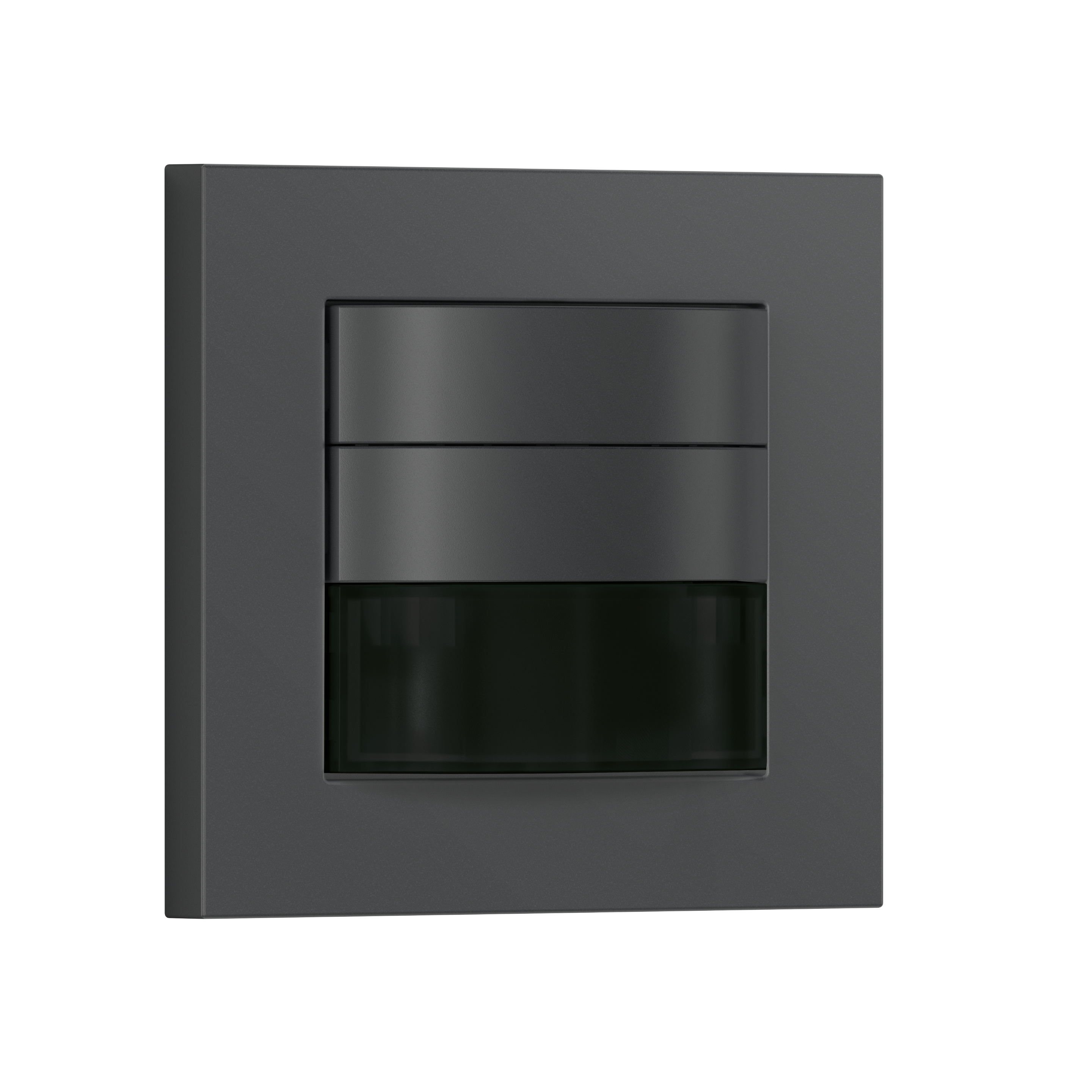

Nevalux HF 180 KNX - anthracite
EAN-No. 4007841 056025
This product is being replaced by a successor product.
Go to successor product · HF 180 KNX - white (4007841032876)Reliably detects through partition walls. HF 180 presence switch. The high-frequency sensor system quickly detects any movement regardless of temperature – even through partition walls, e.g. offices, entrance rooms or toilet facilities. 180° angle of coverage, up to 8 m reach. Intelligent technology, high-calibre design, easy 3-wire installation.
- Optional adapters made of UV-resistant plastic
Identification
Variant
KNX - anthracite
Version
Presence detector
Dimensions
Dimensions L × W × H
80 x 80 x 21 mm
Sensor technology
Sensor technology
High frequency
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
180 °
Opening angle
140 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 8 m (101 m²)
Tangential range
r = 8 m (101 m²)
Mounting height
1,20 – 2,20 m
Optimal mounting height
1,2 m
Connectivity
With bus coupler
No
Settings
Twilight setting
2 – 1000 lx
Time setting
60 sec – 255 min
With remote control
Yes
Twilight setting teach
Yes
Housing & material
Ambient temperature
0 – 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
One-person office, corridor, aisle, side room, stairwell, wc, washroom, equipment room
