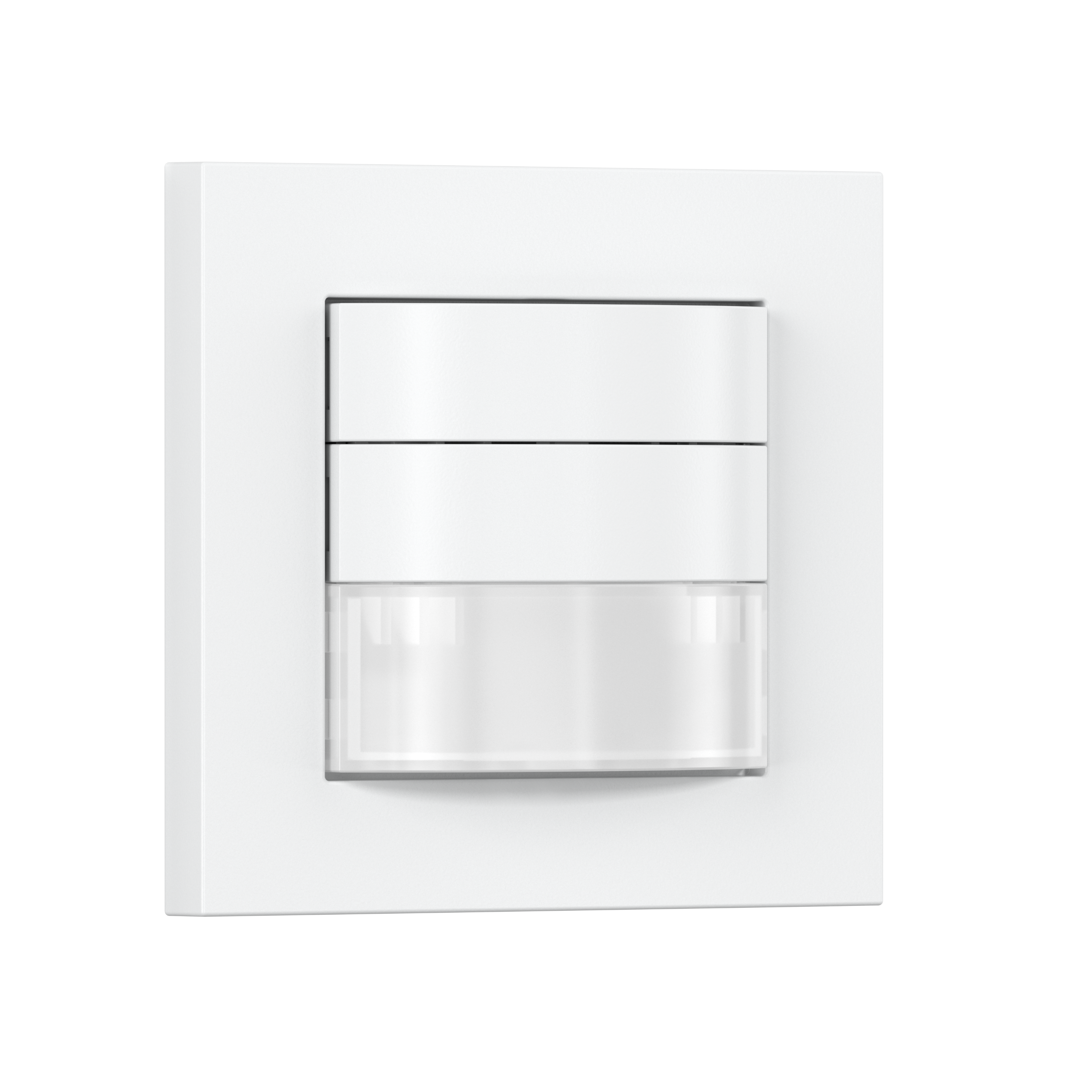

Nevalux HF 180 KNX - white
ELDAS® no. 535 941 768
EAN-No. 4007841 032876
This product is being replaced by a successor product.
Go to successor product · HF 180 KNX - white (059460)Reliably detects through partition walls. HF 180 presence switch. The high-frequency sensor system quickly detects any movement regardless of temperature – even through partition walls, e.g. offices, entrance rooms or toilet facilities. 180° angle of coverage, up to 8 m reach. Intelligent technology, high-calibre design, easy 3-wire installation.
- Optional adapters made of UV-resistant plastic
Identification
Variant
KNX - white
Version
Presence detector
Dimensions

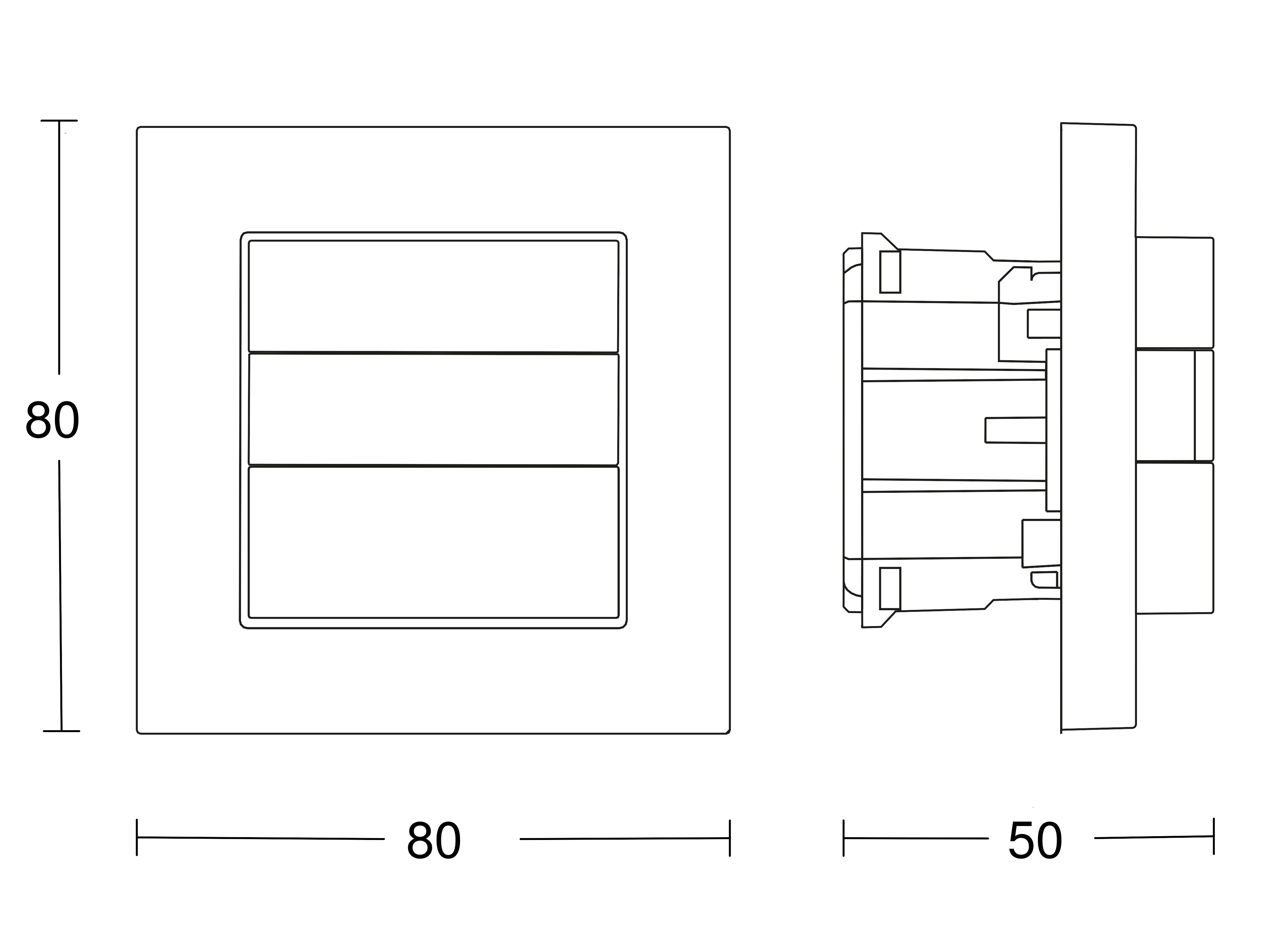

Dimensions L × W × H
50 x 80 x 80 mm
Electrical
Supply voltage detail
KNX bus
FIL_2_PRO interfaces
KNX
Sensor technology
Sensor technology
High frequency
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
180 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 8 m (101 m²)
Tangential range
r = 8 m (101 m²)
Mounting height
1,20 – 2,2 m
Optimal mounting height
1,2 m
FIL_4_PRO sensor technology
High frequency
Connectivity
Networking
Yes
Type of networking
Master/master, Master/slave
KNX functions
Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output, Integrated button, Temperature output, Humidity output
With bus coupler
No
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
2 – 1000 lx
Time setting
60 sec – 255 min
Base light function
Yes
Base light function time
Permanently ON, 1-255 min, all night
Settings via
ETS software, Remote control, Bus, Smart Remote
Twilight setting teach
Yes
Base light function in percent
10 – 50 %
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
one-person office, corridor / aisle, function room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors
