Identification
Version

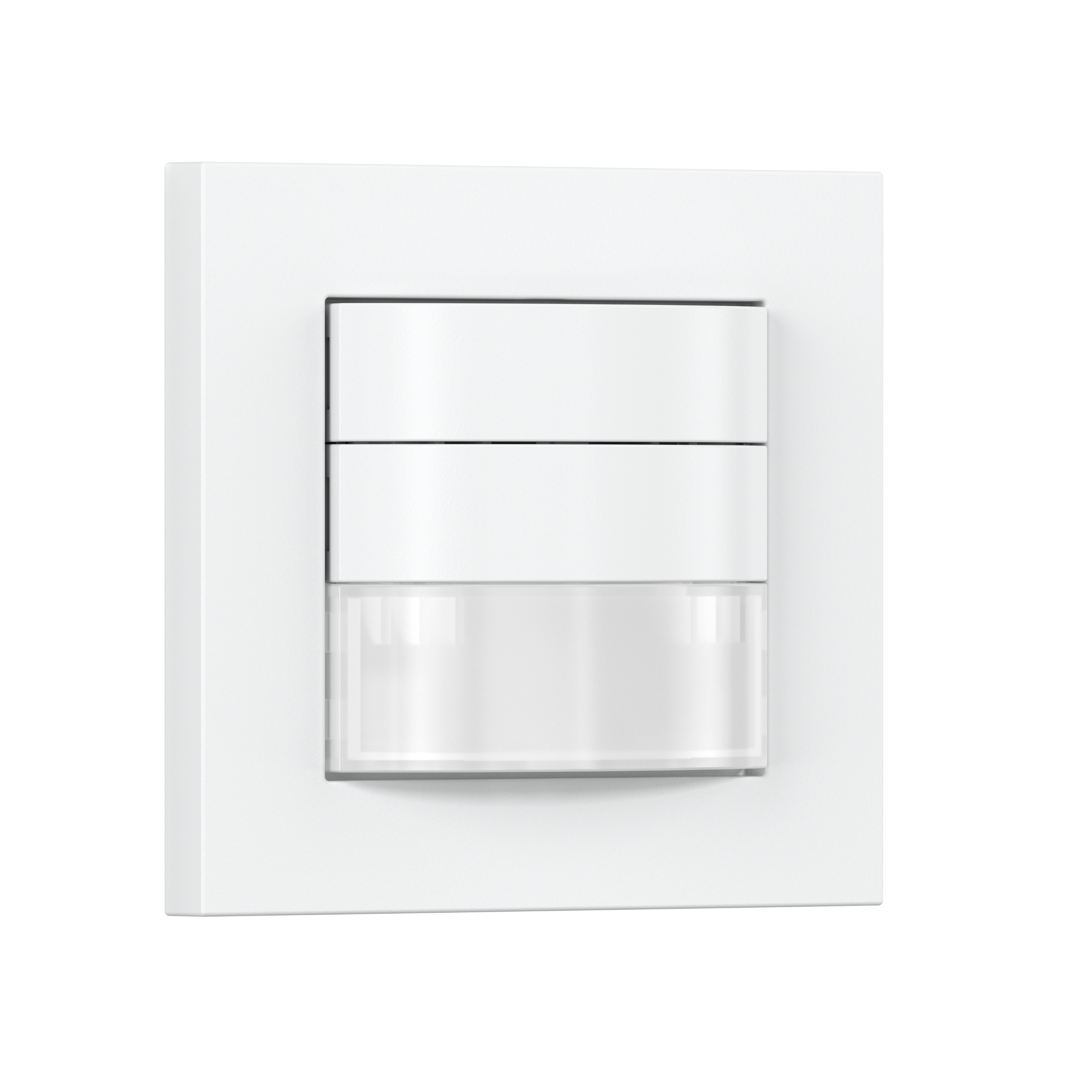

Presence detector
Dimensions
Dimensions L × W × H
50 x 80 x 80 mm
Electrical
Supply voltage detail
KNX bus
Sensor technology
Max. mounting height
2,20 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
180 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 8 m (101 m²)
Tangential range
r = 8 m (101 m²)
Mounting height
1,20 – 2,20 m
Optimal mounting height
1,2 m
Connectivity
Networking
Yes
Type of networking
Master/master
Master/slave
Networking via
KNX bus
KNX functions
Photo-cell controller
Basic light level function
Light level
HVAC output
Constant-lighting control
Light output 4x
Presence output
Day / night function
Logic gate
With bus coupler
Yes
Lighting technology
Soft light start
Yes
Continuous light
selectable
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
60 s – 255 Min.
Base light function
Yes
Base light function time
Permanently ON
1-255 min
all night
Main light adjustable
0 - 100 %
Functions
Presence detector logic
Settings via
ETS software
Remote control
Bus
Smart Remote
With remote control
Yes
Twilight setting teach
Yes
Base light function in percent
10 – 50 %
Base light function percent from
10 %
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
from 0 up to 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
Indoors
WC / washroom
corridor / aisle
function room / ancillary room
kitchenette
one-person office
stairwell
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
