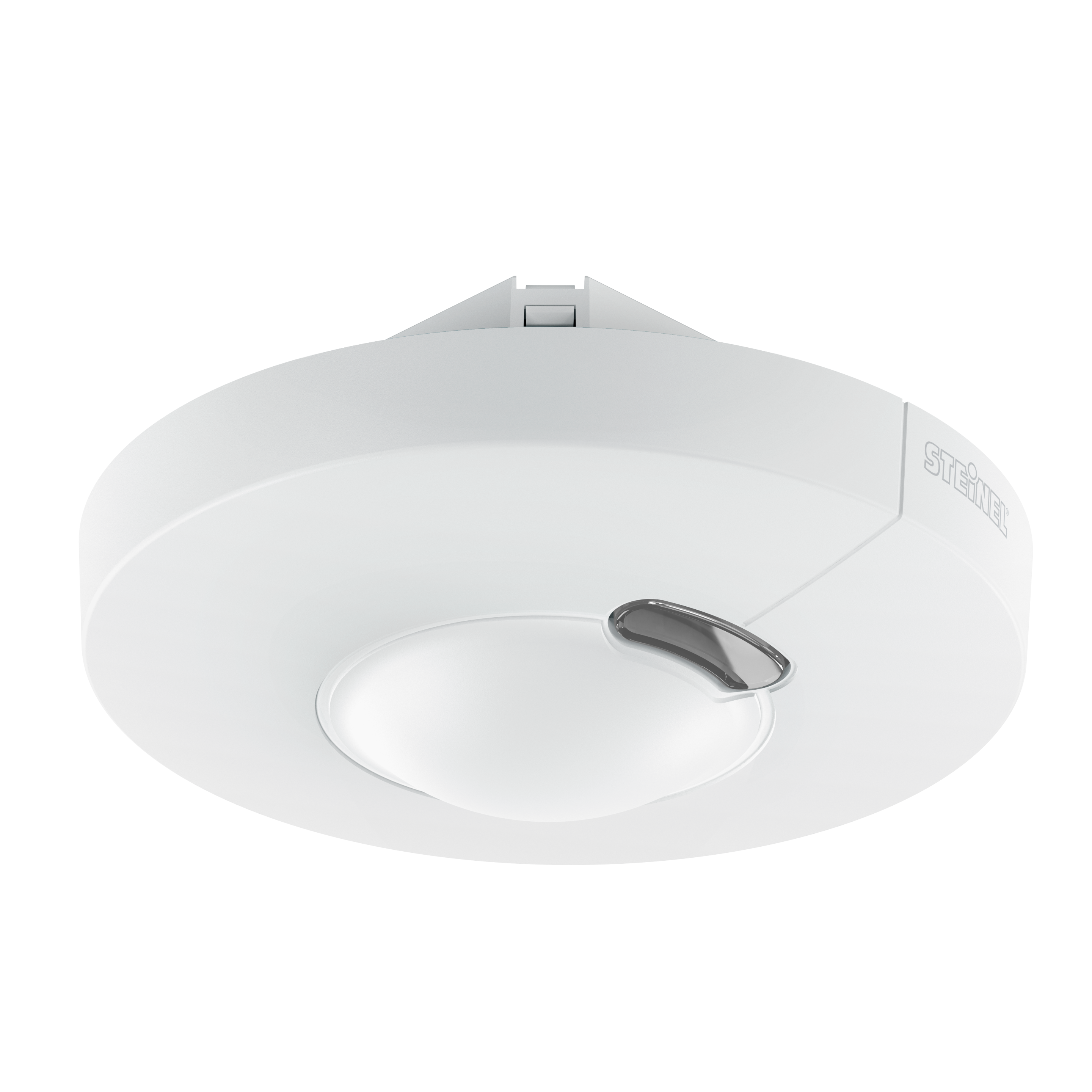

Nevalux HF 3360 DALI-2 Application Controller - concealed round

ELDAS® no. 535 940 766

EAN-No. 4007841 033750

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls. Available either in round or square surface-mounted and concealed version.

UV-resistant plastic
Optional remote controls

Identification

Variant DALI-2 Application Controller - concealed, rd.

Version Motion detectors

Dimensions

Dimensions Ø × H 124 x 64 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Control output DALI Broadcast 1x30 electronic ballasts

FIL_2_PRO interfaces DALI-2 Application Controller

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

FIL_4_PRO sensor technology High frequency

Connectivity

Networking Yes

Type of networking Master/slave

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 2 – 1000 lx

Time setting 5 sec – 15 min

Base light function Yes

Base light function time 1-30 min, all night

Functions Normal / test mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF

Settings via Remote control, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Housing & material

Protection class (IP) IP20

Ambient temperature -20 – 50 °C

Mounting location ceiling corner wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room function room / ancillary room, stairwell, WC / washroom, multi-storey / underground car park, Indoors

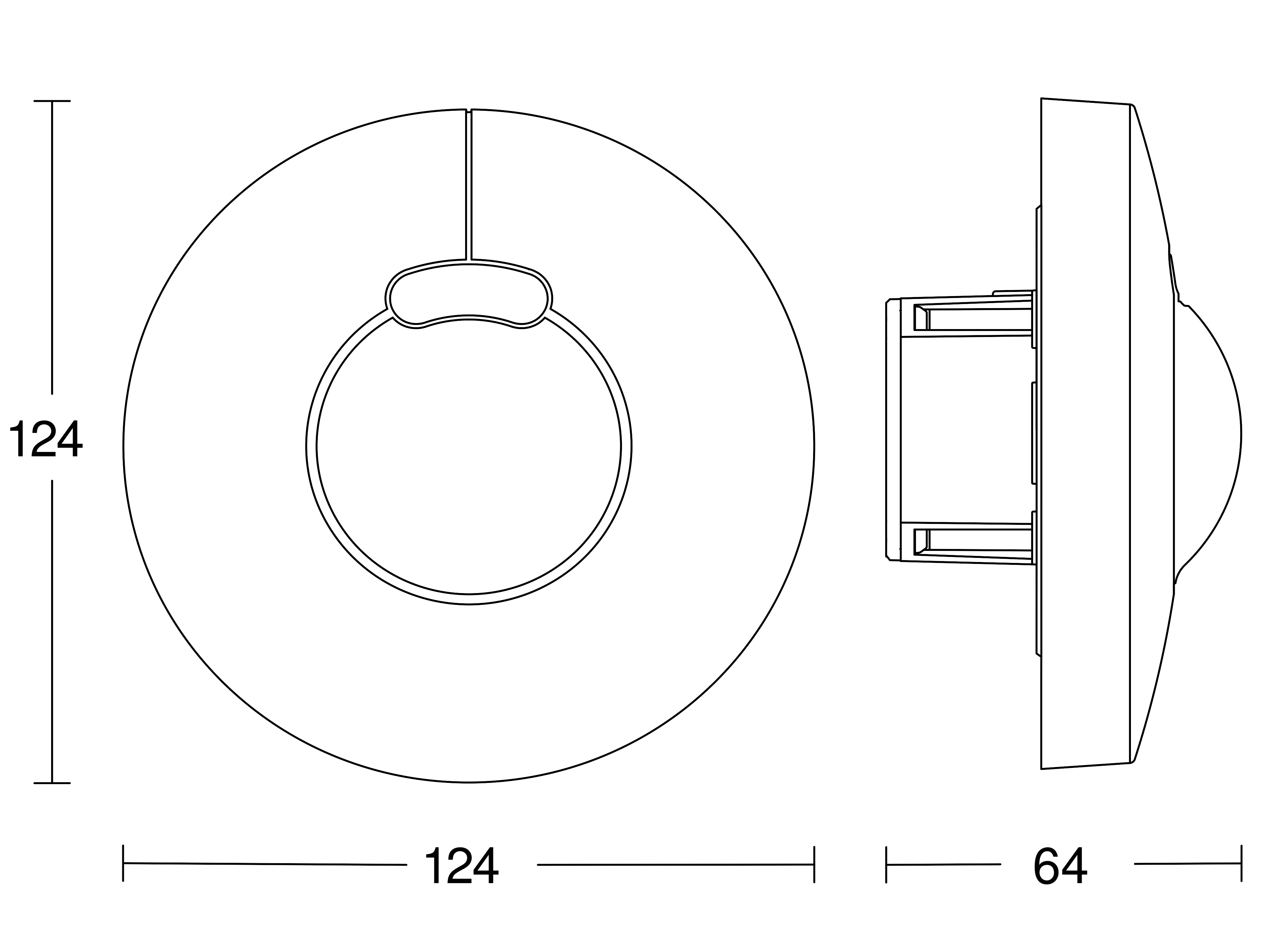

Technical drawing

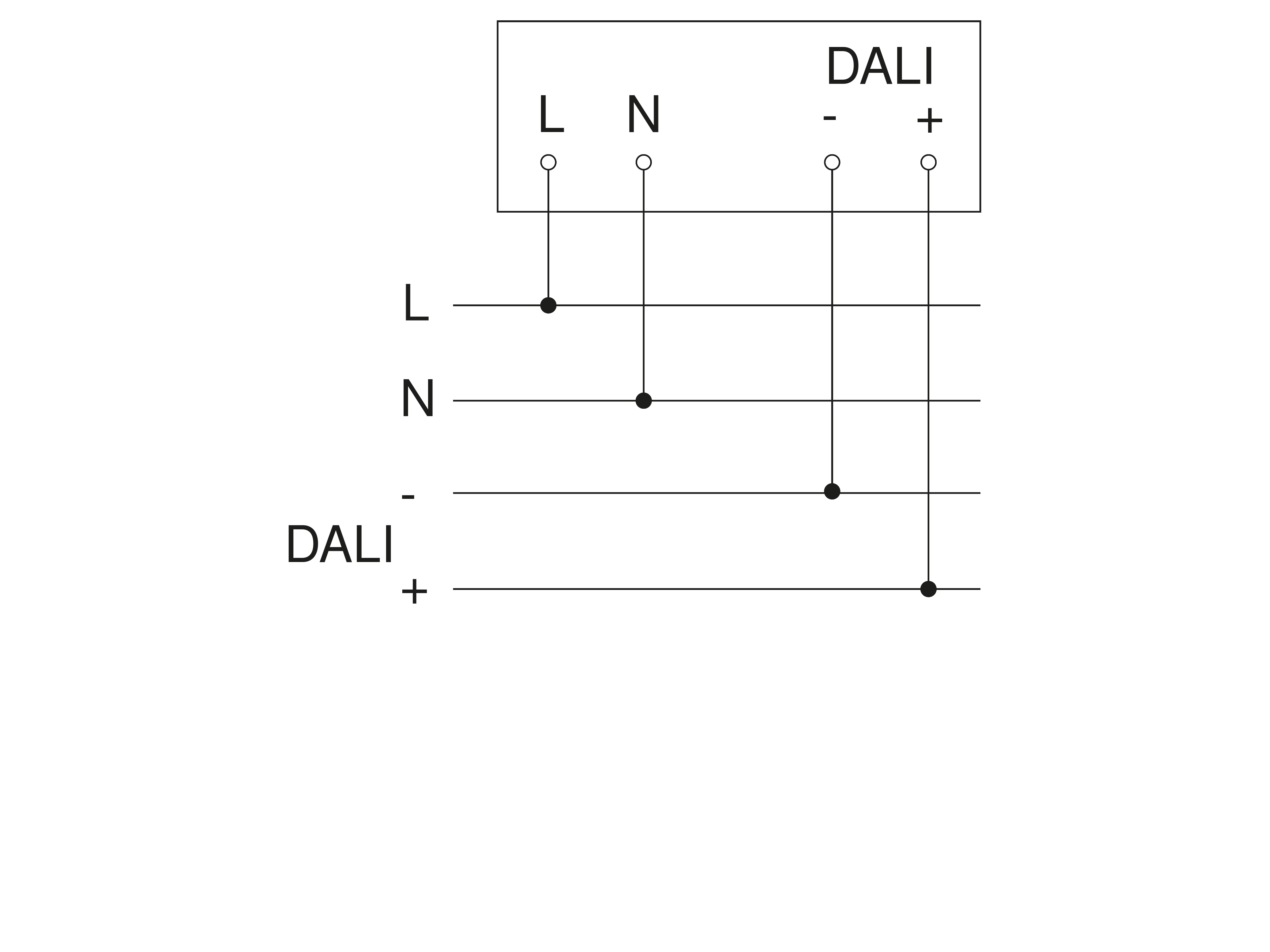

Wiring diagram 1

Master circuit diagram

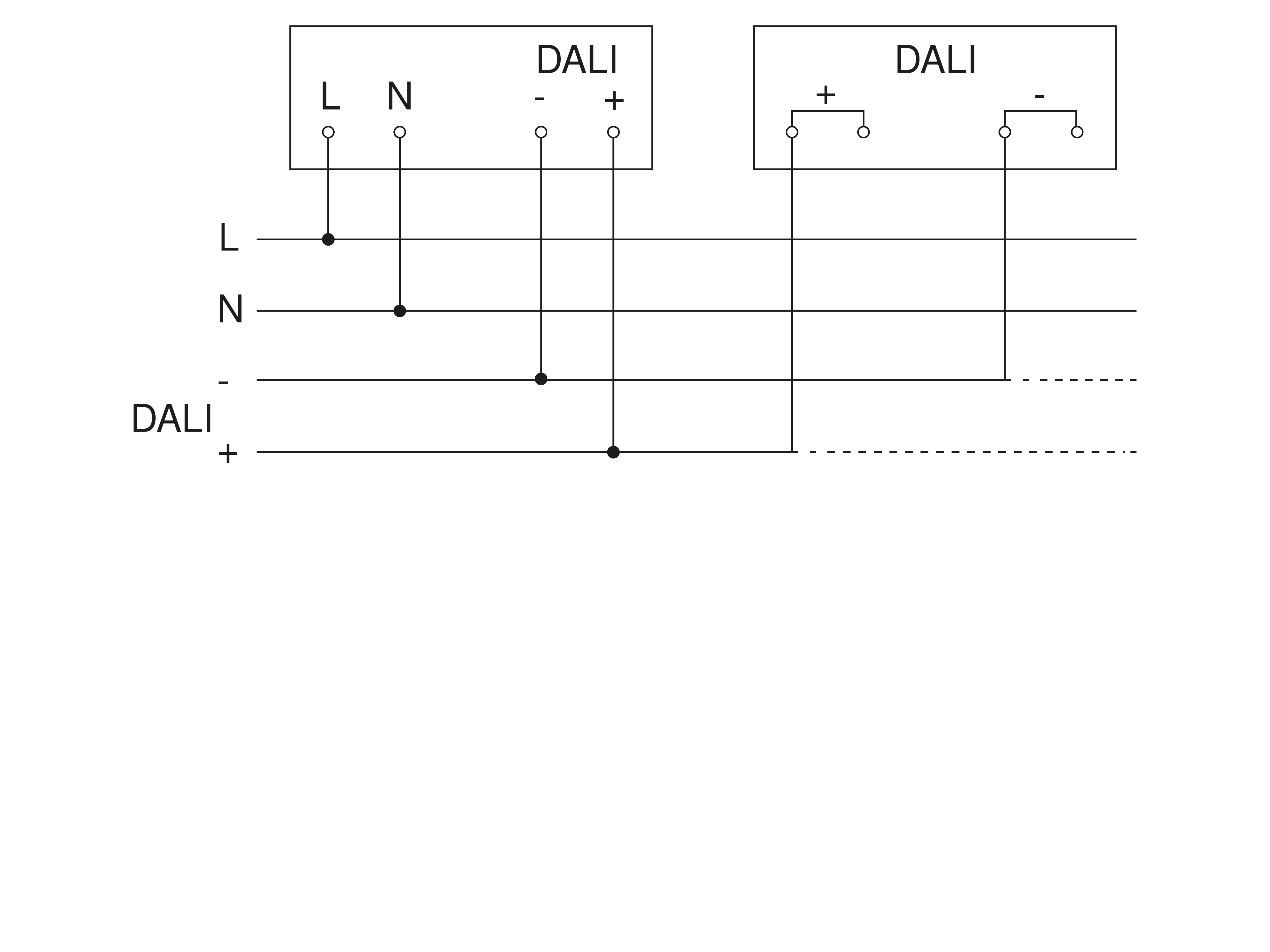

Wiring diagram 2

Circuit diagram for interconnecting DALI-2 APC with DALI-2 IPD

Data sheet User manual

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410

Black cover for HF 3360 concealed, rd.

Item no. 4007841056704

User remote control RC5

Item no. 592806

Black cover for HF 3360 concealed, sq.

Item no. 4007841056681
