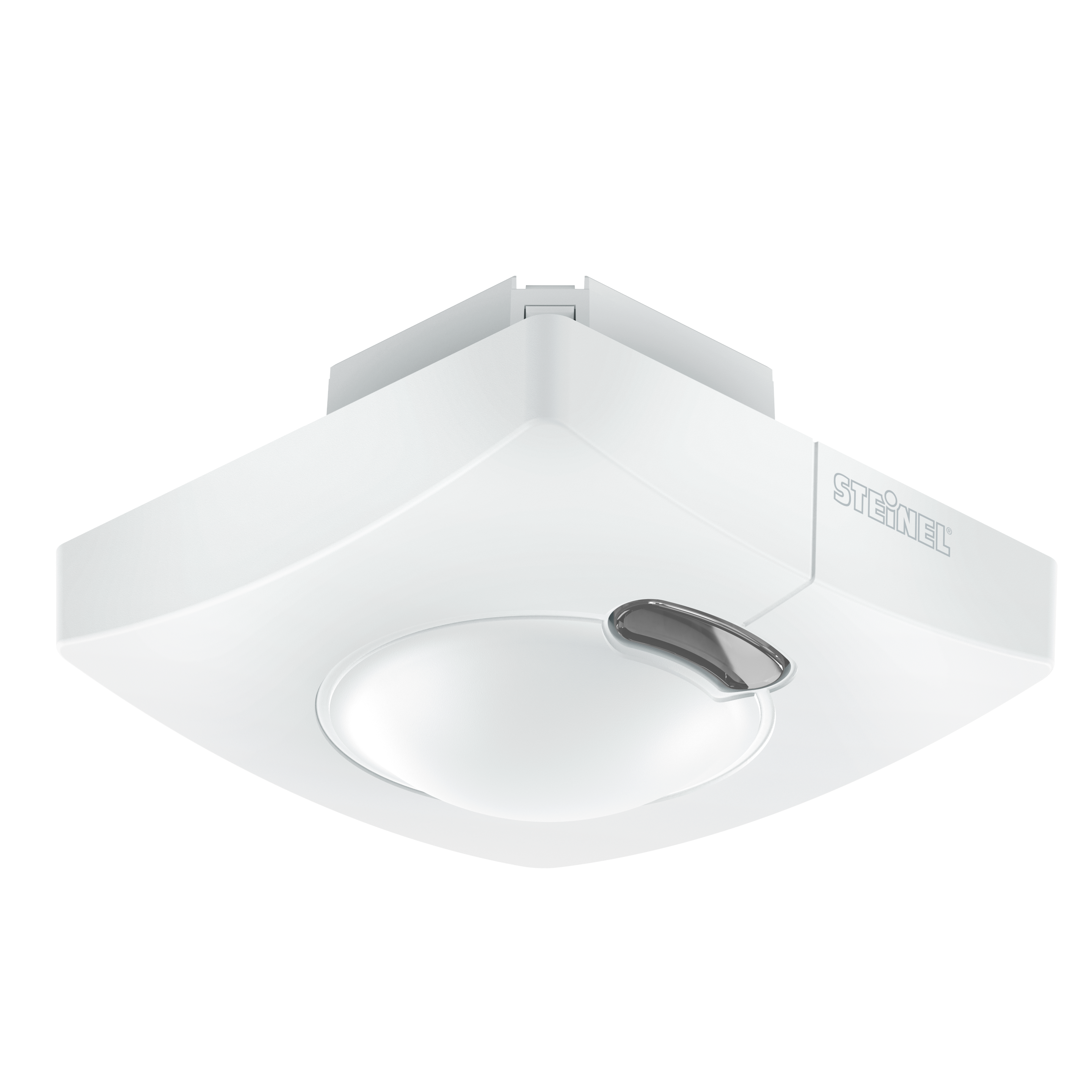

Nevalux HF 3360 DALI-2 Input Device - concealed, sq.

ELDAS® no. 535 940 305

EAN-No. 4007841 057336

This product is being replaced by a successor product.

Go to successor product · HF 3360 DALI-2 Input Device - concealed, sq. (4007841057336)

Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls. Available either in round or square surface-mounted and concealed version. DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems (e.g. LiveLink).

UV-resistant plastic

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 64 x 94 x 94 mm

Electrical

Mains connection 12 – 22,5 V

Own consumption 0,5 W

Supply voltage detail DALI bus

Control output DALI Addressable/slave

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 5

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location ceiling corner wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors WC / washroom function room / ancillary room multi-storey / underground car park stairwell

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Technical drawing

Sensor detection range

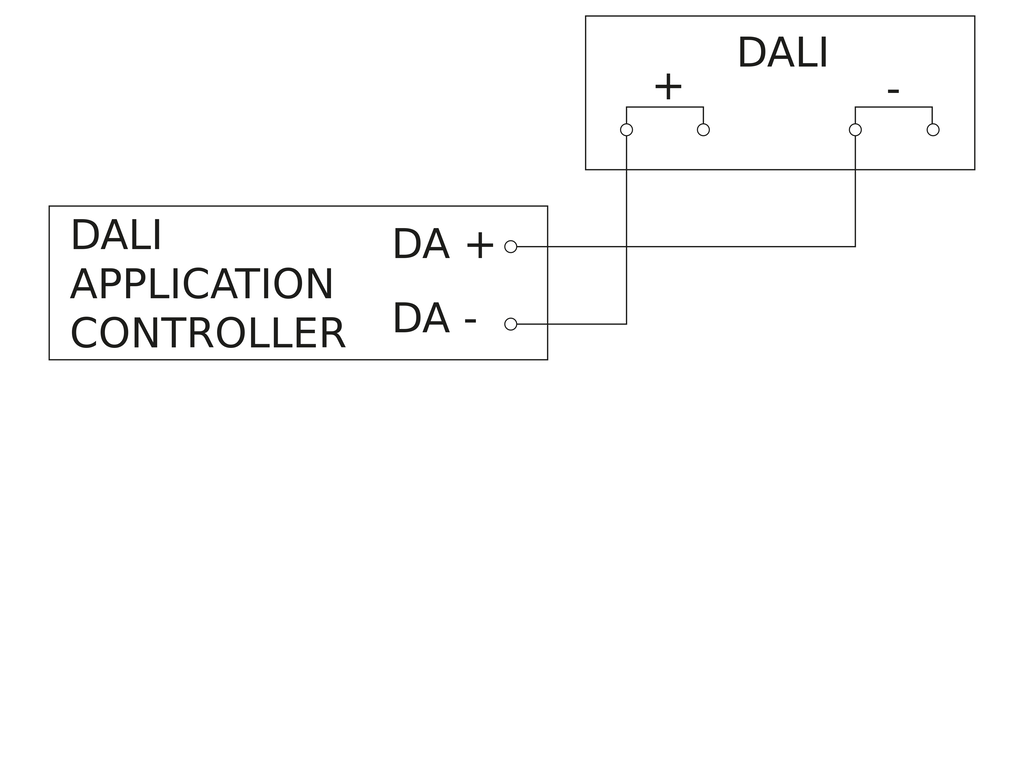

Wiring diagram 1

Circuit diagram
