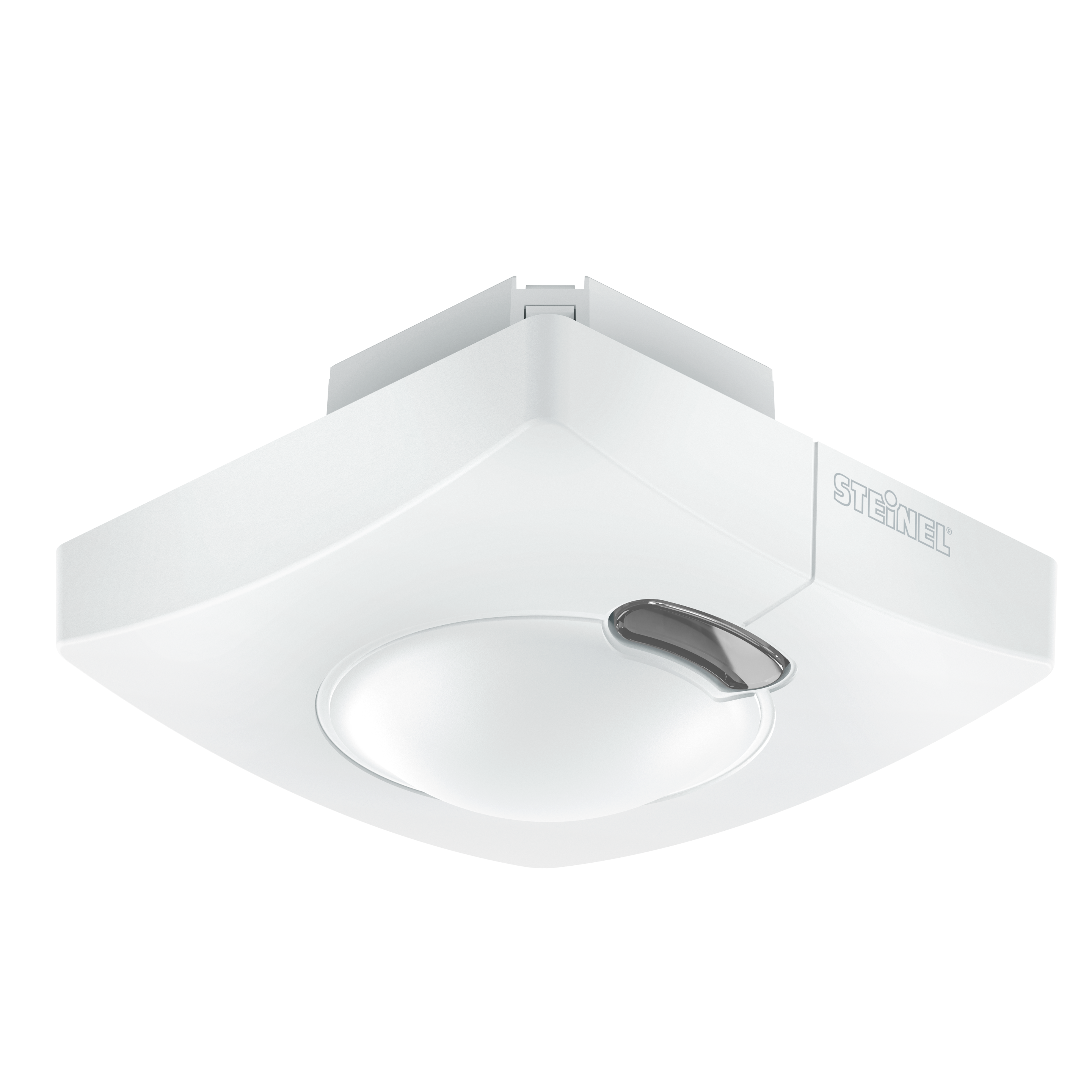

Nevalux HF 3360 LiveLink - concealed installation, square

ELDAS® no. 535 939 307

EAN-No. 4007841 055622

This product is being replaced by a successor product.

Go to successor product · HF 3360 DALI-2 Input Device - concealed, sq. (4007841057336)

Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls. Available either in round or square surface-mounted and concealed version.

Identification

Variant LiveLink - concealed installation, square

Version Motion detectors

Model LiveLink

Dimensions

Dimensions L × W × H 94 x 94 x 64 mm

Electrical

Mains connection 230 V, 50 / 60 Hz

Livelink values Light level, Motion detection

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Number of DALI participants 5

Lighting technology

Constant light regulation No

Settings

Twilight setting 2 – 1000 lx

Time setting 5 sec – 15 min

Base light function No

Settings via LiveLink app

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -20 – 50 °C

Mounting location ceiling corner wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room side room, stairwell, wc, washroom, multi-storey car park, underground car park, equipment room
