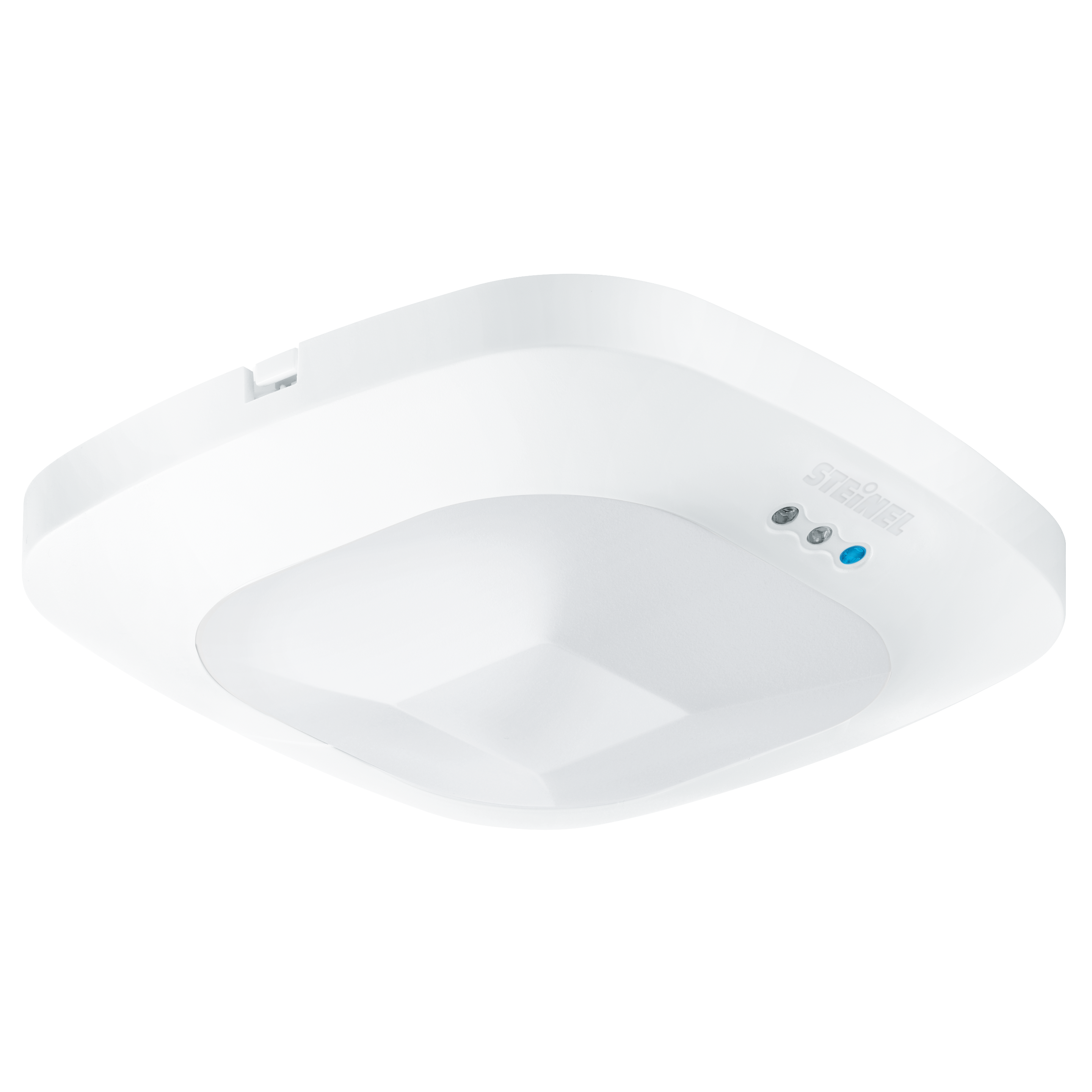

Nevalux HF 360 KNX

ELDAS® no. 535 930 408

EAN-No. 4007841 008796

This product is being replaced by a successor product.

Go to successor product · HF 360 KNX - Concealed wiring (059484)

Doesn't miss a thing. HF-presence detector Presence Control PRO HF 360 KNX for indoors, ideal for WCs with toilet cubicles, changing rooms, stairwells, multi-storey car parks, kitchens, installation height up to 3.5 m, with digital BUS interface for controlling 4 lighting channels and HVAC, 1 – 12 m reach, reach is electronically adjustable and can be limited in two directions, detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls.

Optional remote controls
Optional surface-mounting adapter (IP 54, KNX)
Optional guard cage
HF ceiling adapter for installation in suspended ceilings

Identification

Variant KNX

Version Presence detector

Model KNX

Dimensions

Dimensions L × W × H 56 x 120 x 120 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,50 – 3,50 m

Optimal mounting height 2,8 m

Connectivity

KNX functions Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output

With bus coupler Yes

Settings

Twilight setting 10 – 1000 lx

Time setting 0 – 255 min

Base light function time Permanently ON, 1-255 min, all night

Settings via ETS software, Remote control, Bus

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Housing & material

Protection class (IP) IP20

Ambient temperature -25 – 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room side room, stairwell, washroom, wc

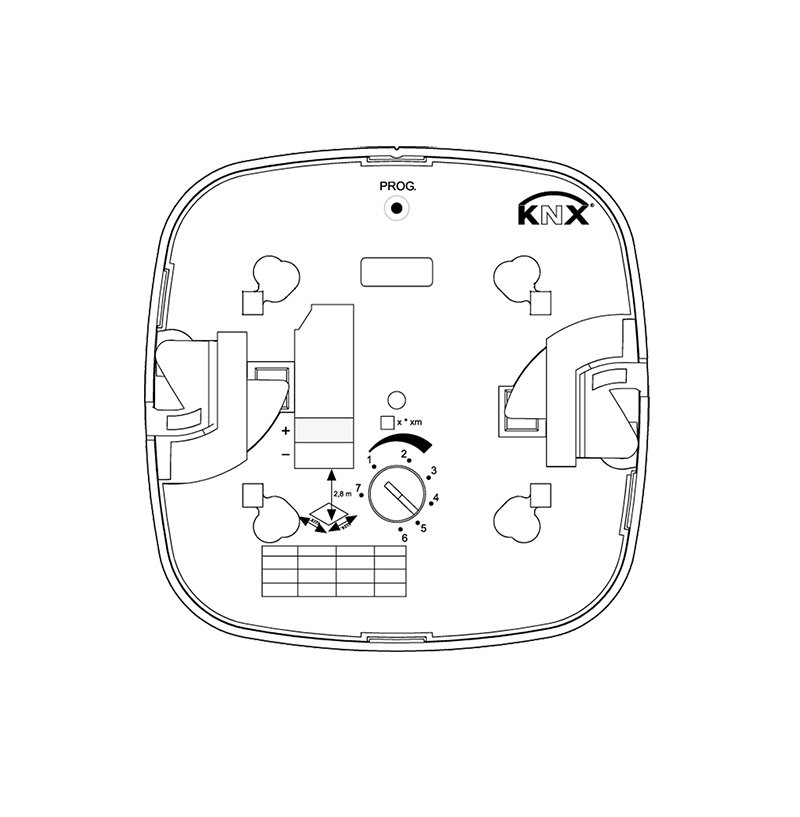

Sensor detection range

Data sheet User manual

Surface-mounted adapter Control Pro IP54 white

Item no. 000363

Surface-mounting adapter Control PRO AP Box KNX

Item no. 4007841003029

Control PRO guard cage

Item no. 003036

User remote control RC7 KNX

Item no. 592912

Service remote control RC6 KNX

Item no. 4007841593018

HF-ceiling adapter

Item no. 006600

Remote control Smart Remote

Item no. 009151
