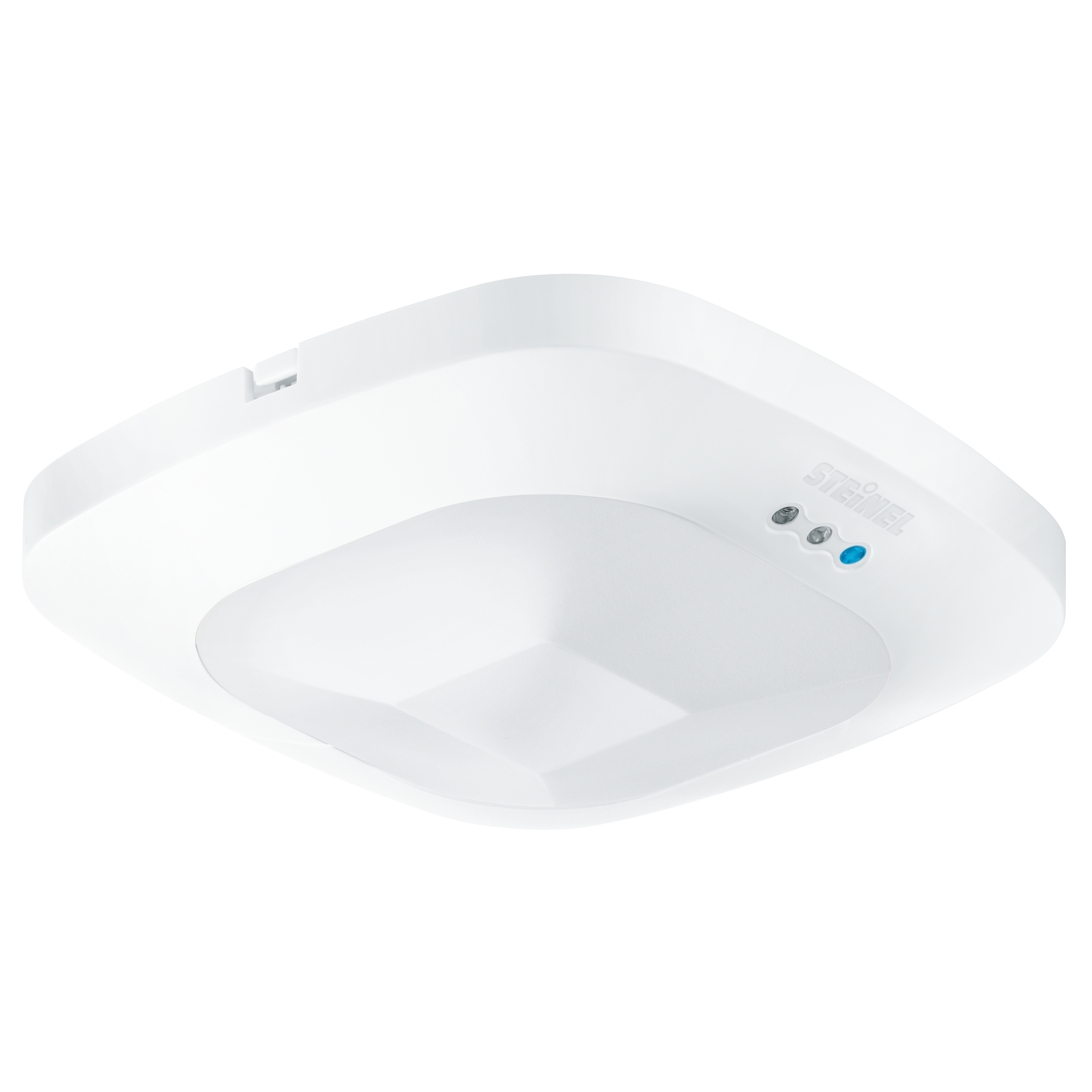

Steinel HF 360 KNX - Concealed wiring

Slim HF presence detector for WCs, kitchenettes and stairwells. Barely visible on the ceiling.

ELDAS® no. 535 935 408

EAN-No. 4007841 059484

Price: Please log in to see prices

Mounting type

Concealed mounting Recessed ceiling

Variant

230V, 1 channel 230V, 2 channels DALI-2 Application Controller DALI-2 Input Device KNX

Colour

Black White

High-frequency sensor technology demonstrates its benefits especially in public areas of modern buildings. As a pioneer of this technology, STEINEL has managed to perfect it in the HF 360 KNX presence detector as an interconnected solution too. Its slimline design not only meets the demands of architects and property owners from an aesthetic point of view. It also helps to prolong its useful life. Because: anyone keeping a low profile is less likely to become a "victim" of vandalism.

Identification

Version Presence detector

Variants

Version KNX

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 55 x 120 x 120 mm

Electrical

Mains connection 21 – 30 V

Own consumption 0,7 W

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 3,50 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,5 – 3,5 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Networking via KNX

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 10 s – 1092 min

Base light function Yes

Base light function time 1-255 min

Main light adjustable 0 - 100 %

Settings via ETS software, Remote control, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -25...+55 °C

Cover material (scope of delivery) Sticker

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, WC / washroom, function room / ancillary room, kitchenette, stairwell

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates VDE

Optional remote controls

Smart Remote remote control optional

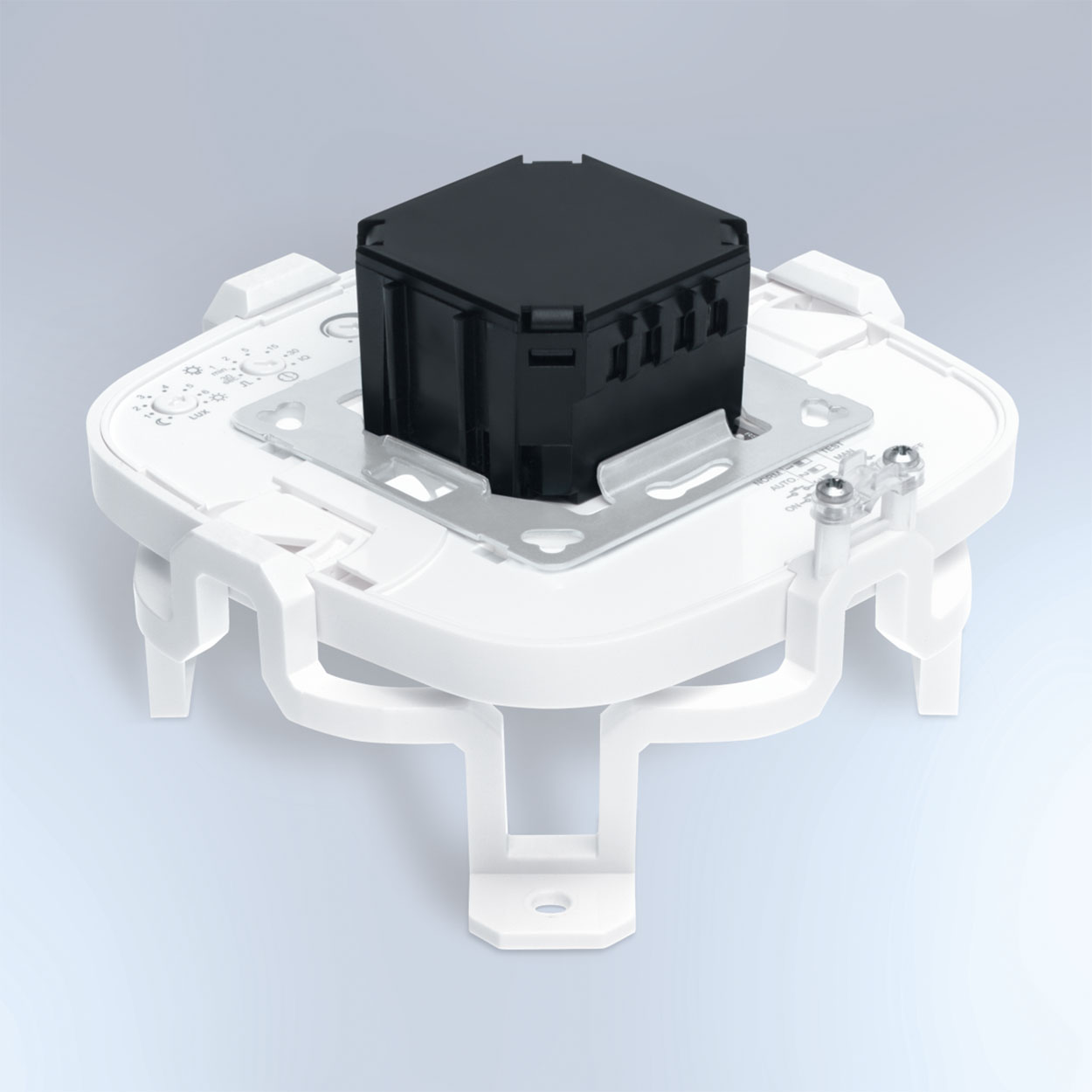

HF ceiling adapter for installation in suspended ceilings

Optional guard cage

Technical drawing

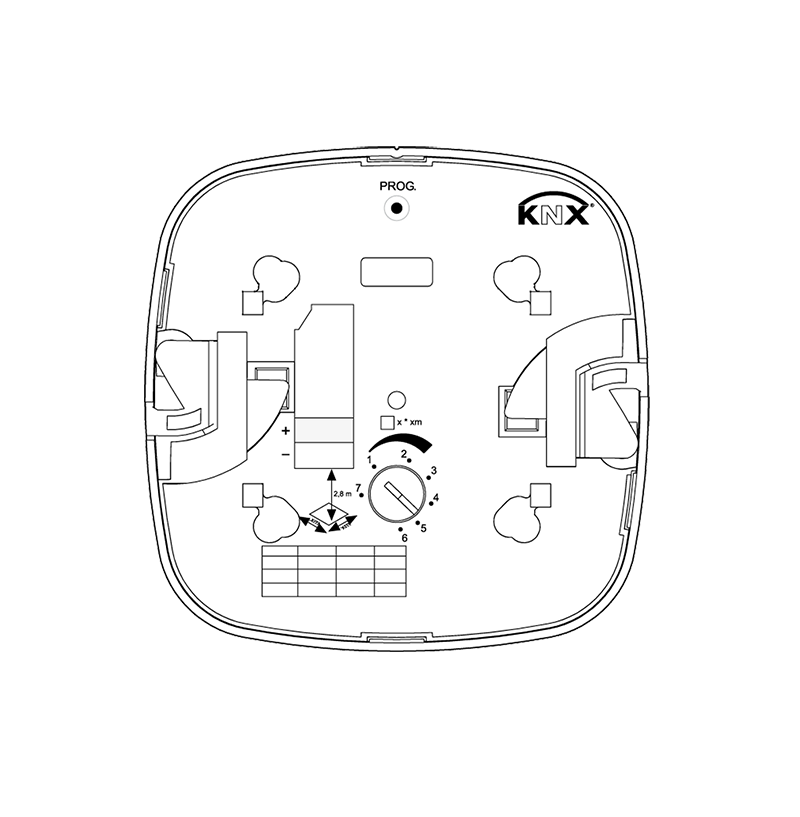

Sensor detection range
