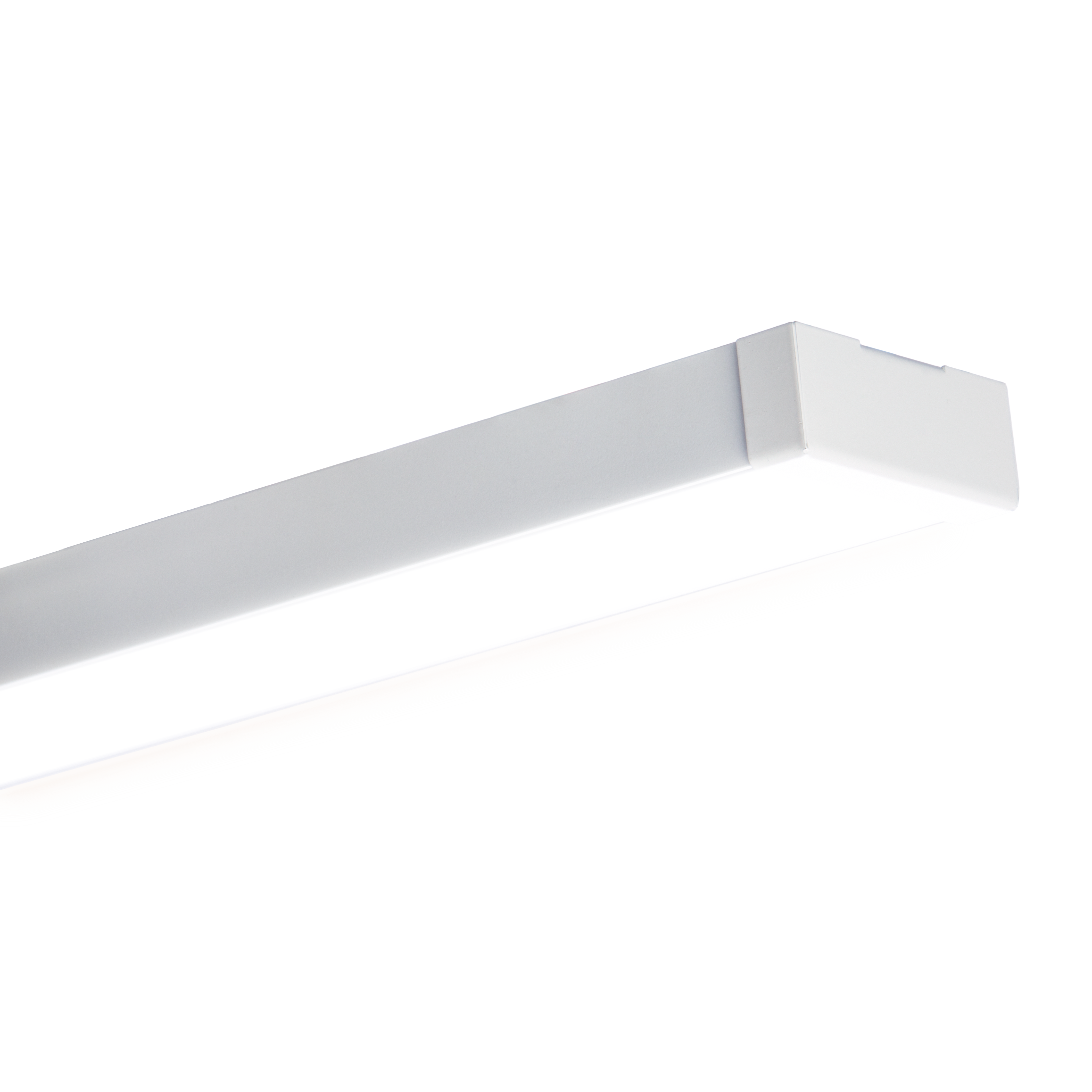

Nevalux imani B1500 HO 4K DALI

Product code 221495

Intelligence

DALI without intelligence Connect incl. light control

Luminous flux

6200 lm 6611 lm 4880 lm 8264 lm

The universal trunking insert imani from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation including existing through-wiring. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market.

Universal luminaire insert for professional refurbishment of continuous rows with T5 or T8 fluorescent tubes
Fits most of the trunking systems available on the market
Available as intelligent Connect version or as conventional DALI luminaire
Up to 95% energy savings with Connect luminaires thanks to constant light control and presence detection
Very high quality workmanship from Swiss manufacturing
Advanced thermal management for long service life

Variants

Length 1525 mm

Dimensions

Dimensions L × W × H 1525 x 65 x 30 mm

Electrical

Mains connection 200...240 V / 50 – 60 Hz

Power 65 W

Replaceable driver Yes

Type of wiring Suitable for through wiring

LED rated current 350 mA

Maximum number of luminaires per circuit breaker C10: 21x, C16: 35x, B10: 13x , B16: 21x

Sensor technology

With motion detector No

With light sensor No

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

Illuminant LED

Luminous flux 8264 lm

Beam angle 105°

Luminaire luminous efficacy 127 lm/W

Glare value UGR < 24

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes

With emergency light No

Suitable for light band configuration Yes

Housing & material

Protection class (IP) IP40

Protection class I

Ambient temperature -20...45 °C

Housing material Aluminum

Cover material Diffusor opal

Mounting type Use in continuous row

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class D

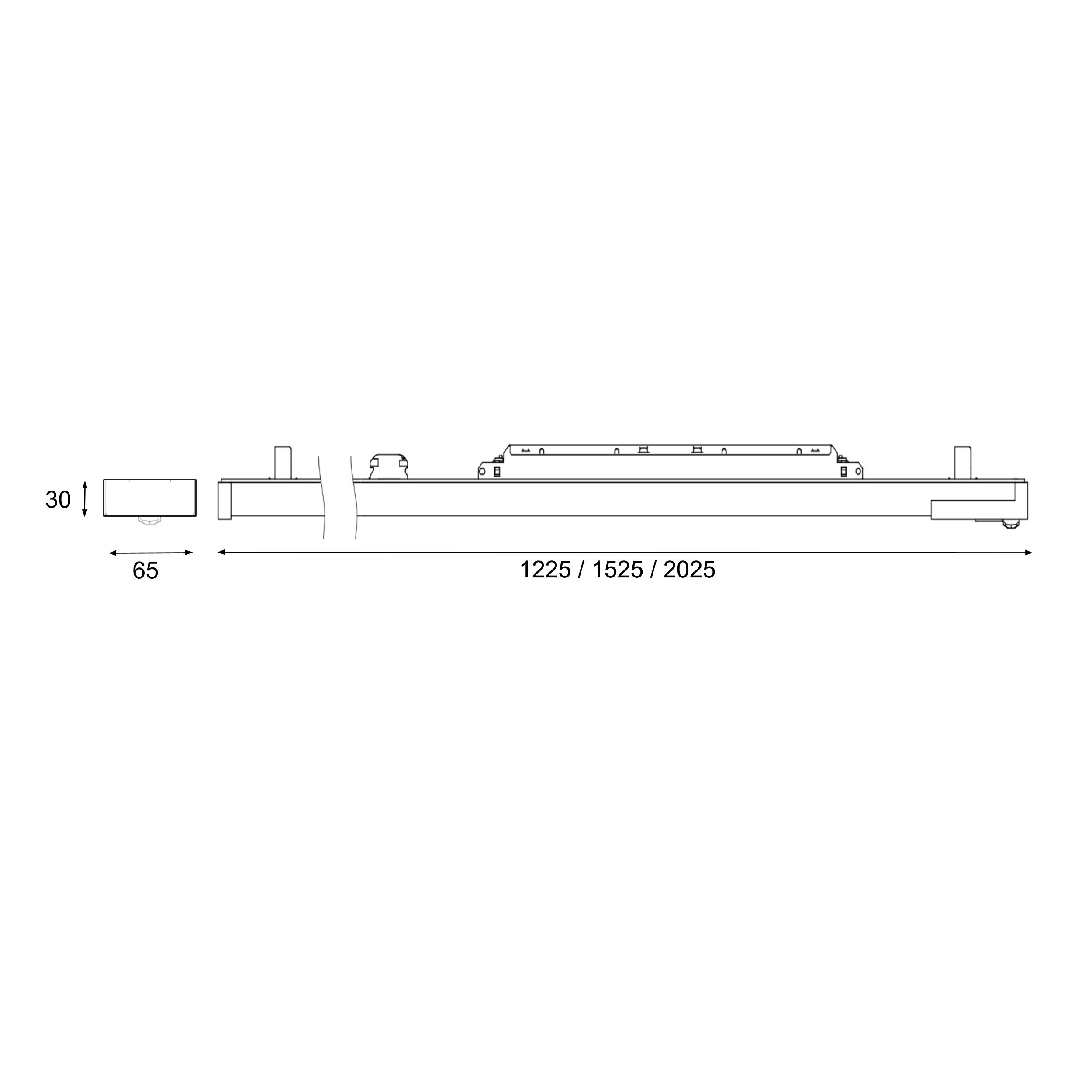

Technical drawing

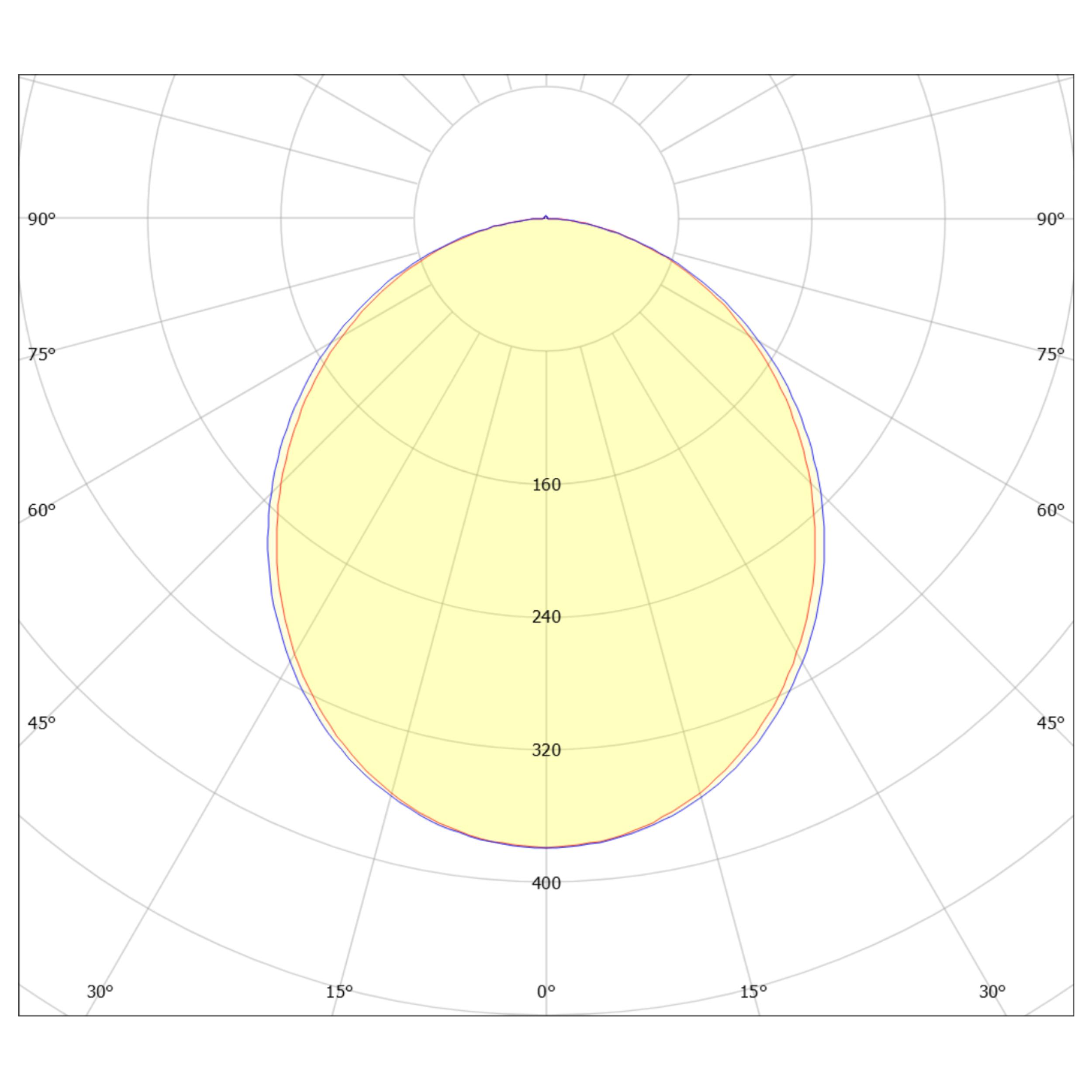

Lichtverteilungskurve

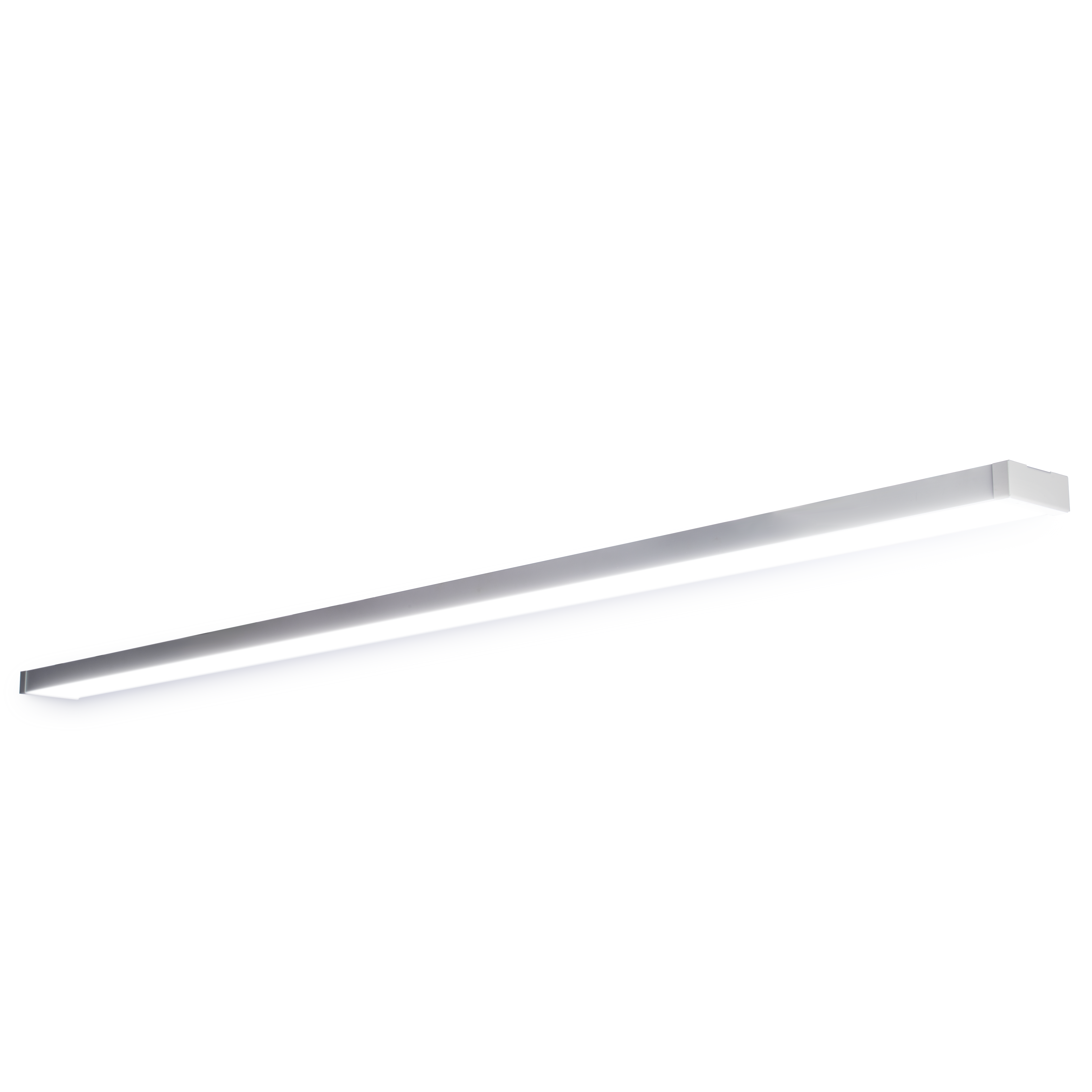

Sensor detection range

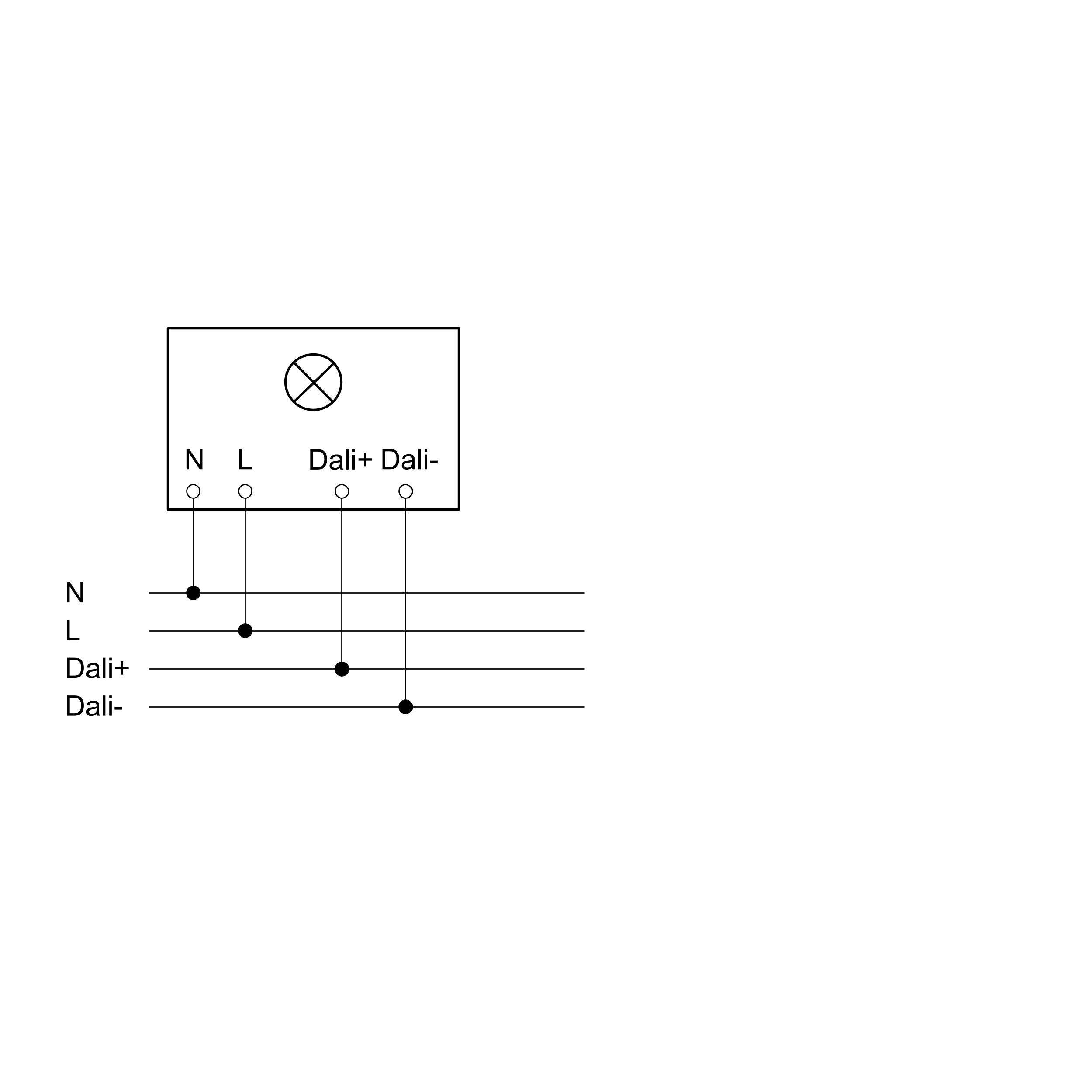

Wiring diagram 1

Wiring diagram

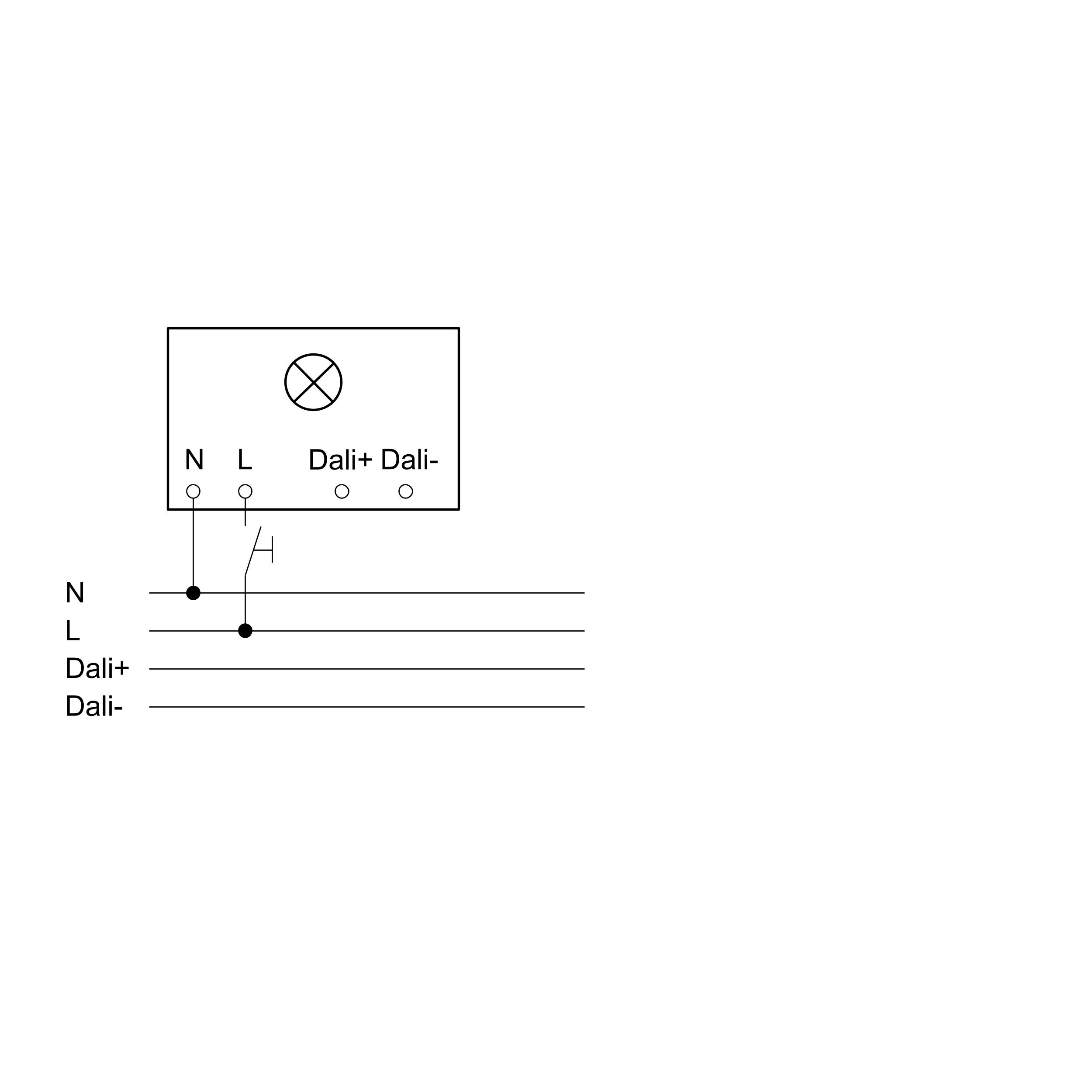

Wiring diagram 2

Wiring diagram

Data sheet User manual LDT file (light distribution)
