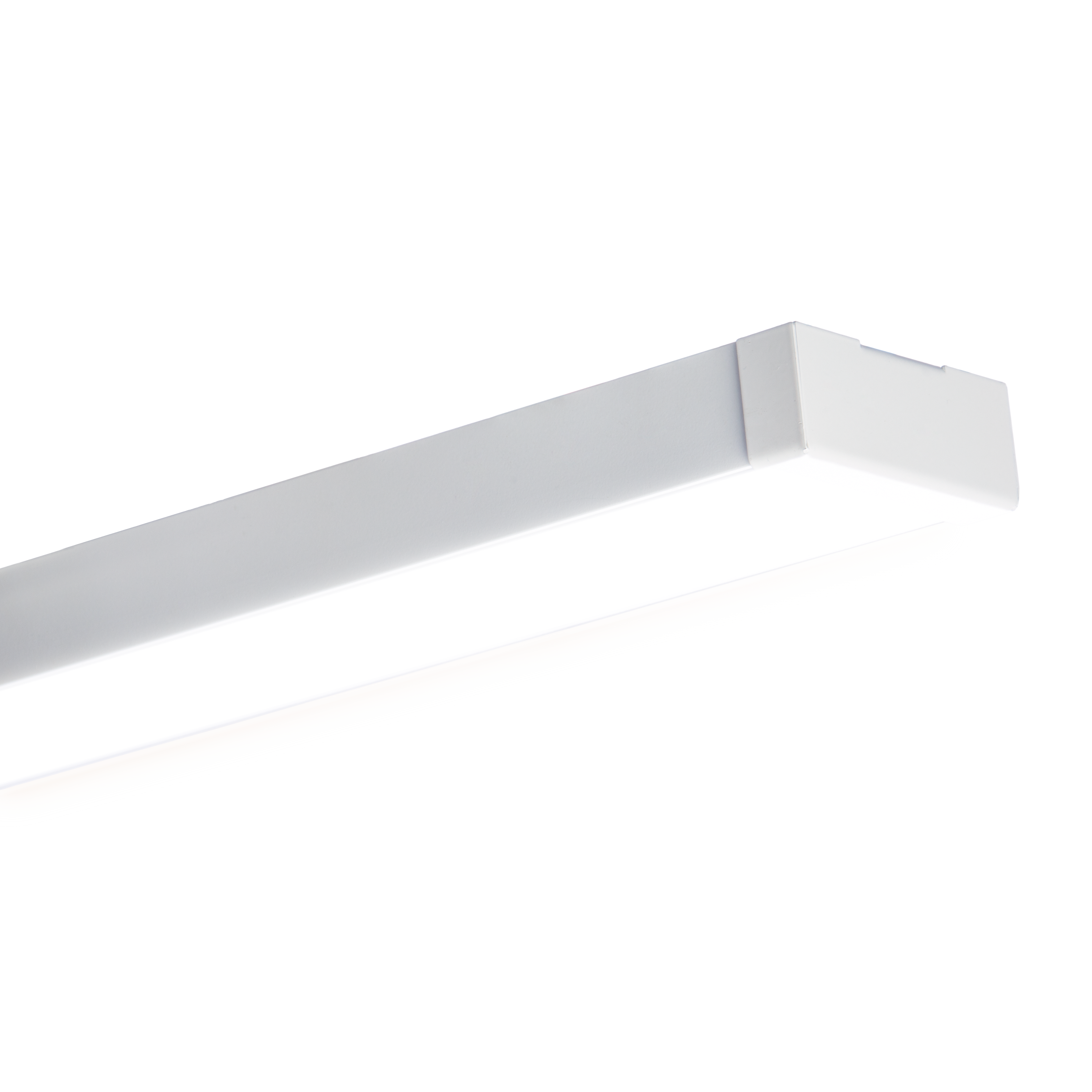

Nevalux imani B1500 4K DALI

Product code 221411

Price: Please log in to see prices

Intelligence

DALI without intelligence Connect incl. light control

Luminous flux

6200 lm 6611 lm 4880 lm 8264 lm

The universal trunking insert imani from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation including existing through-wiring. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market.

  • Universal luminaire insert for professional refurbishment of continuous rows with T5 or T8 fluorescent tubes
  • Fits most of the trunking systems available on the market
  • Available as intelligent Connect version or as conventional DALI luminaire
  • Up to 95% energy savings with Connect luminaires thanks to constant light control and presence detection
  • Very high quality workmanship from Swiss manufacturing
  • Advanced thermal management for long service life

Variants

Length 1525 mm

Dimensions

Dimensions L × W × H 1525 x 65 x 30 mm

Electrical

Mains connection 200...240 V / 50 – 60 Hz
Power 54 W
Replaceable driver Yes
Type of wiring Suitable for through wiring
LED rated current 370 mA
Maximum number of luminaires per circuit breaker C10: 21x, C13: 28x, C16: 36x, C20: 45x, B10: 13x , B13: 17x, B16: 22x, B20: 27x

Sensor technology

With motion detector No
With light sensor No

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
Illuminant LED
Luminous flux 6200 lm
Beam angle 105°
Luminaire luminous efficacy 115 lm/W
Glare value UGR < 24

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes
With emergency light No
Suitable for light band configuration Yes

Housing & material

Protection class (IP) IP40
Protection class I
Ambient temperature -20...45 °C
Housing material Aluminum
Cover material Diffusor opal
Mounting type Use in continuous row
Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class E

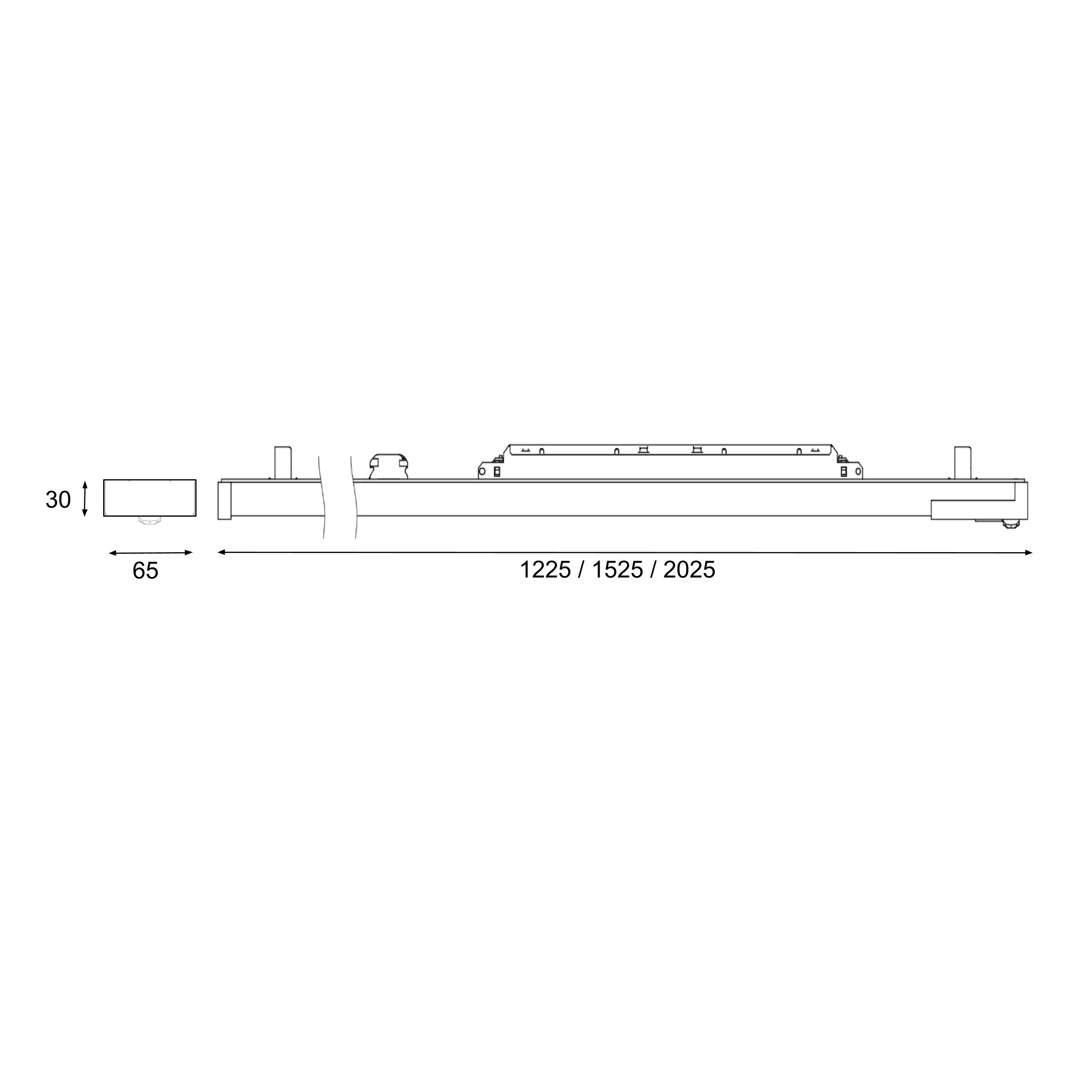

Technical drawing

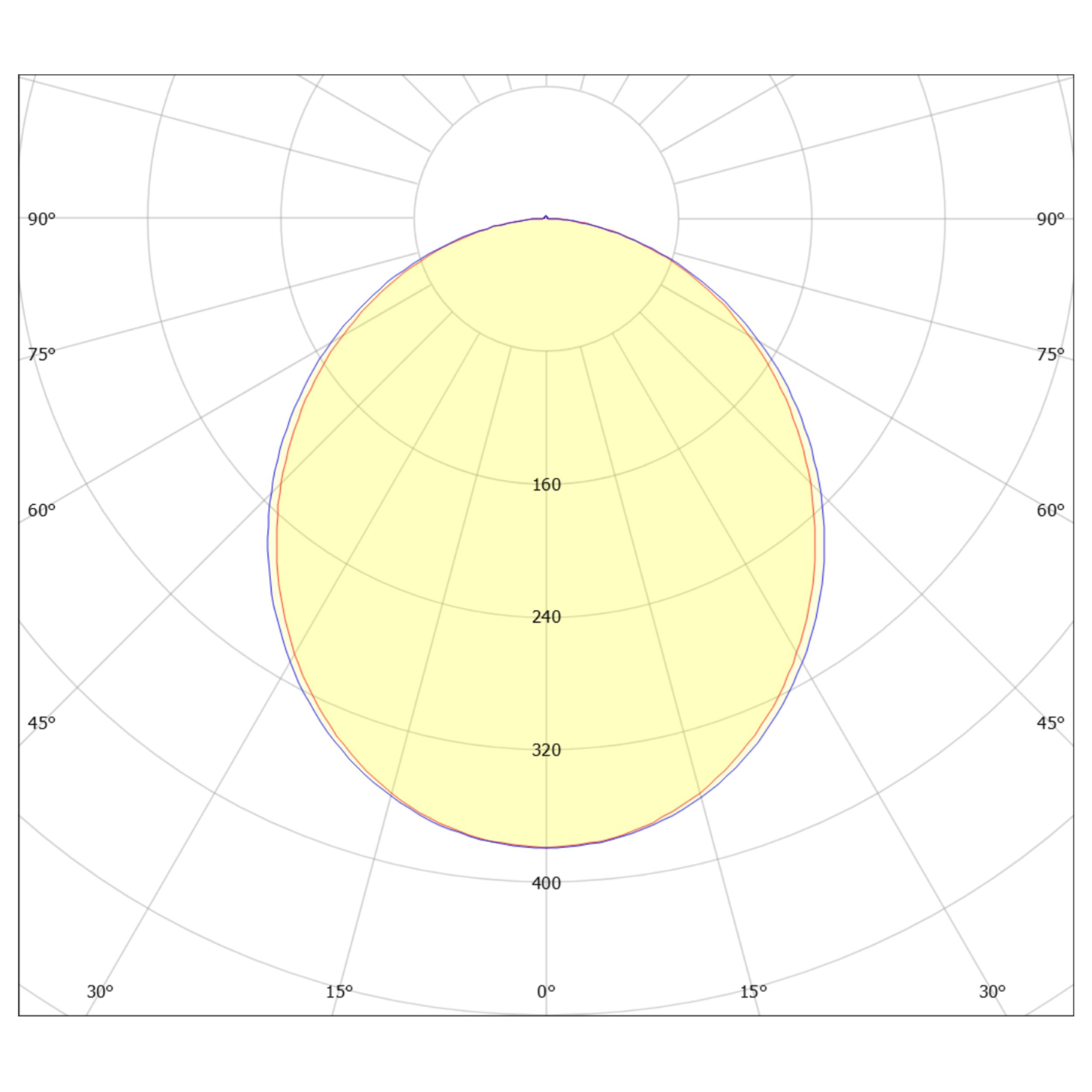

Lichtverteilungskurve

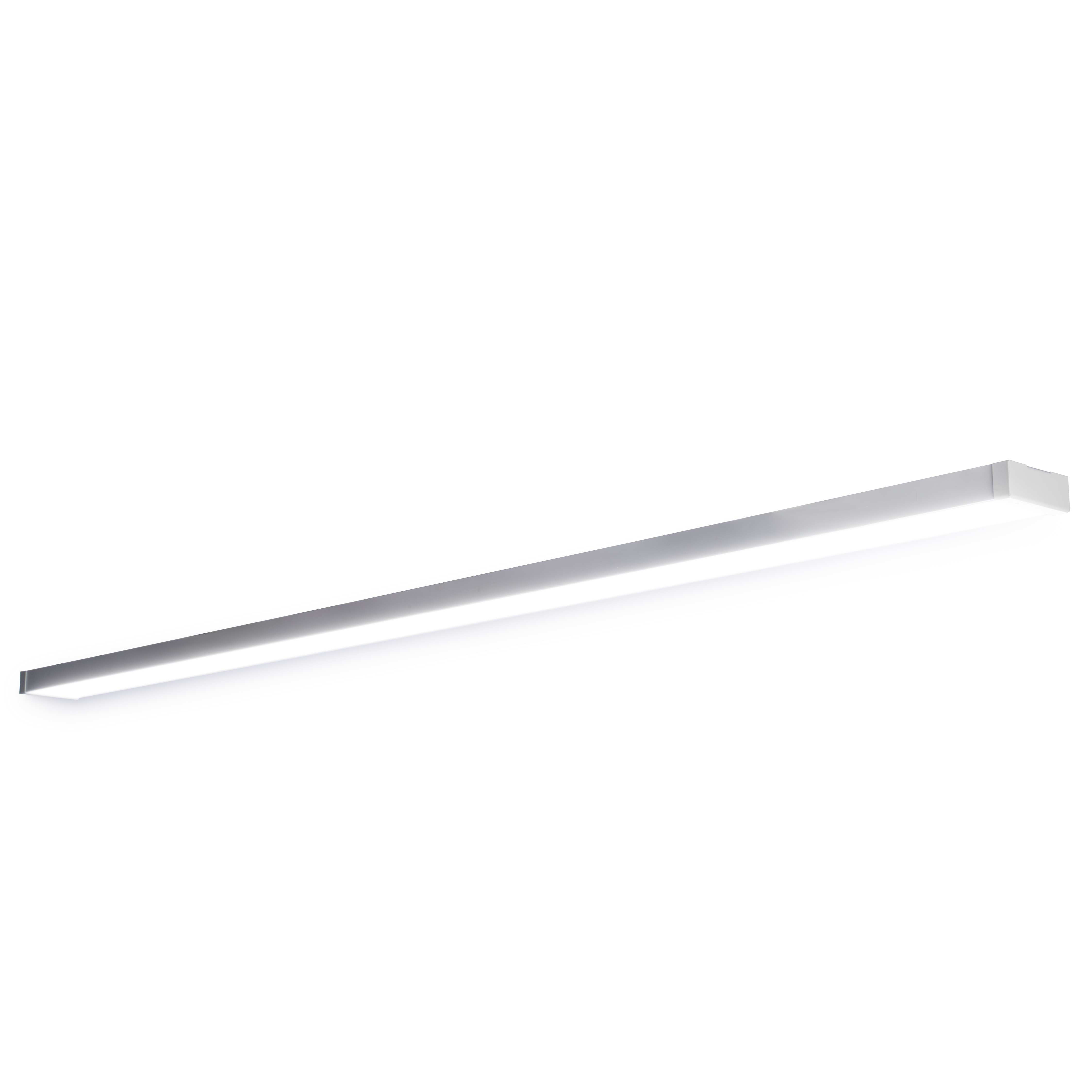

Sensor detection range

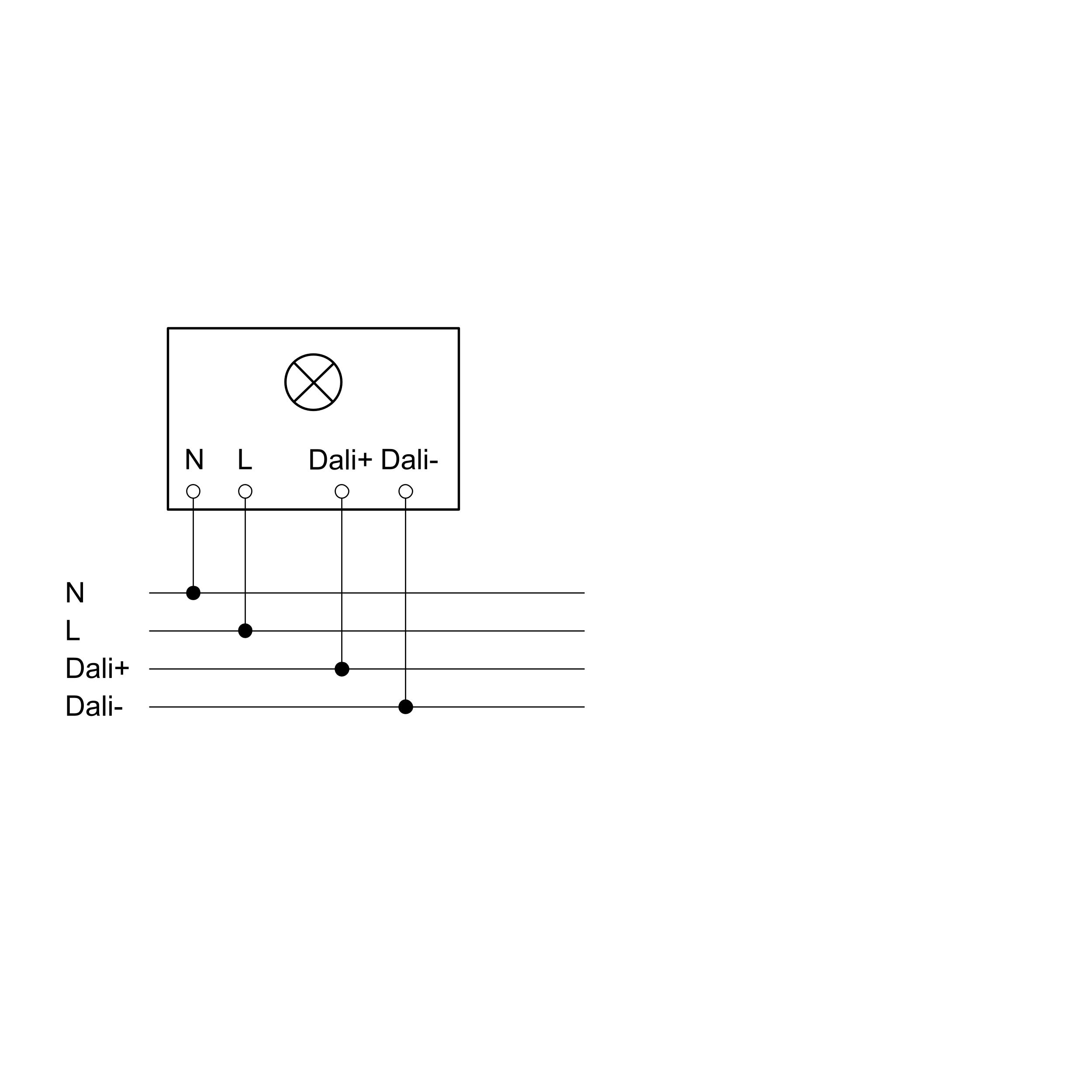

Wiring diagram 1

Wiring diagram

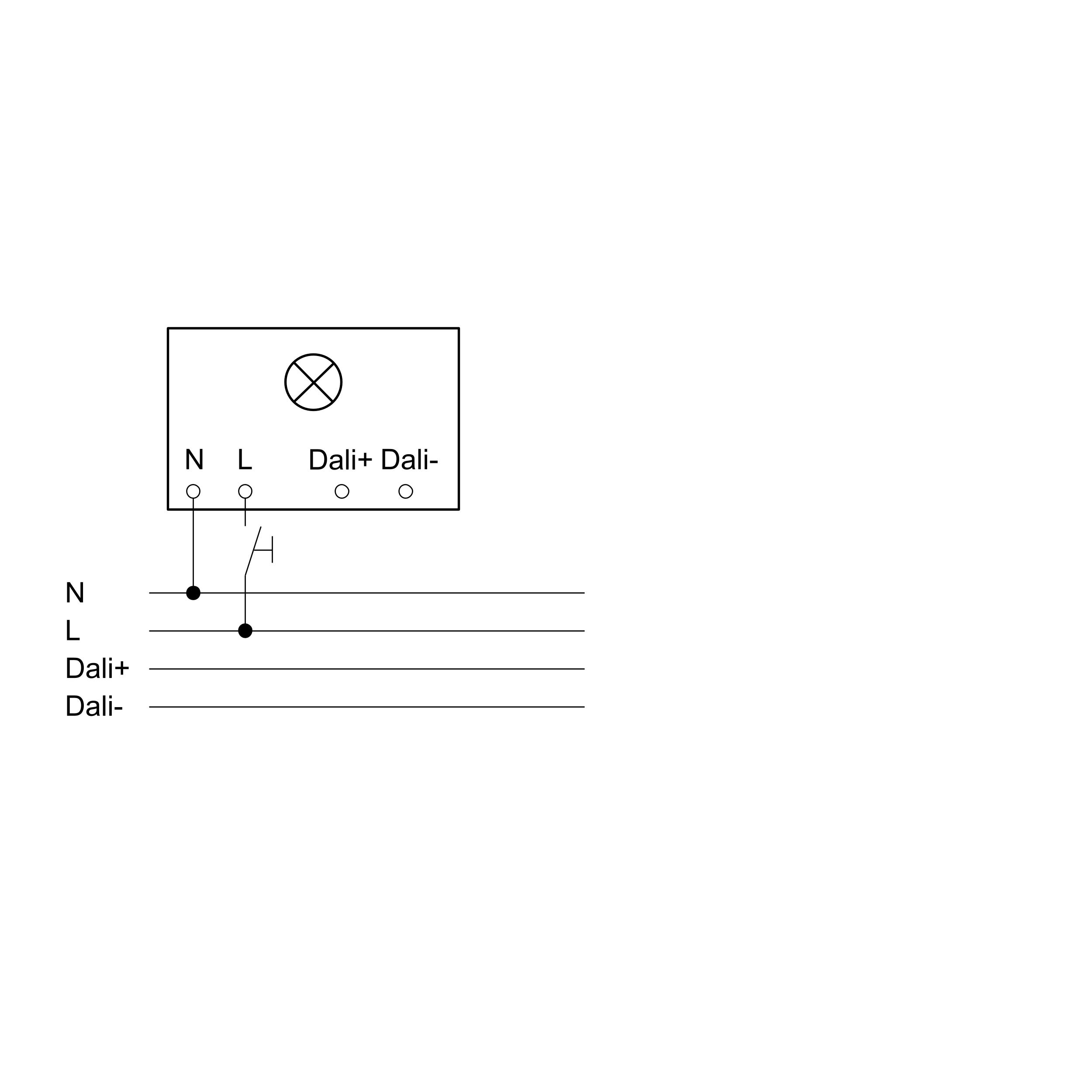

Wiring diagram 2

Wiring diagram
