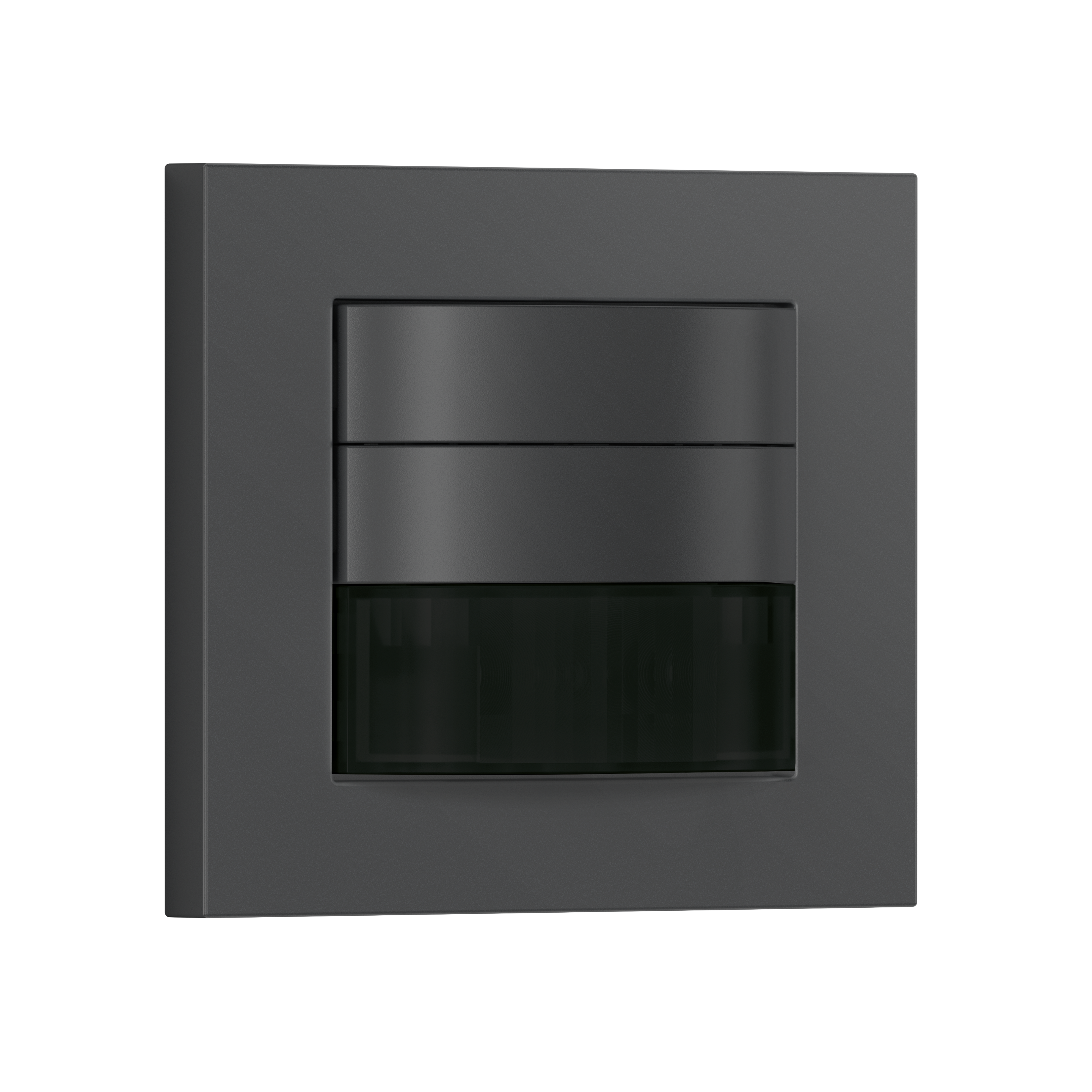

Nevalux IR 180 COM1 - anthracite
EAN-No. 4007841 055950
This product is being replaced by a successor product.
Go to successor product · IR 180 COM1 - white (029944)The new benchmark. High-precision IR 180 infrared presence sensor with a reach of 20 m. Ideal for new builds. 180° angle of coverage. Fast and easy 3-wire installation. Attractive design. Integrated button for manual override. The KNX version also provides temperature and air humidity readings.
- Optional adapters made of UV-resistant plastic
Identification
Variant
COM1 - anthracite
Version
Presence detector
Dimensions
Dimensions L × W × H
80 x 80 x 21 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Switching output 1 resistive
2000 W
Own consumption
0,7 W
Switching output 1 number of LED/fluorescent lamps
8 pcs.
Switching output 1 potential-free
No
Sensor technology
Sensor technology
passive infrared
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 4 m (25 m²)
Tangential range
r = 20 m (628 m²)
Switching zones
96 switching zones
Mounting height
1,10 – 1,10 m
Presence range
r = 4 m (25 m²)
Optimal mounting height
1,1 m
Connectivity
Networking
Yes
Lighting technology
Constant light regulation
No
Settings
Twilight setting
10 – 1000 lx
Time setting
30 sec – 30 min
Base light function
No
With remote control
Yes
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
Certificates
EMC, VDE
Other
Application, location, room
One-person office, corridor, aisle, side room, stairwell, washroom, wc, equipment room
