Steinel IR 180 COM1 - white

Motion detector for offices, corridors and WCs. Replaces the existing light switch.

ELDAS® no. 535 941 660

EAN-No. 4007841 029944

Variant

2-wire technology 230V, 1 channel

New design, intelligent technology, fast installation. IR 180 is the answer to providing infrared sensor switches in new buildings or existing property. 180 denotes the sensor's huge angle of coverage. It misses absolutely nothing, either to the left or right. The IR 180 also comes in a new design and can be installed quickly and easily. The KNX version also indicates temperature and air humidity.

Identification

Version Presence detector

Variants

Version 230V 1 channel

Dimensions

Dimensions L × W × H 30 x 80 x 80 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1000 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Max. mounting height 1,20 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 4 m (25 m²)

Tangential range r = 12 m (226 m²)

Switching zones 96 switching zones

Mounting height 1,1 – 1,2 m

Presence range r = 4 m (25 m²)

Optimal mounting height 1,2 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 30 s – 30 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Semi-/fully automatic, Switch active / switch inactive, Manual ON / ON-OFF

Settings via Remote control, DIP switches, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location Wall

Application location Indoors

Mounting type Concealed mounting

Material Plastic

Application room Indoors, WC / washroom, corridor / aisle, function room / ancillary room, kitchenette, one-person office, stairwell

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

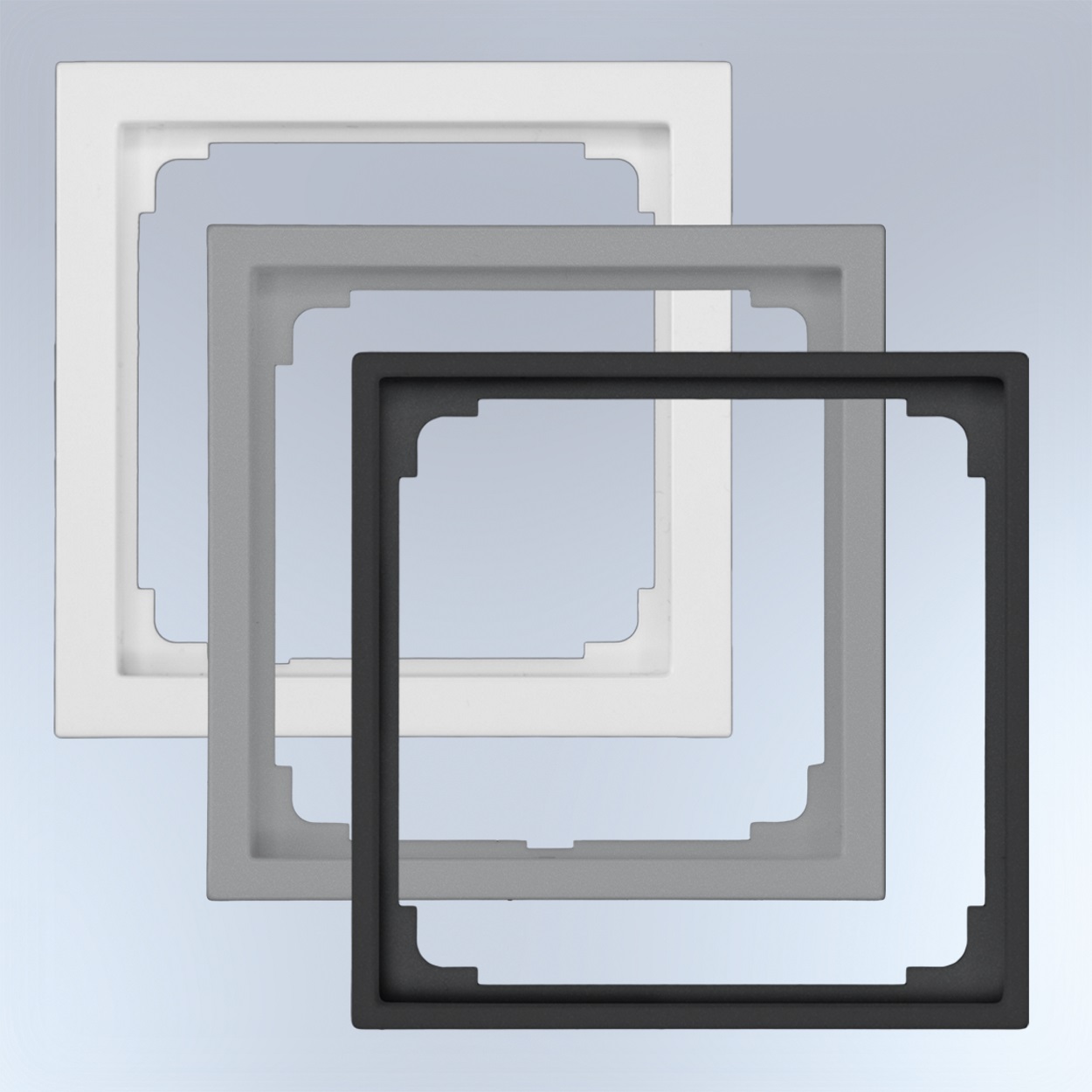

Optional adapters made of UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity
