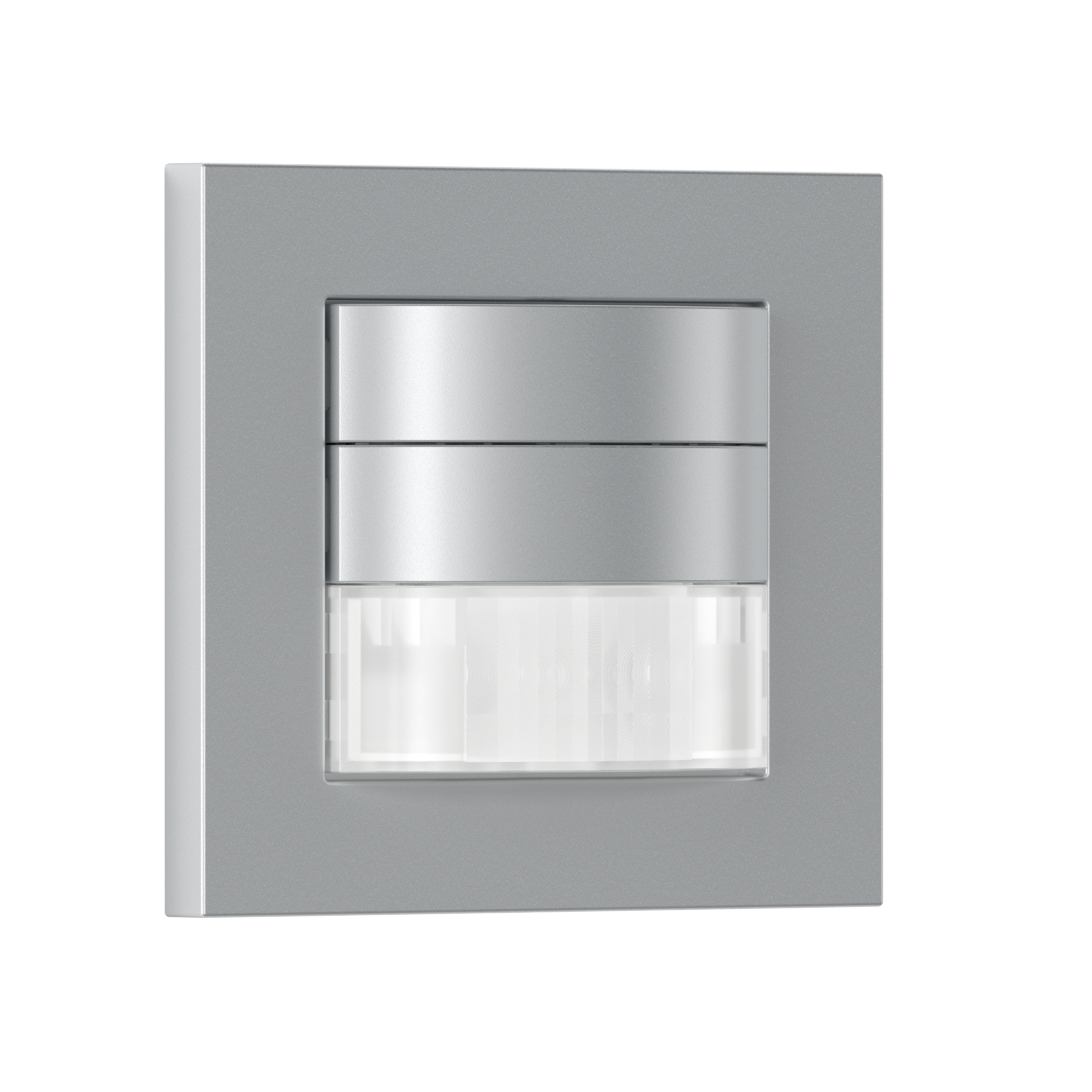

Nevalux IR 180 UNIVERSAL Silver
ELDAS® no. 535 941 677
EAN-No. 4007841 033132
This product is being replaced by a successor product.
Go to successor product · IR 180 UNIVERSAL white (4007841033149)World first for modernisation and refurbishment. 180° infrared presence switch in patented 2-wire design – perfect for LED lamps. Integrated SuperCap energy storage system for flawless functionality even in the event of a power cut. Zero-watt stand-by output. Absolutely flicker-free light from any lamp. Integrated switch for manual override. 20 m reach.
- Optional adapters made of UV-resistant plastic
Identification
Variant
Silver
Version
Presence detector
Dimensions
Dimensions L × W × H
80 x 80 x 21 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Switching output 1 resistive
200 W
Switching output 1 number of LED/fluorescent lamps
6 pcs.
Sensor technology
Sensor technology
passive infrared
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 4 m (25 m²)
Tangential range
r = 20 m (628 m²)
Switching zones
96 switching zones
Presence range
r = 4 m (25 m²)
Optimal mounting height
1,2 m
Connectivity
Networking
Yes
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 1000 lx
Time setting
30 sec – 15 min
Base light function
No
Functions
Switch active / switch inactive, Normal / test mode, Manual ON / ON-OFF
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
Silver
RAL colour
9006
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
Certificates
KEMA
Other
Application, location, room
One-person office, corridor, aisle, side room, stairwell, washroom, wc, equipment room
