Nevalux IR 180 UNIVERSAL white

ELDAS® no. 535 941 667

EAN-No. 4007841 033149

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Manufacturer

Steinel Nevalux

World first for modernisation and refurbishment. 180° infrared presence switch in patented 2-wire design – perfect for LED lamps. Integrated SuperCap energy storage system for flawless functionality even in the event of a power cut. Zero-watt stand-by output. Absolutely flicker-free light from any lamp. Integrated switch for manual override. 20 m reach.

Optional adapters made of UV-resistant plastic
2 or 3-wire installation

Identification

Version Presence detector

Variants

Version 2-wire technology

Dimensions

Dimensions L × W × H 50 x 80 x 80 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Switching output 1 resistive 200 W

Capacitive load in µF 132 µF

Switching output 1 number of LED/fluorescent lamps 6 pcs.

Sensor technology

Max. mounting height 1,20 m

Sensor technology passive infrared

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 4 m (25 m²)

Tangential range r = 20 m (628 m²)

Switching zones 96 switching zones

Mounting height 1,10 – 1,20 m

Presence range r = 4 m (25 m²)

Optimal mounting height 1,2 m

Connectivity

Networking No

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 30 s – 15 Min.

Base light function No

Main light adjustable No

Functions Switch active / switch inactive\nNormal / test mode\nManual ON / ON-OFF

Settings via Remote control\nPotentiometers\nSmart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0 – 40 °C

Mounting location wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors WC / washroom corridor / aisle function room / ancillary room kitchenette one-person office stairwell

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates KEMA

Technical drawing

Sensor detection range

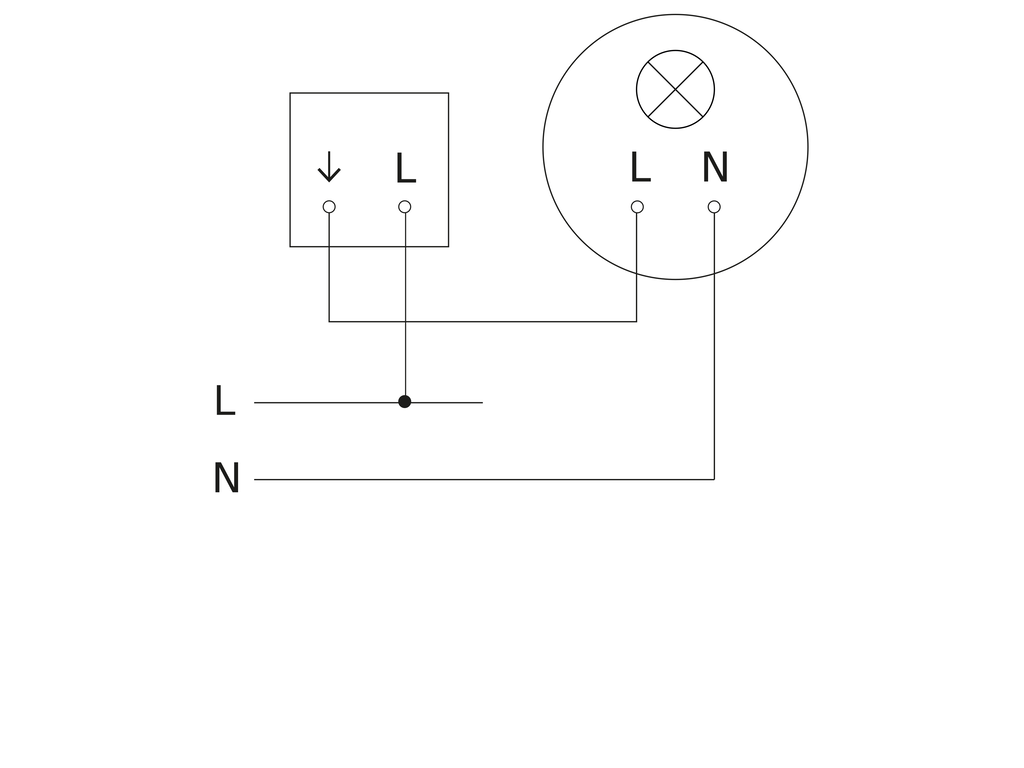

Wiring diagram 1

Master circuit diagram

Data sheet User manual Declaration of conformity

Adapter frame for IR/HF 180 Feller - white

Item no. 034160

Adapter frame for IR/HF 180 Jung - white

Item no. 034184

Adapter frame for IR/HF 180 Busch-Jaeger -white

Item no. 034139
