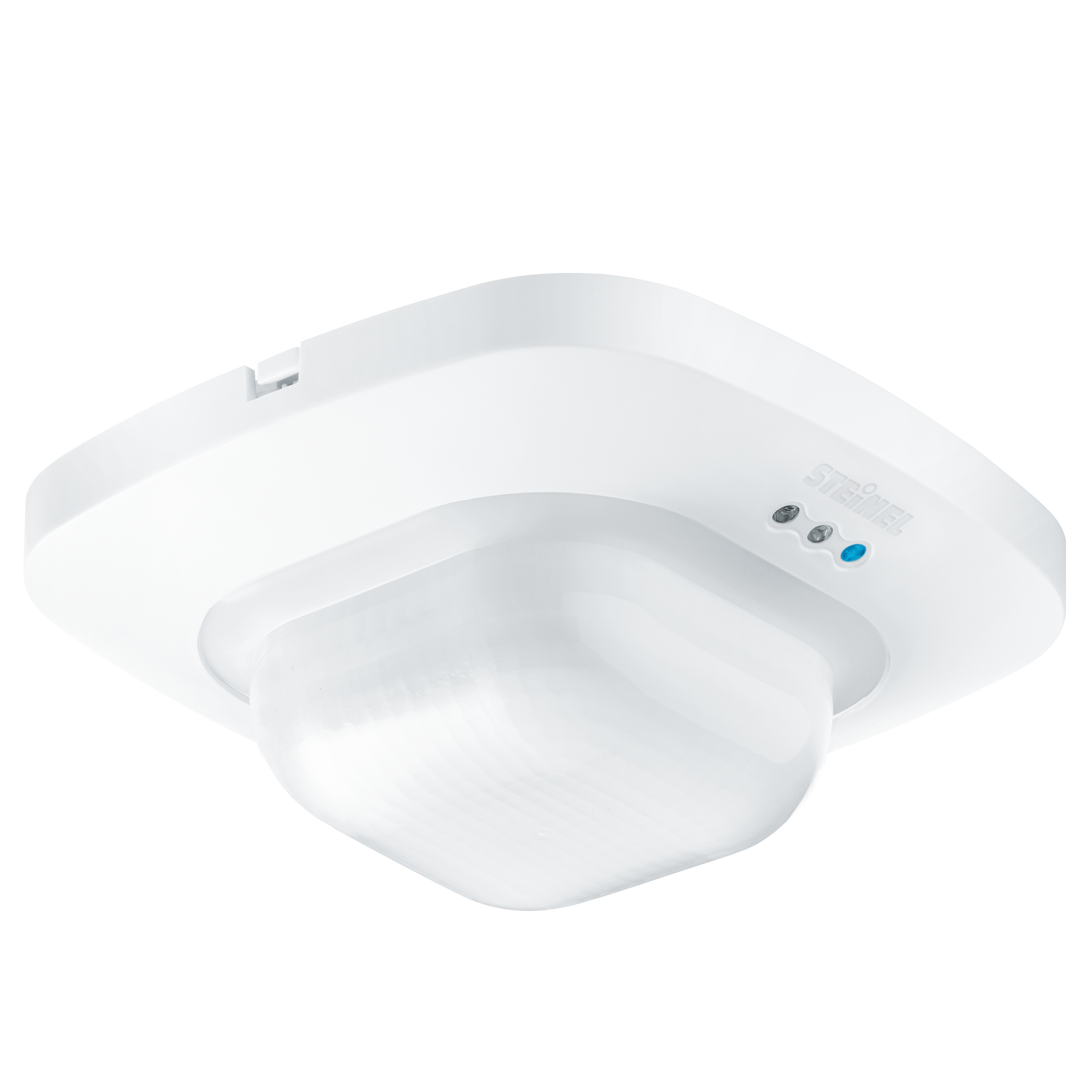

Nevalux IR Quattro DIM
EAN-No. 4007841 002718
This product is being replaced by a successor product.
Go to successor product · IR Quattro 8m DALI-2 APC - concealed (002749)Squaring the circle. Infrared presence detector Presence Control PRO IR Quattro DIM for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, installation height up to 8 m, for controlling and switching light 'ON' and 'OFF', 1760 switching zones for excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.
- Optional remote controls
- Optional surface-mounting adapter (IP 54, KNX)
- Optional guard cage
- Impulser Wireless
Identification
Variant
DIM
Version
Presence detector
Dimensions
Dimensions L × W × H
120 x 120 x 71 mm
Electrical
Mains connection
230 V, 50 / 60 Hz
Number of ECGs DIM interface
50
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
Yes
Radial range
5 x 5 m (25 m²)
Tangential range
7 x 7 m (49 m²)
Switching zones
1760 switching zones
Mounting height
2,50 – 8,00 m
Presence range
4 x 4 m (16 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave, Master/master
Lighting technology
Constant light regulation
Yes

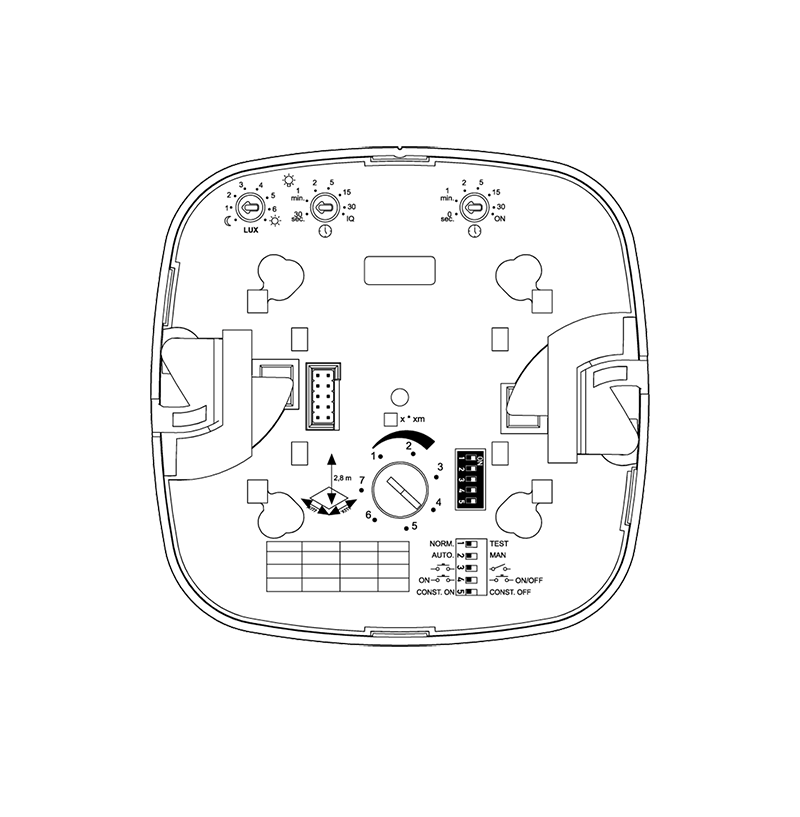

Settings
Twilight setting
100 – 1000 lx
Time setting
30 sec – 30 min
Base light function
Yes
Functions
Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25 – 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
One-person office, conference room, side room
