Identification
Version

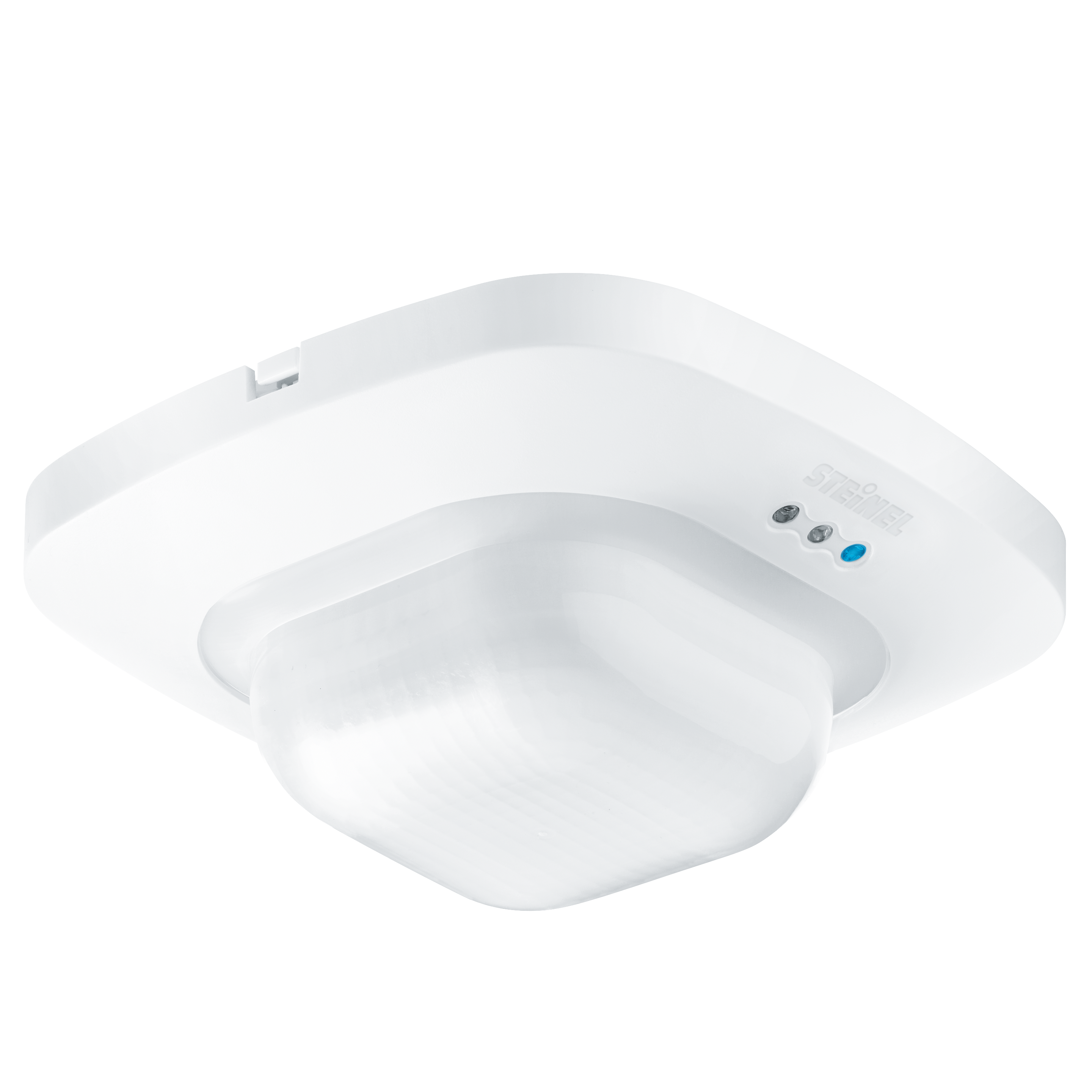

Presence detector
Dimensions
Dimensions L × W × H
76 x 120 x 120 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Control output DALI
Broadcast 2x12 electronic ballasts
Sensor technology
Max. mounting height
8,00 m
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
100 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
Yes
Radial range
5 x 5 m (25 m²)
Tangential range
7 x 7 m (49 m²)
Detection planes
13
Switching zones
1760 switching zones
Mounting height
2,50 – 8,00 m
Presence range
4 x 4 m (16 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
Cable
Lighting technology
Soft light start
Yes
Continuous light
selectable
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Time setting
30 s – 30 Min.
Base light function
Yes
Base light function time
1-60 min, all night
Main light adjustable
50 - 100 %
Functions
Normal / test mode
Semi-/fully automatic
Pushbutton / switch mode
Manual ON / ON-OFF
Constant-lighting control ON-OFF

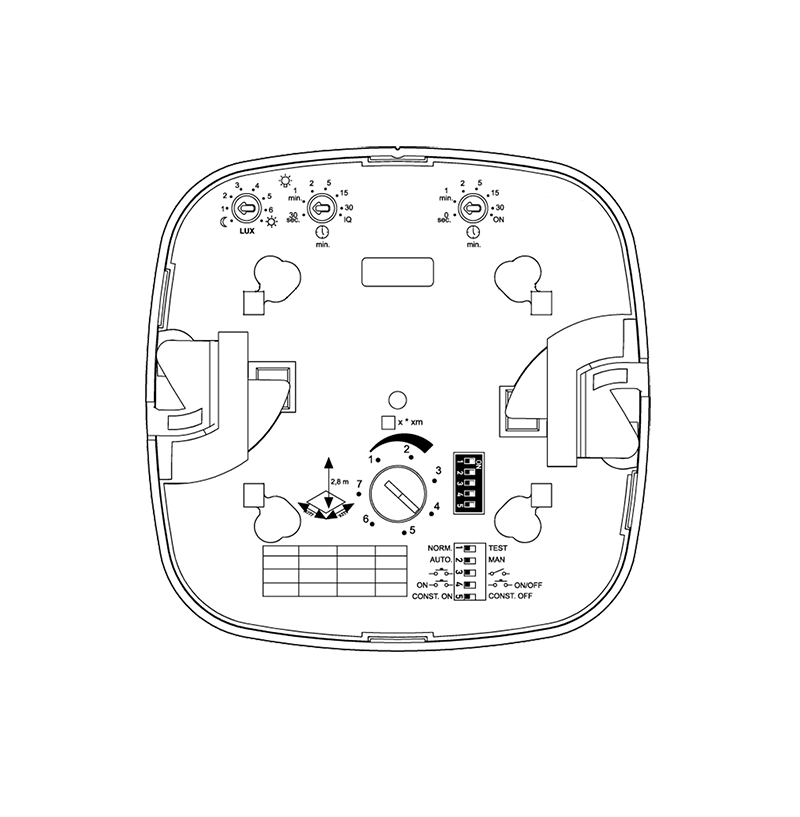

Settings via
Remote control
DIP switches
Potentiometers
Smart Remote
With remote control
No
Twilight setting teach
Yes
Base light function in percent
10 – 60 %
Base light function percent from
10 %
Housing & material
Protection class (IP)
IP20
Ambient temperature
from 0 up to 40 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
Indoors
changing room
conference room / meeting room
duty room
function room / ancillary room
kitchenette
one-person office
recreation room
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
