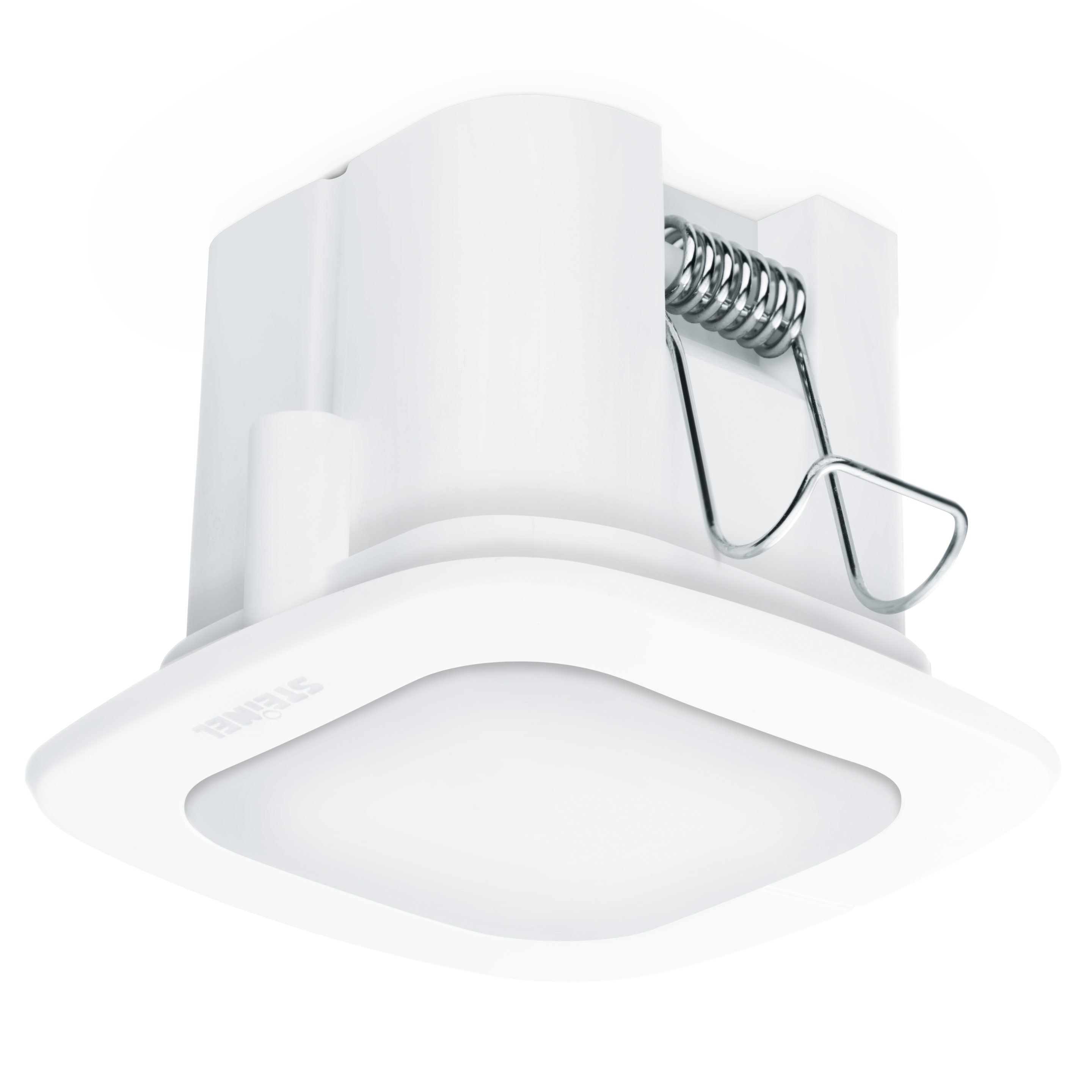

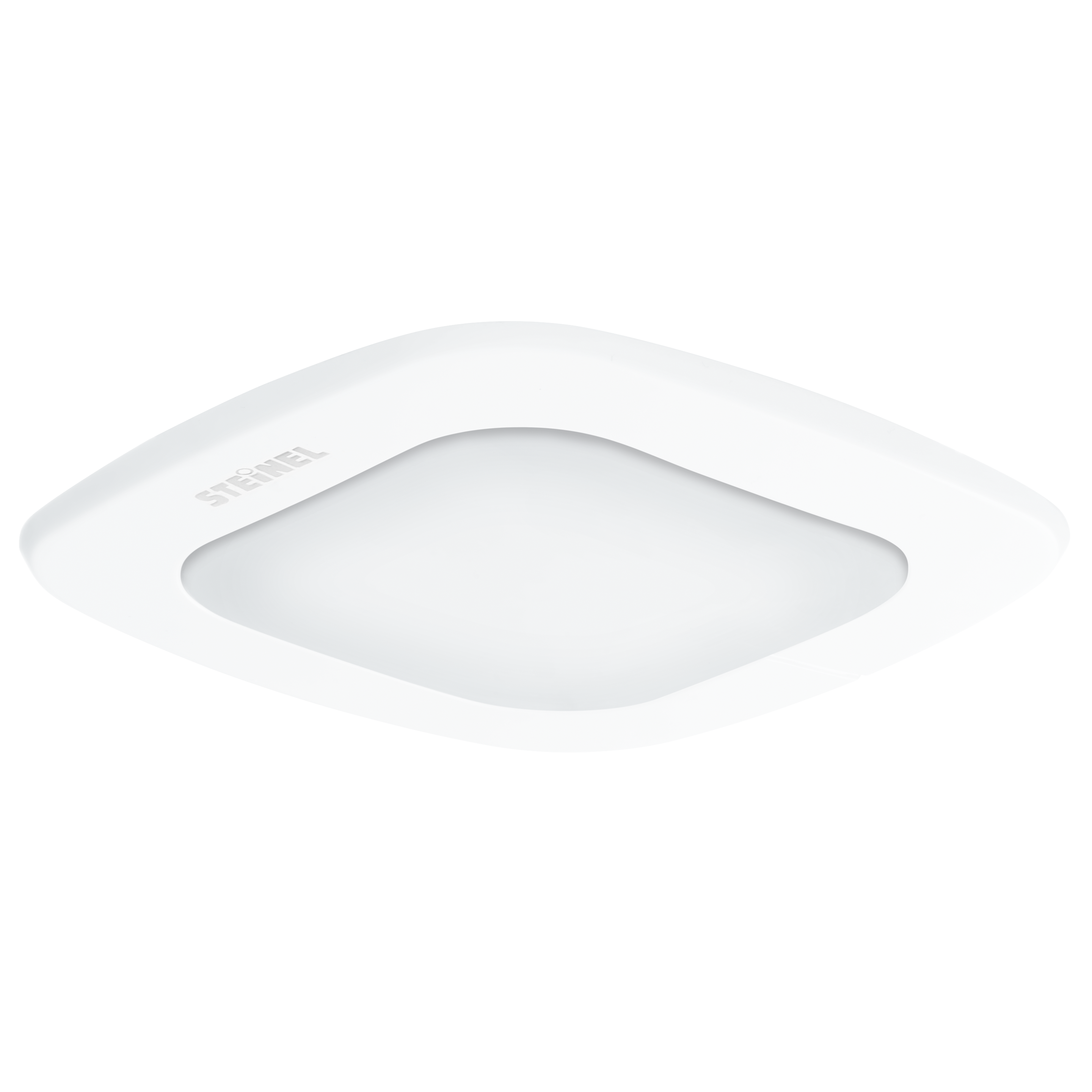

Nevalux IR Quattro SLIM COM2
ELDAS® no. 535 931 405
EAN-No. 4007841 593513
This product is being replaced by a successor product.
Go to successor product · IR Quattro SLIM XS 4m COM1 - square (032951)Genuine 16 m2 of presence detection concentrated on 4 mm. Control PRO IR Quattro SLIM COM2 presence detector for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, for mounting at a height of up to 4 m, for switching light ON and OFF and also for operating HVAC, square presence detection zone covering 16m², high-quality retina lens.
- Extremely slim overall height
- High-quality retina lens
- Can only be set by optional remote control RC8
Identification
Variant
COM2
Version
Presence detector
Dimensions
Dimensions L × W × H
77 x 77 x 60 mm
Electrical
Mains connection
120 – 250 V , 50 / 60 Hz
Switching output 1 resistive
2000 W
Supply voltage detail
500 VA max., 120 V
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
No
Range detail
Retina lens and hexagonal Fresnel structure
Radial range
4 x 4 m (16 m²)
Tangential range
4 x 4 m (16 m²)
Switching zones
260 switching zones
Mounting height
2,50 – 4,00 m
Presence range
4 x 4 m (16 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave, Master/master
Lighting technology
Constant light regulation
No
Settings
Twilight setting
10 – 1000 lx
Time setting
30 sec – 30 min
Base light function
No
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Installation
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
One-person office, classroom, side room
