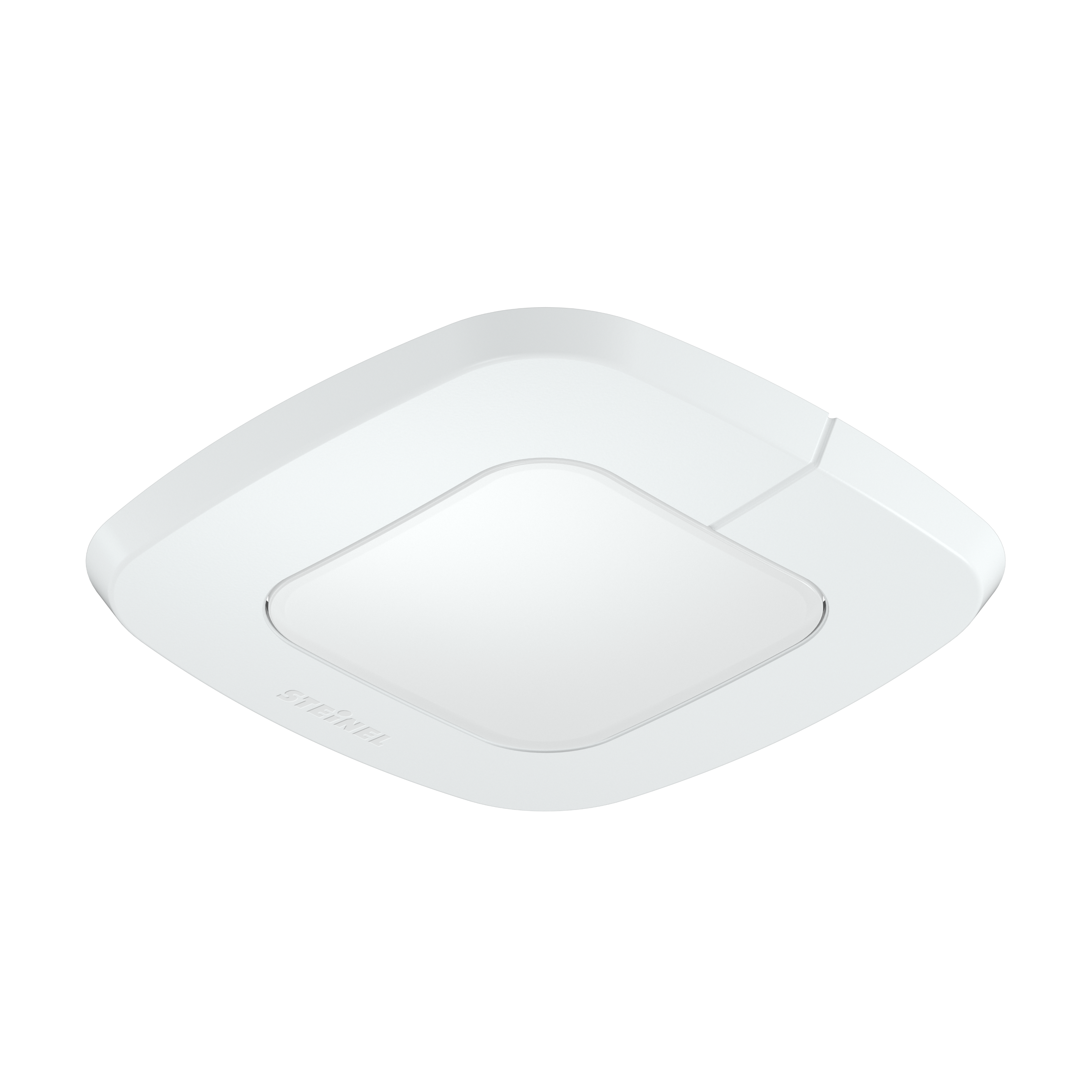

Steinel IR Quattro SLIM XS 4m COM1 - square

Slim presence detector for hotel rooms, care rooms and WCs. Fits a flush-mounted box.

ELDAS® no. 535 930 800

EAN-No. 4007841 032951

Price: Please log in to see prices

Colour

White

Variant

230V, 1 channel DALI-2 Input Device KNX

Due to popular demand. The extra slim IR Quattro SLIM XS presence detector virtually disappears in the wall or ceiling. Thanks to the new and practical concealed box format it forms a remarkably unobtrusive symbiosis with the office environment and can now be installed in any standard concealed box. In short: our slimmest presence detector would seem to be pretending it wasn't even there - and yet is absolutely present when it matters. To be prepared for any situation, a round SLIM XS is also available.

Identification

Version Presence detector

Variants

Version 230V 1 channel

Colour White

Dimensions

Dimensions L × W × H 55 x 80 x 80 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 400 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 500 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 500 VA

LED lamps < 2 W 16 W

LED lamps > 2 W < 8 W 64 W

LED lamps > 8 W 64 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 71 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Range detail Retina lens and hexagonal Fresnel structure

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Switching zones 408 switching zones

Mounting height 2,5 – 4,0 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 60 s – 30 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Semi-/fully automatic, Manual ON / ON-OFF

Settings via Remote control, Smart Remote

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location ceiling

Application location Indoors

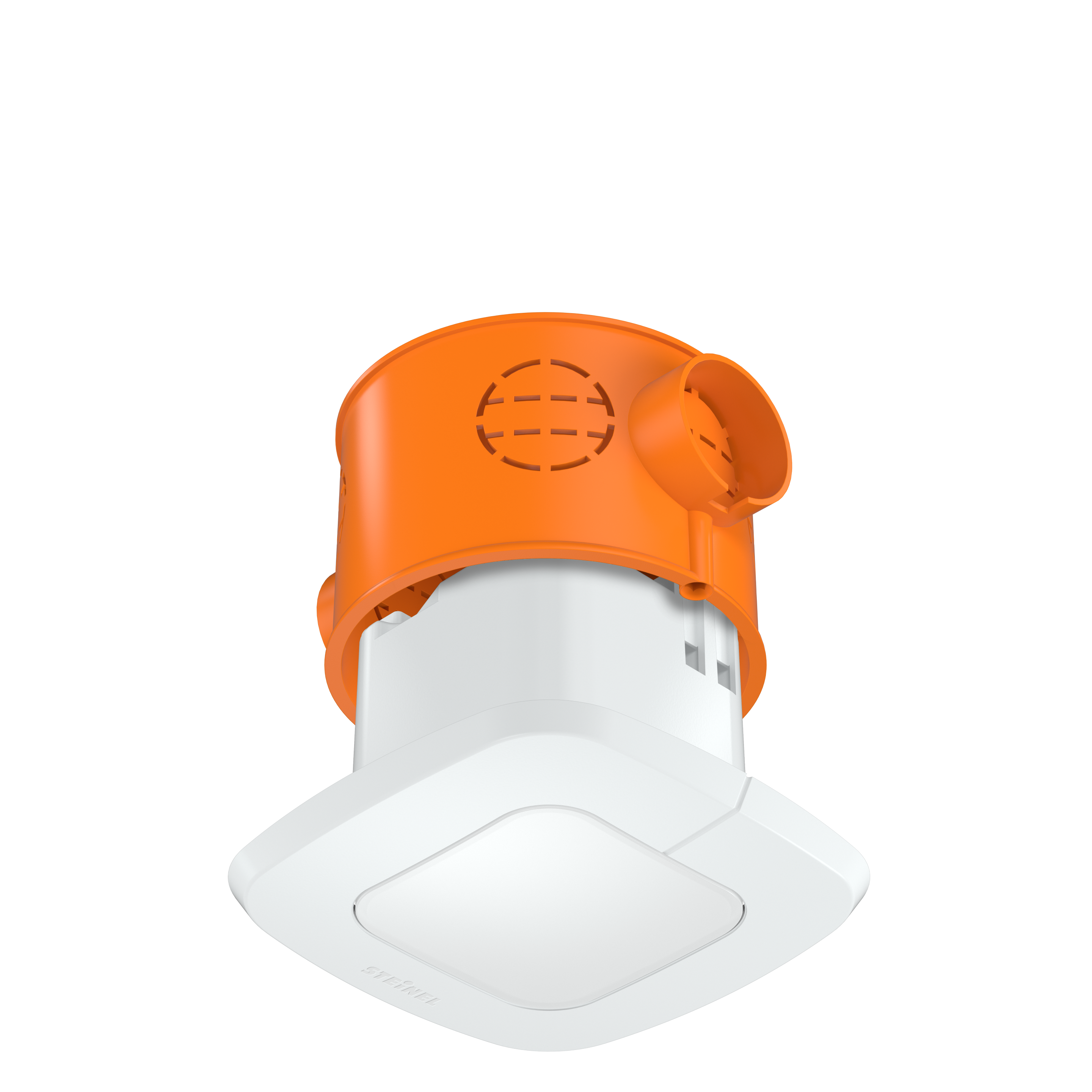

Mounting type Concealed mounting

Material Plastic

Application room Indoors, WC / washroom, care room, function room / ancillary room, hotel room, one-person office

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

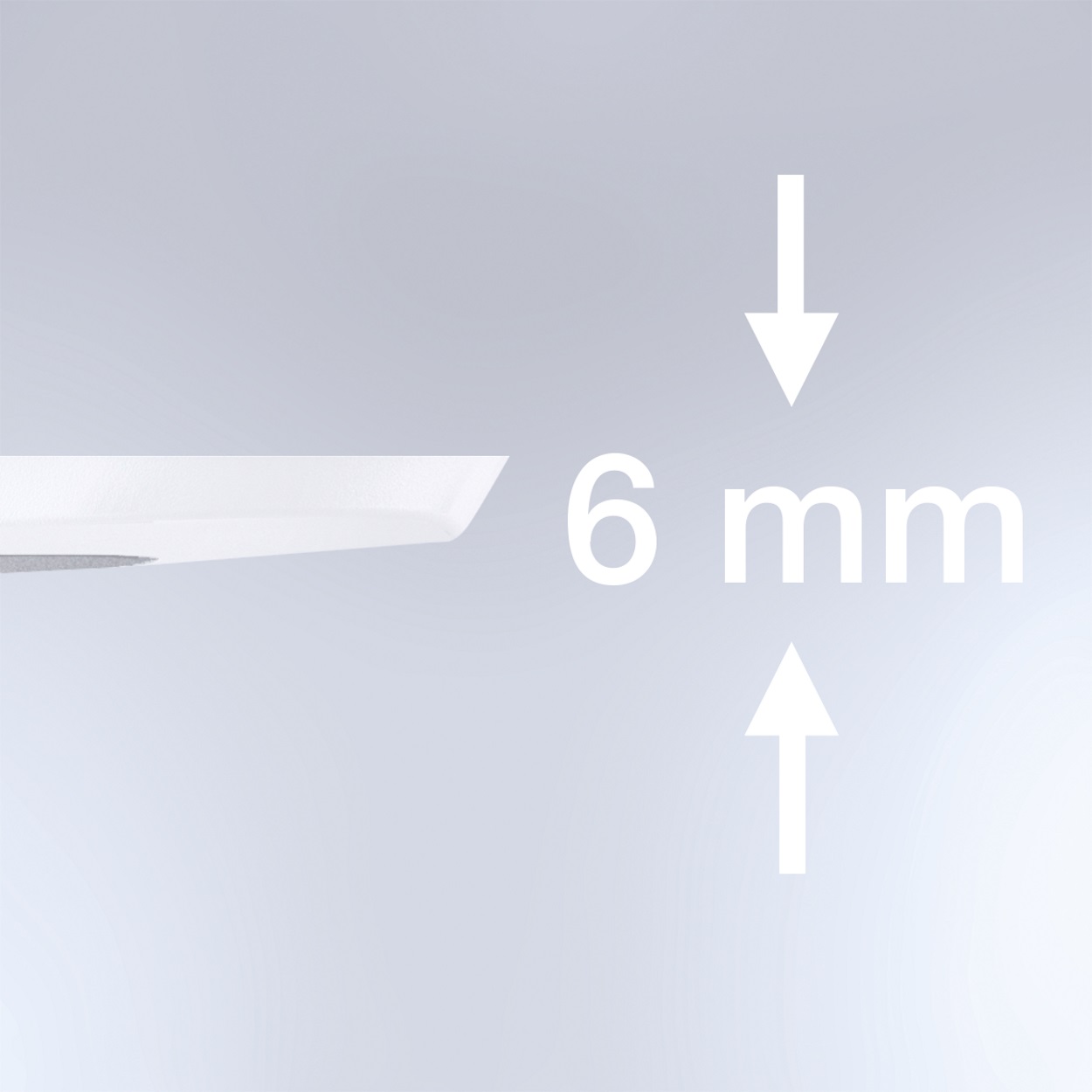

Extremely slim overall height

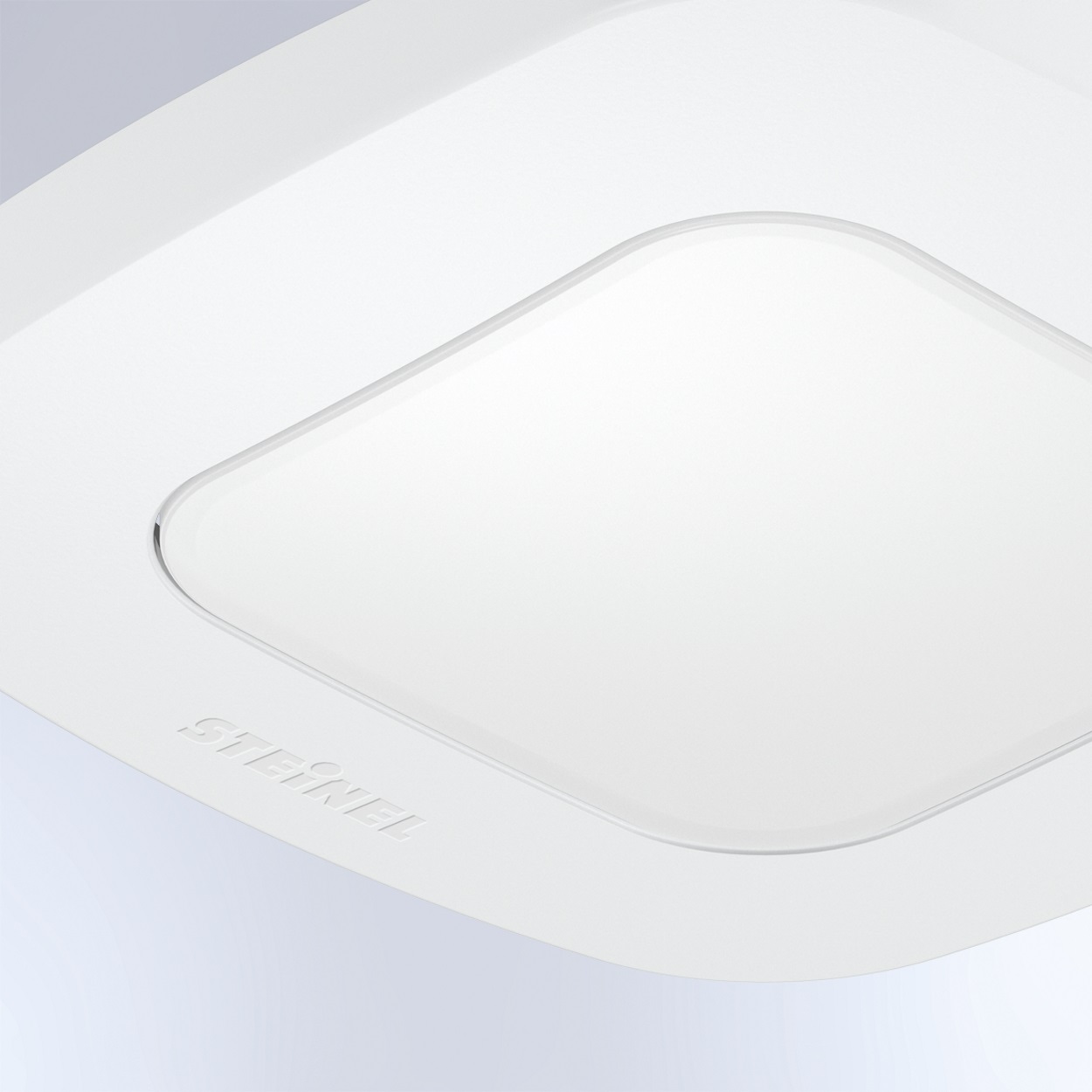

High-quality retina lens

Can only be set using optional remote controls

Technical drawing

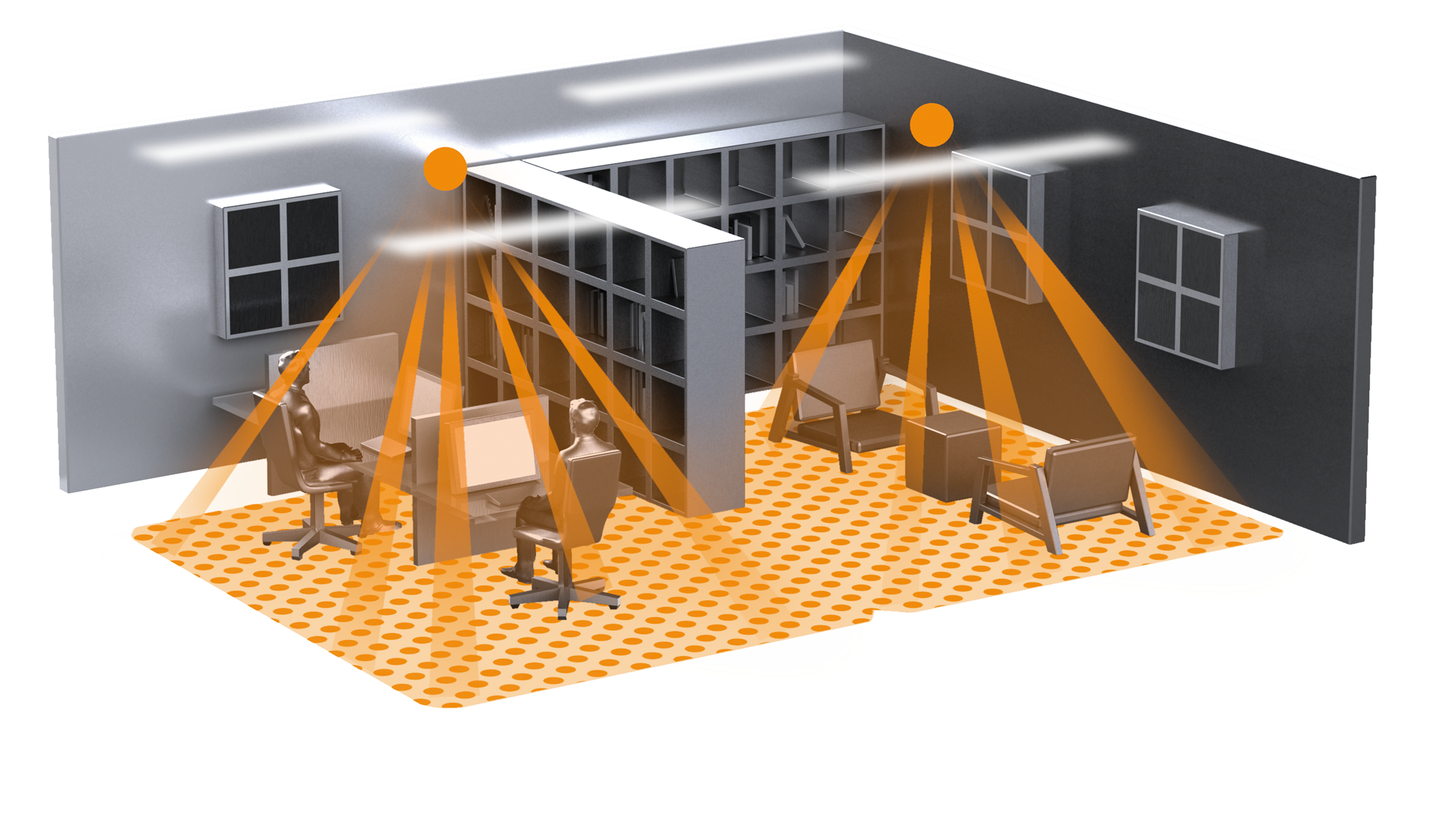

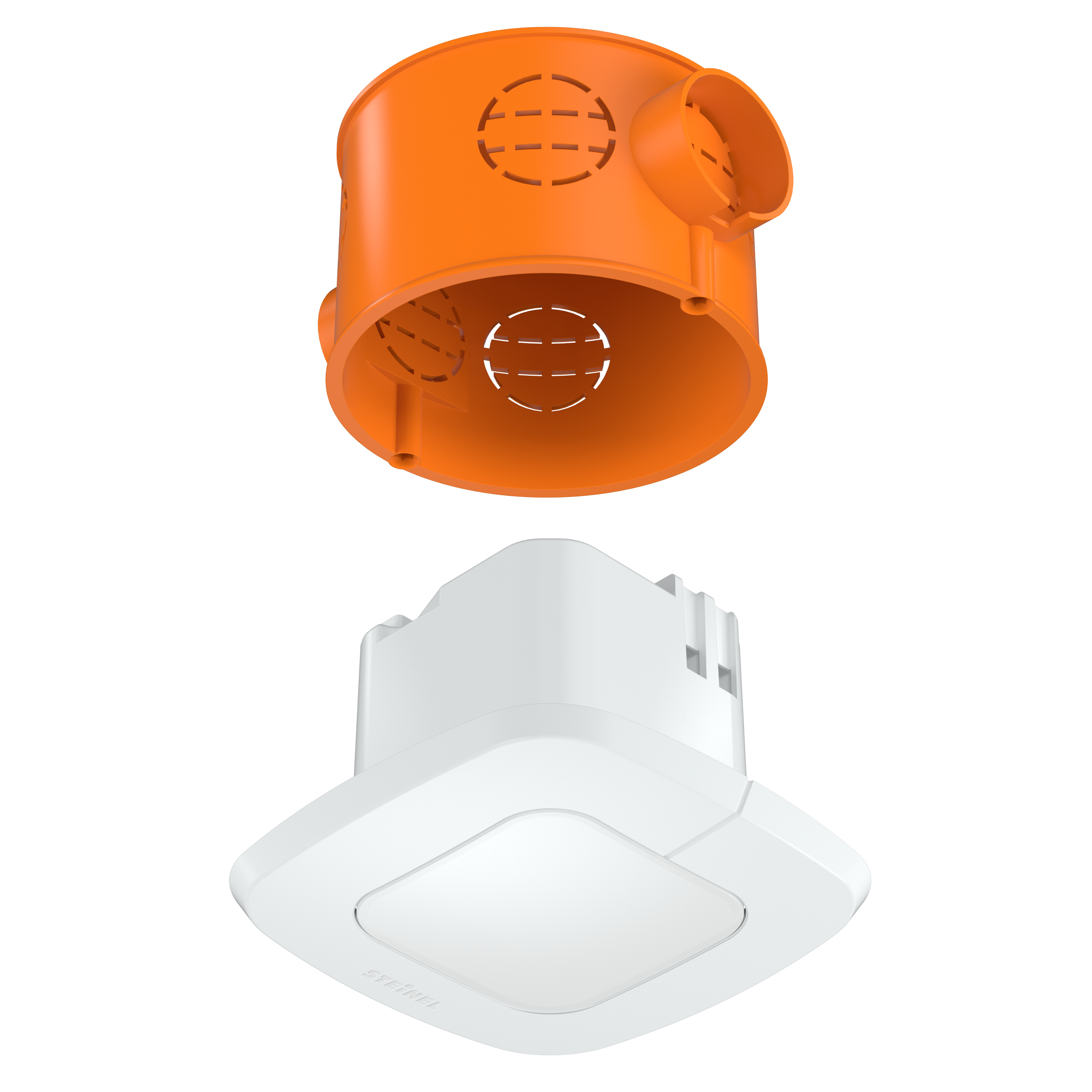

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410
