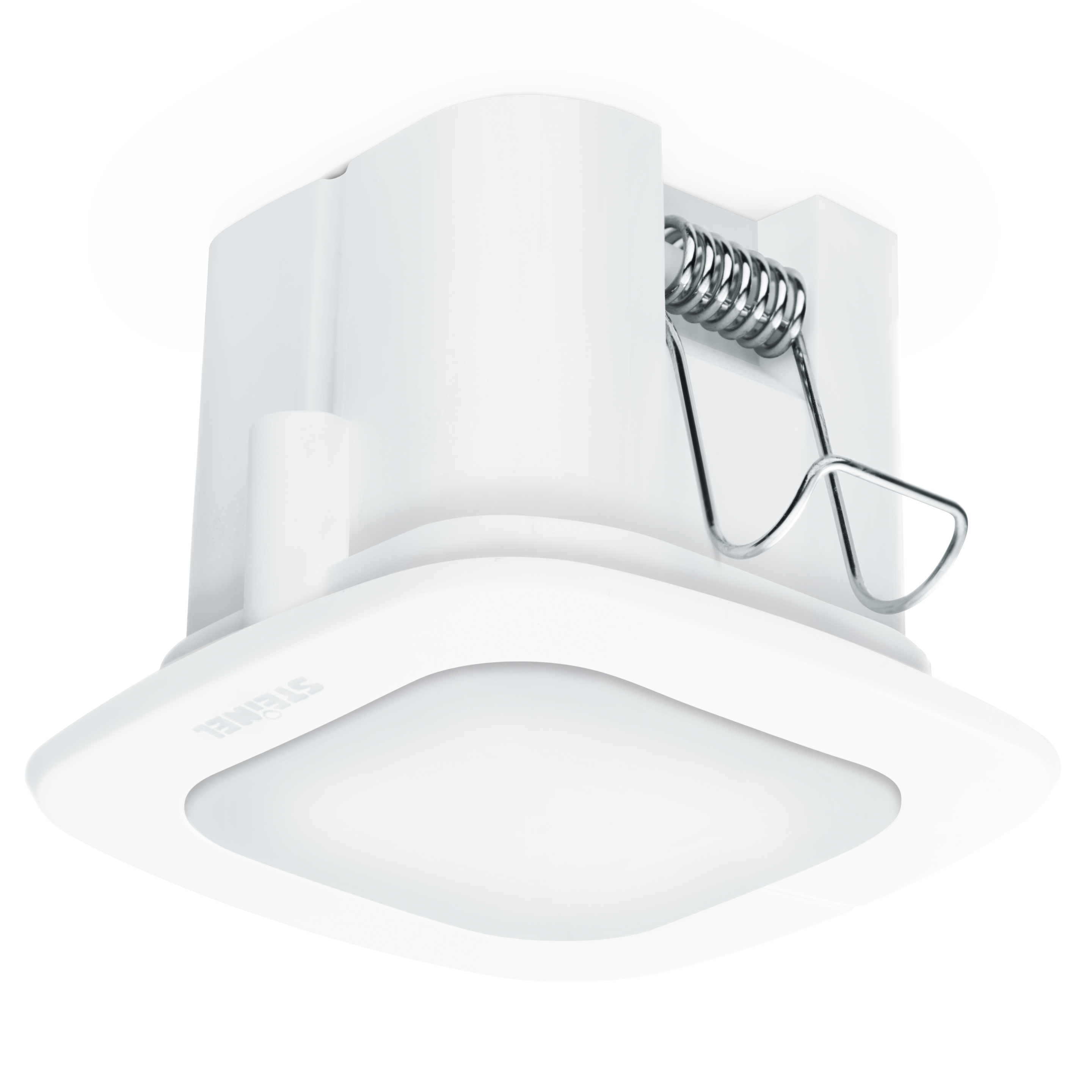

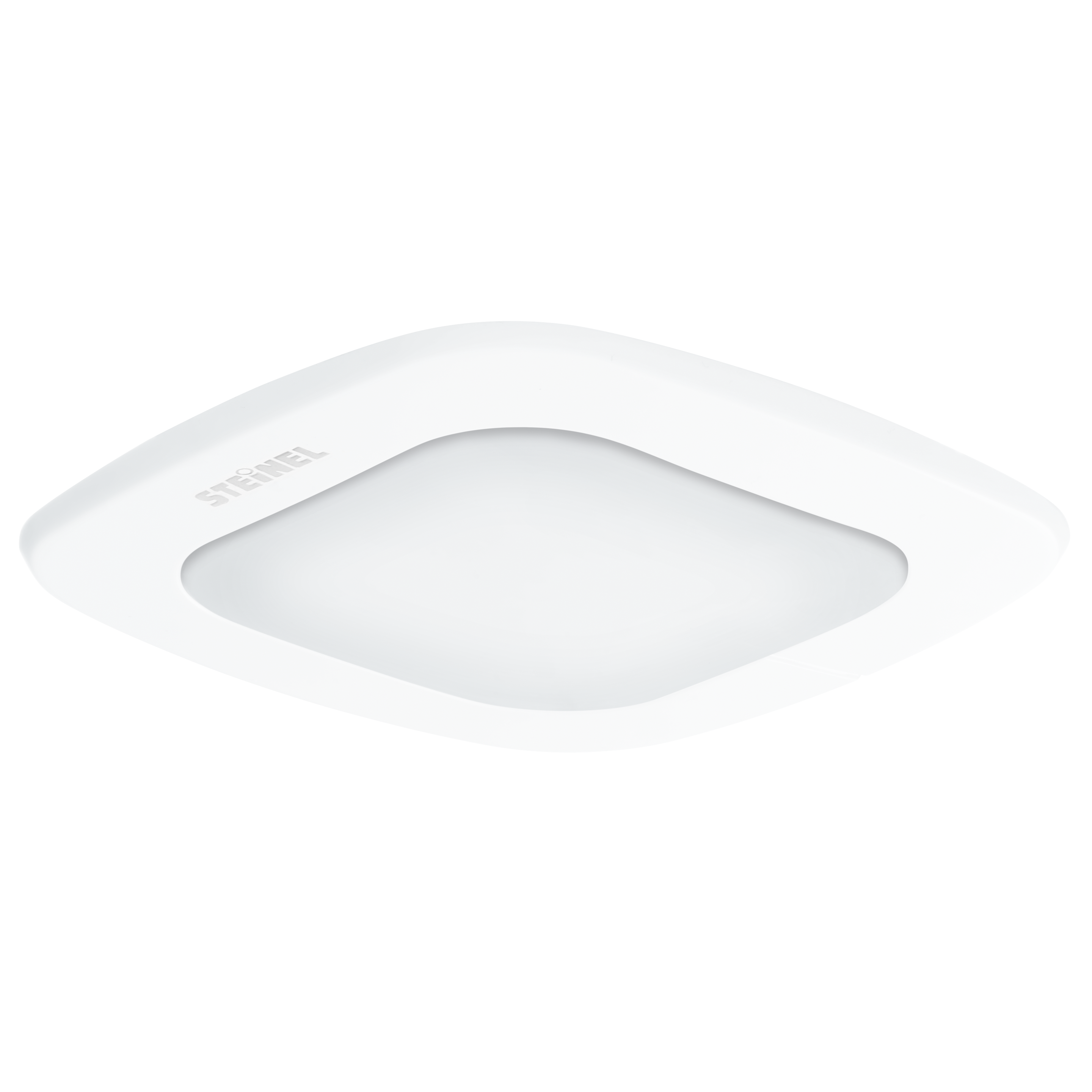

Nevalux IR Quattro SLIM KNX
ELDAS® no. 535 931 408
EAN-No. 4007841 008888
This product is being replaced by a successor product.
Go to successor product · IR Quattro SLIM 4m KNX (4007841058494)Genuine 16 m2 of presence detection concentrated on 4 mm. Control PRO IR Quattro SLIM KNX presence detector for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, for mounting at a height of up to 4 m, with digital BUS interface for controlling 4 lighting channels and HVAC.
- Extremely slim overall height
- High-quality retina lens
- Can only be set using optional remote controls
Identification
Variant
KNX
Version
Presence detector
Model
KNX
Dimensions
Dimensions L × W × H
77 x 77 x 60 mm
Electrical
Supply voltage detail
KNX bus
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
160 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
No
Range detail
Retina lens and hexagonal Fresnel structure
Radial range
4 x 4 m (16 m²)
Tangential range
4 x 4 m (16 m²)
Switching zones
260 switching zones
Mounting height
2,50 – 4,00 m
Presence range
4 x 4 m (16 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave, Master/master
KNX functions
Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output
With bus coupler
Yes
Lighting technology
Constant light regulation
No
Settings
Twilight setting
10 – 1000 lx
Time setting
0 – 255 min
Base light function
No
Base light function time
Permanently ON, 1-255 min, all night
Settings via
ETS software, Remote control, Bus
With remote control
No
Twilight setting teach
Yes
Base light function in percent
10 – 50 %
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
One-person office, classroom, side room
