Identification
Variant

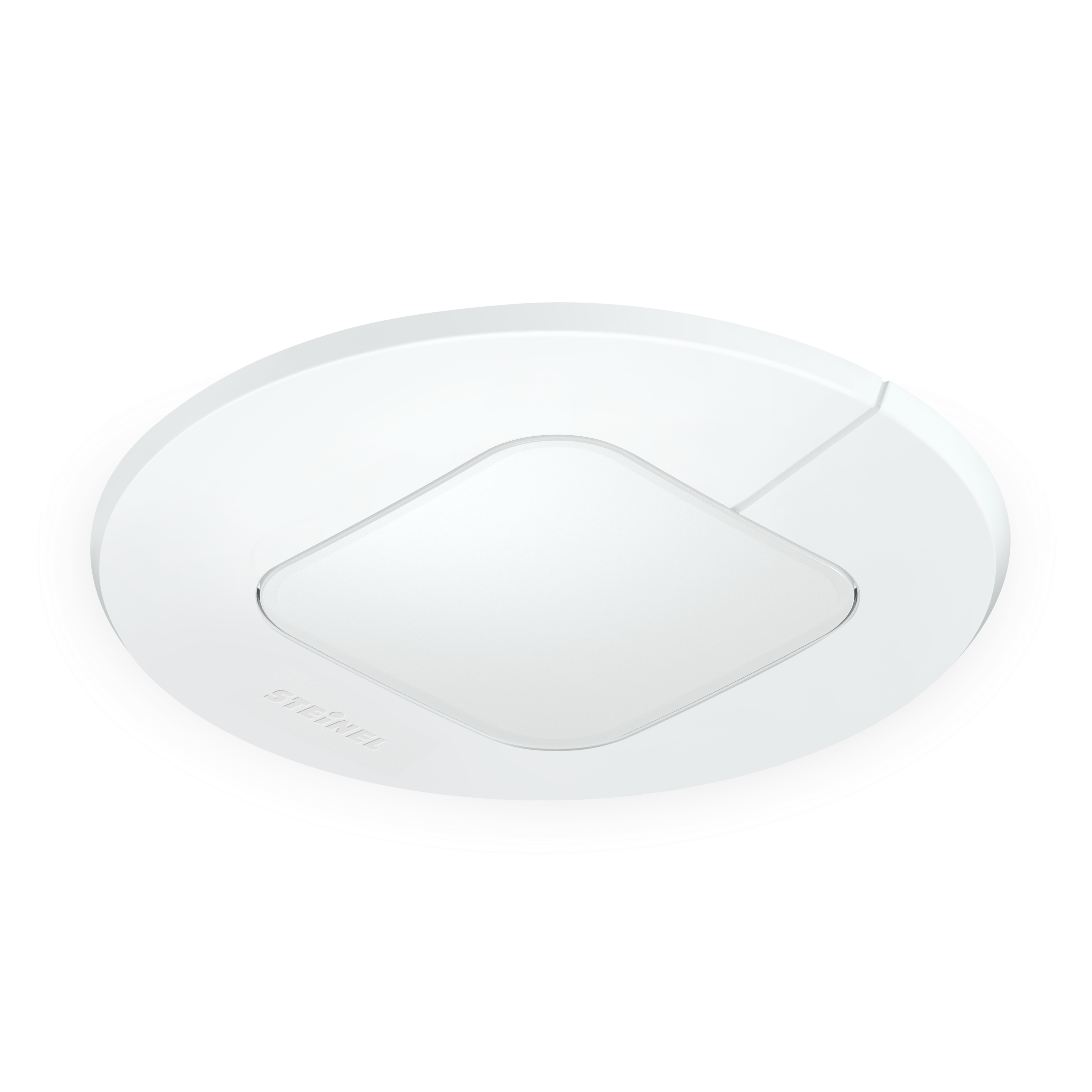

KNX - round
Version
Presence detector

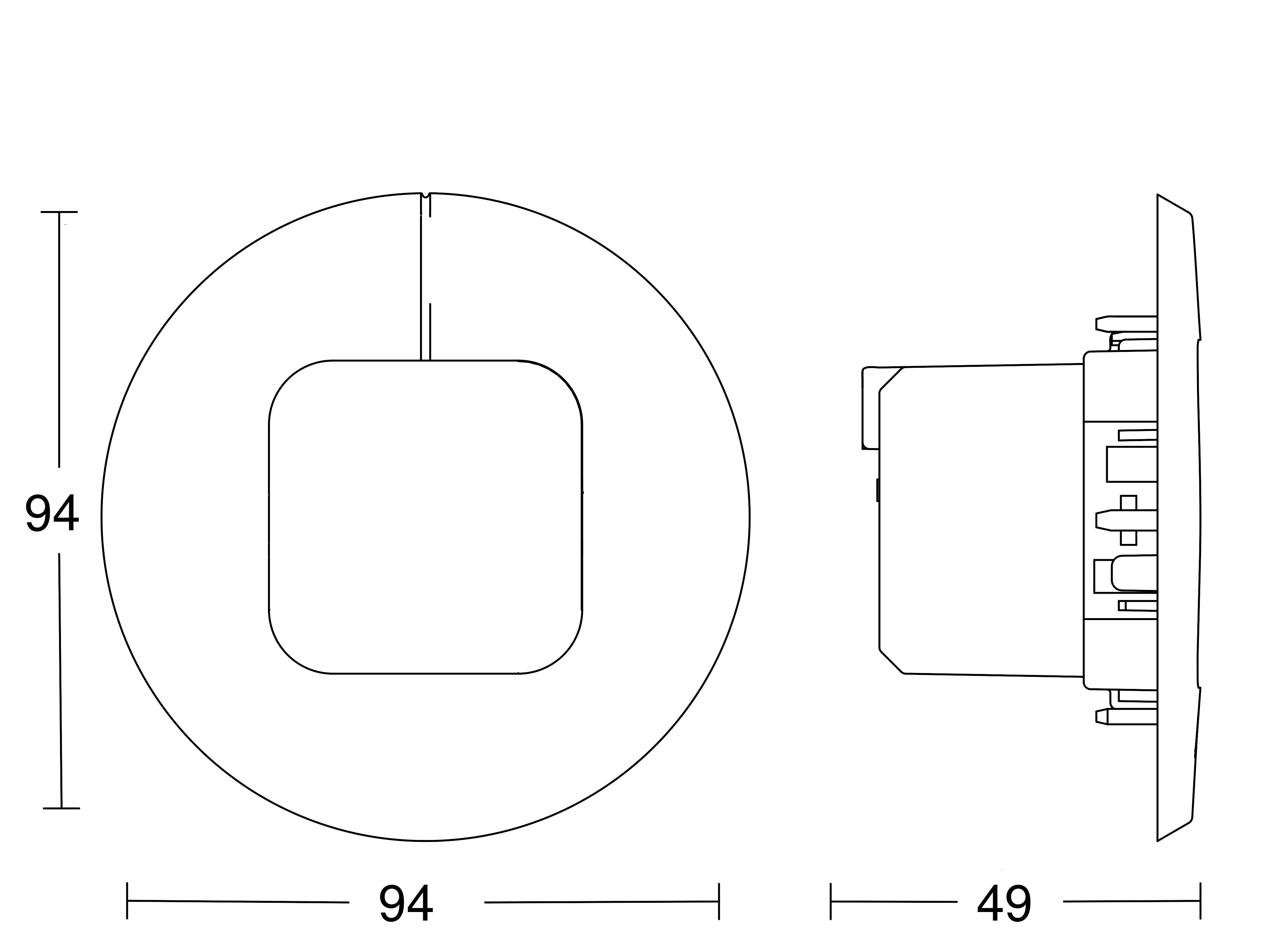

Dimensions
Dimensions Ø × H
94 x 49 mm
Electrical
Mains connection
24 – 29 V
FIL_2_PRO interfaces
KNX
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
71 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
No
Range detail
Retina lens and hexagonal Fresnel structure
Radial range
4 x 4 m (16 m²)
Tangential range
4 x 4 m (16 m²)
Switching zones
408 switching zones
Mounting height
2,50 – 4 m
Presence range
4 x 4 m (16 m²)
Optimal mounting height
2,8 m
FIL_4_PRO sensor technology
Passive infrared
Connectivity
Networking
Yes
Type of networking
Master/master, Master/slave
KNX functions
Photo-cell controller, Basic light level function, Light level, HVAC output, Constant-lighting control, Light output 4x, Presence output, Day / night function, Logic gate
With bus coupler
Yes
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
10 – 1000 lx
Time setting
0 sec – 1092 min
Base light function
Yes
Base light function time
1-255 min
Settings via
ETS software, Remote control, Bus, Smart Remote
With remote control
Yes
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
one-person office, hotel room, care room, function room / ancillary room, WC / washroom, Indoors
