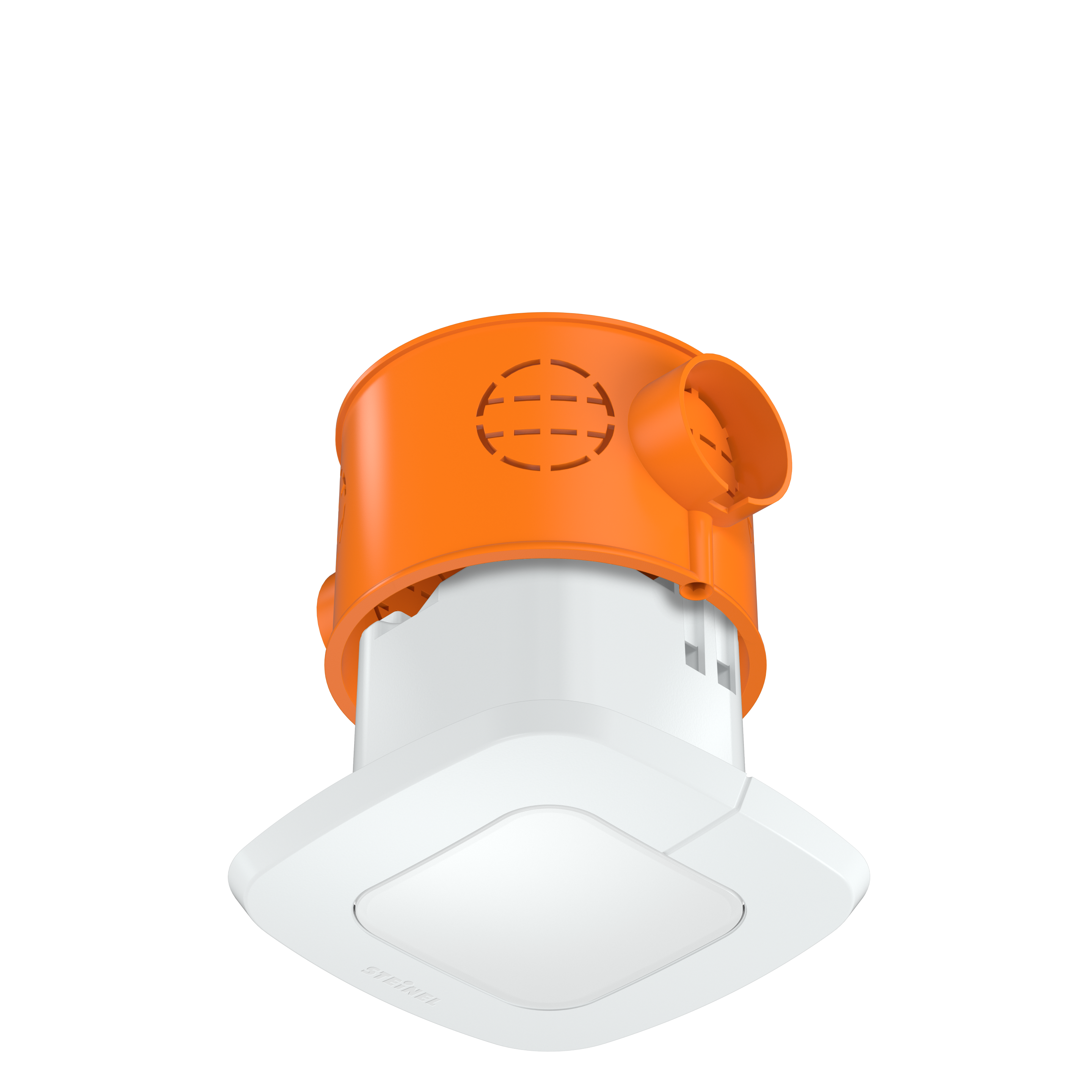

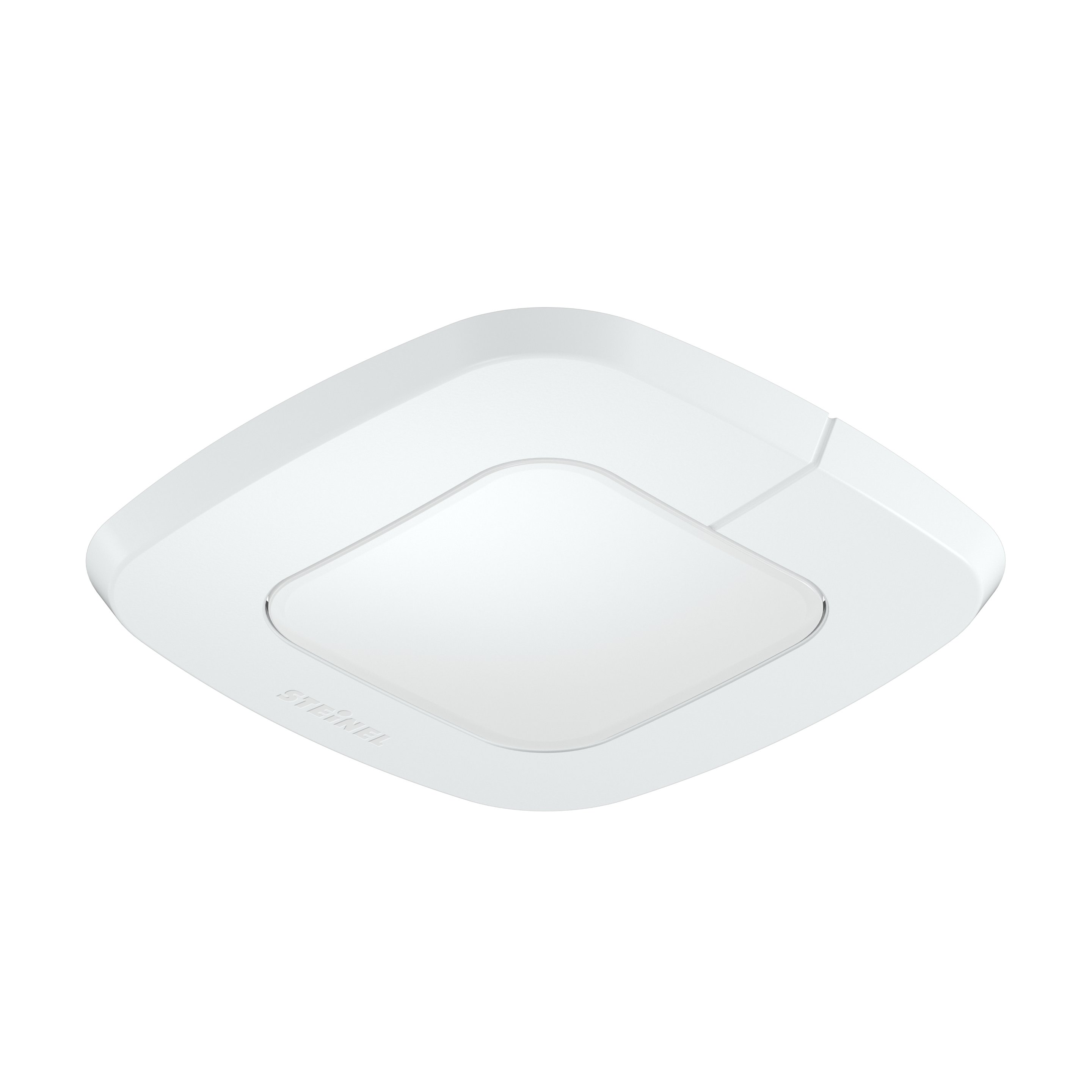

Nevalux IR Quattro SLIM XS KNX - square

ELDAS® no. 535 930 808

EAN-No. 4007841 033033

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Noticeably Inconspicuous. IR Quattro SLIM XS KNX, the extra-slim presence detector in concealed-box format. Fits into any standard concealed box. Overall height of just 6 mm. High-precision 360° infrared senor with globally unique retina lens and 16 sq.m square presence detection zone (4 x 4 m). Adjustment via remote control or Smart Remote.

Extremely slim overall height
High-quality retina lens
Can only be set using optional remote controls

Identification

Variant KNX - square

Version Presence detector

Model KNX

Dimensions

Dimensions L × W × H 49 x 80 x 80 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Range detail Retina lens and hexagonal Fresnel structure

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Mounting height 2,50 – 4,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/slave, Master/master

KNX functions Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output

With bus coupler Yes

Settings

Twilight setting 10 – 1000 lx

Time setting 60 sec – 60 min

Base light function time Permanently ON, 1-255 min, all night

Settings via ETS software, Remote control, Bus

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Housing & material

Protection class (IP) IP20

Ambient temperature 0 – 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room classroom, One-person office, side room

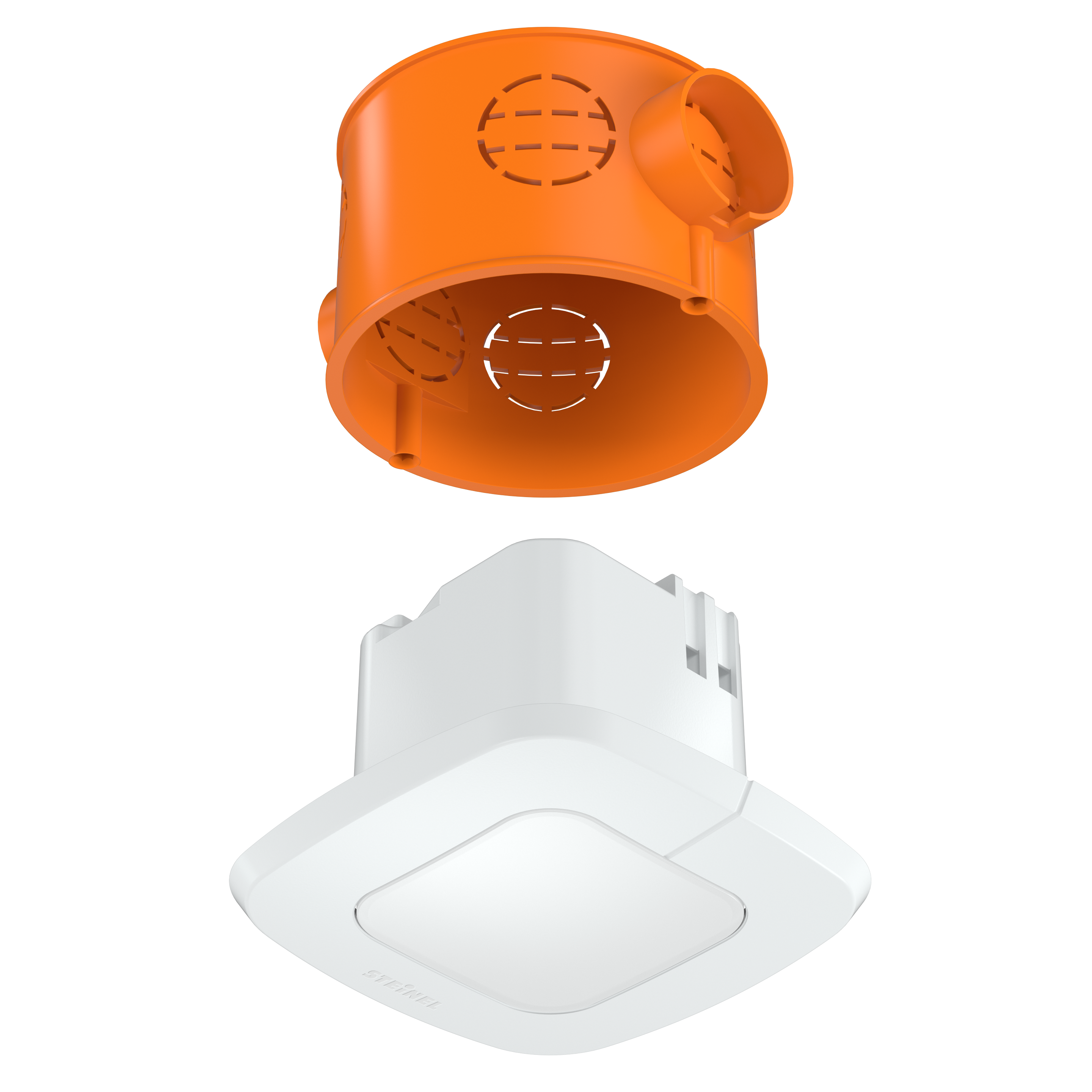

Sensor detection range

Data sheet User manual

User remote control RC7 KNX

Item no. 592912

Service remote control RC6 KNX

Item no. 4007841593018

Remote control Smart Remote

Item no. 009151
