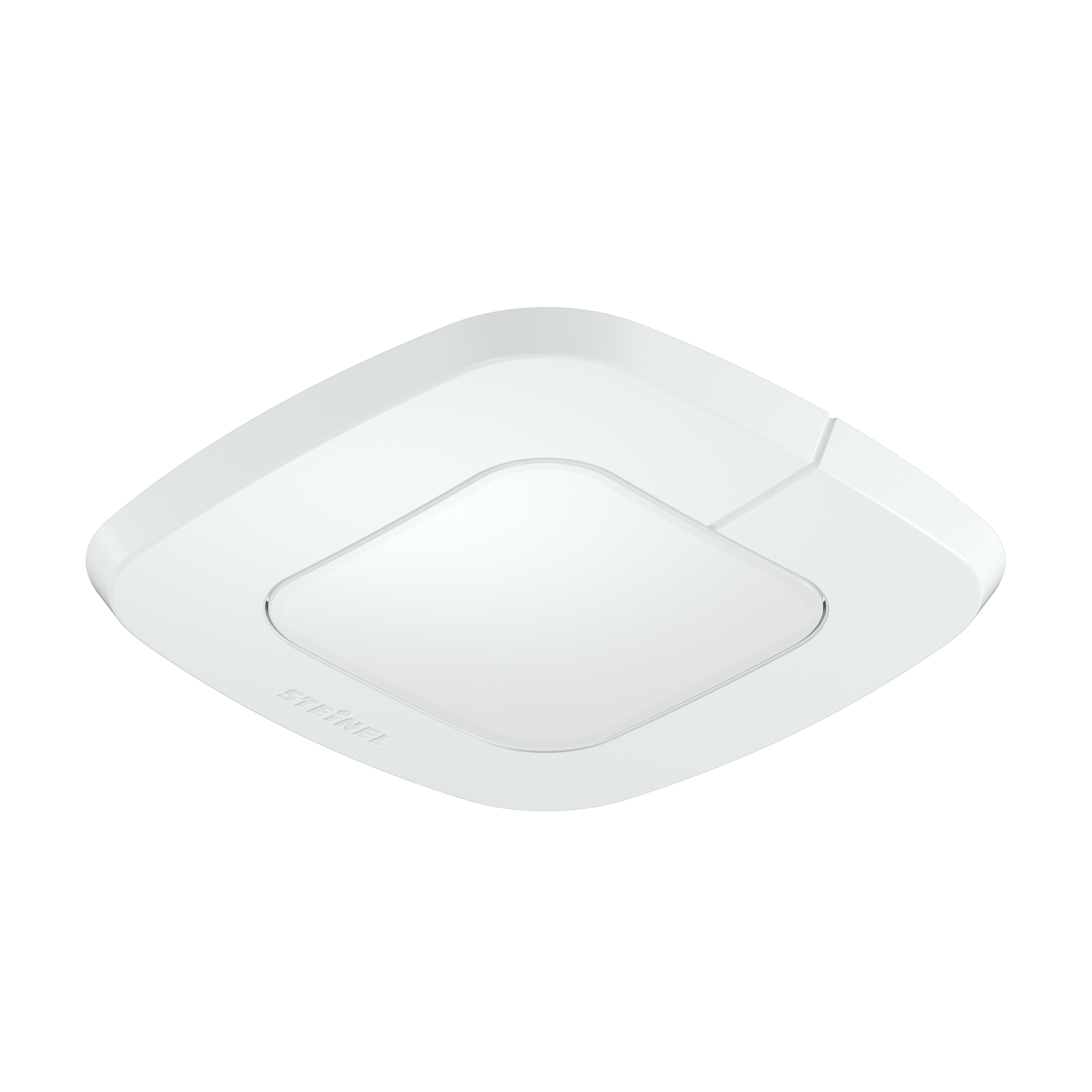

Nevalux IR Quattro SLIM XS LiveLink - square
ELDAS® no. 535 931 407
EAN-No. 4007841 033040
This product is being replaced by a successor product.

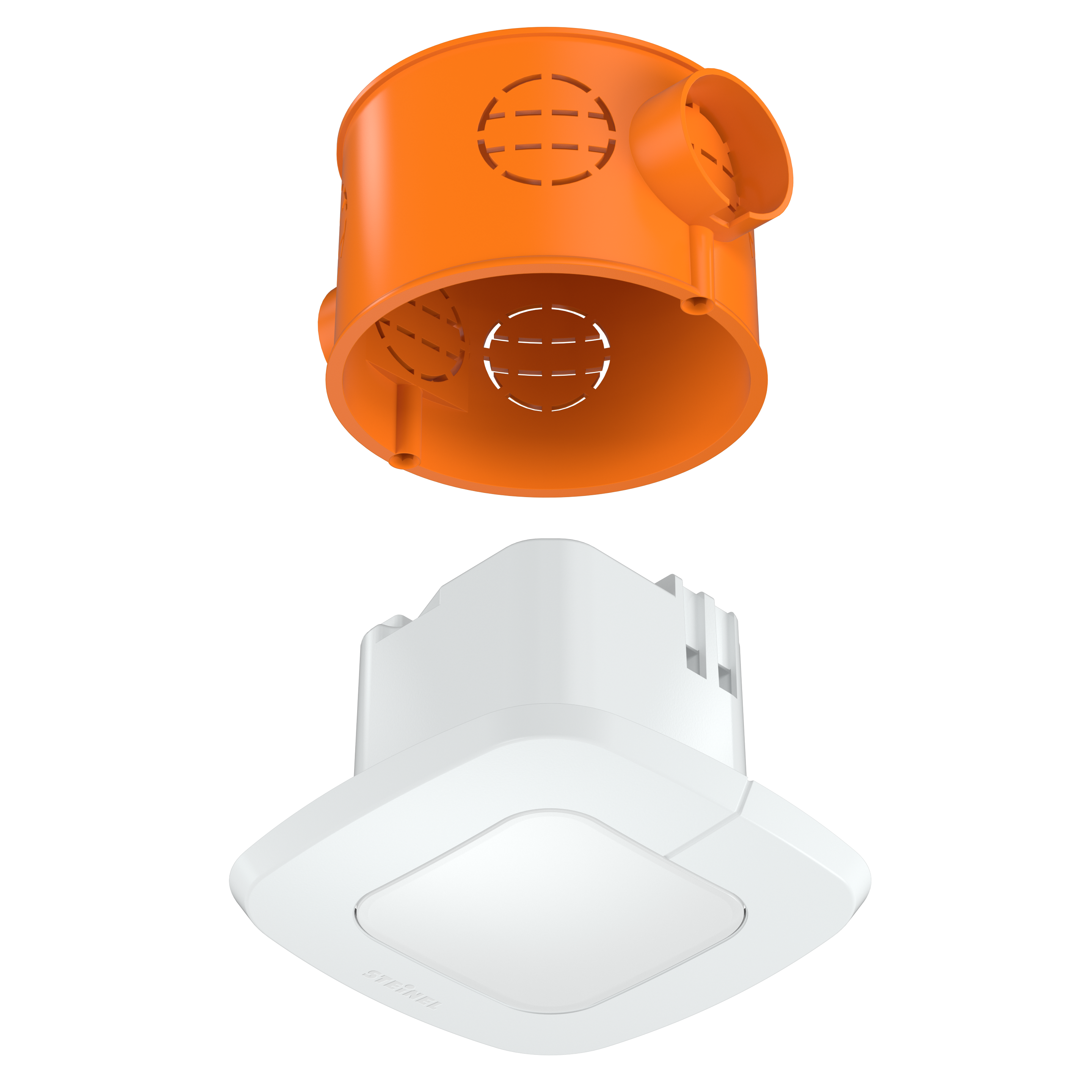

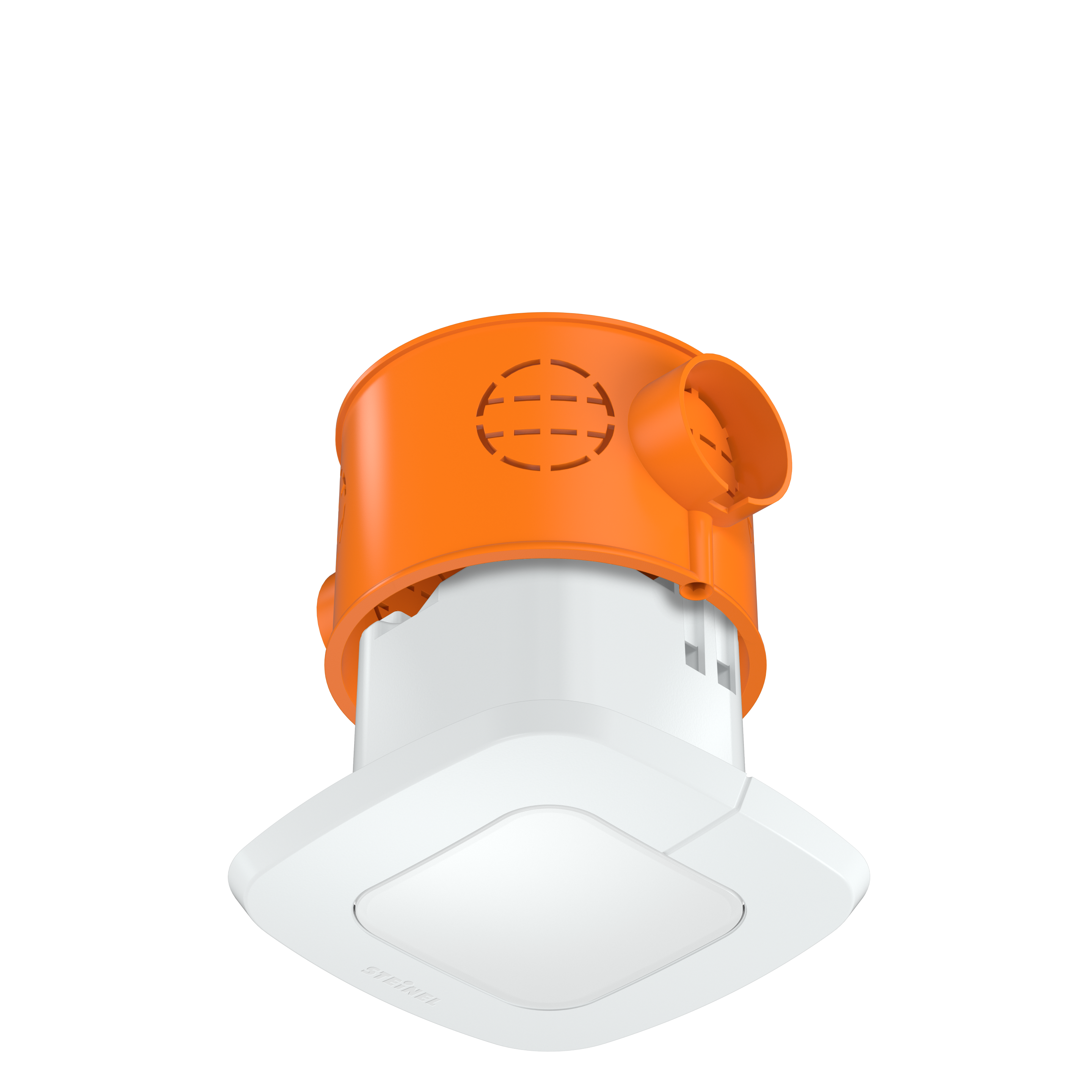

Go to successor product · IR Quattro SLIM XS 4m DALI-2 Input Device - square (057510)Noticeably Inconspicuous. IR Quattro SLIM XS, the extra-slim presence detector in concealed-box format. Fits into any standard concealed box. Overall height of just 6 mm. High-precision 360° infrared senor with globally unique retina lens and 16 sq.m square presence detection zone (4 x 4 m). Adjustment via remote control or Smart Remote.
- Extremely slim overall height
- High-quality retina lens
- Can only be set using optional remote controls
Identification
Variant
LiveLink - square
Version
Presence detector
Model
LiveLink
Dimensions
Dimensions L × W × H
80 x 80 x 51 mm
Electrical
Mains connection
16 V
Supply voltage detail
DALI bus
Livelink values
Light level, Motion detection, Presence detection
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
No
Range detail
Retina lens and hexagonal Fresnel structure
Radial range
4 x 4 m (16 m²)
Tangential range
4 x 4 m (16 m²)
Switching zones
408 switching zones
Mounting height
2,50 – 4,00 m
Presence range
4 x 4 m (16 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Number of DALI participants
2
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
10 – 1000 lx
Time setting
60 sec – 60 min
Base light function
No
Settings via
LiveLink app
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
classroom, One-person office, side room
