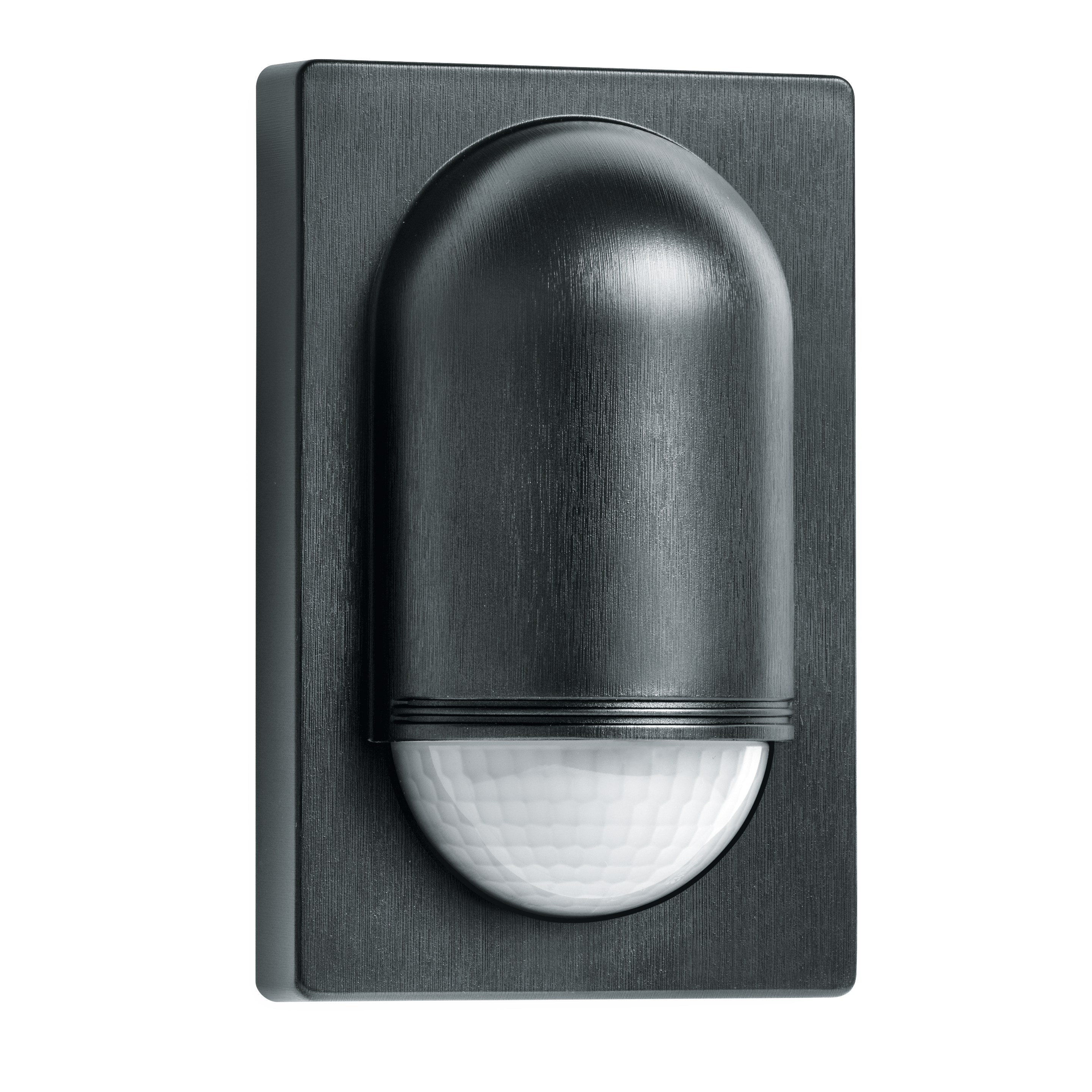

Nevalux IS 2180-5 black
EAN-No. 4007841 605711
This product is being replaced by a successor product.
Go to successor product · IS 2180 ECO black (034702)Big Brother is watching. Infrared motion detector IS 2180-5 for outdoors, ideal for large properties and outdoor spaces, business and factory premises, ideal installation height 2 m, 180° angle of coverage, reach. 20 m max. or 8 m max. (tangential), selectable time and twilight threshold, manual override, including corner wall mount for external and internal corner.
- UV-resistant plastic
- Including corner wall mount
Identification
Variant
black
Version
Motion detectors
Dimensions
Dimensions L × W × H
120 x 78 x 55 mm
Electrical
Mains connection
230 – 240 V , 50 / 50 Hz
Switching output 1 resistive
1000 W
Sensor technology
Sensor technology
passive infrared
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Tangential range
r = 8 m (101 m²) / r = 20 m (628 m²)
Switching zones
504 switching zones
Optimal mounting height
2 m
Connectivity
Networking
Yes
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 2000 lx
Time setting
5 sec – 15 min
Base light function
No
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
corner
wall
Application location
Outdoors
Mounting type
Surface wiring
Material
Plastic
Colour
black
RAL colour
9005
Scope of delivery & warranty
Manufacturer warranty
5 years
