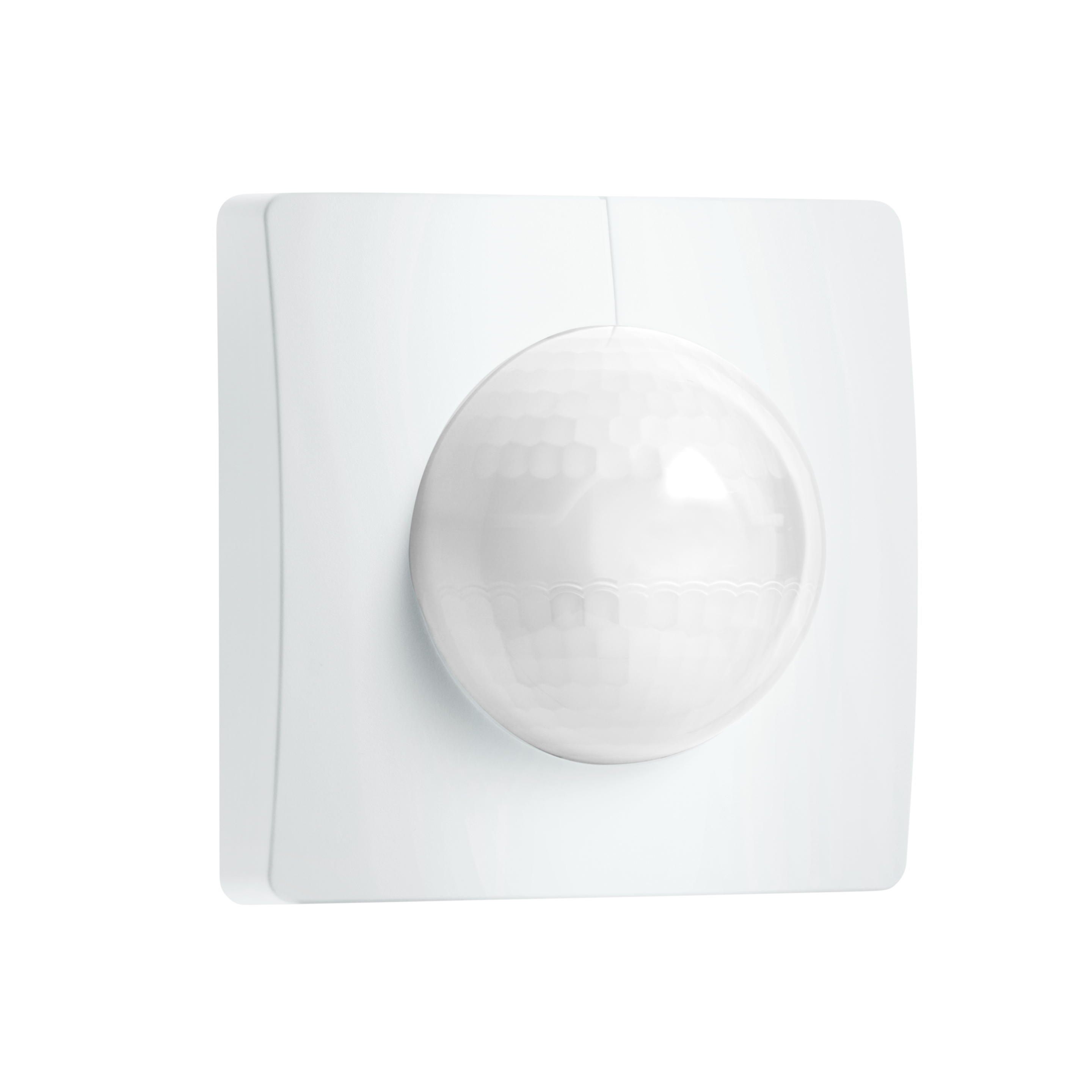

Nevalux IS 3180 LiveLink - concealed installation, square
EAN-No. 4007841 055752
This product is being replaced by a successor product.
Go to successor product · IS 3180 DALI-2 Input Device - concealed, sq. (057367)For large areas. Infrared motion detector IS 3180 for indoors and out, ideal for watching over large areas, ideal installation height 2 m, 180° angle of coverage, reach 20 m max. or 8 m max. (tangential).
- UV-resistant plastic
Identification
Variant
LiveLink - concealed installation, square
Version
Motion detectors
Dimensions
Dimensions L × W × H
94 x 94 x 78 mm
Electrical
Mains connection
230 V, 50 / 60 Hz
Supply voltage detail
DALI bus
Sensor technology
Sensor technology
passive infrared
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Tangential range
r = 8 m (101 m²) / r = 20 m (628 m²)
Switching zones
448 switching zones
Mounting height
1,50 – 3,00 m
Optimal mounting height
2 m
Connectivity
Networking
Yes
Number of DALI participants
3
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 1000 lx
Time setting
5 sec – 15 min
Base light function
Yes
Settings via
LiveLink app
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
-20 – 50 °C
Mounting location
corner
wall
Application location
Indoors
Outdoors
Mounting type
Concealed wiring
Material
Plastic
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
corridor, aisle, stairwell, multi-storey car park, underground car park
