Nevalux IS 345 MX Highbay DALI-2 IPD - concealed, sq.

ELDAS® no. 535 942 005

EAN-No. 4007841 057404

This product is being replaced by a successor product.

Go to successor product · IS 345 MX Highbay DALI-2 Input Device - surface, sq. (057398)

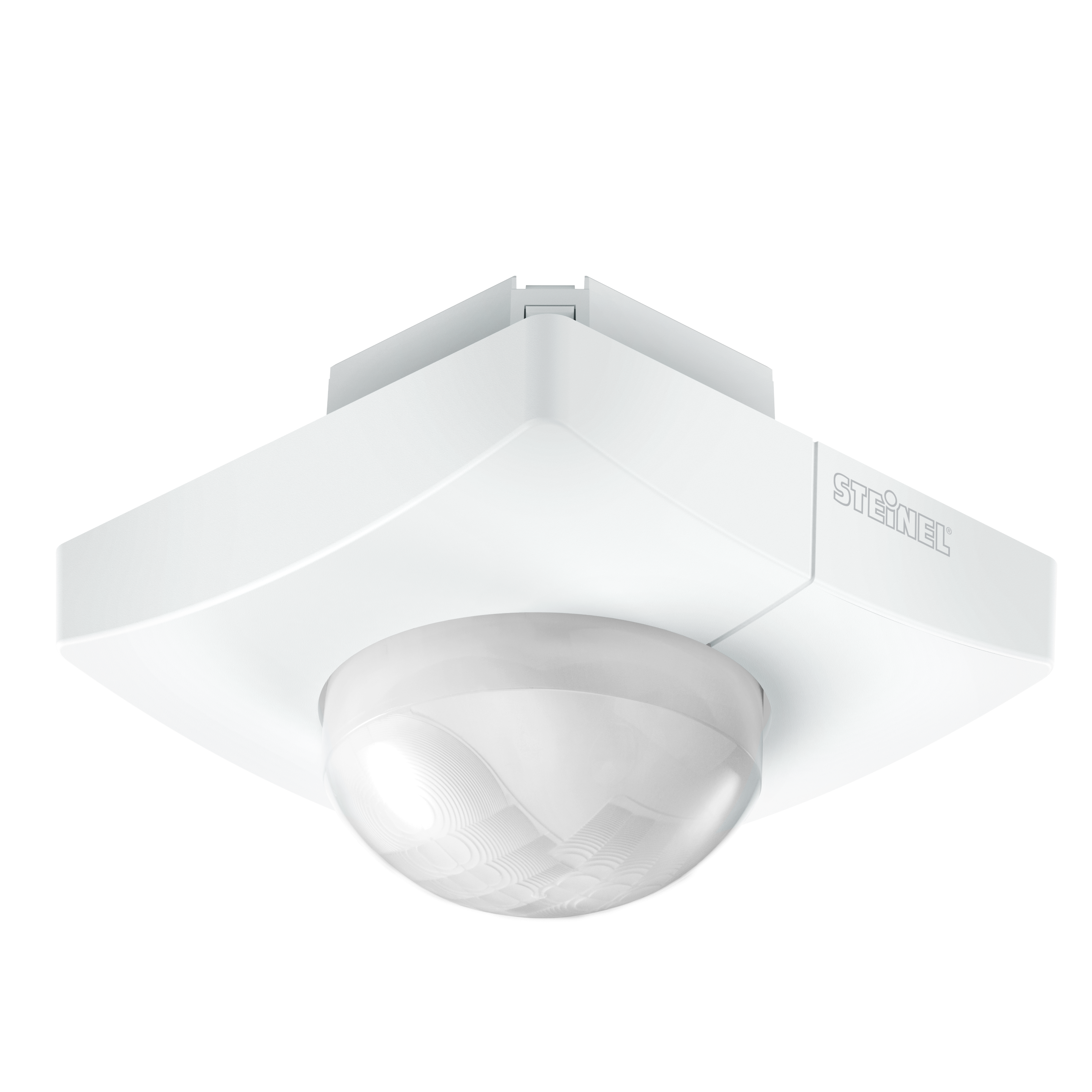

Surveillance on the highest level. Infrared motion detector IS 345 MX Highbay for indoors, ideal for large heights in depots, high-bay warehouses, machine shops, check-in areas and departure lounges, installation height 14 m, detection zone 30 x 4 m (radial). Available as square surface-mounted and concealed version. DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems.

Identification

Variant DALI-2 IPD - concealed, sq.

Version Motion detectors

Dimensions

Dimensions L × W × H 95 x 95 x 78 mm

Electrical

Mains connection 12 – 22,5 V / 50 – 60 Hz

Control output DALI Addressable/slave

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 12 x 6 m (72 m²)

Tangential range 23 x 6 m (138 m²)

Switching zones 280 switching zones

Mounting height 4,00 – 14,00 m

Optimal mounting height 12 m

Connectivity

Networking Yes

With bus coupler Yes

Lighting technology

Constant light regulation No

Settings

Twilight setting 2 – 1000 lx

Time setting 1 s – 60 Min.

Base light function Yes

Base light function time 1-30 min, all night

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -20 – 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room high-bay warehouse

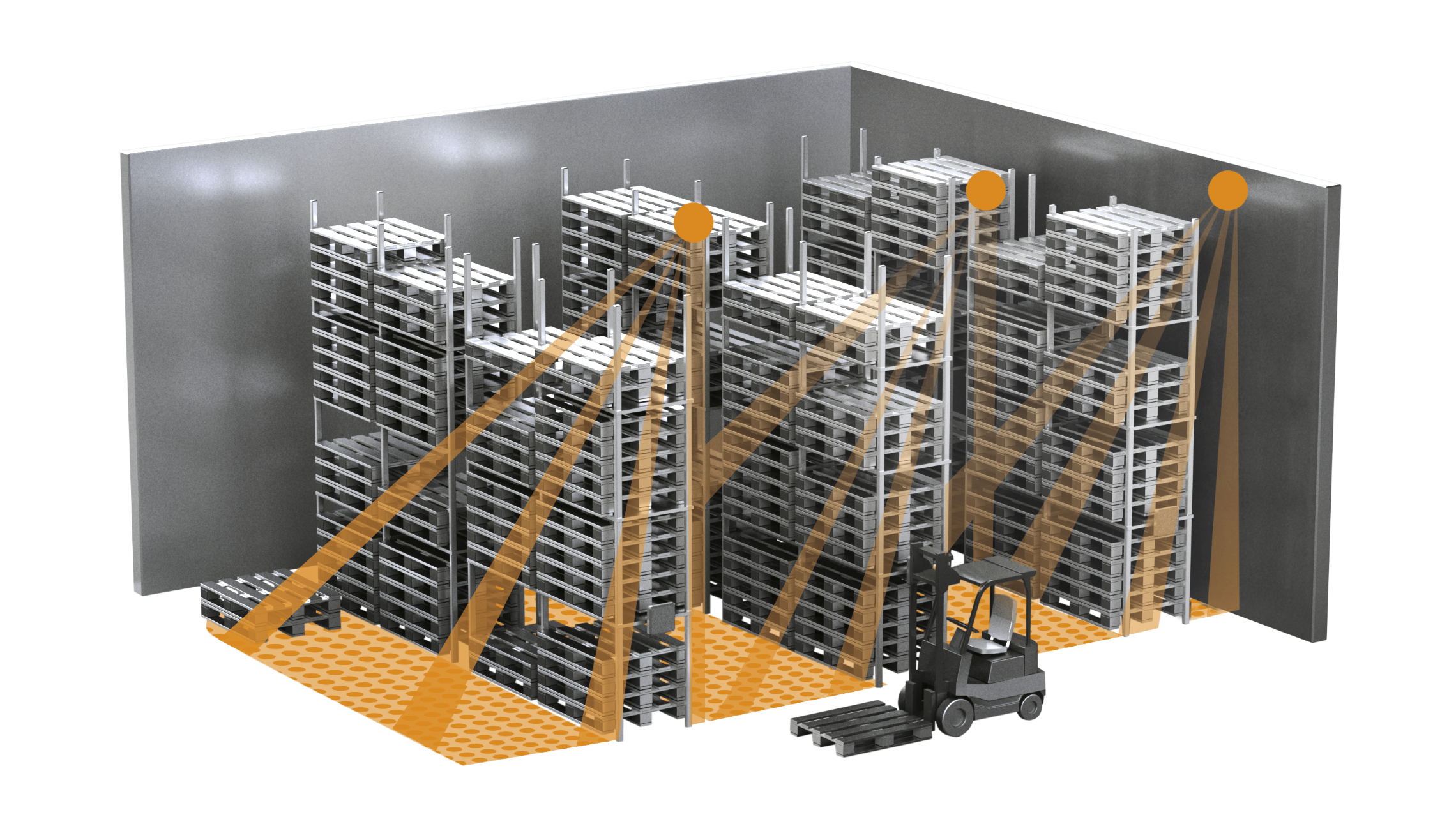

Sensor detection range
