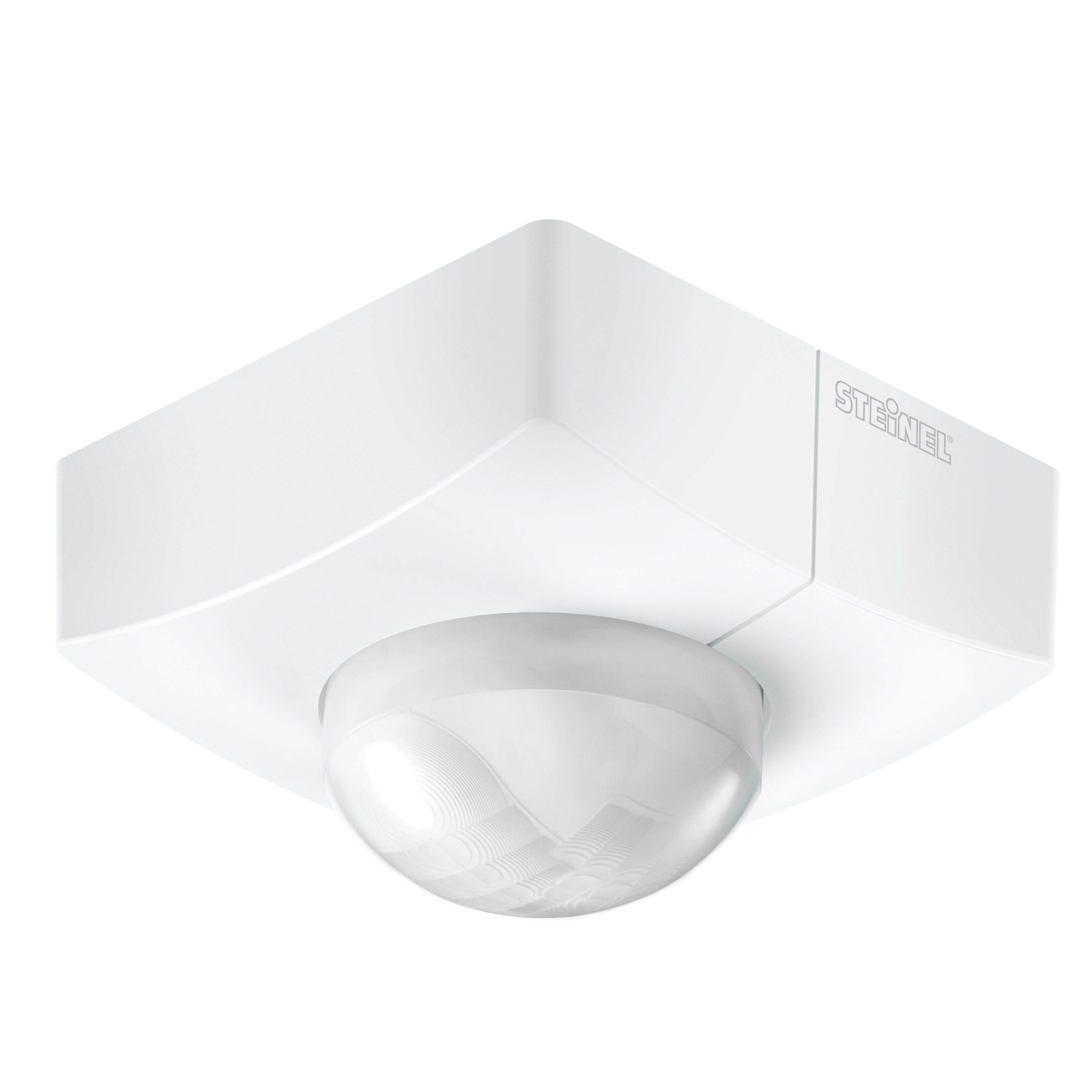

Steinel IS 345 MX Highbay DALI-2 Input Device - surface, sq.

Motion detector for aisles, car parks and halls. Long, narrow detection, splash-proof.

ELDAS® no. 535 942 007

EAN-No. 4007841 057398

Price: Please log in to see prices

Mounting type

Surface mounting

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX PF (Potential Free)

Max. mounting height

5,00 m 16,00 m

Colour

White

High-bay warehouses often have narrow aisles and high ceilings. Too high for most sensors. We have just the right solution: the IS 345 MX Highbay infrared motion detector was specially developed for mounting at heights of up to 14 m and for precision detection between narrow aisles. Perched up there, it gives you surveillance quality at the highest level, literally. So in the future, you can confidently set your sights higher when it comes to sensor systems! Available in surface-mounted and concealed installation versions, and naturally compatible with the standard interfaces.

Identification

Version Motion detectors

Variants

Version DALI-2 Input Device

Colour White

Mounting type Surface mounted

Mounting height Mounting height 4 to 14 metres

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

Electrical

Mains connection 12 – 22,5 V

Supply voltage detail DALI bus

Control output DALI Addressable / slave

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °, Corridor

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 30 x 4 m (120 m²)

Tangential range 30 x 4 m (120 m²)

Switching zones 280 switching zones

Mounting height 4,0 – 16,0 m

Optimal mounting height 12,0 m

Connectivity

Networking Yes

Type of networking Master/Slave

Number of DALI participants 3

With bus coupler Yes

Networking via DALI 2

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function No

Base light function time 1-30 min, all night

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, high-bay warehouse

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

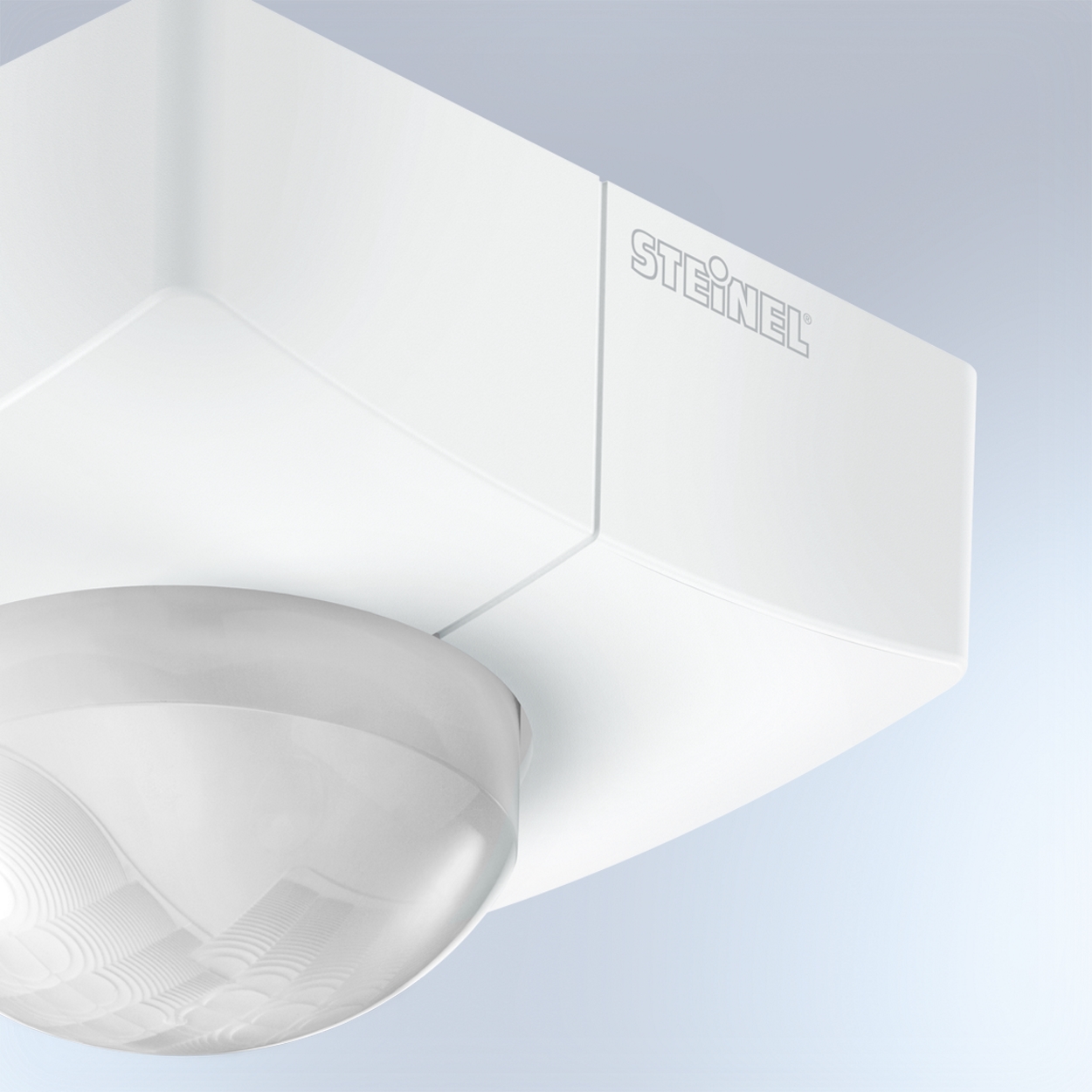

UV-resistant plastic

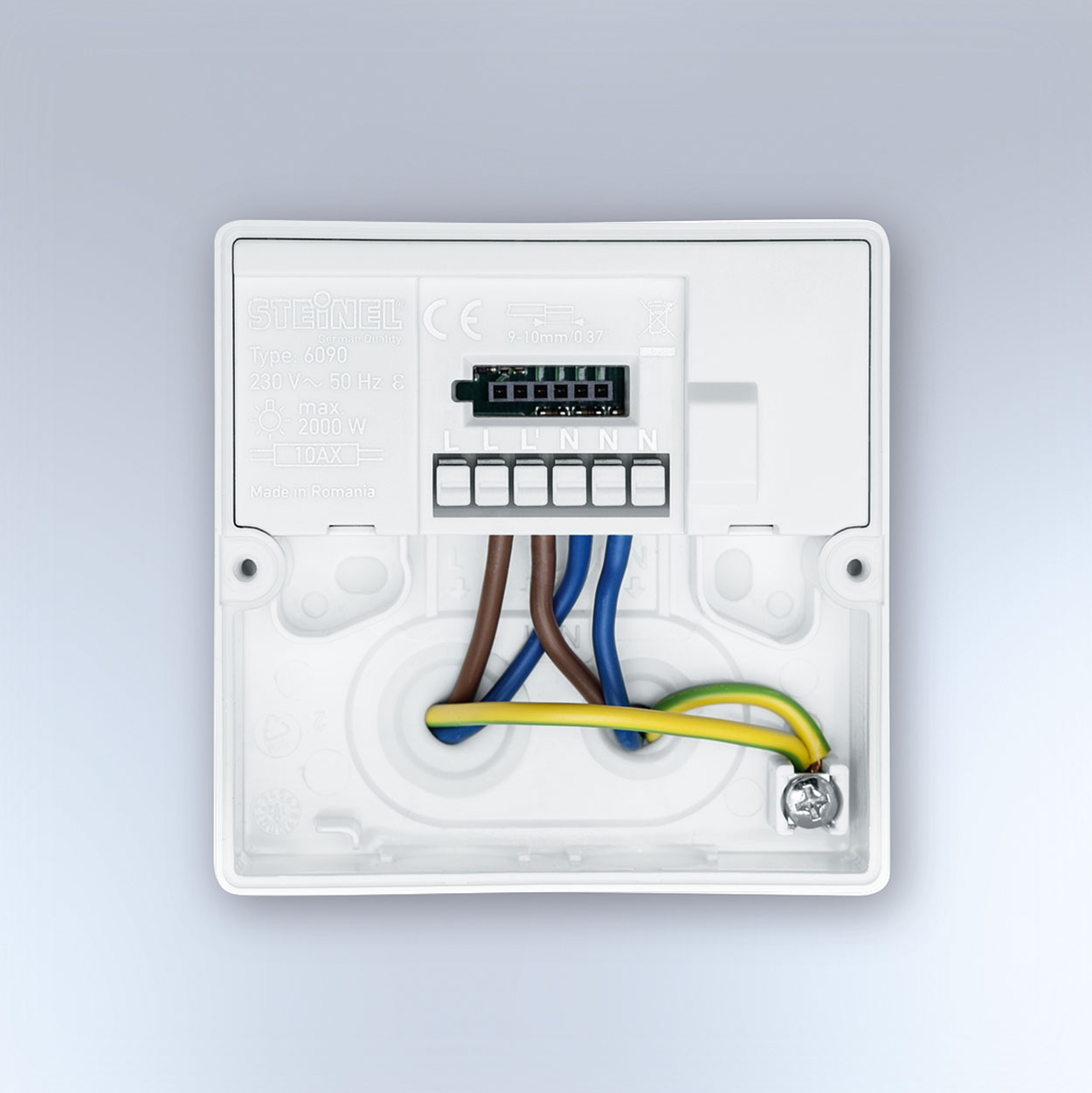

Large terminal compartment

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151
