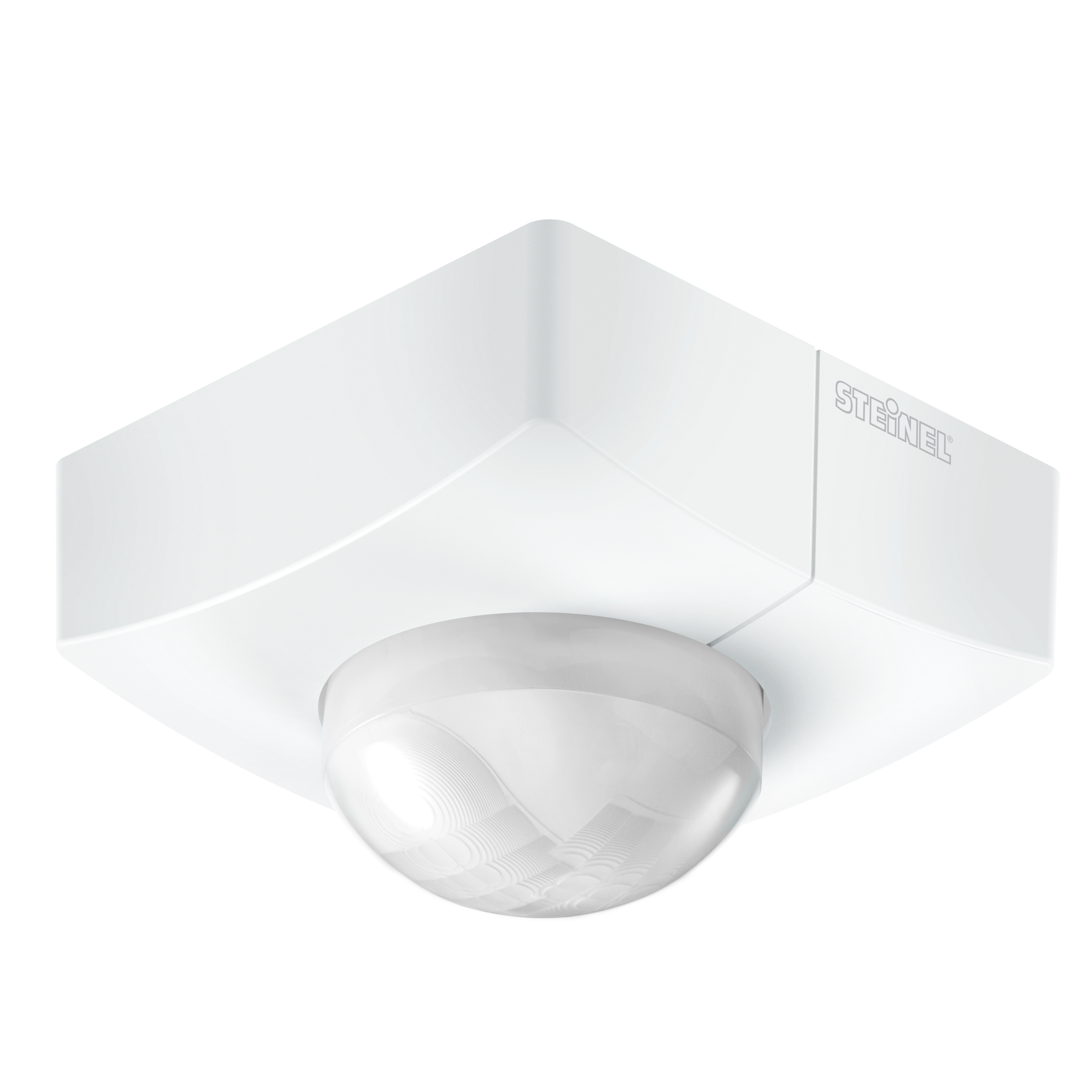

Nevalux IS 345 MX Highbay LiveLink - surface-mounted, square
ELDAS® no. 535 941 030
EAN-No. 4007841 009731
This product is being replaced by a successor product.
Go to successor product · IS 345 MX Highbay DALI-2 Input Device - surface, sq. (057398)Surveillance on the highest level. Infrared motion detector IS 345 MX Highbay for indoors, ideal for large heights in depots, high-bay warehouses, machine shops, check-in areas and departure lounges, installation height 14 m, detection zone 30 x 4 m (radial), large terminal compartment for easy installation.
Identification
Variant
LiveLink - surface-mounted, square
Version
Motion detectors
Model
LiveLink
Dimensions
Dimensions L × W × H
95 x 95 x 65 mm
Electrical
Mains connection
16 V
Supply voltage detail
DALI bus
Livelink values
Light level, Motion detection, Presence detection
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
9 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
30 x 4 m (120 m²)
Tangential range
30 x 4 m (120 m²)
Switching zones
280 switching zones
Mounting height
4,00 – 14,00 m
Optimal mounting height
12 m
Connectivity
Networking
Yes
Number of DALI participants
3
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
2 – 1000 lx
Time setting
60 sec – 60 min
Base light function
No
Settings via
LiveLink app
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
high-bay warehouse
