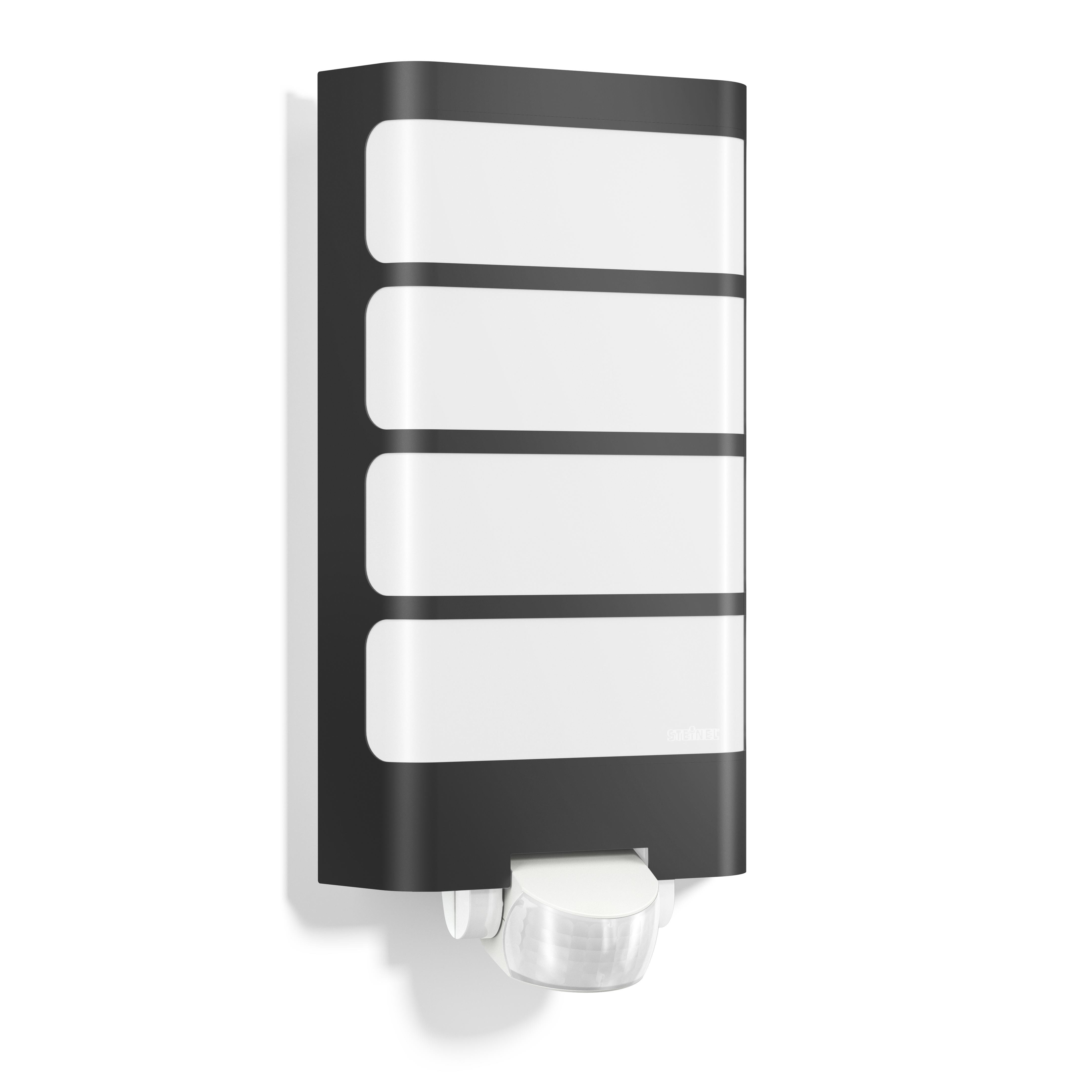

Nevalux L 244 LED Anthracite
EAN-No. 4007841 033248
This product is being replaced by a successor product.
Go to successor product · L 240 S Anthracite (056506)Lighting statements in a vertical design. The slimline L 244 LED sensor-switched outdoor light with high-quality stainless-steel panel in anthracite or stainless-steel look immerses the entrance in pleasantly soft ambient light (500 lm). Perfect illumination at a consumption of just 7,5 W. The IR sensor detects movements over a distance of up to 10 m. Angle of coverage: 180°.
- Including STEINEL LED system
- LED ambient light
- Rustproof stainless steel trim
- Impact-resistant material rated to IK07
Identification
Variant
Anthracite
Variants
Luminous flux
500 lm
Dimensions
Dimensions L × W × H
305 x 165 x 81 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Power
7,5 W
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (14 m²)
Tangential range
r = 10 m (157 m²)
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Luminous flux
500 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 sec – 35 min
Housing & material
Impact resistance
IK07
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-20 – 50 °C
Housing material
Stainless steel
Cover material
Plastic, opal
Scope of delivery & warranty
Manufacturer warranty
3 years
