Nevalux L 600 CAM
ELDAS® no. 941 200 089
EAN-No. 4007841 052997
This product is being replaced by a successor product.

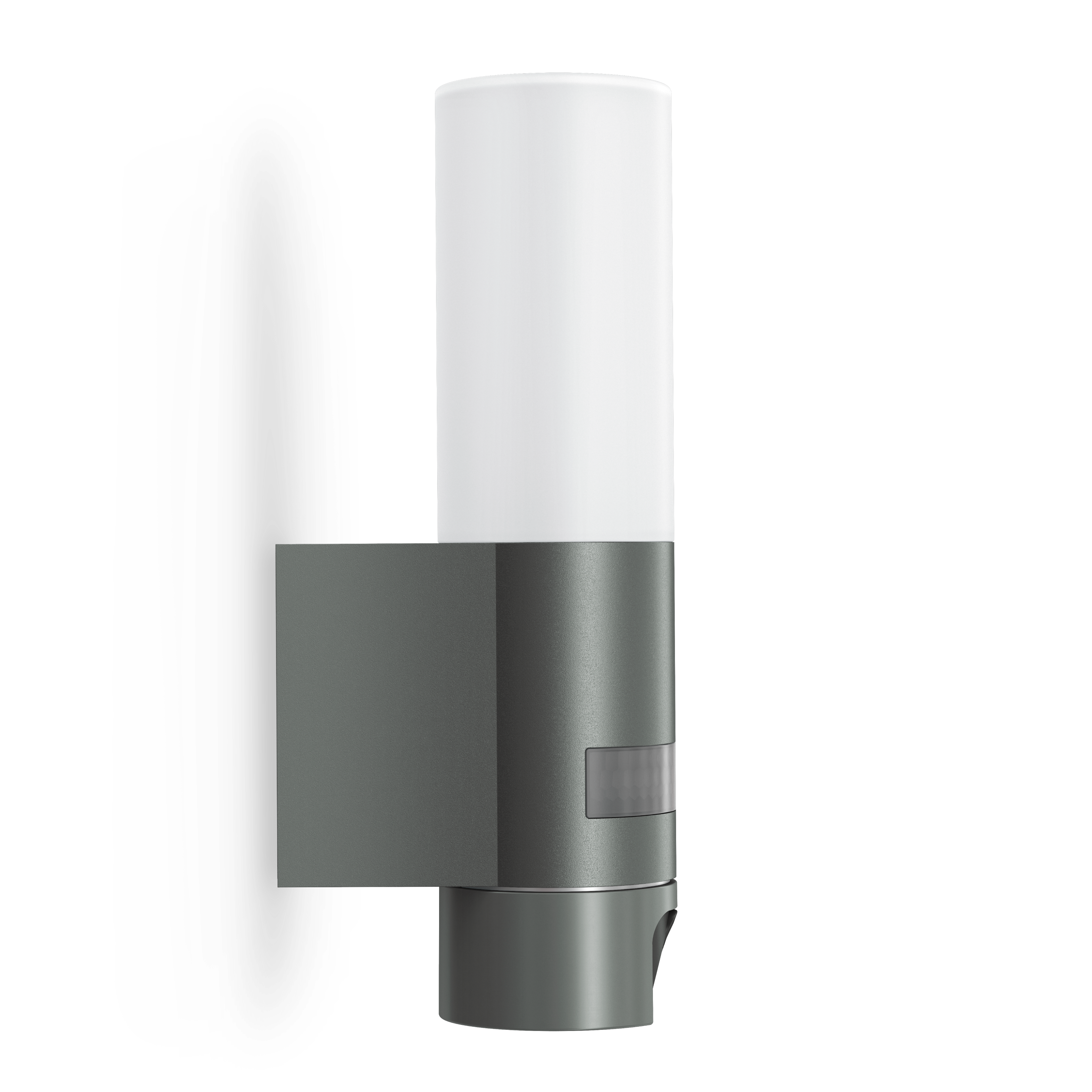

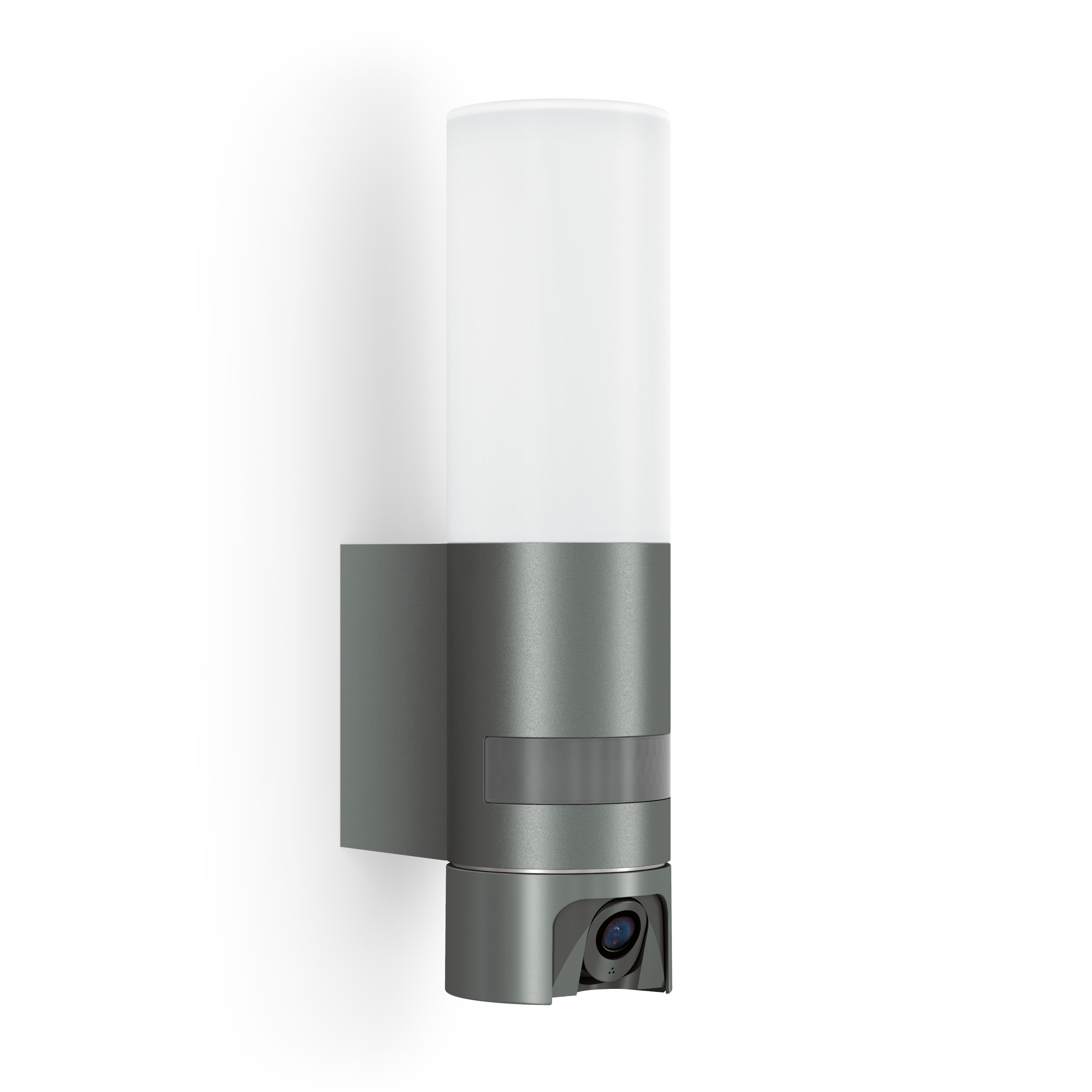

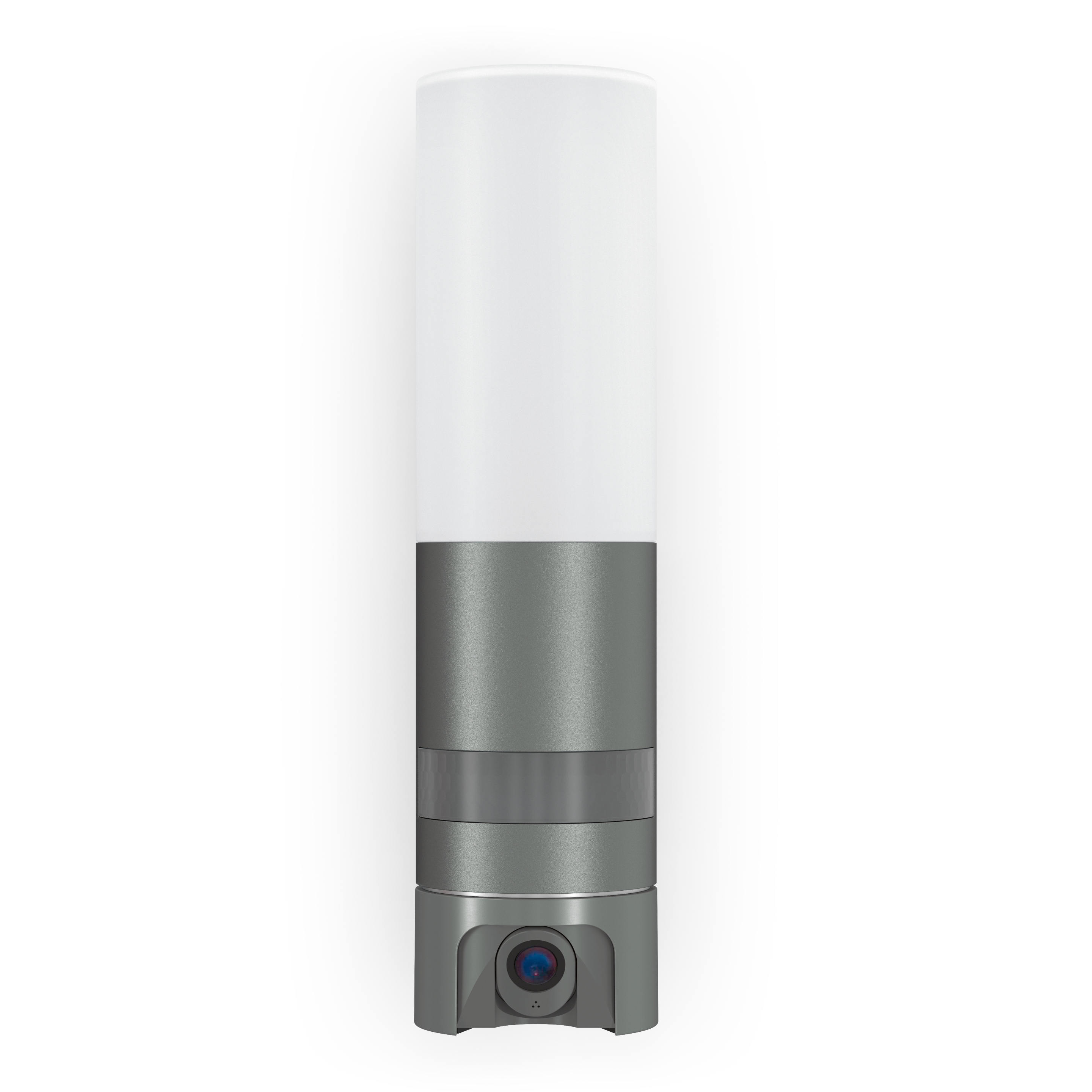

Go to successor product · L 620 CAM SC Anthracite (4007841065829)Smart. Save. Intelligent. L 600 CAM is a sensor-switched camera and intercom system in one product. With integrated micro SD memory card and camera to get razor-sharp images onto the smartphone or tablet (Wi-Fi and app-based). Enclosure in aluminium and high-quality opal glass. 180° infrared motion sensor with 10 m reach. Warm-white light: 3000 K and 781 lm at 14,3 W.
- HD wide-angle colour camera
- Integrated intercom unit
- Communication via smartphone
- Micro SD card (8 GB included)
- House number illumination throughout the night
- Including STEINEL LED system
- Adjustable night light when dark (0 - 40%)
Variants
Luminous flux
781 lm
Dimensions
Dimensions L × W × H
131 x 78 x 305 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Power
14,3 W
Sensor technology
Max. mounting height
2,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
No
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Tangential range
passive infrared: r = 10 m (157 m²)
Connectivity
Networking
No
Lighting technology
Efficiency
54 lm/W
Colour temperature
3000 K
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Luminous flux
781 lm
Lifetime
LED lifetime max. °C
50000 h
Settings
Twilight switch
Yes
Twilight setting
10 – 10000 lx
Time setting
60 sec – 15 min
Base light function
Yes
Settings via
Smartphone
With remote control
Yes
Housing & material
Protection class (IP)
IP44
Protection class
I
Ambient temperature
-10 – 40 °C
Housing material
Aluminium
Cover material
Glass opal
Scope of delivery & warranty
Manufacturer warranty
3 years
