Nevalux L 920 LED Anthracite

Nevalux L 920 LED Anthracite

ELDAS® no. 941 200 149 · EAN-No. 4007841 056483

Technical data Illustrations Downloads
Nevalux

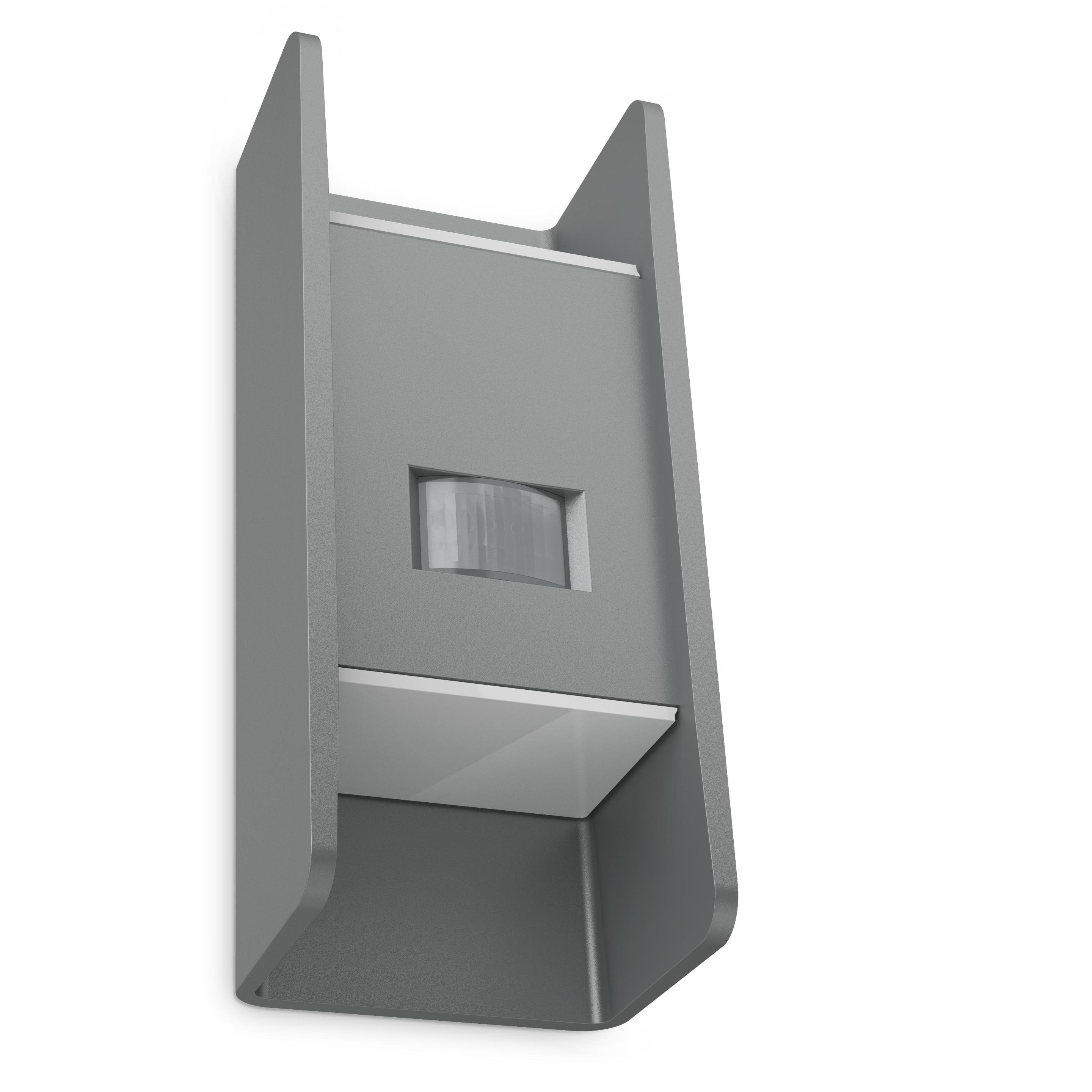

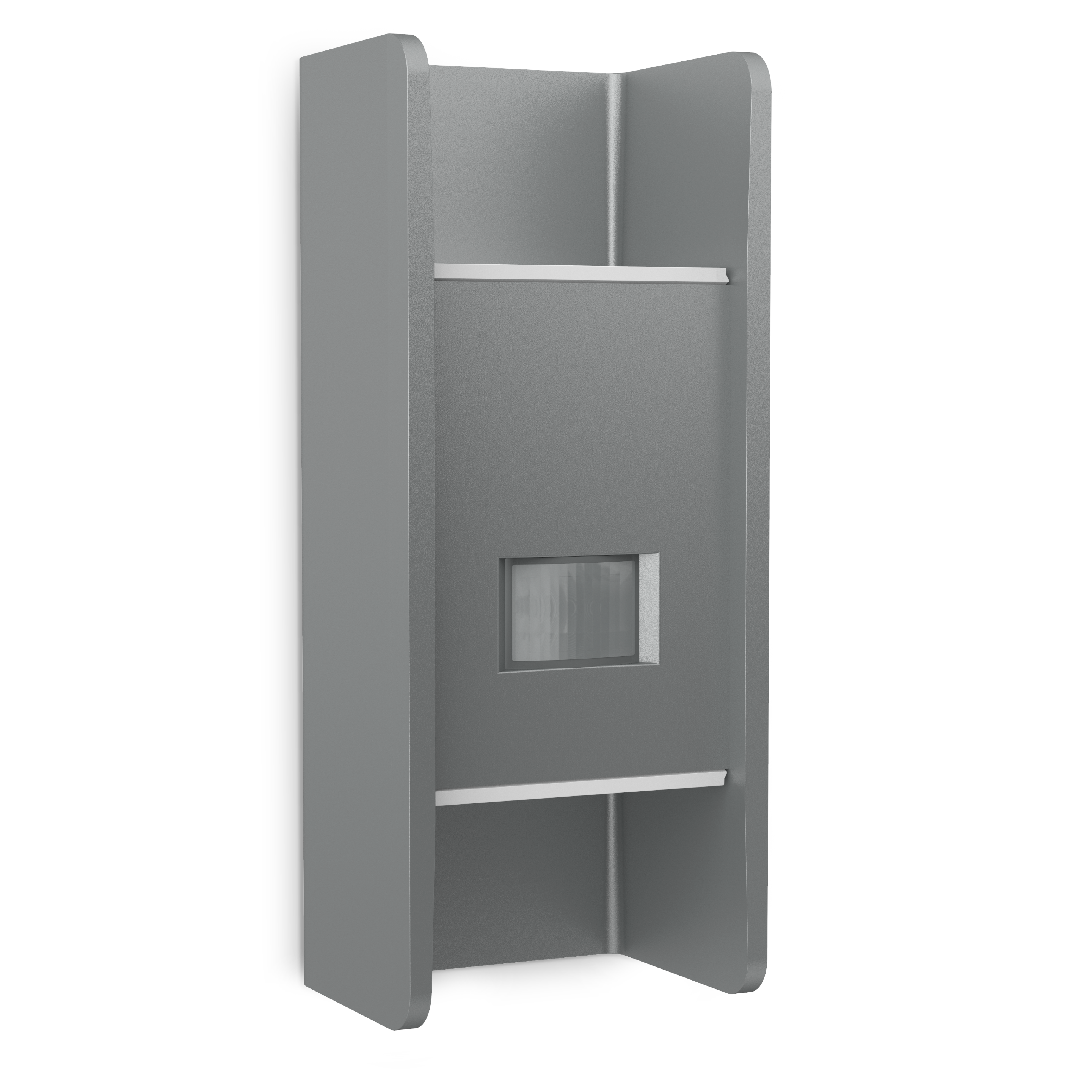

Nevalux L 920 LED Anthracite

ELDAS® no. 941 200 149

EAN-No. 4007841 056483

This product is being replaced by a successor product.

Go to successor product · L 930 S with motion detector (067199)

Inviting accent lighting. As an uplighter/downlighter, the 10 W sensor-switched outdoor light in classy aluminium invitingly sets off building walls in a colour temperature of 3000 K and 516 lm of light. The 140° infrared sensor has a reach of 12 m. Several L 920 LED can easily be interconnected by cable and switched ON and OFF simultaneously. With soft light function, various night-light functions and optional manual override (4 h). Available in anthracite and silver.

  • Intelligent soft light start
  • Interconnectable by cable
  • 4-hour manual override (optional)
  • High-quality aluminium
  • Setting options protected from the weather and from outside influences

Identification

Variant Anthracite

Variants

Luminous flux 516 lm

Dimensions

Dimensions L × W × H 225 x 95 x 94 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz
Power 10 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 140 °
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range r = 2 m (5 m²) / r = 4 m (20 m²)
Tangential range r = 5 m (31 m²) / r = 12 m (176 m²)

Connectivity

Networking Yes

Lighting technology

Colour temperature 3000 K
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable, 4h
Luminous flux 516 lm

Lifetime

LED lifetime max. °C 50000 h

Settings

Twilight switch Yes
Twilight setting 2 – 20 lx
Time setting 120 sec – 15 min
Base light function Yes
Base light function time 10-30 min, all night
With remote control No

Housing & material

Impact resistance IK00
Protection class (IP) IP44
Protection class II
Ambient temperature -20 – 40 °C
Housing material Aluminium
Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 3 years

Sensor detection range
