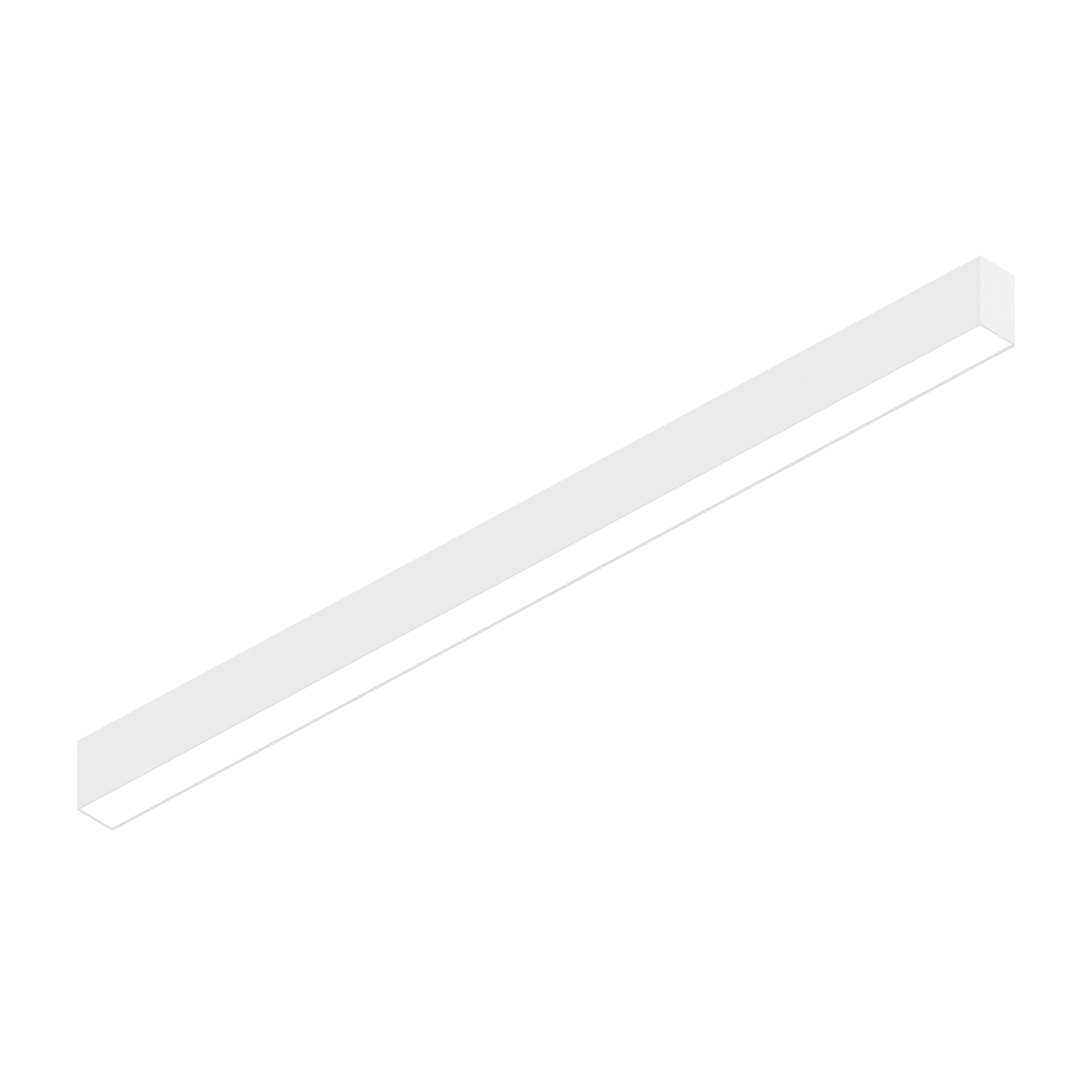

nevalux lisha C1800 4K
Linear pendant and ceiling light for offices and schools. Direct and indirect, wallwasher.
Product code 220177
This product is being replaced by a successor product.
Go to successor product · lisha V2 DALI C1500 4K (221622)Dimensions L × W × H
1205 x 50 x 95 mm
1805 x 50 x 95 mm
Mounting type
Ceiling surface mounted
Beam angle
105°
Wallwasher
Control technology
Dali-Leuchte
With motion detector
No
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use for lighting offices, schools, traffic zones, etc.
- Available as intelligent Connect version or as conventional DALI luminaire
- Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
- Link technology for seamless extension of the luminaire with continuous wiring
- Versions with 1.2 and 1.8 meter length available
- Housing Aluminium white
Variants
Version
1800mm
Luminous flux
5500 lm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
52 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
1050 mA
Maximum number of luminaires per circuit breaker
C10: 20x, C16: 46x, C20: 44x, B10: 12x, B16: 20x, B25: 26x
Sensor technology
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
5500 lm
Luminaire luminous efficacy
106 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

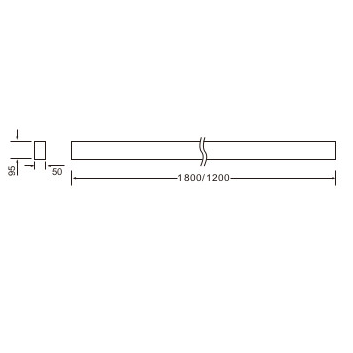

Technical drawing

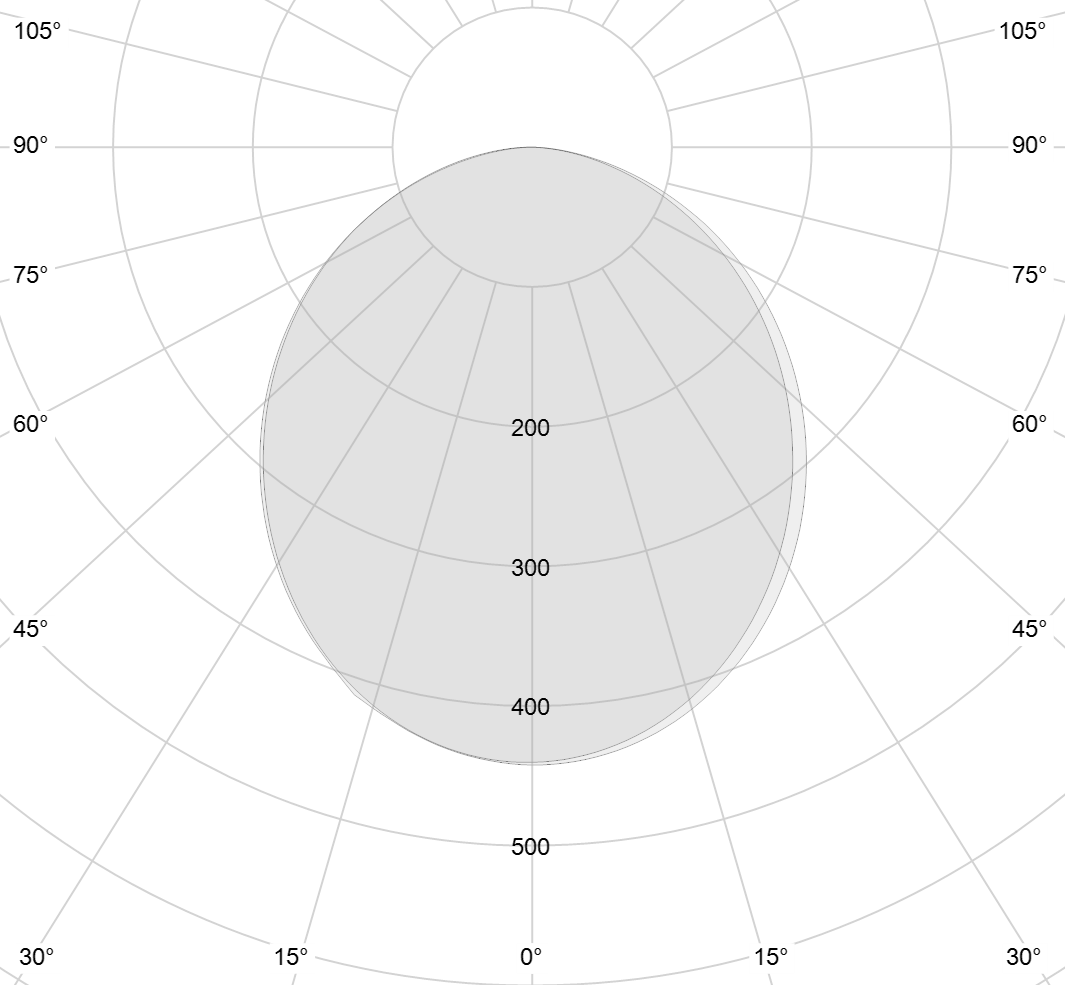

Lichtverteilungskurve
Wiring diagram 1
Wiring diagram
