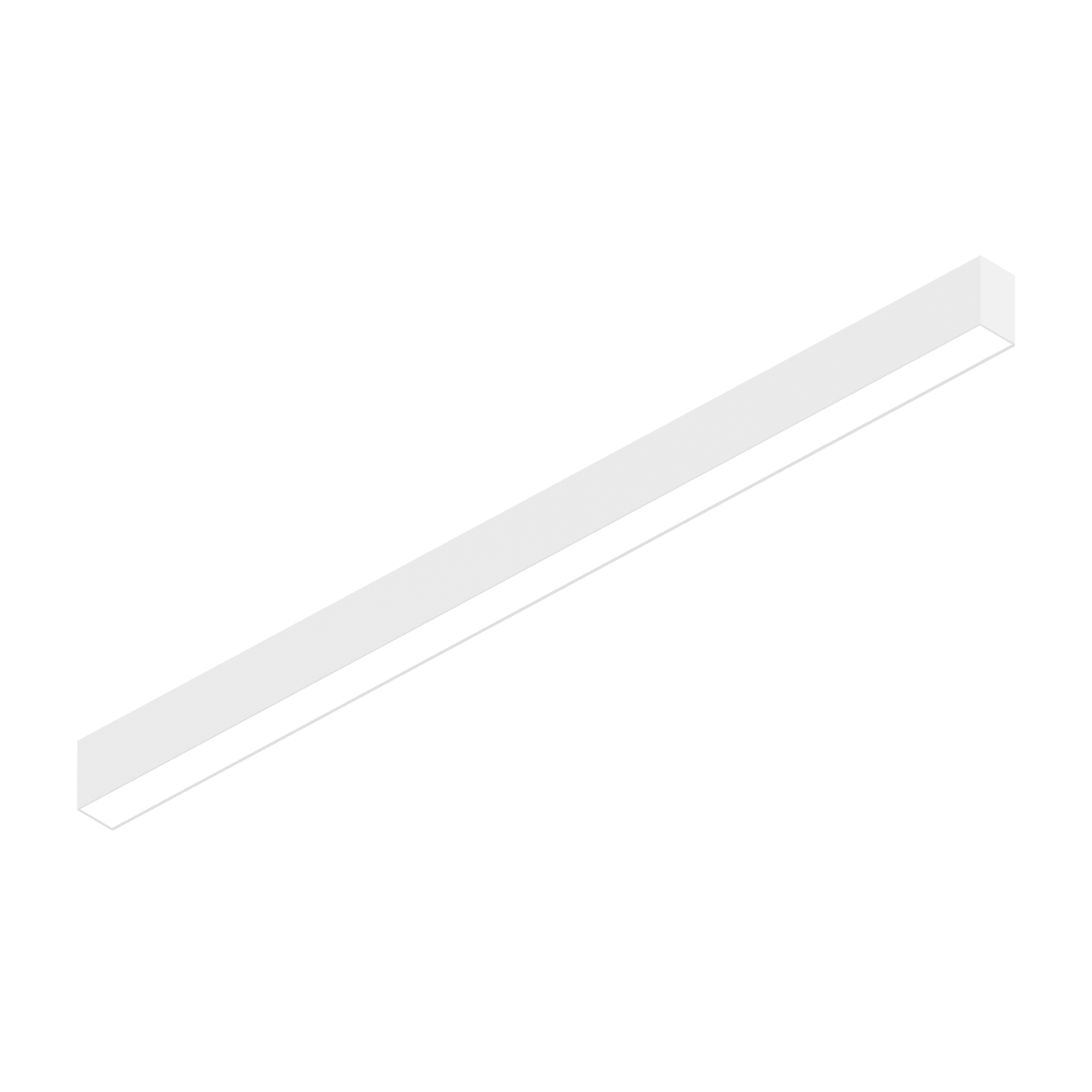

Nevalux lisha C1200 4K
Product code 220176
This product is being replaced by a successor product.
Go to successor product · lisha V2 DALI C1200 4K (221621)Version
1200mm
1800mm
Intelligence
DALI without intelligence
Connect incl. light control
Luminous flux
5500 lm (Down 3800, Up 1700)
7900 lm (Down 5500, Up 2400)
3800 lm
5500 lm
2700 lm
3700 lm
6100 lm (Down 3700, Up 2400)
4400 lm (Down 2700, Up 1700)
- For universal use for lighting offices, schools, traffic zones, etc.
- Available as intelligent Connect version or as conventional DALI luminaire
- Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
- Link technology for seamless extension of the luminaire with continuous wiring
- Versions with 1.2 and 1.8 meter length available
- Housing Aluminium white
Dimensions
Dimensions L × W × H
1205 x 50 x 95 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
36 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
700 mA
Maximum number of luminaires per circuit breaker
C10: 30x, C16: 46x, C20: 58x, B10: 18x, B16: 28x, B25: 34x
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
3800 lm
Beam angle
105°
Luminaire luminous efficacy
106 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Acrylic glass opal
Mounting type
Ceiling surface-mounted
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E
Technical drawing

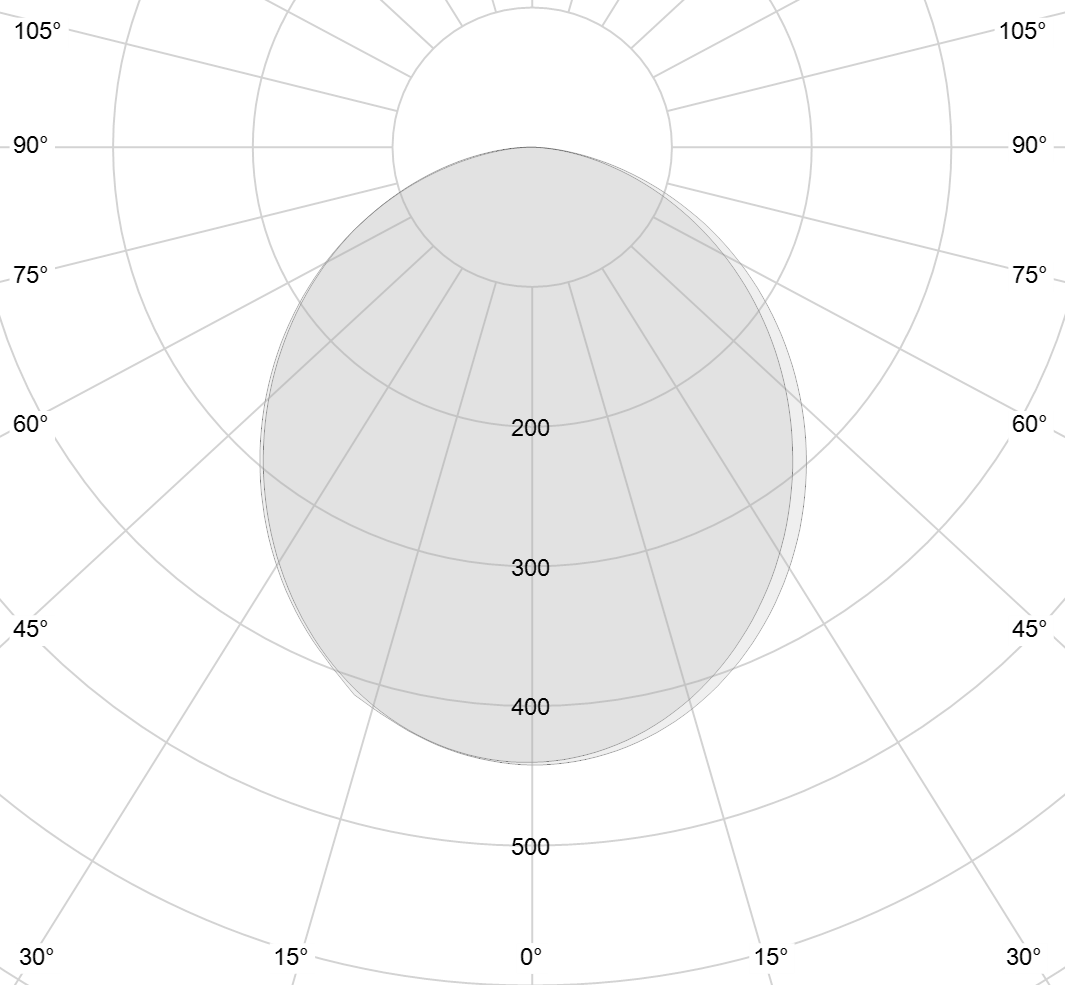

Lichtverteilungskurve
Wiring diagram 1
Wiring diagram
