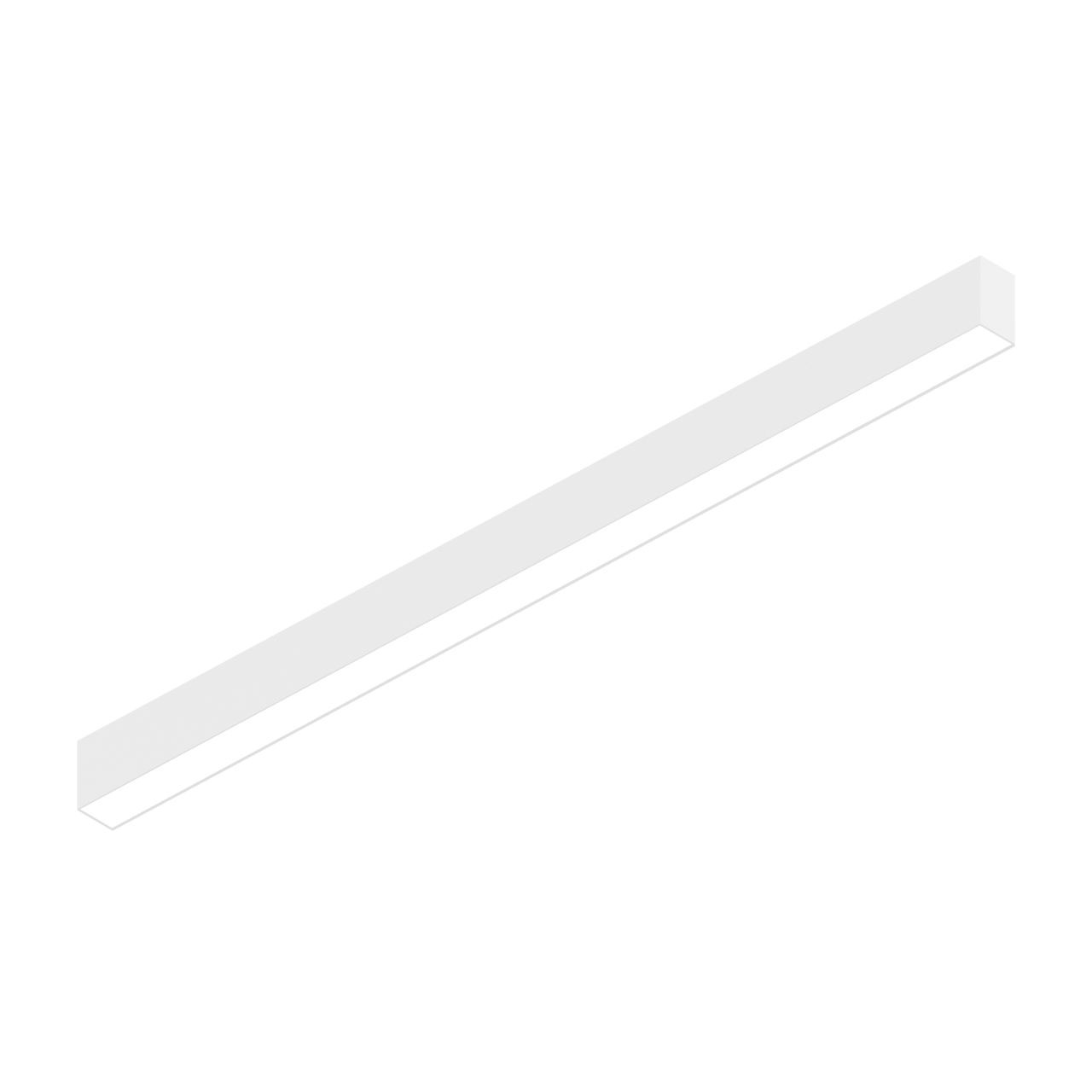

nevalux lisha connect C1800 4K
Linear pendant and ceiling light for offices and schools. Direct and indirect, wallwasher.
Product code 221490
This product is being replaced by a successor product.
Go to successor product · lisha V2 connect PIR C1500 4K (221978)Dimensions L × W × H
1205 x 50 x 95 mm
1805 x 50 x 95 mm
Mounting type
Ceiling surface mounted
Beam angle
105°
Control technology
Smartlink Connect
With motion detector
Yes
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use for lighting offices, schools, traffic zones, etc.
- Available as intelligent Connect version or as conventional DALI luminaire
- Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
- Link technology for seamless extension of the luminaire with continuous wiring
- Versions with 1.2 and 1.8 meter length available
- Housing Aluminium white
Variants
Version
1800mm
Luminous flux
5500 lm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
52 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
1050 mA
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Mounting height
< 10 m
Presence range
4 x 4 m (16 m²)
With light sensor
Yes
Connectivity
With radio network control
Yes
Wireless networking via
BT SIG Mesh
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
5500 lm
Luminaire luminous efficacy
106 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
With program-controlled lighting control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

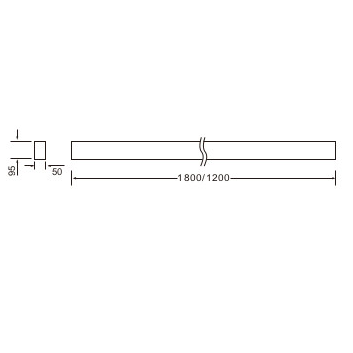

Technical drawing

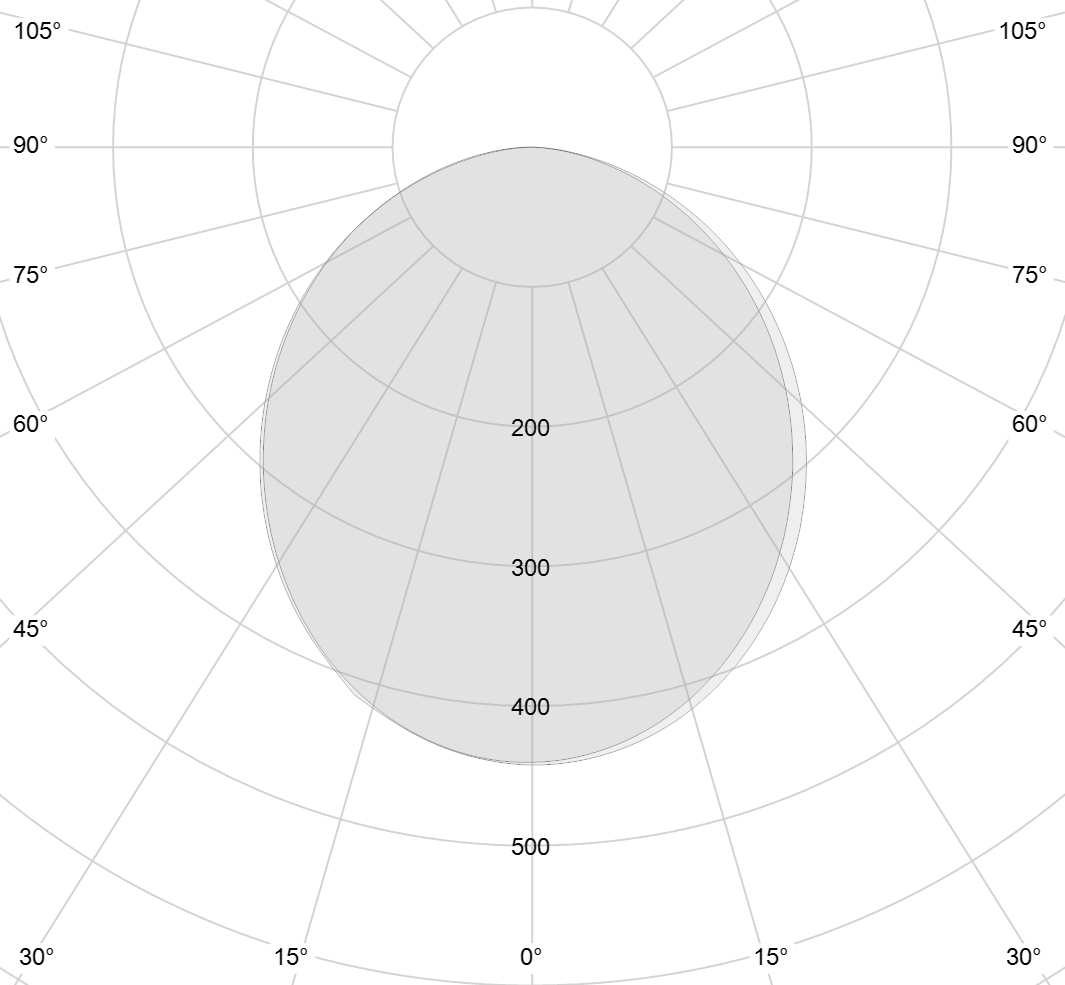

Lichtverteilungskurve

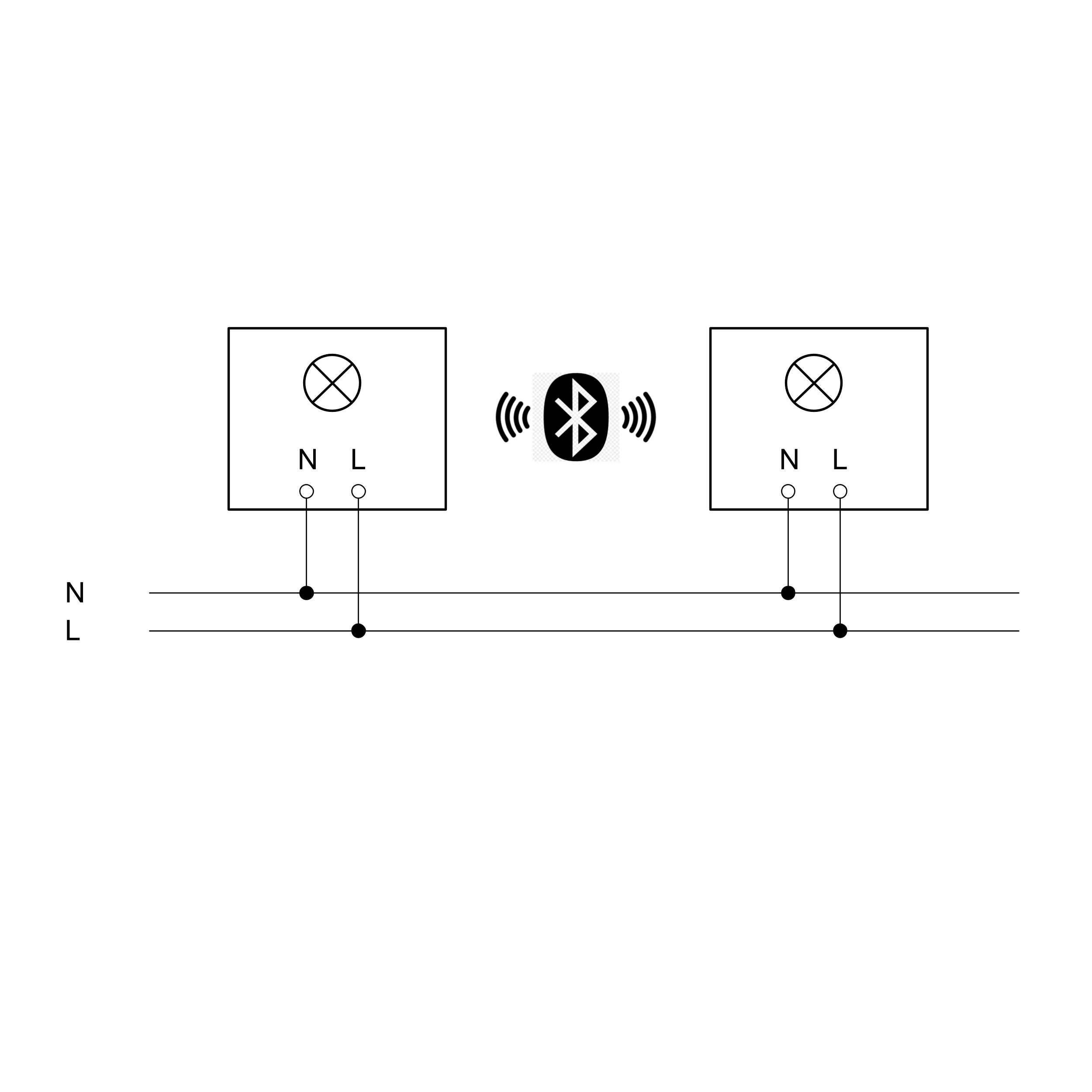

Wiring diagram 1
Wiring diagram networking radio

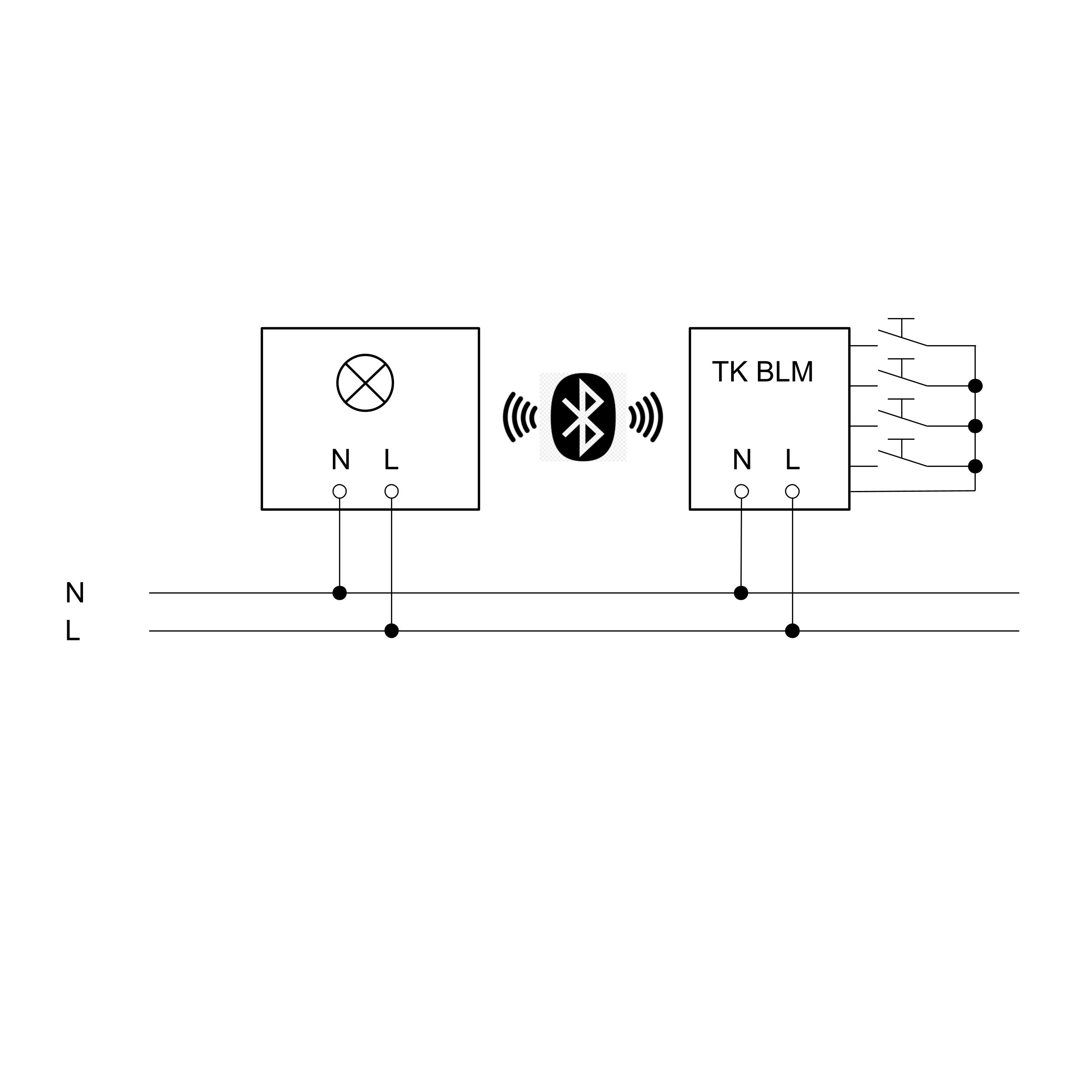

Wiring diagram 2
Wiring diagram pushbutton coupler
