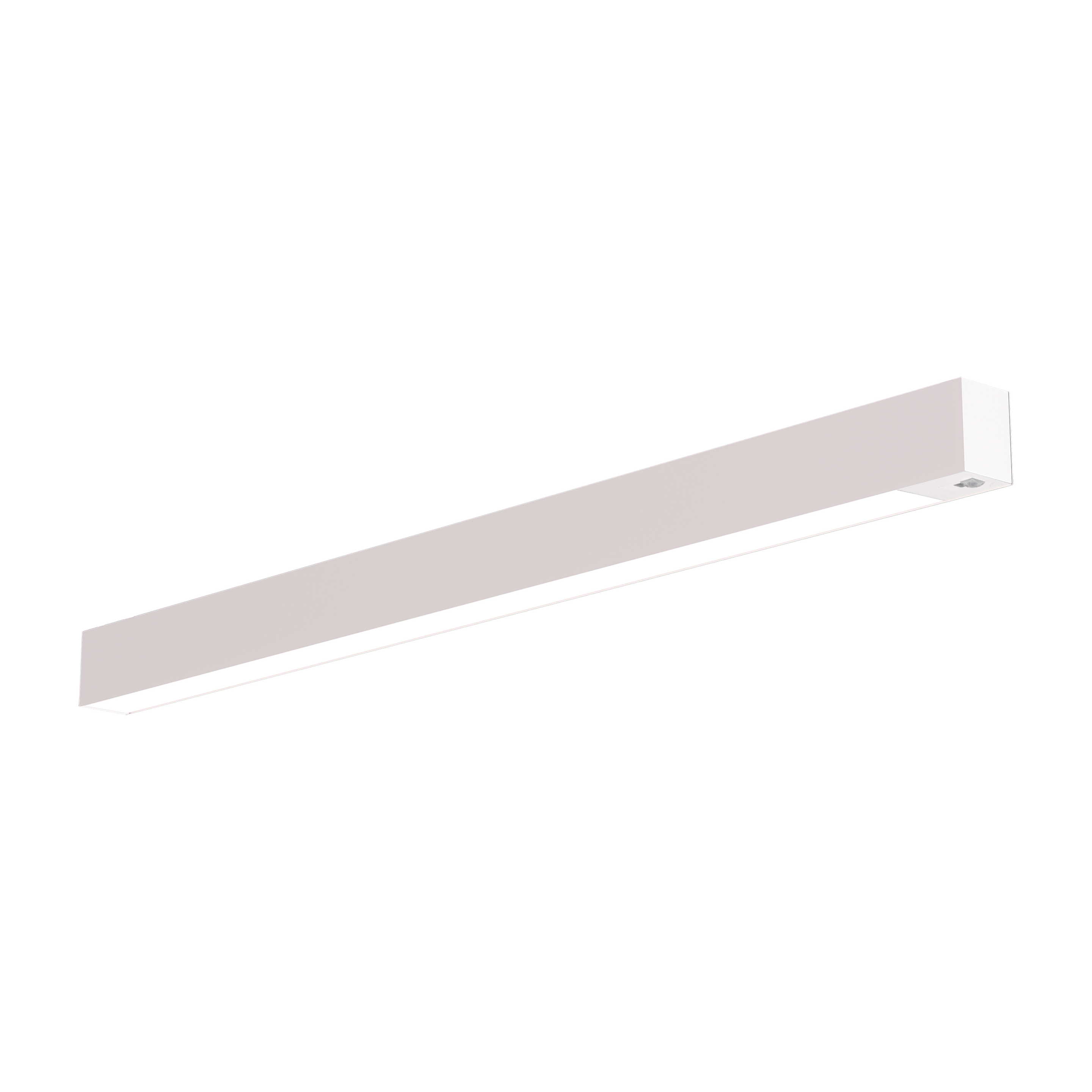

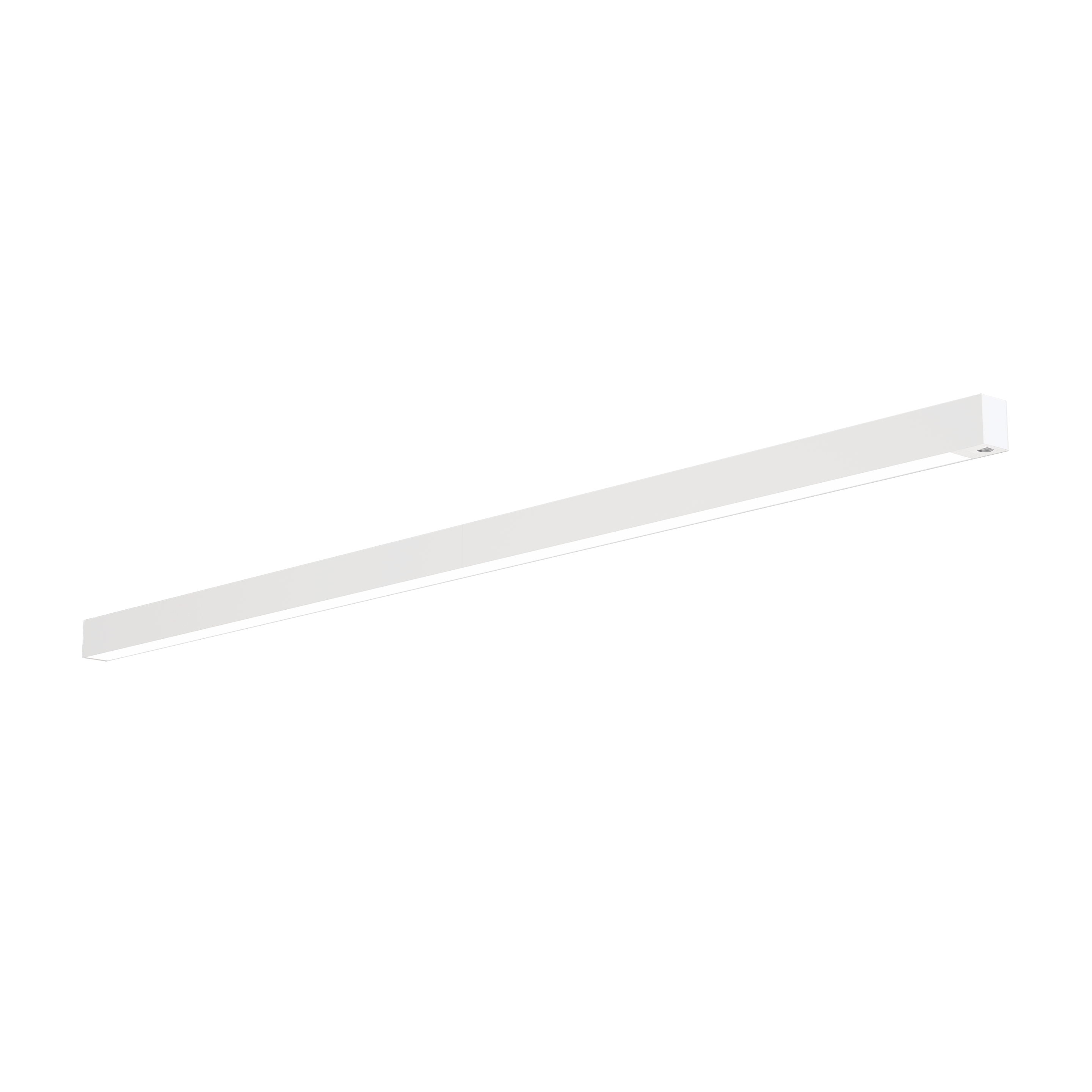

nevalux lisha V2 connect PIR C1500 4K
Linear light for offices, schools and corridors. Two lengths, as DALI or Connect version.
Product code 221978
Price: Please log in to see prices
Dimensions L × W × H
1218 x 60 x 80 mm
1518 x 60 x 80 mm
Mounting type
Ceiling surface mounted
Pendant mounting
Control technology
Smartlink Connect
With motion detector
No
Yes
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use for illumination of offices, schools, traffic zones, etc.
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- Connect version available with light sensor (LS) or with motion detector and light sensor (PIR)
- Microprismatic diffuser for best possible glare control
- Link technology for seamless extension of the luminaire with continuous wiring
- Variants with 1.2 and 1.5 meter length available
- Housing Aluminium white
Variants
Version
1500mm
Mounting type
Surface mounted (ceiling)
Luminous flux
4800 lm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
40 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
950 mA
Maximum number of luminaires per circuit breaker
C10: 35x, C13: 45x, C16: 56x, C20: 70x, B10: 30x, B13: 39x, B16: 48x, B20: 60x
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Presence range
4 x 4 m (16 m²)
With light sensor
Yes
Connectivity
With radio network control
Yes
Wireless networking via
BT SIG Mesh
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
4800 lm
Beam angle
90°
Luminaire luminous efficacy
120 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Microprismatic acrylic glass
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

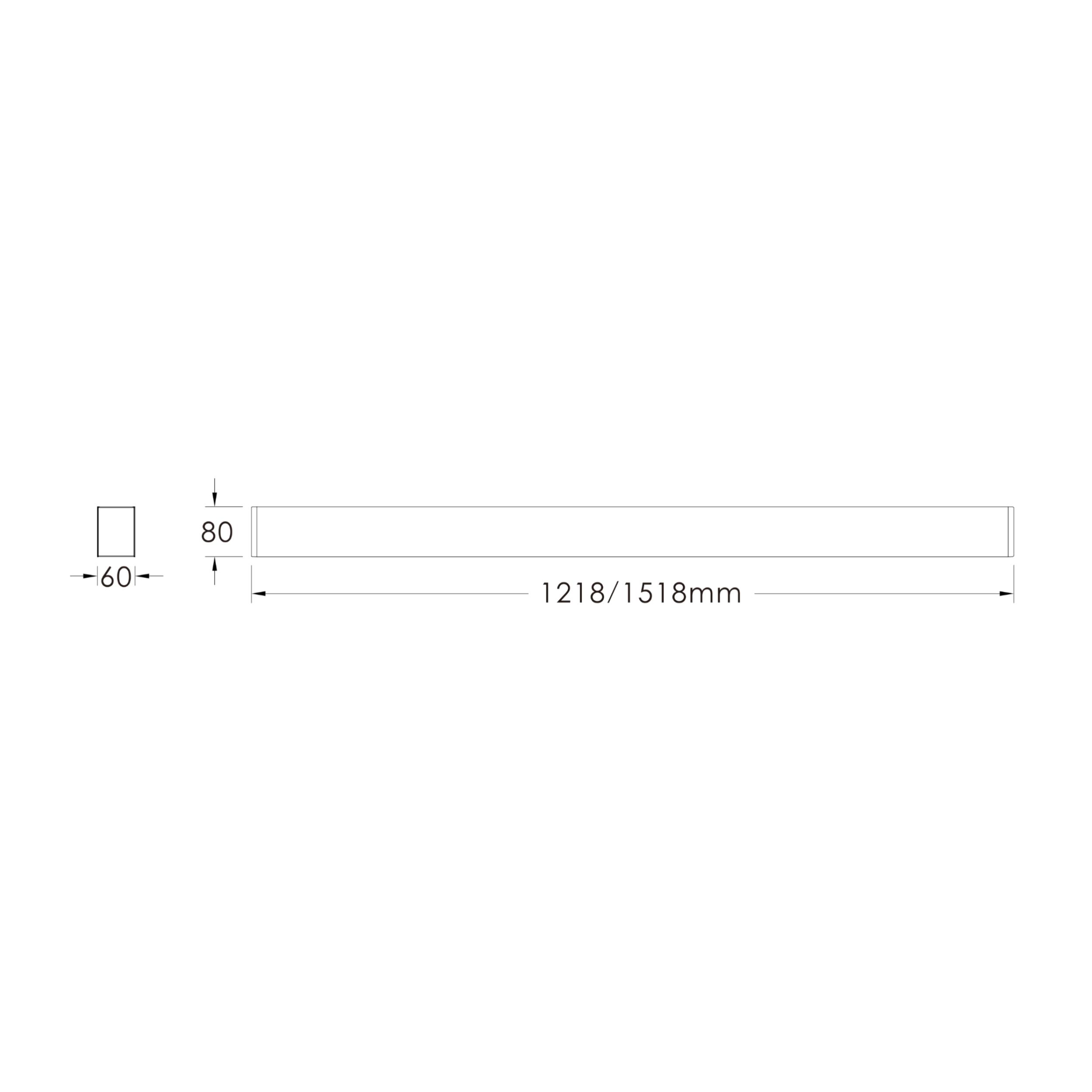

Technical drawing

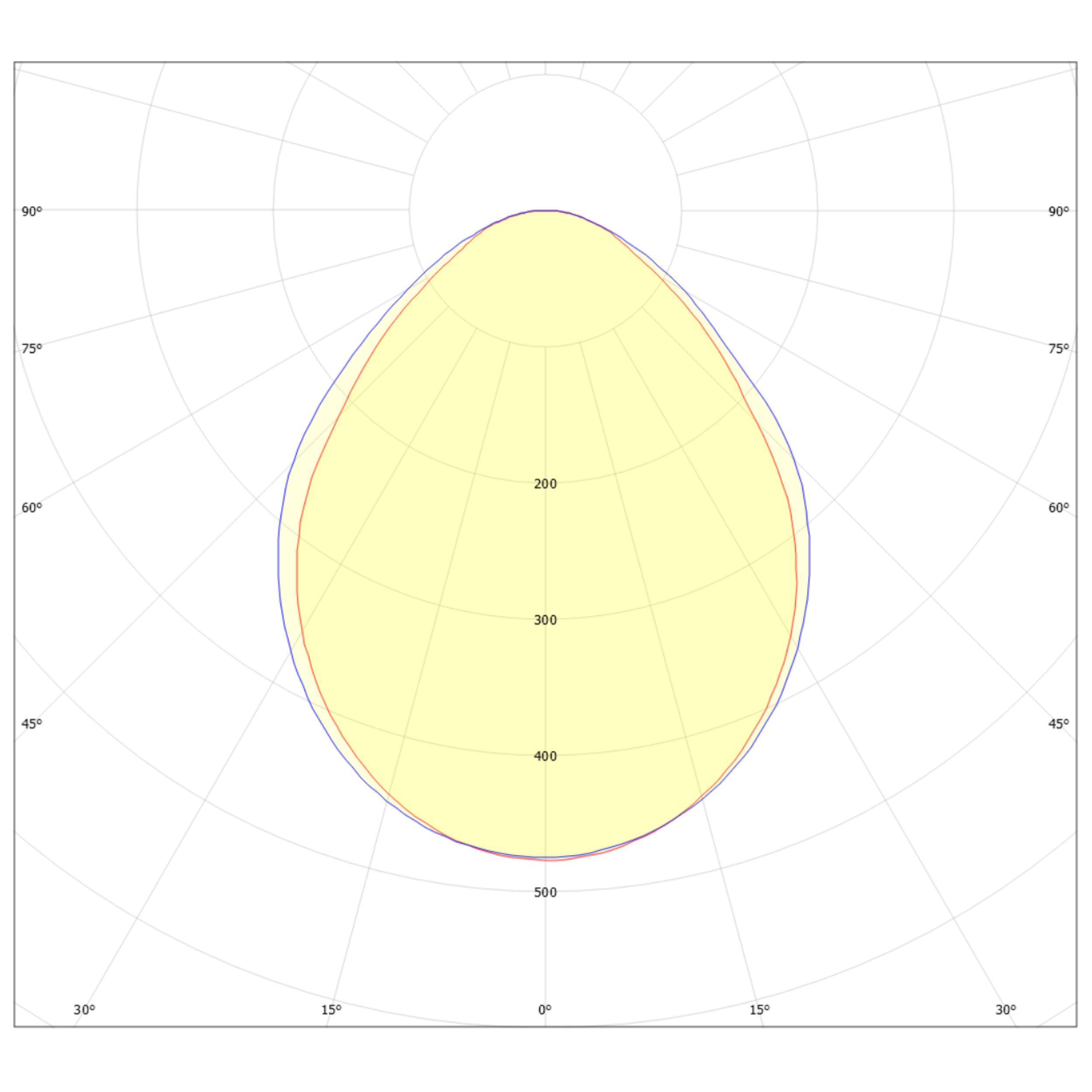

Lichtverteilungskurve
Sensor detection range

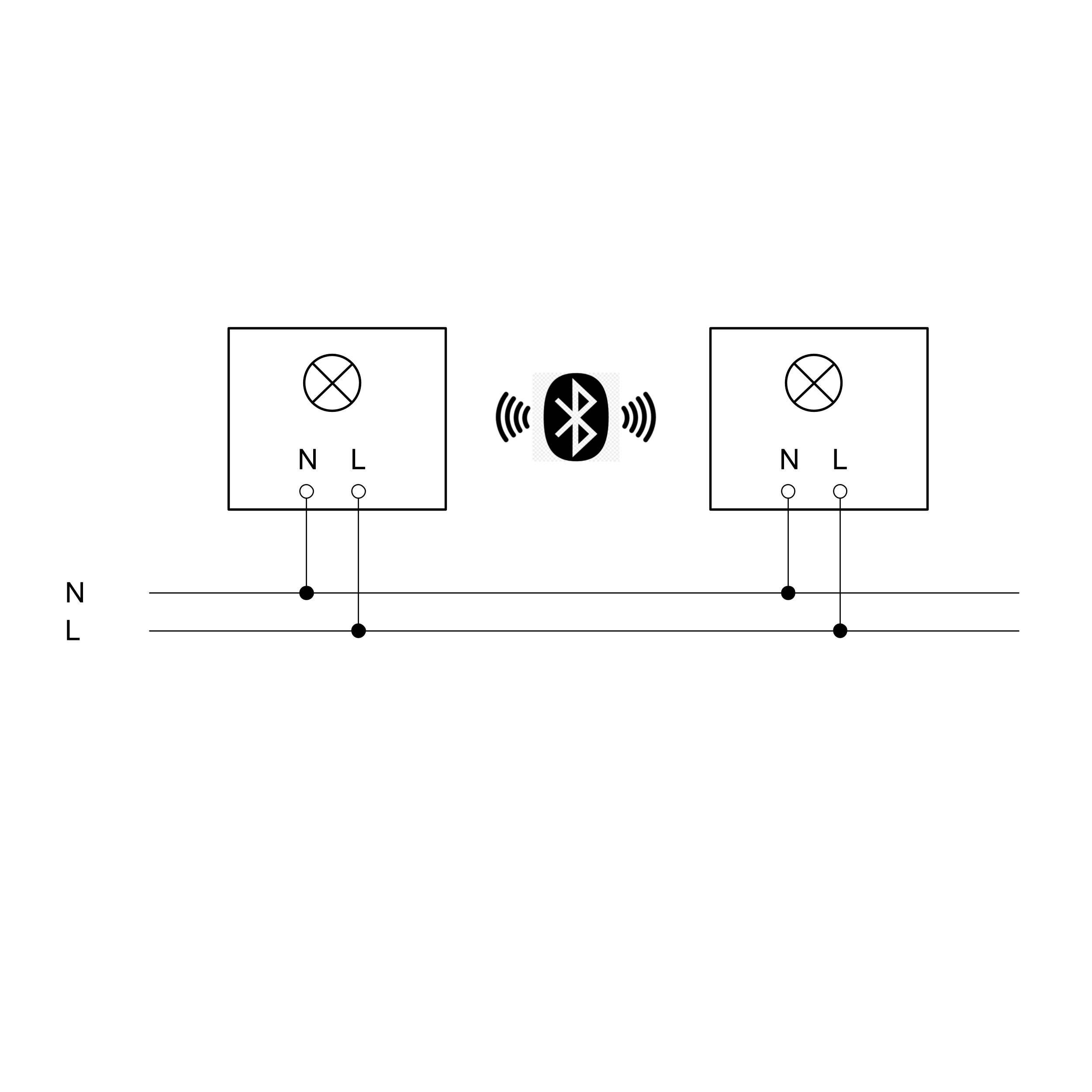

Wiring diagram 1
Wiring diagram networking radio

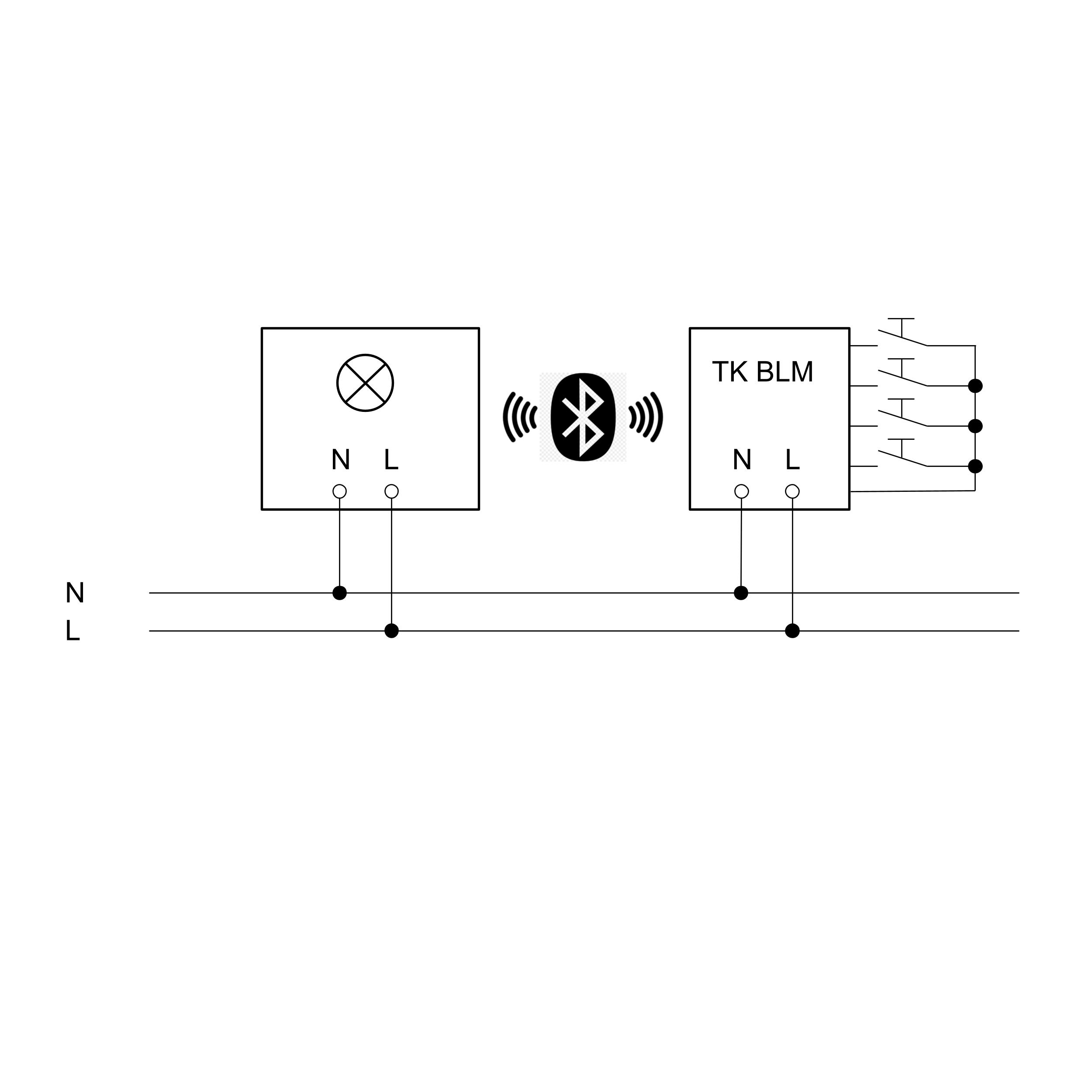

Wiring diagram 2
Wiring diagram pushbutton coupler
