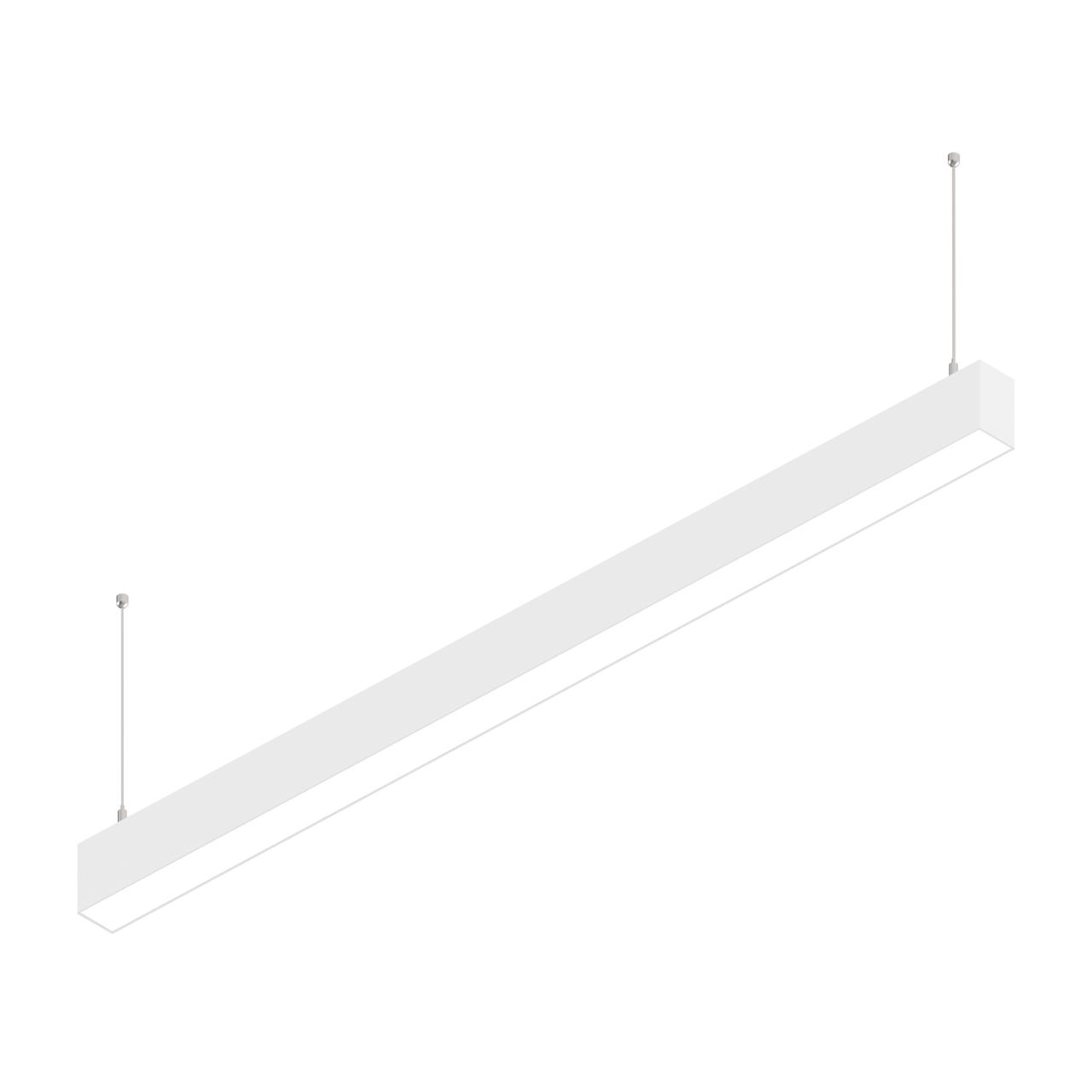

nevalux lisha P1800 4K
Linear pendant and ceiling light for offices and schools. Direct and indirect, wallwasher.
Product code 220181
This product is being replaced by a successor product.
Go to successor product · lisha V2 DALI P1500 4K (221626)Dimensions L × W × H
1205 x 50 x 95 mm
1805 x 50 x 95 mm
Mounting type
Pendant mounting
Beam angle
Down 105°, Up 115°
Down Wallwasher, Up 115°
Control technology
Dali-Leuchte
With motion detector
No
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use for lighting offices, schools, traffic zones, etc.
- Available as intelligent Connect version or as conventional DALI luminaire
- Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
- Direct and indirect light proportion separately controllable
- Link technology for seamless extension of the luminaire with continuous wiring
- Variants with 1.2 and 1.8 meter length available
- Housing Aluminium RAL9016, white
Variants
Version
1800mm
Luminous flux
7900 lm (Down 5500, Up 2400)
Dimensions
Suspension length
1500 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
72 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
1050 mA / 350 mA
Maximum number of luminaires per circuit breaker
C10: 10x, C16: 23x, C20: 22x, B10: 6x, B16: 10x, B25: 13x
Sensor technology
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
7900 lm (Down 5500, Up 2400)
Luminaire luminous efficacy
110 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Direct/indirect ratio separately controllable
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

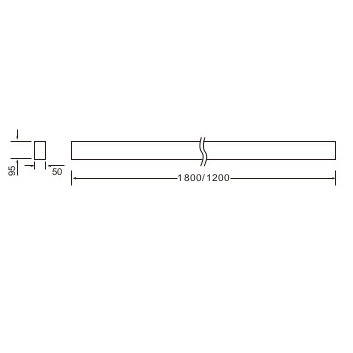

Technical drawing

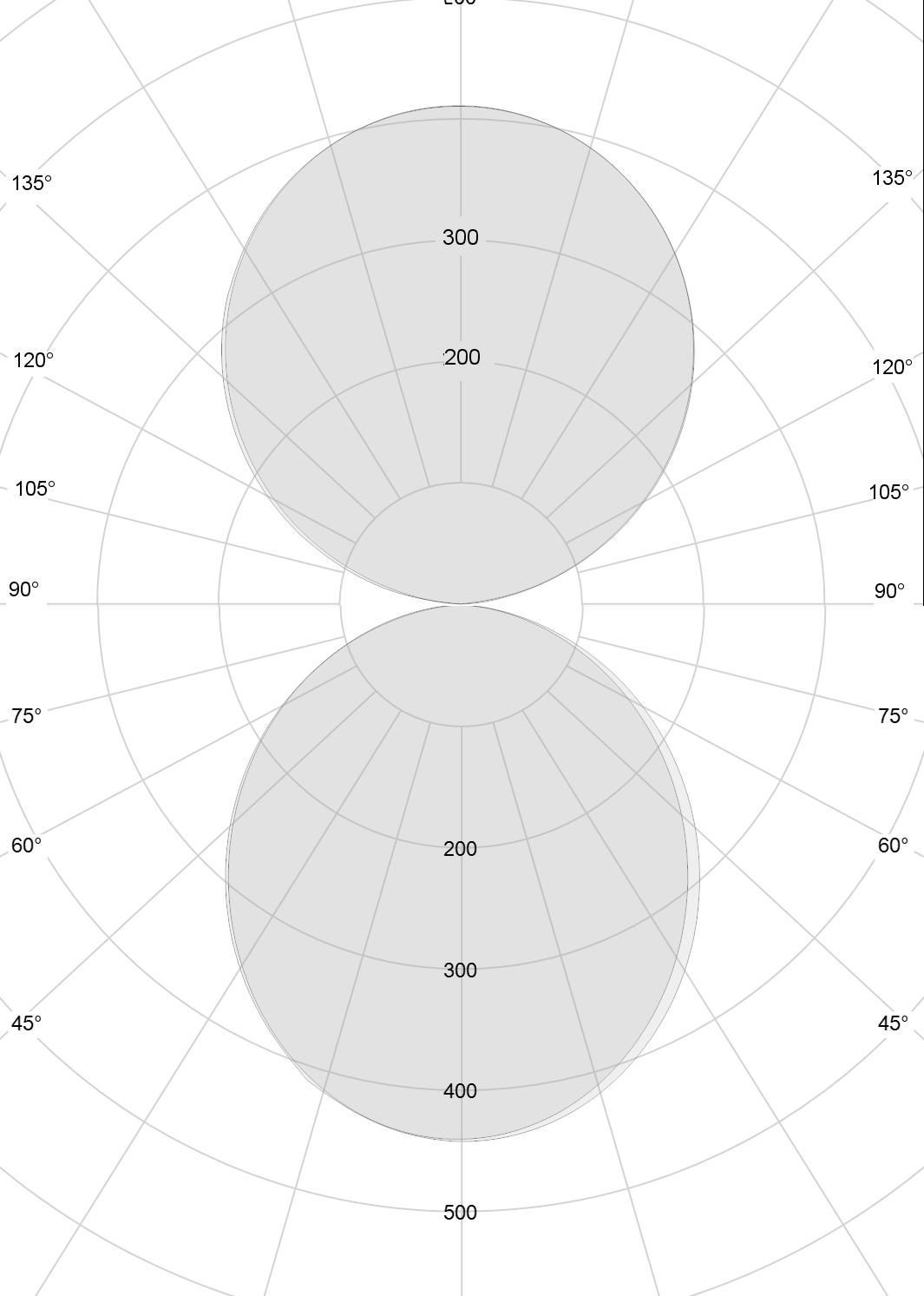

Lichtverteilungskurve
Wiring diagram 1
Wiring diagram
