nevalux lisha P1200 4K

nevalux lisha P1200 4K

Product code 220180

nevalux

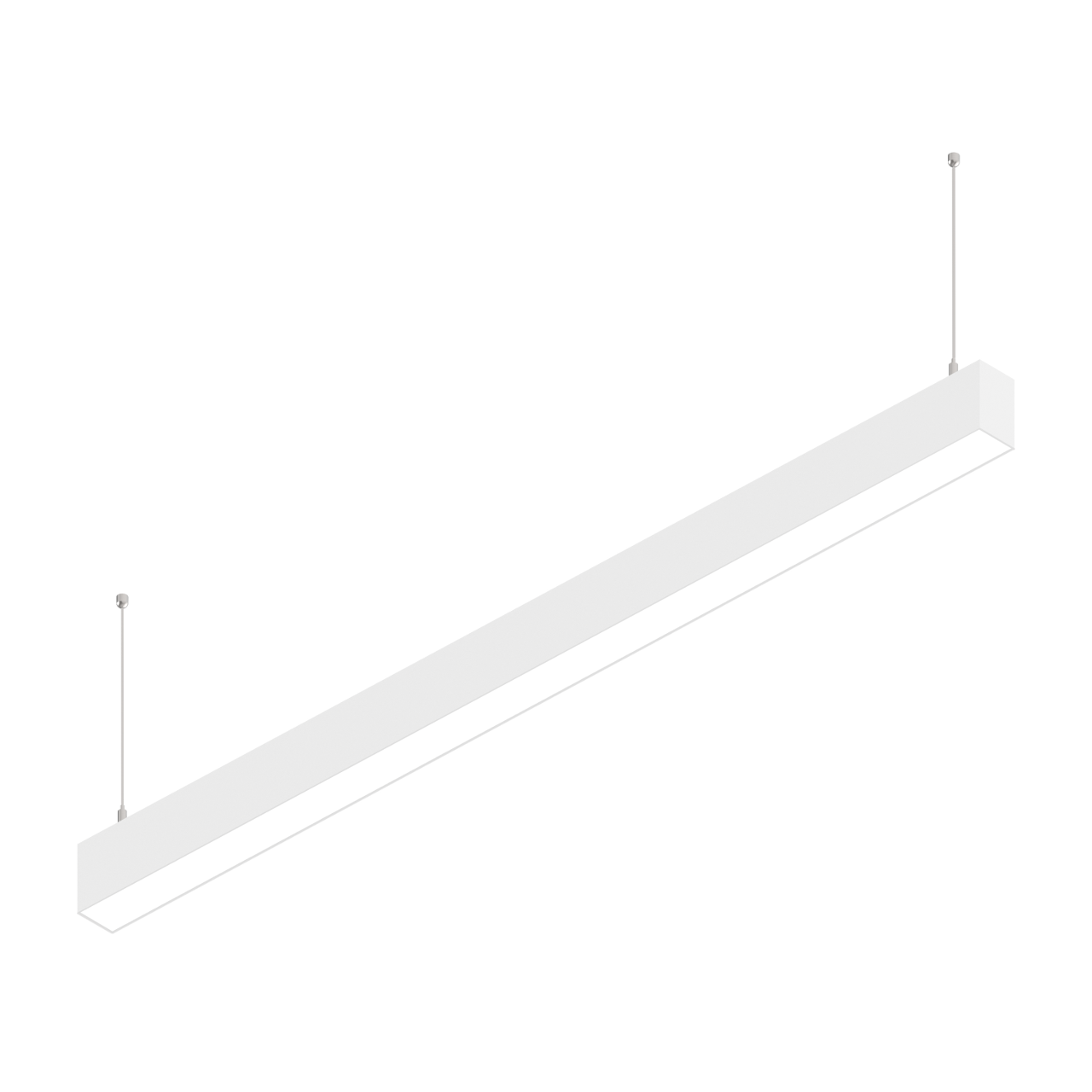

nevalux lisha P1200 4K

Linear pendant and ceiling light for offices and schools. Direct and indirect, wallwasher.

Product code 220180

This product is being replaced by a successor product.

Go to successor product · lisha V2 DALI P1200 4K (221625)

Dimensions L × W × H

1205 x 50 x 95 mm 1805 x 50 x 95 mm

Mounting type

Pendant mounting

Beam angle

Down 105°, Up 115° Down Wallwasher, Up 115°

Control technology

Dali-Leuchte

With motion detector

No
  • For universal use for lighting offices, schools, traffic zones, etc.
  • Available as intelligent Connect version or as conventional DALI luminaire
  • Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
  • Direct and indirect light proportion separately controllable
  • Link technology for seamless extension of the luminaire with continuous wiring
  • Variants with 1.2 and 1.8 meter length available
  • Housing Aluminium RAL9016, white

Dimensions

Suspension length 1500 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 49 W
Replaceable driver Yes
Type of wiring Through wiring included
LED rated current 700 mA / 250 mA
Maximum number of luminaires per circuit breaker C10: 15x, C16: 23x, C20: 29x, B10: 9x, B16: 14x, B25: 17x

Sensor technology

With light sensor No

Connectivity

Networking via DALI 2

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80 - 89
Illuminant LED
Luminous flux 5500 lm (Down 3800, Up 1700)
Luminaire luminous efficacy 112 lm/W
Glare value UGR < 22

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes
With emergency light No
Suitable for light band configuration Yes
Direct/indirect ratio separately controllable Yes
Constant light output control Yes

Housing & material

Protection class (IP) IP20
Protection class I
Ambient temperature -20...+45 °C
Housing material Aluminium
Cover material Acrylic glass opal
Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class E

Technical drawing

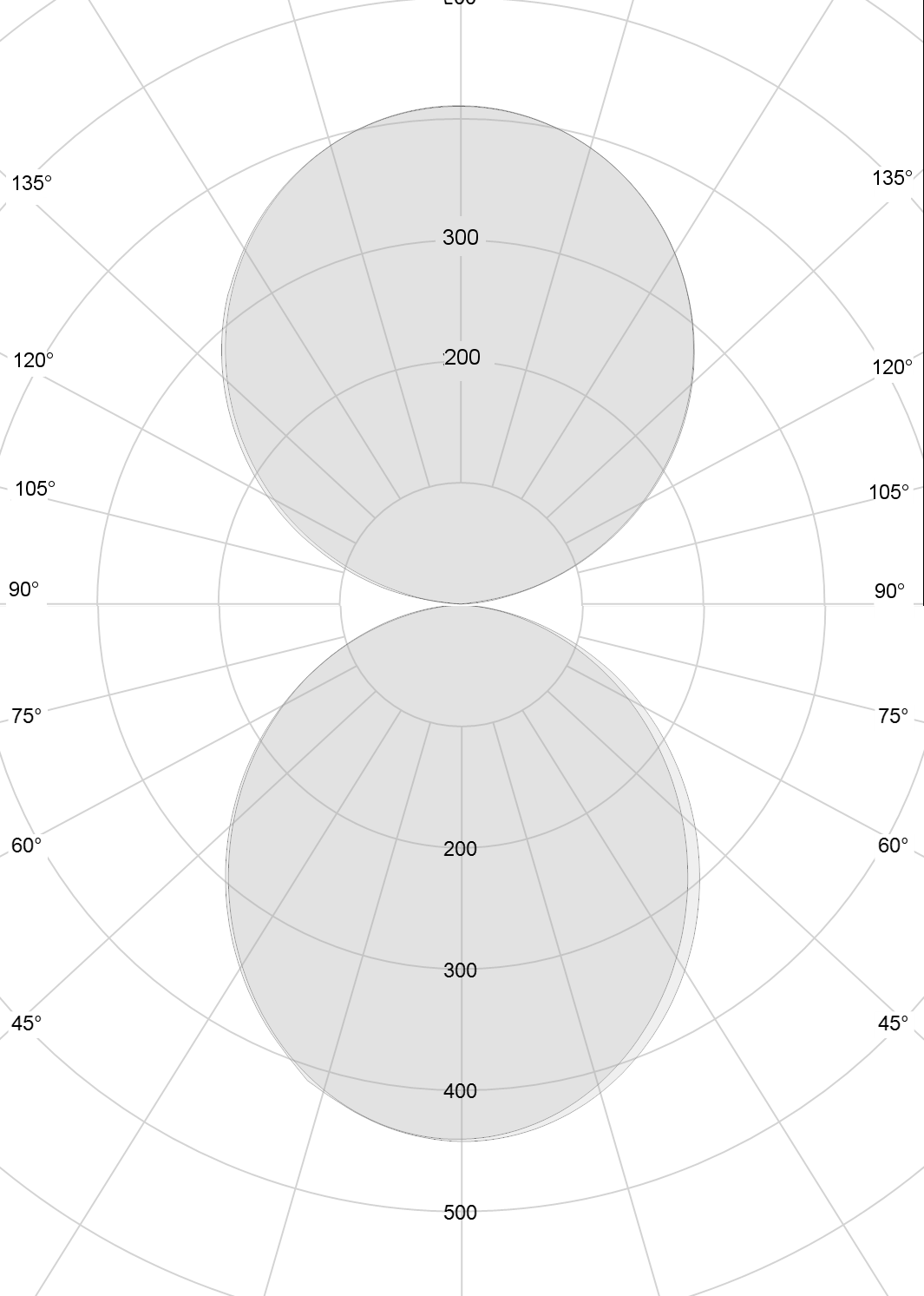

Lichtverteilungskurve

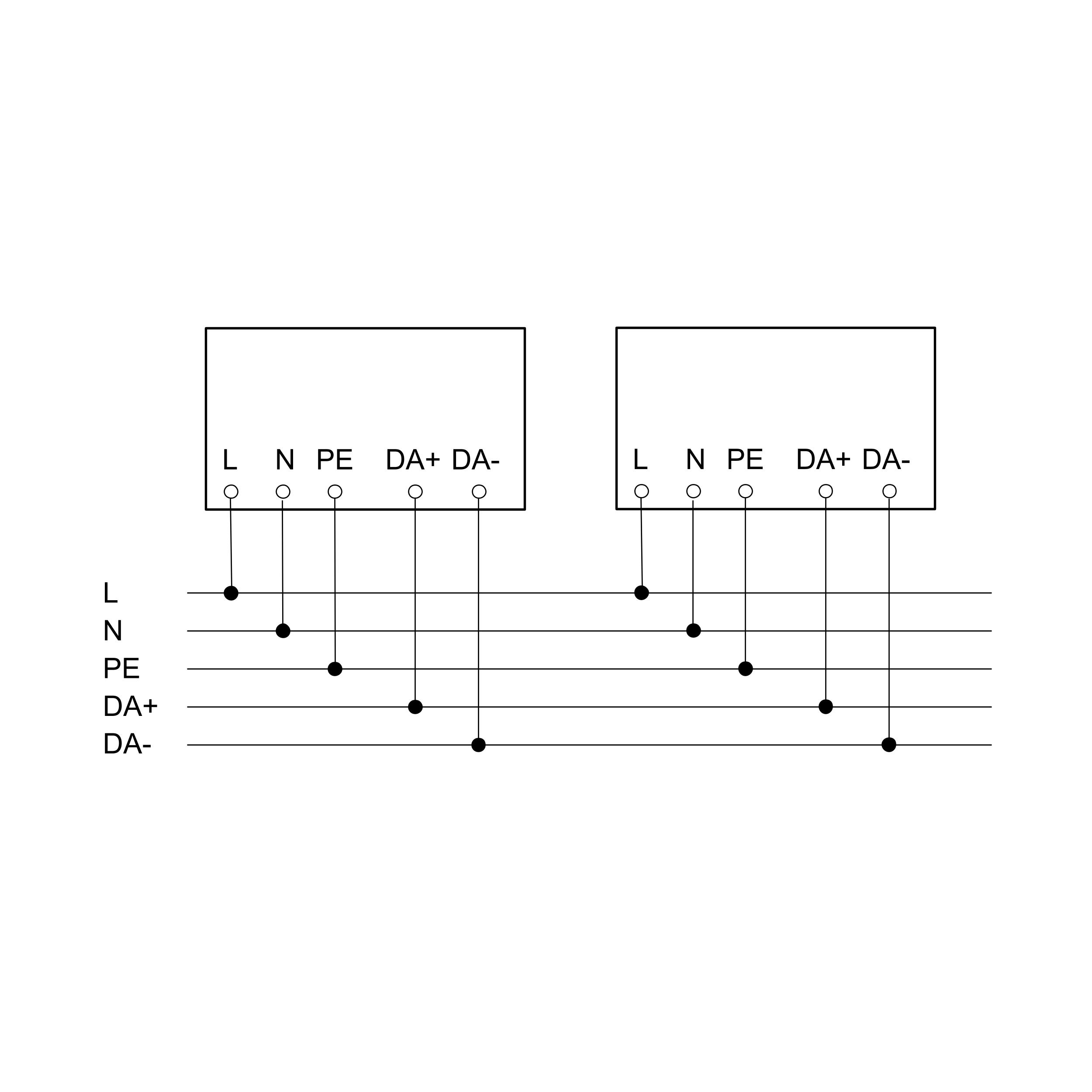

Wiring diagram 1

Wiring diagram
