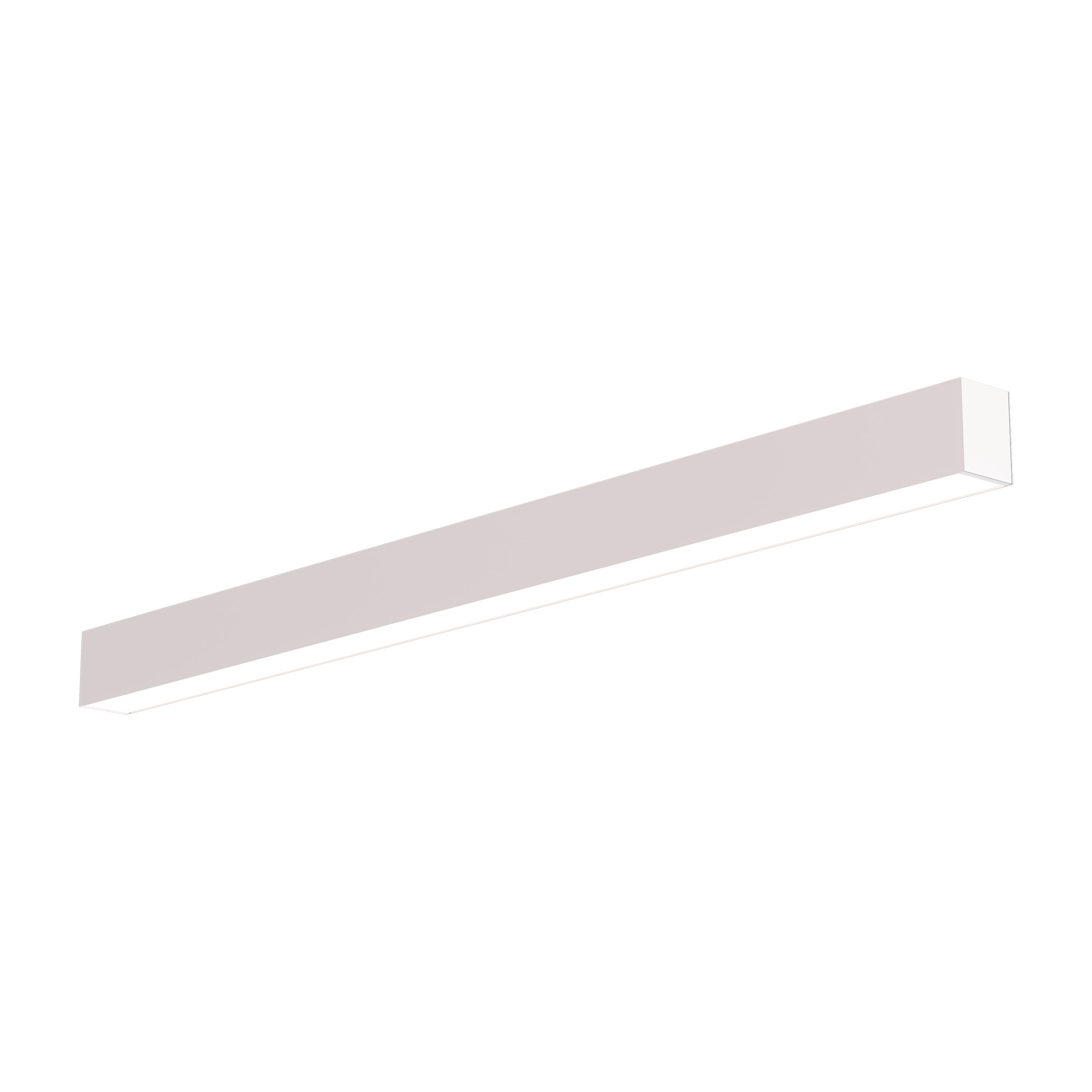

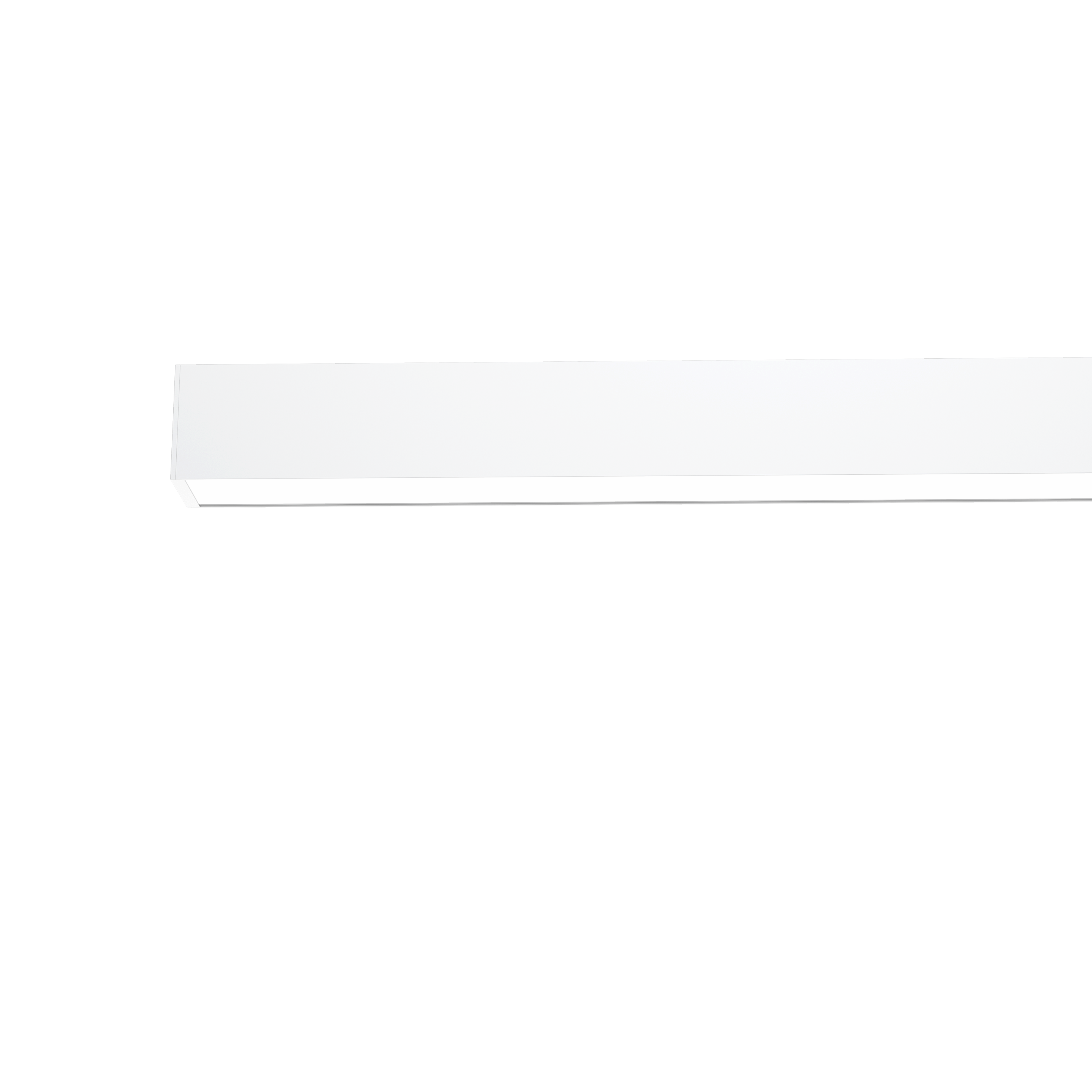

nevalux lisha V2 connect LS C1500 4K
Linear light for offices, schools and corridors. Two lengths, as DALI or Connect version.
Product code 221620
Price: Please log in to see prices
Dimensions L × W × H
1218 x 60 x 80 mm
1518 x 60 x 80 mm
Mounting type
Ceiling surface mounted
Pendant mounting
Control technology
Dali-Leuchte
Smartlink Connect
With motion detector
No
Yes
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use for illumination of offices, schools, traffic zones, etc.
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- Connect version available with light sensor (LS) or with motion detector and light sensor (PIR)
- Microprismatic diffuser for best possible glare control
- Link technology for seamless extension of the luminaire with continuous wiring
- Variants with 1.2 and 1.5 meter length available
- Housing Aluminium white
Variants
Version
1500mm
Mounting type
Surface mounted (ceiling)
Luminous flux
4800 lm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
40 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
950 mA
Maximum number of luminaires per circuit breaker
C10: 35x, C13: 45x, C16: 56x, C20: 70x, B10: 30x, B13: 39x, B16: 48x, B20: 60x
Sensor technology
With light sensor
Yes
Connectivity
With radio network control
Yes
Wireless networking via
BT SIG Mesh
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
4800 lm
Beam angle
90°
Luminaire luminous efficacy
120 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Microprismatic acrylic glass
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

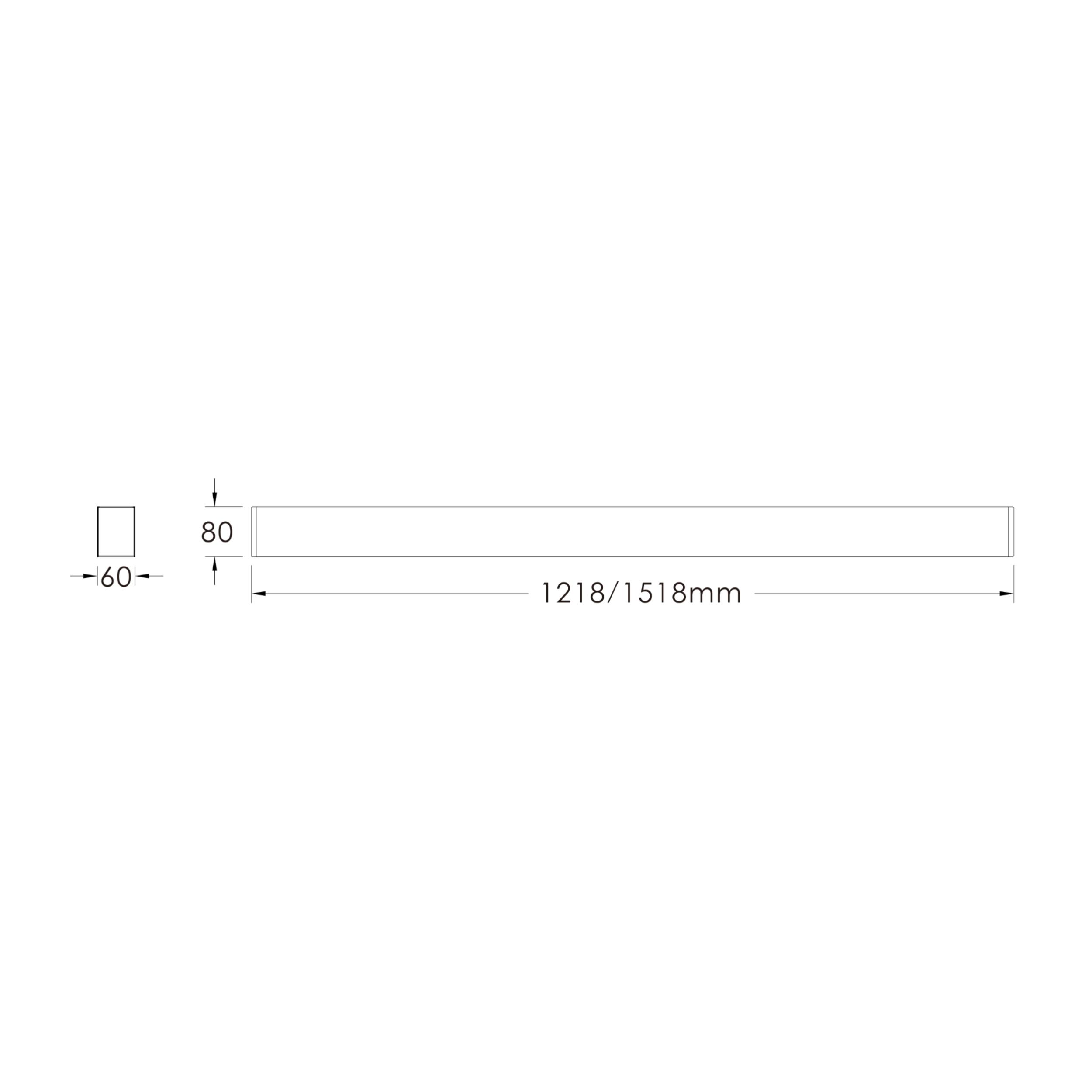

Technical drawing

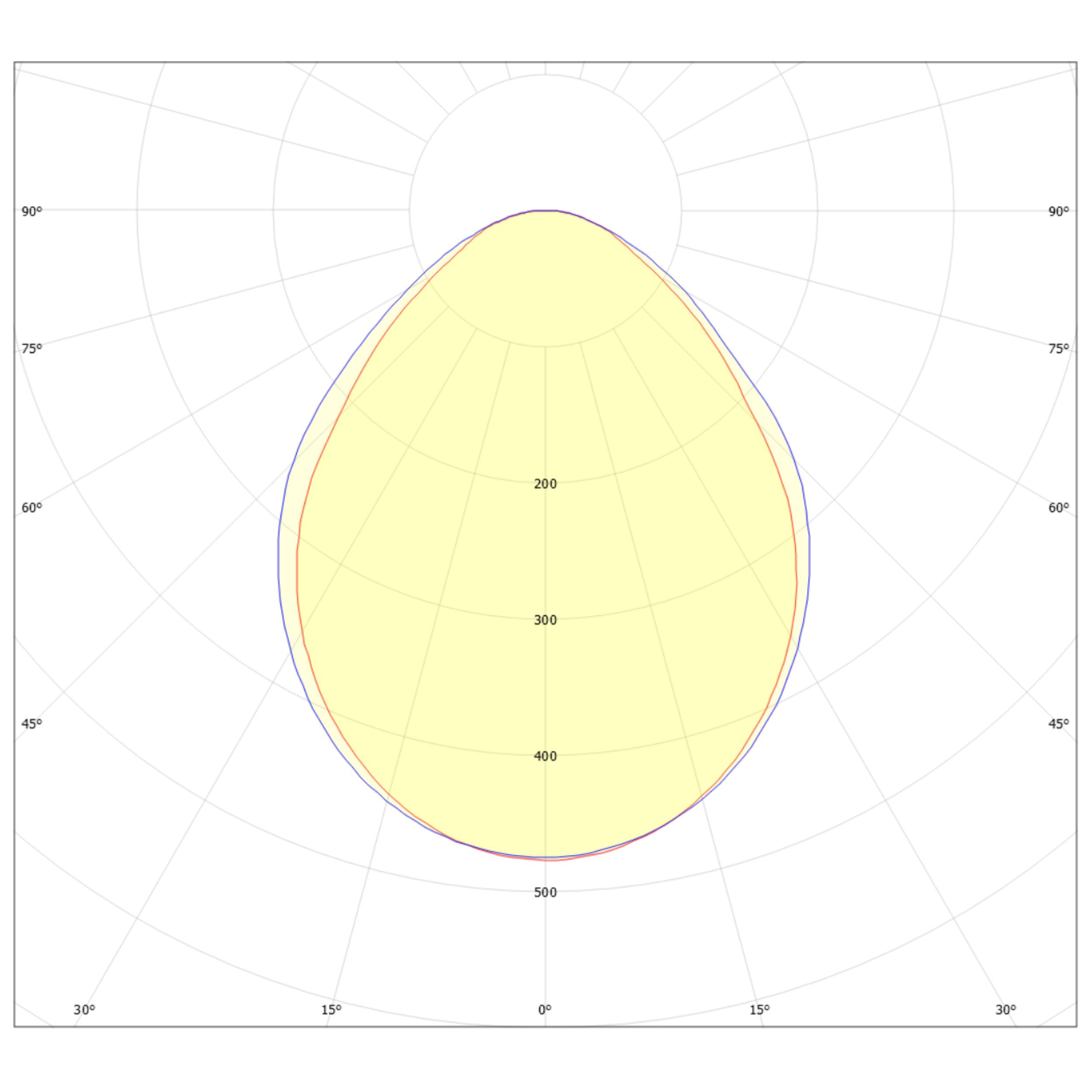

Lichtverteilungskurve
Sensor detection range

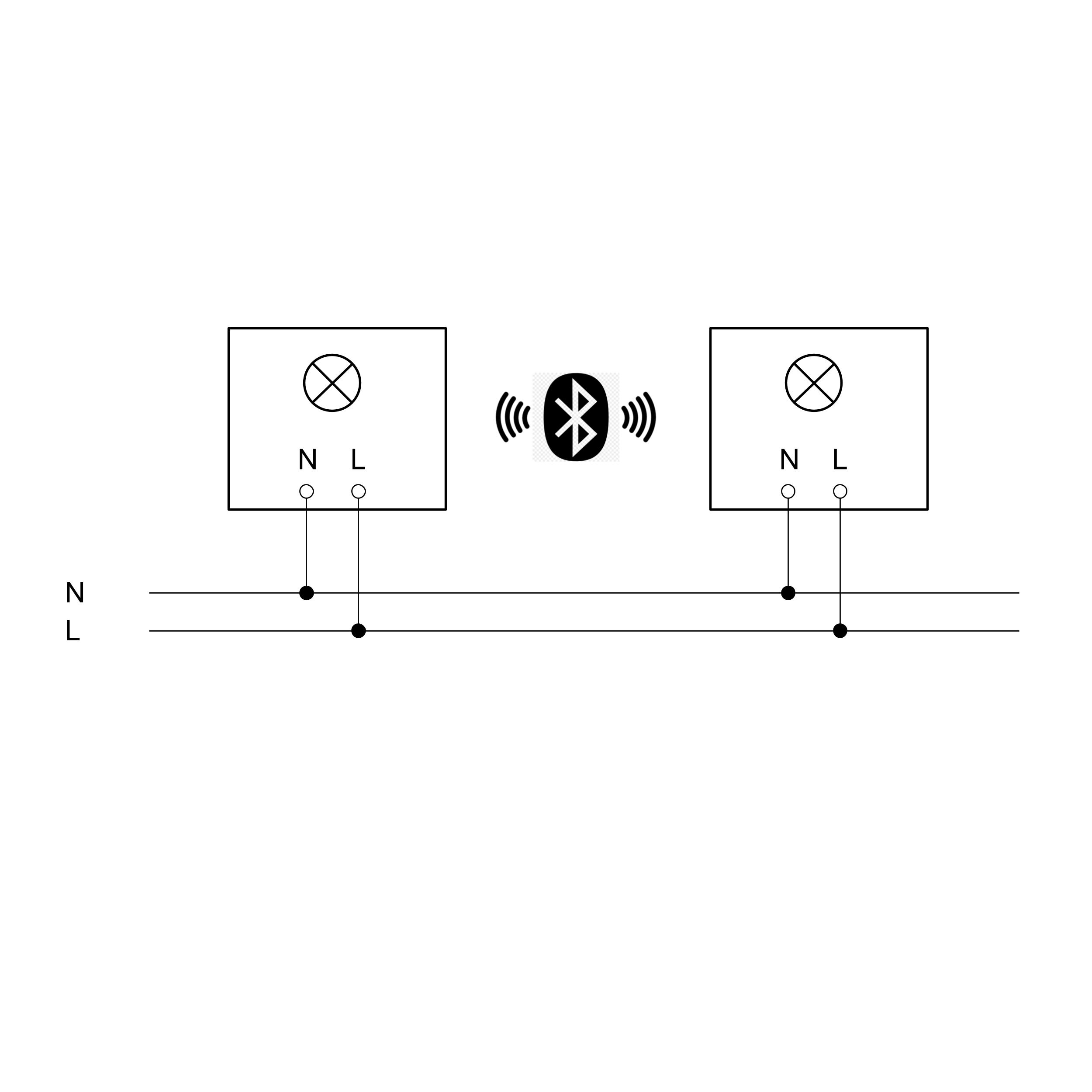

Wiring diagram 1
Wiring diagram networking radio

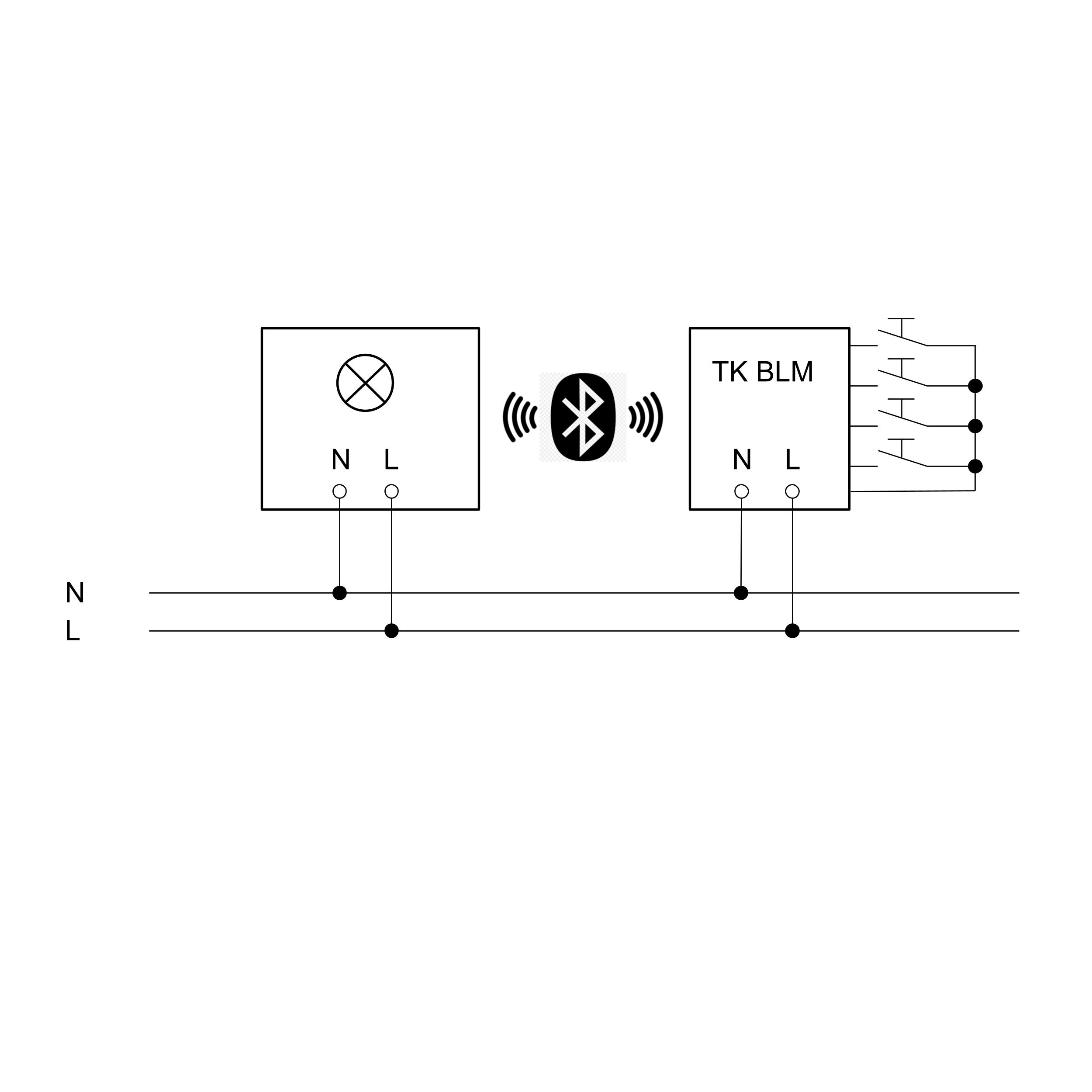

Wiring diagram 2
Wiring diagram pushbutton coupler
