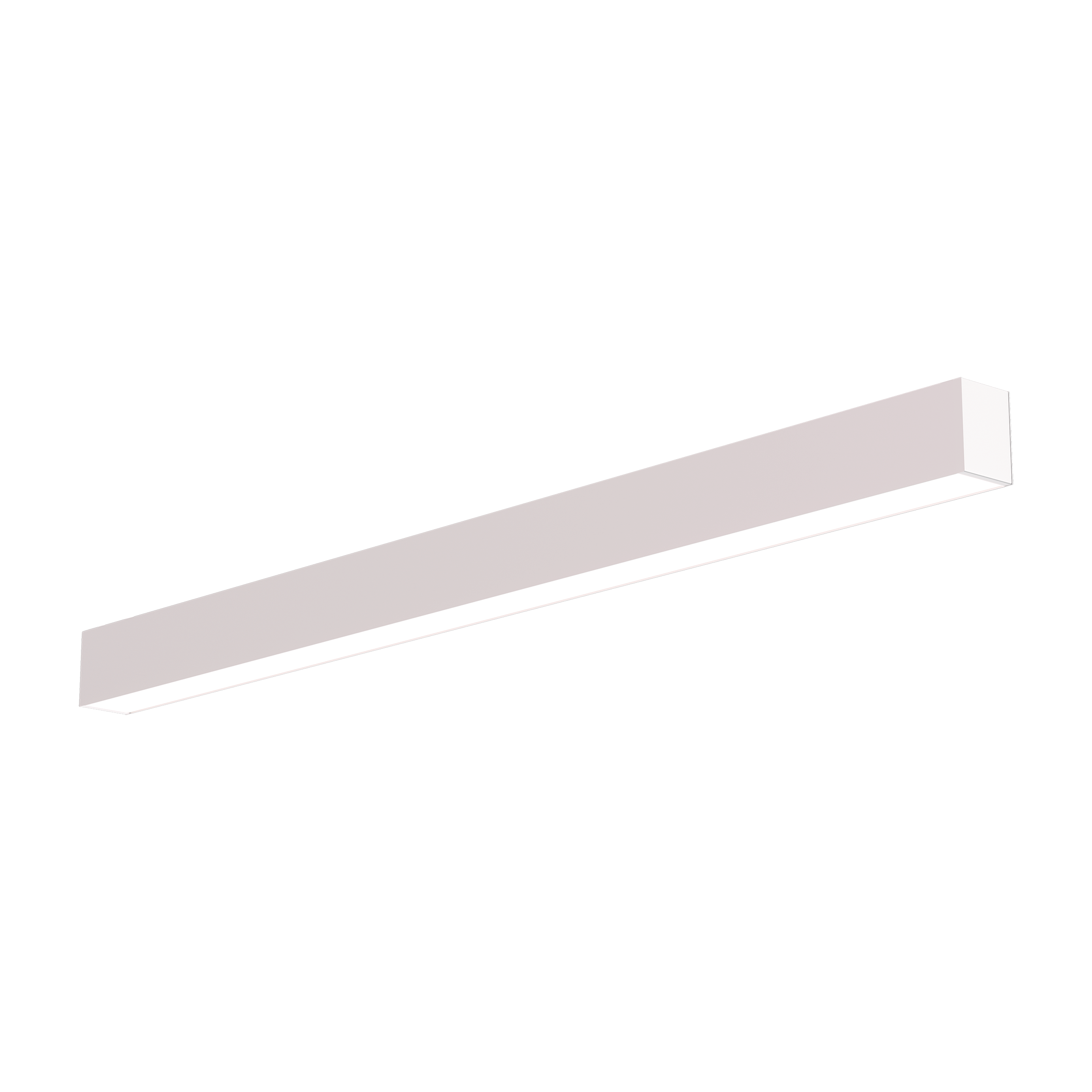

Nevalux lisha V2 DALI C1200 4K
Product code 221621
Price: Please log in to see prices
Version
1200mm
1500mm
Intelligence
Mounting type
Ceiling surface-mounted
Ceiling pendant
Luminous flux
4800 lm
7800 lm (Down 2340, Up 5460)
3600 lm
6500 lm (Down 1950, Up 4550)
- For universal use for lighting offices, schools, traffic zones, etc.
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- Connect version available with light sensor (LS) or with motion detector and light sensor (PIR)
- Microprismatic diffuser for best possible glare control
- Link technology for seamless extension of the luminaire with continuous wiring
- Variants with 1.2 and 1.5 meter length available
- Housing Aluminium RAL9016, white
Dimensions
Dimensions L × W × H
1218 x 60 x 80 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
30 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
700 mA
Maximum number of luminaires per circuit breaker
C10: 35x, C13: 45x, C16: 56x, C20: 70x, B10: 30x, B13: 39x, B16: 48x, B20: 60x
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
3600 lm
Beam angle
90°
Luminaire luminous efficacy
120 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
Ceiling surface-mounted
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

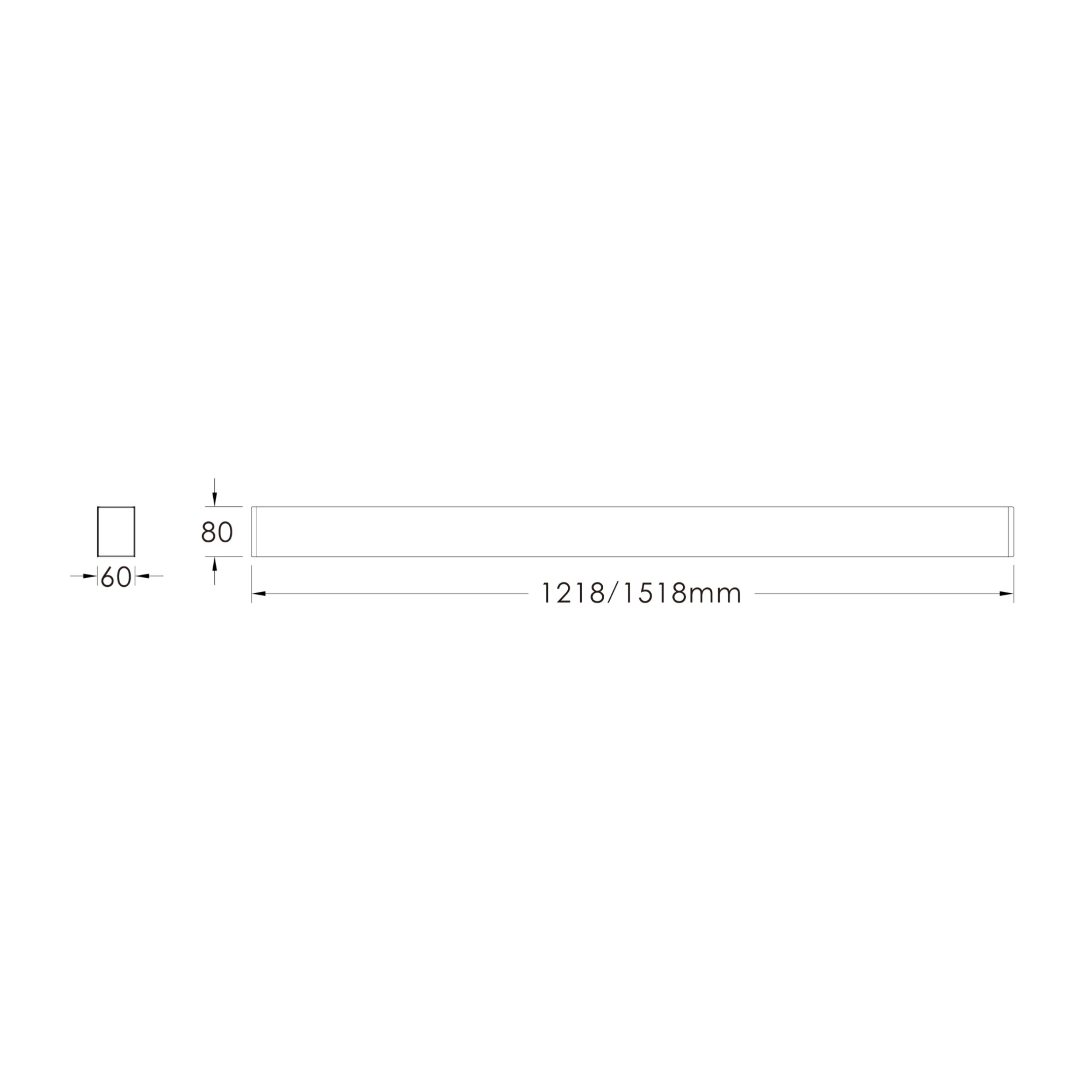

Technical drawing

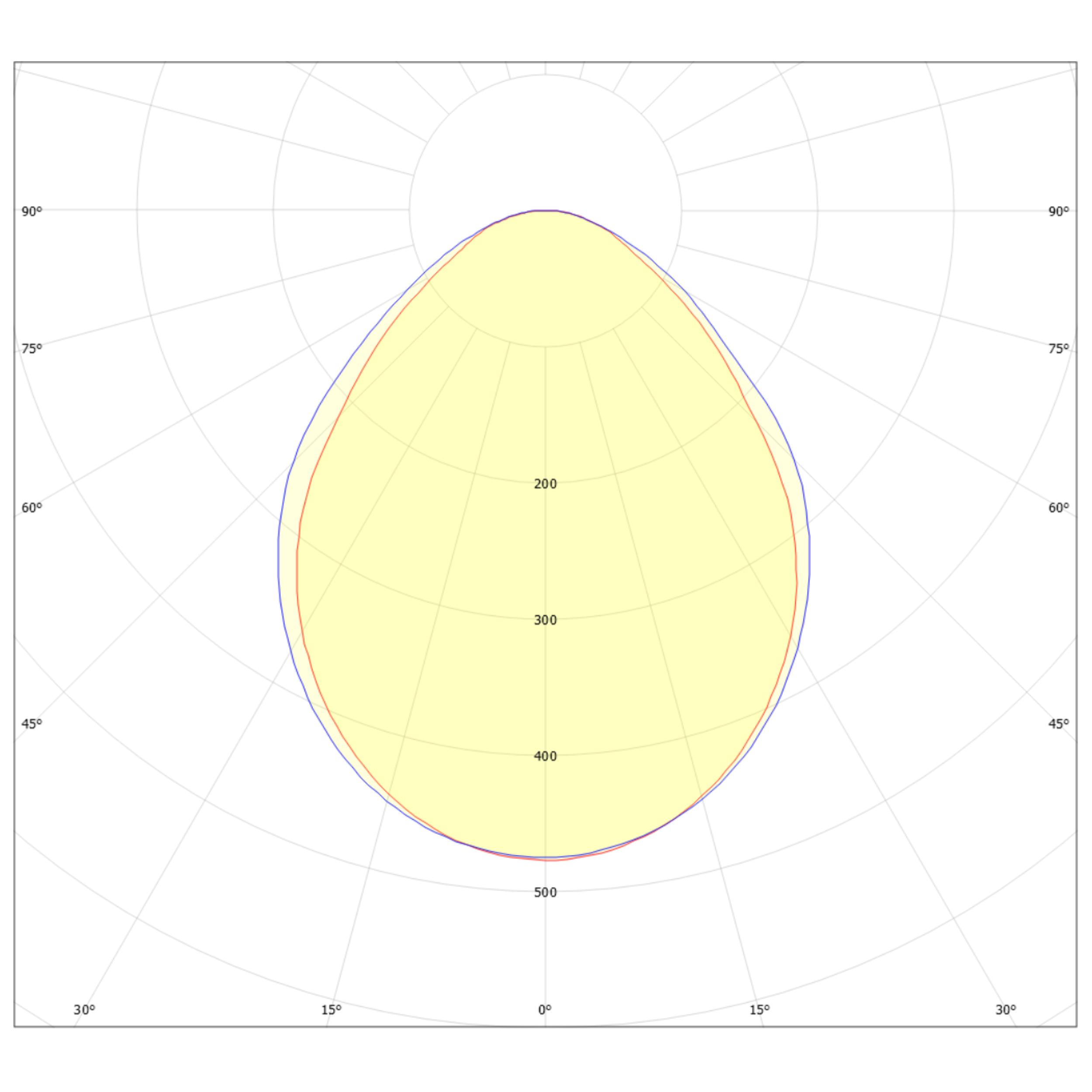

Lichtverteilungskurve
Sensor detection range

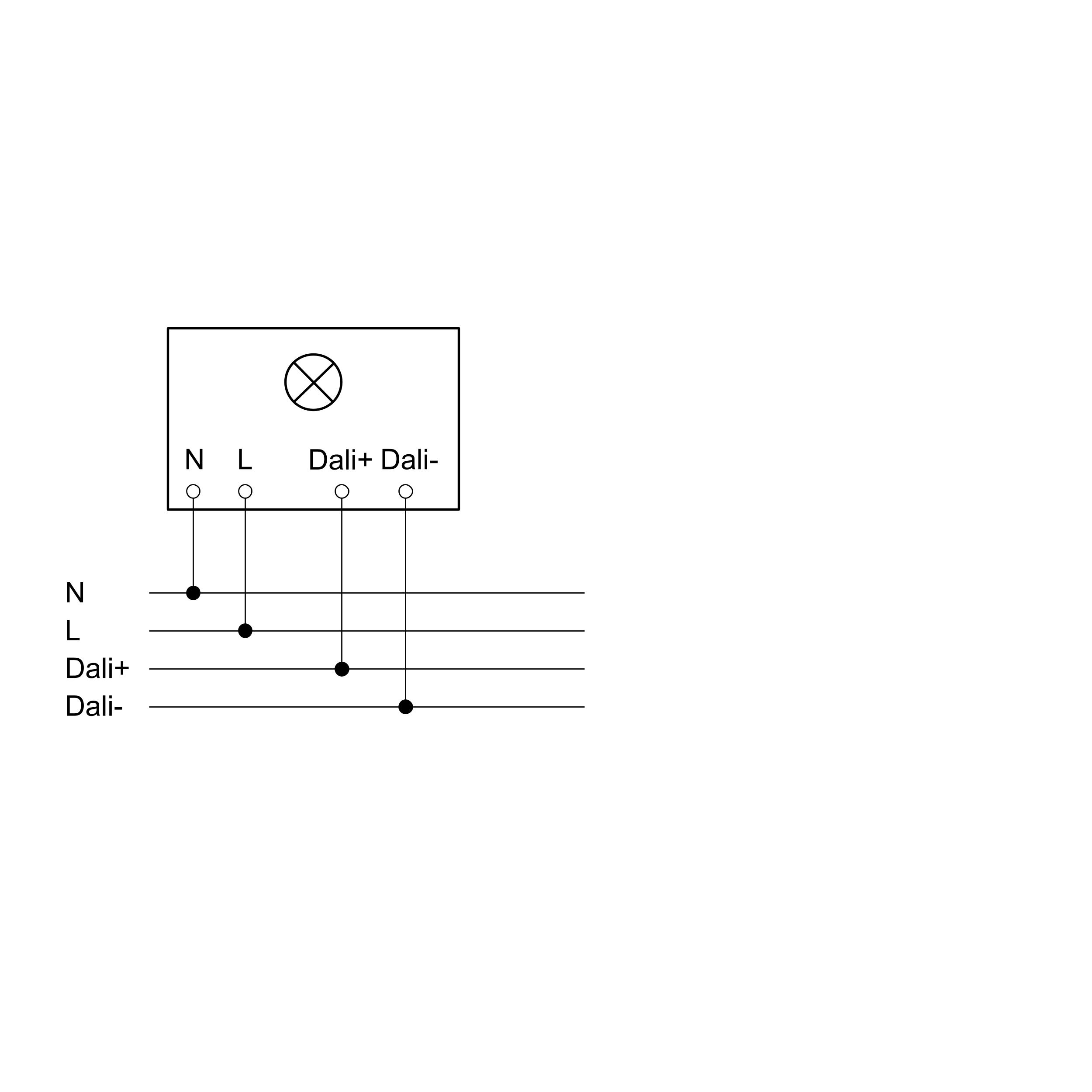

Wiring diagram 1
Wiring diagram

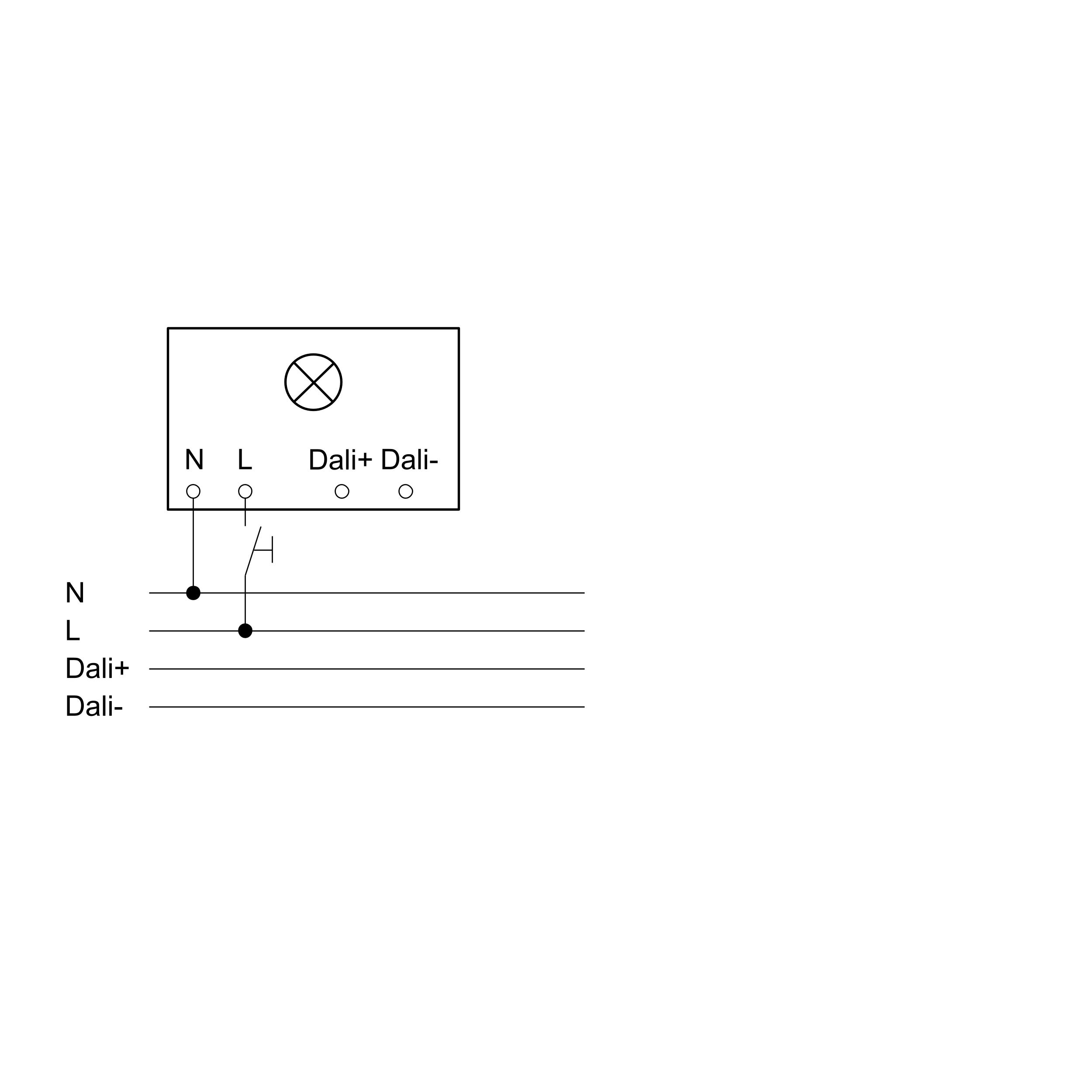

Wiring diagram 2
Wiring diagram
