Nevalux lisha V2 DALI P1200 4K
Product code 221625
Price: Please log in to see prices
Version
1200mm
1500mm
Intelligence
Mounting type
Ceiling surface-mounted
Ceiling pendant
Luminous flux
4800 lm
7800 lm (Down 2340, Up 5460)
3600 lm
6500 lm (Down 1950, Up 4550)
- For universal use for lighting offices, schools, traffic zones, etc.
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- Connect version available with light sensor (LS) or with motion detector and light sensor (PIR)
- Microprismatic diffuser for best possible glare control
- Link technology for seamless extension of the luminaire with continuous wiring
- Variants with 1.2 and 1.5 meter length available
- Housing Aluminium RAL9016, white
Dimensions
Dimensions L × W × H
1218 x 60 x 80 mm
Suspension length
1500 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
50 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
1250 mA
Maximum number of luminaires per circuit breaker
C10: 18x, C13: 23x, C16: 28x, C20: 35x, B10: 15x, B13: 20x, B16: 24x, B20: 30x
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
6500 lm (Down 1950, Up 4550)
Beam angle
Down 90°, Up 110°
Luminaire luminous efficacy
130 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Direct/indirect ratio separately controllable
No
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
Ceiling pendant
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
D

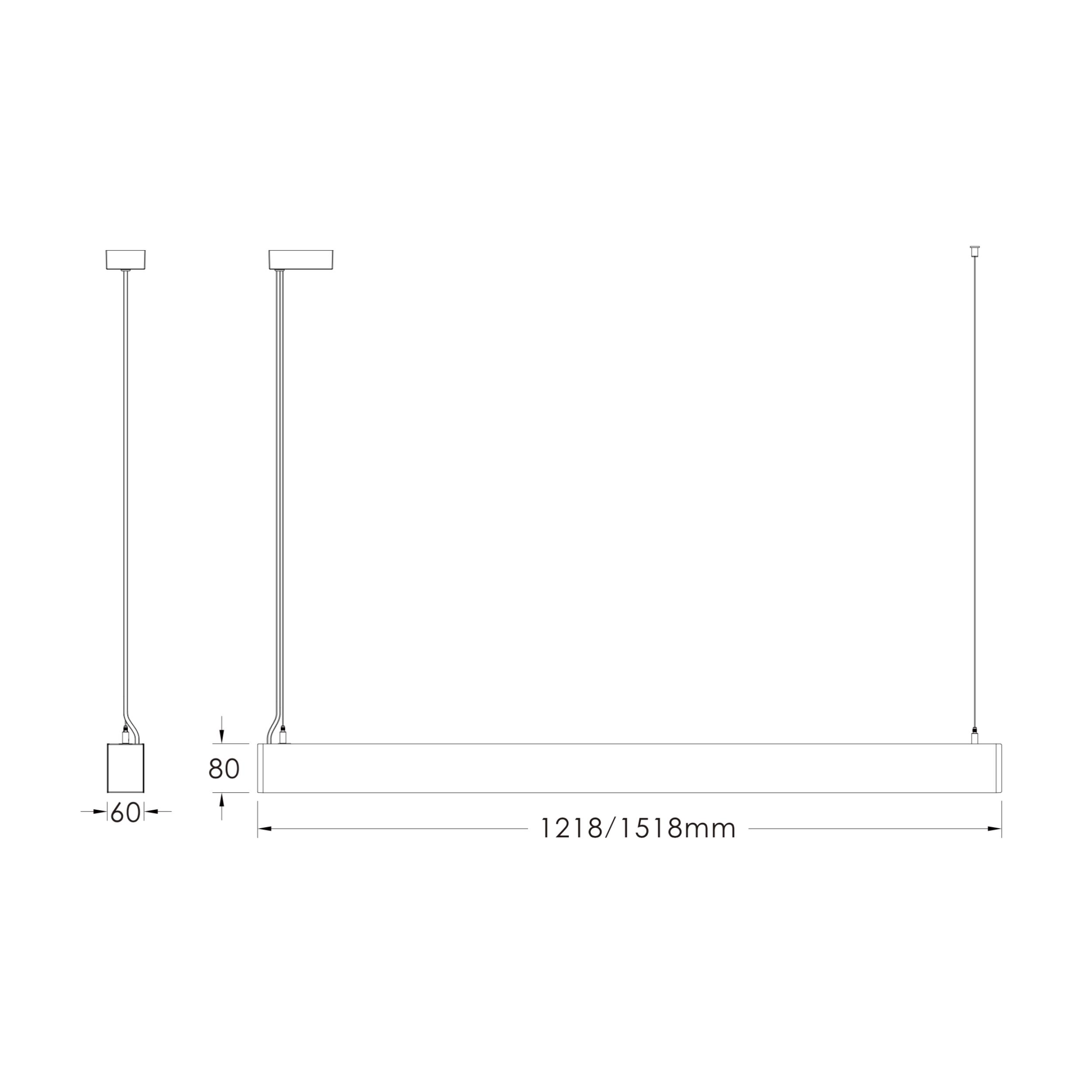

Technical drawing

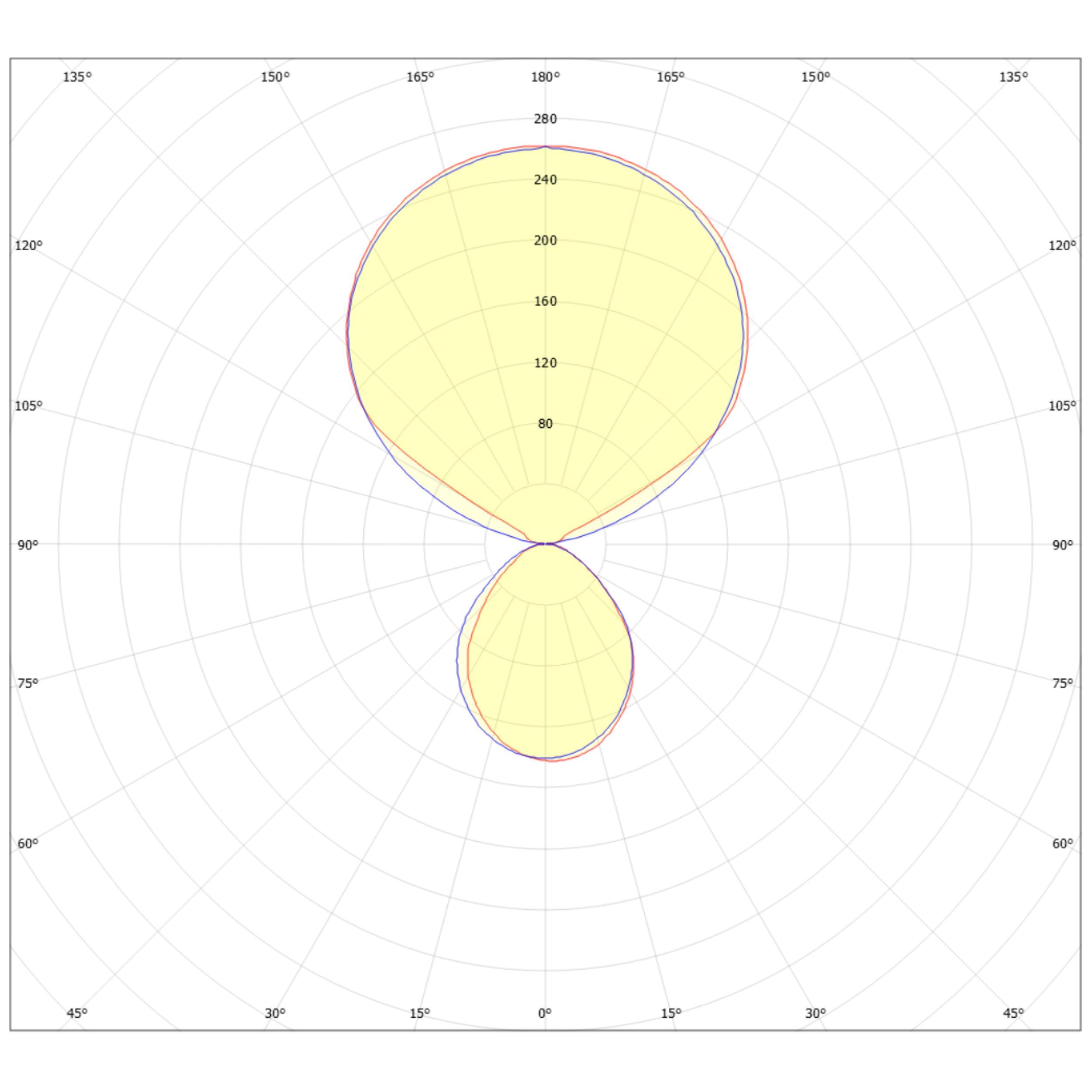

Lichtverteilungskurve

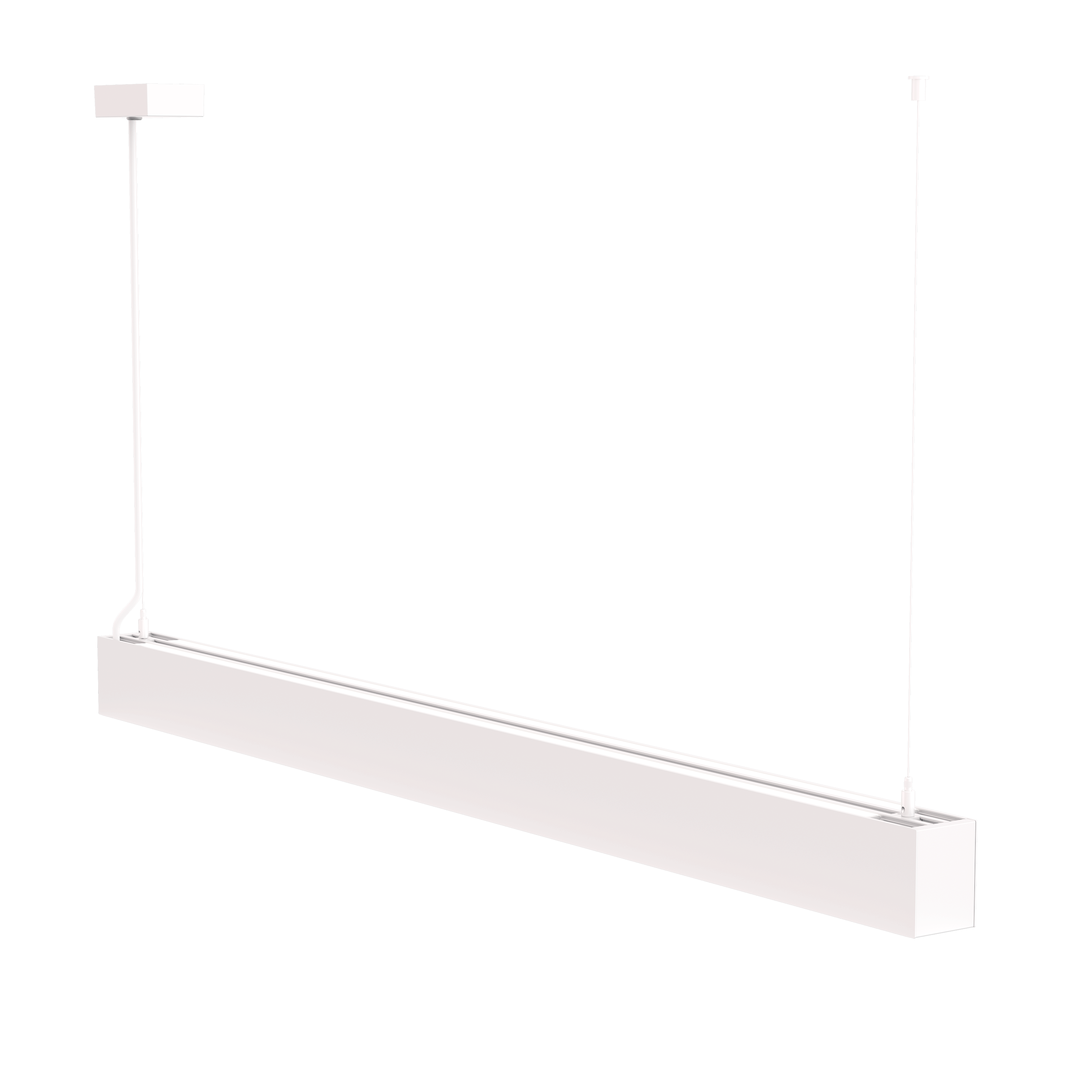

Sensor detection range

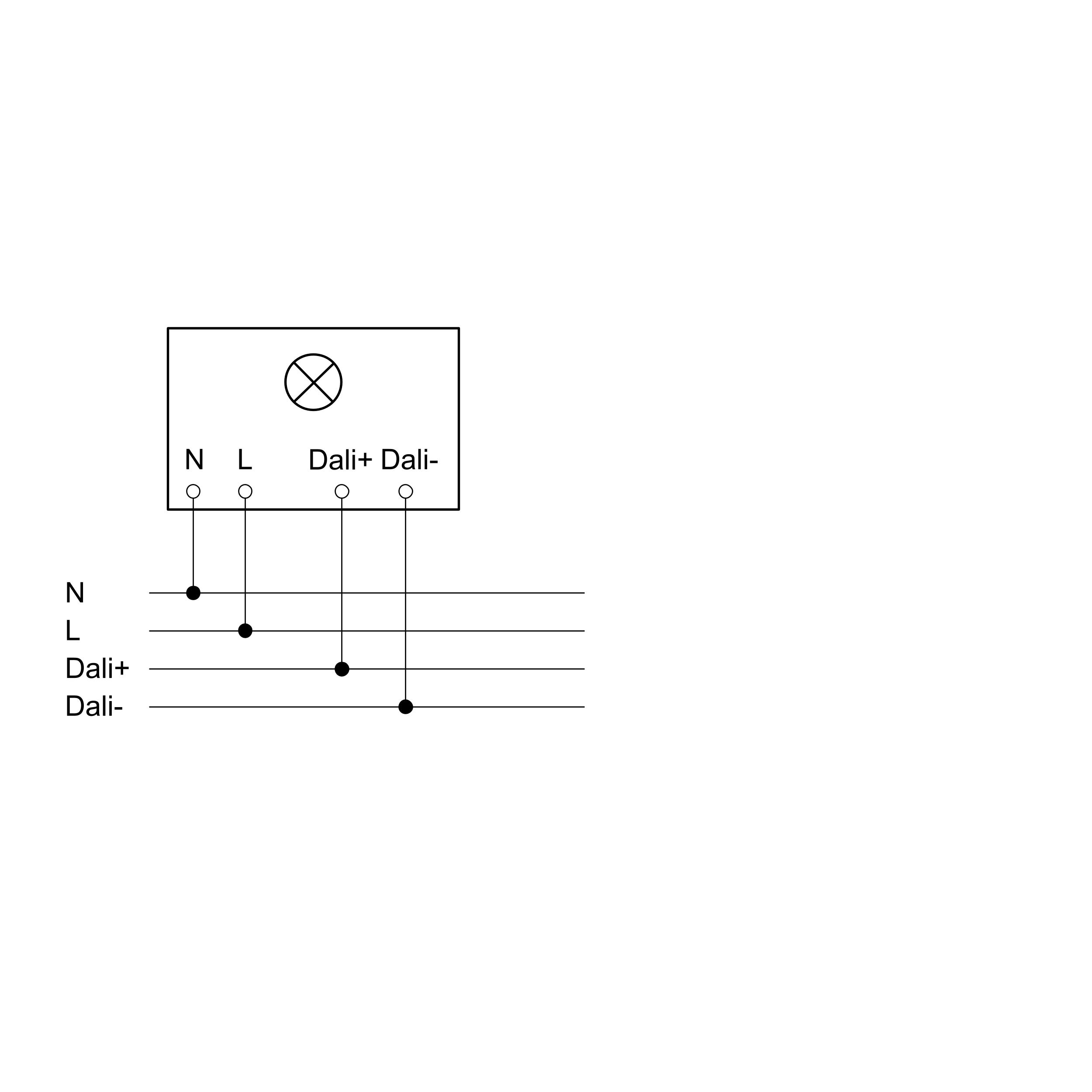

Wiring diagram 1
Wiring diagram

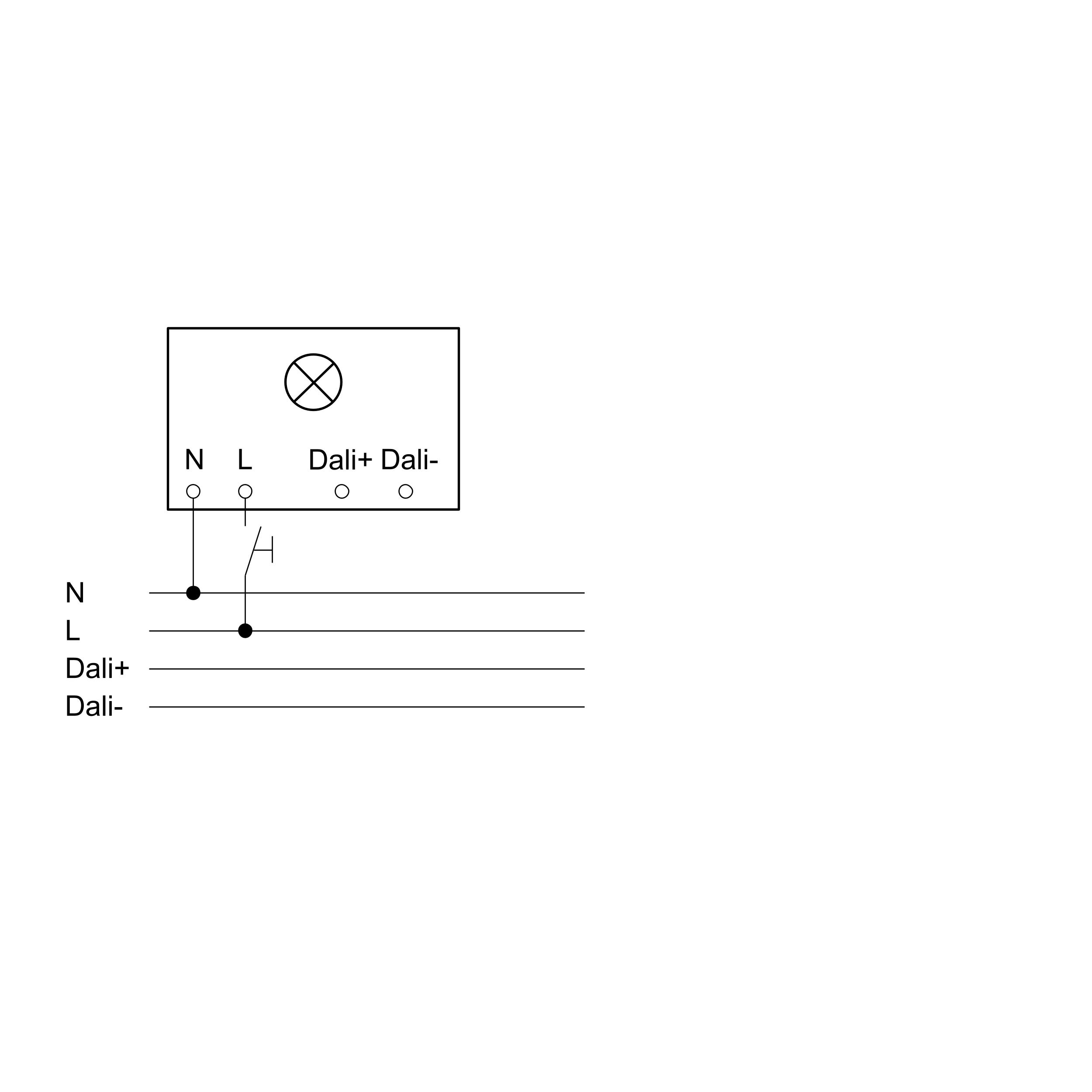

Wiring diagram 2
Wiring diagram
